C1735

DTC C1735 EXHAUST SOLENOID VALVE CIRCUIT

CIRCUIT DESCRIPTION

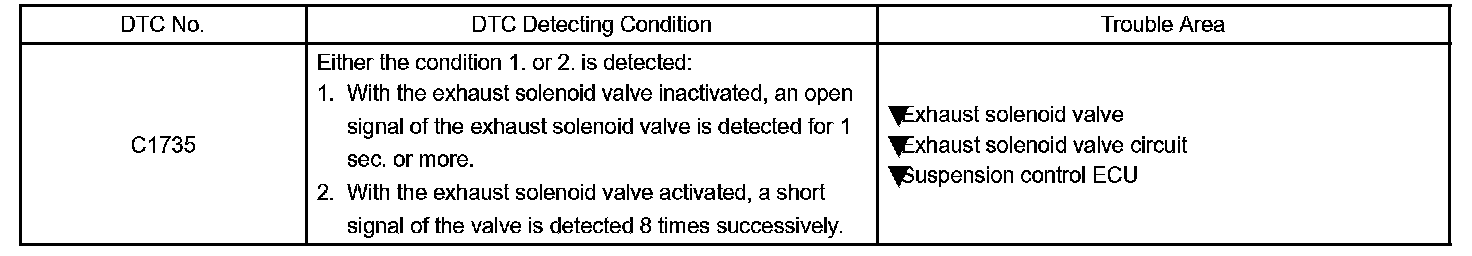

DTC Detecting Condition:

The exhaust solenoid discharges high pressure air from the system by opening the solenoid valve according to the signal from the suspension control ECU.

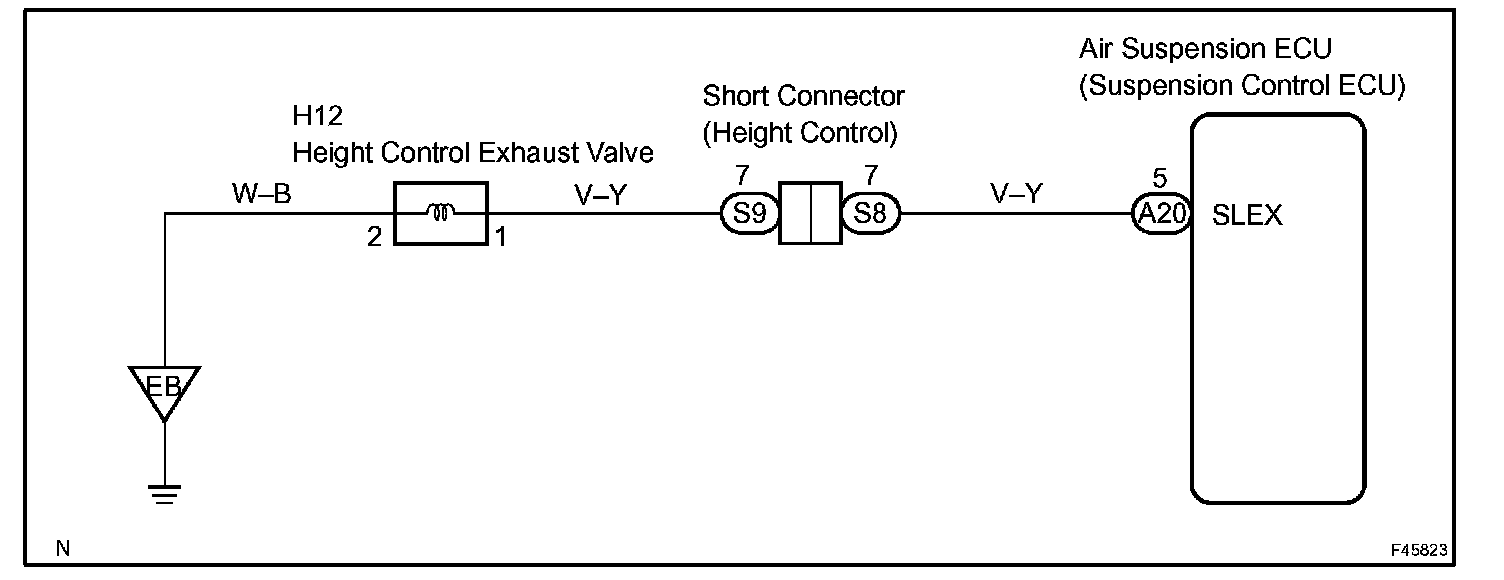

Wiring Diagram:

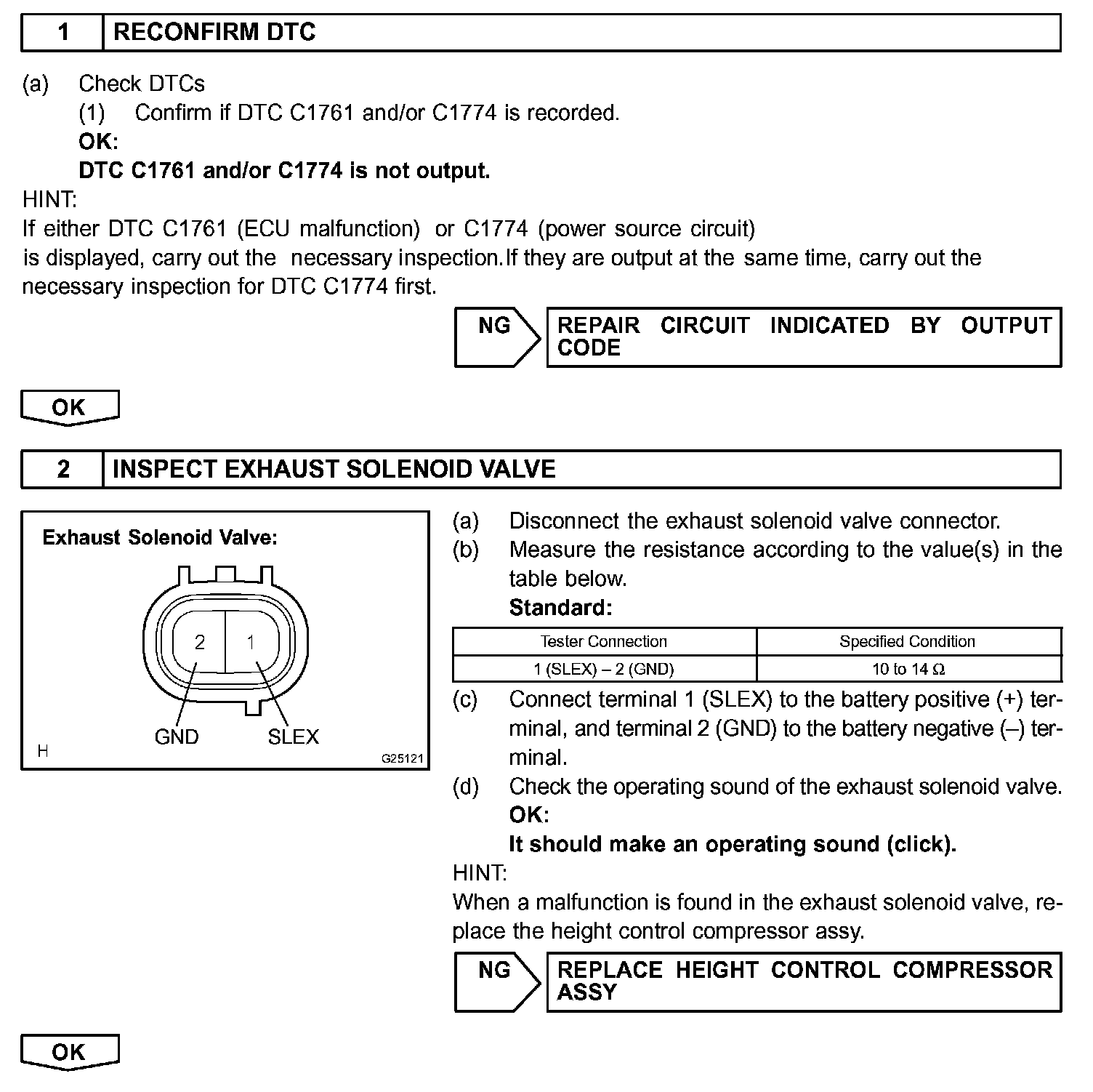

Step 1 - 2:

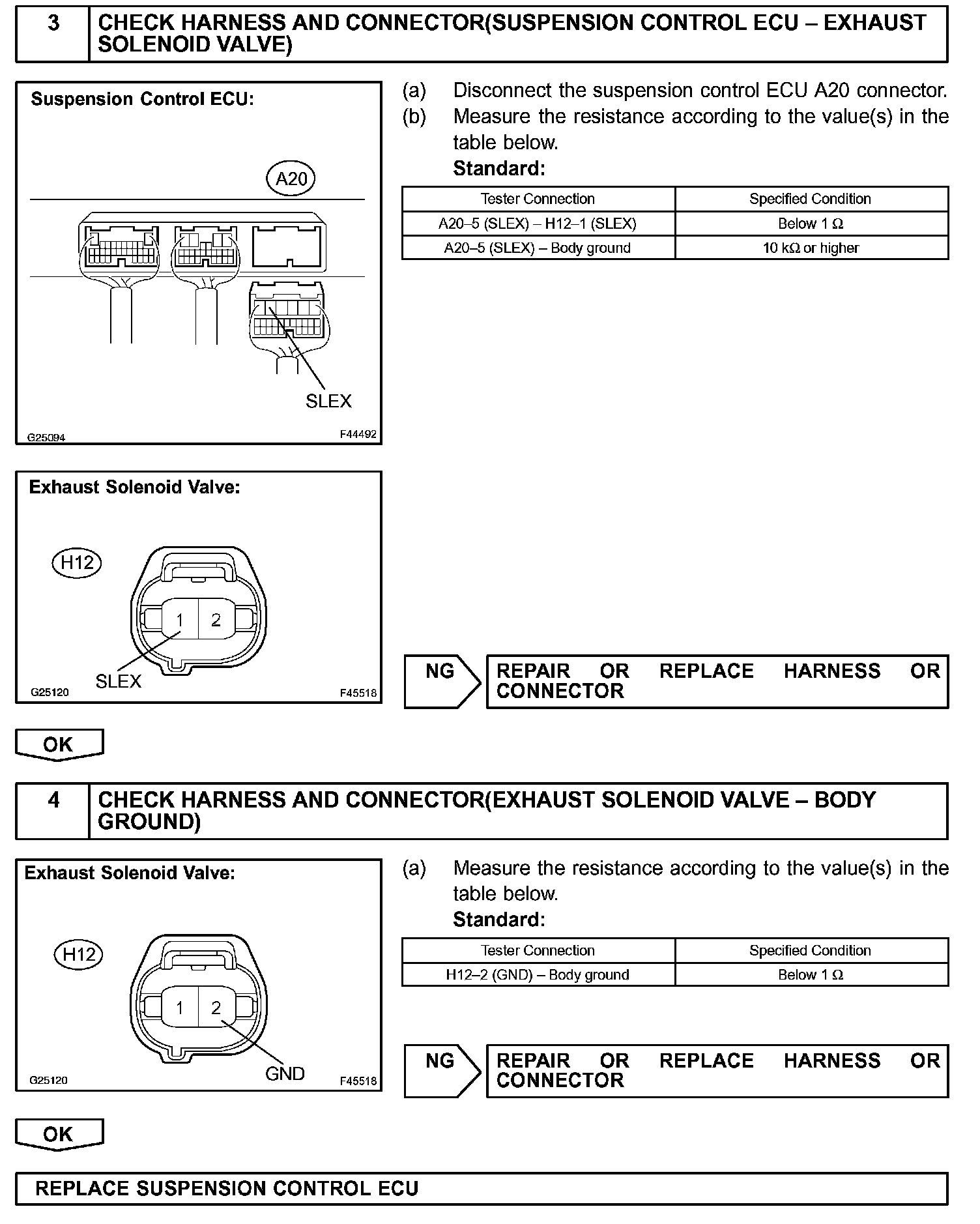

Step 3 - 4:

INSPECTION PROCEDURE
