C1726

DTC C1726 LEFT FRONT ABSORBER CONTROL ACTUATOR CIRCUIT

CIRCUIT DESCRIPTION

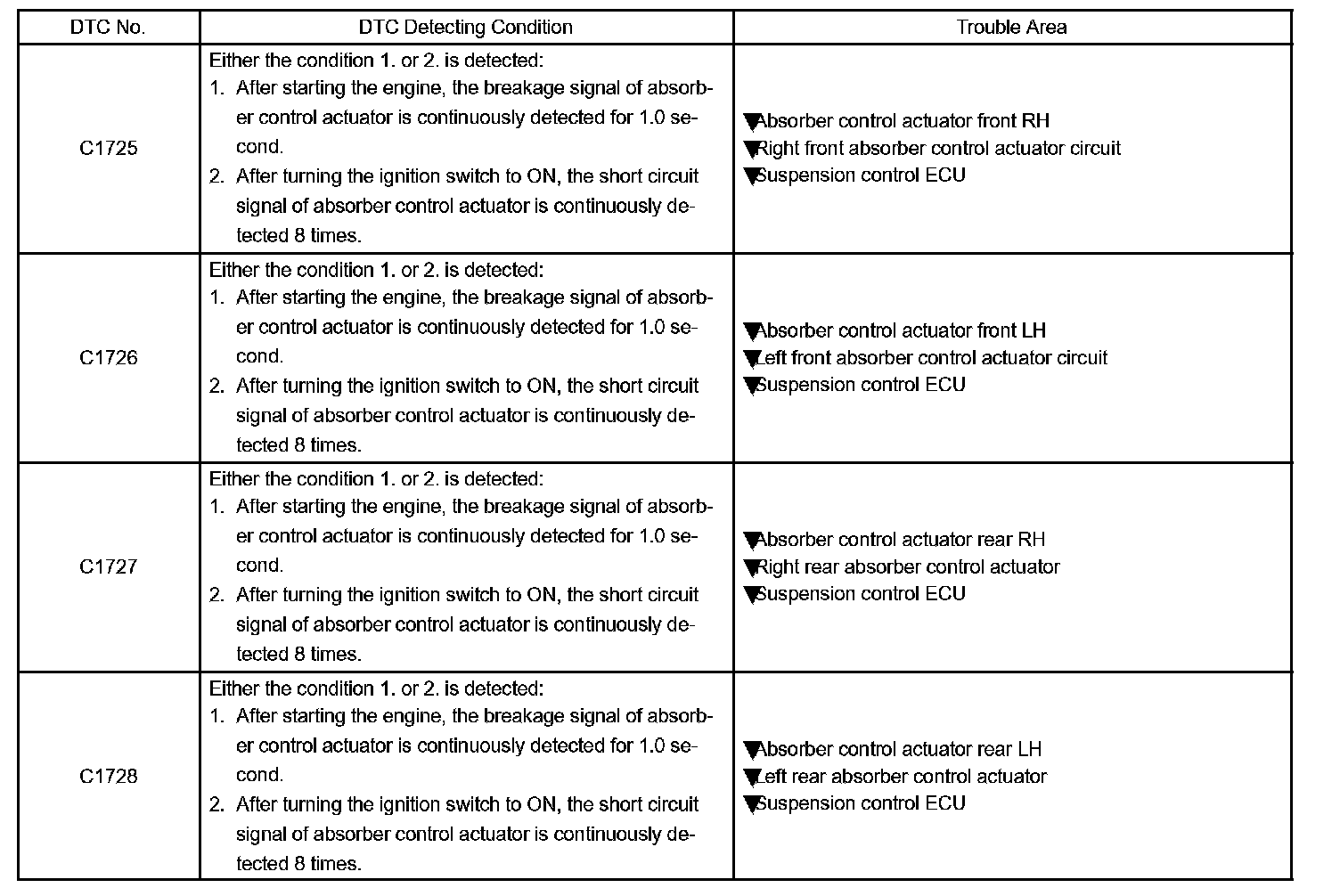

DTC Detecting Condition:

Absorber control actuator switches the damping force depending on the suspension control ECU signals.

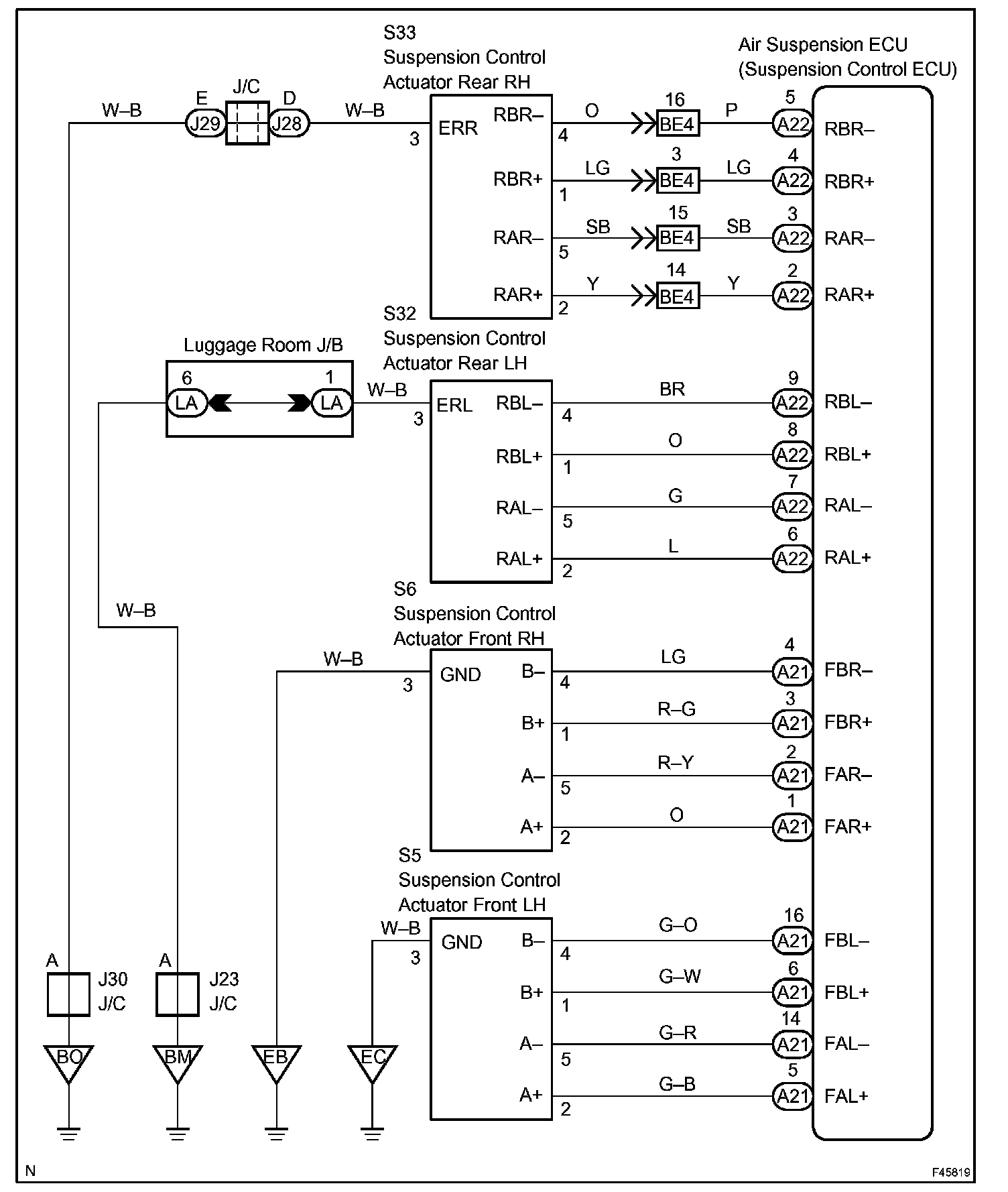

Wiring Diagram:

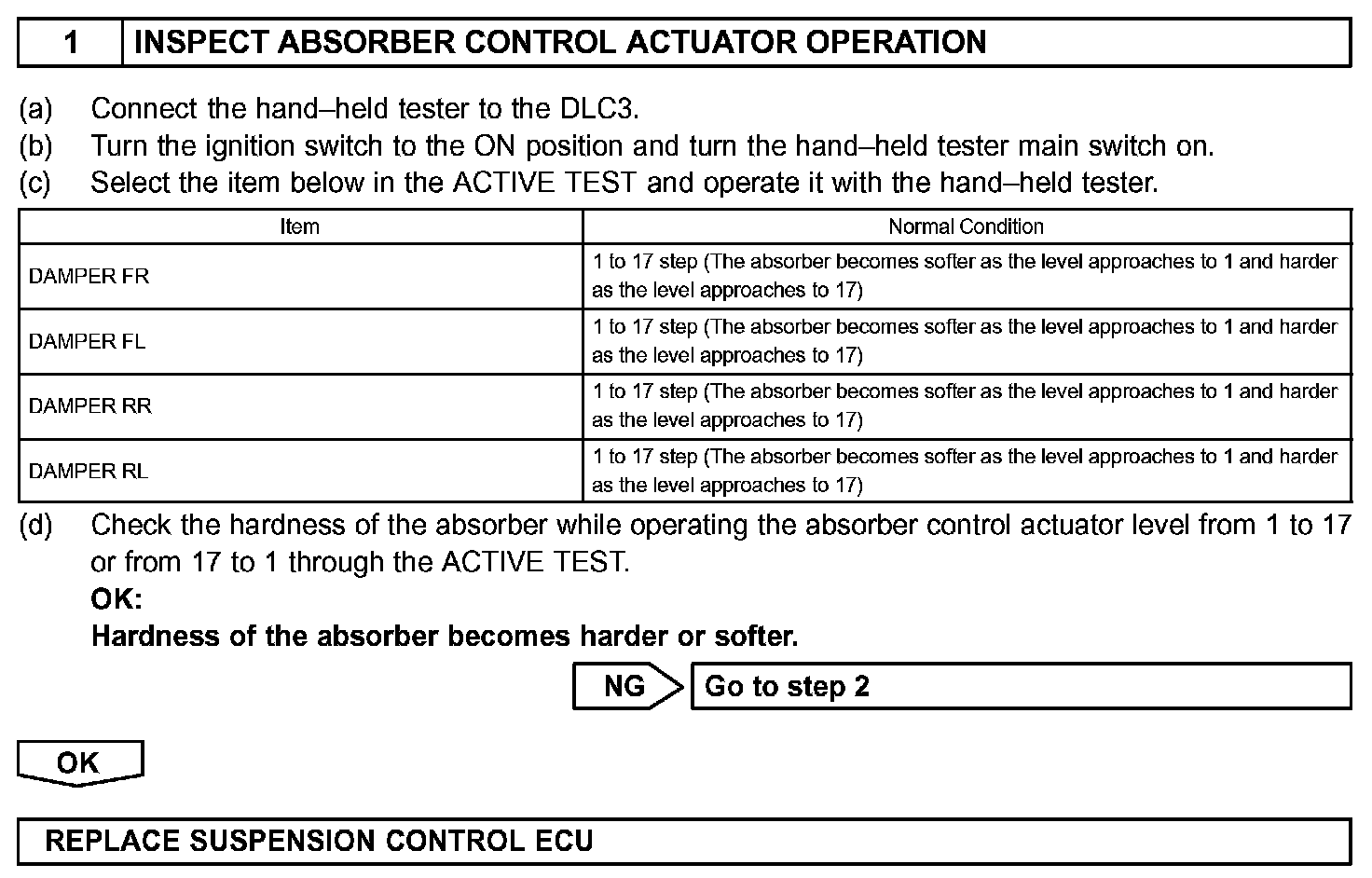

Step 1:

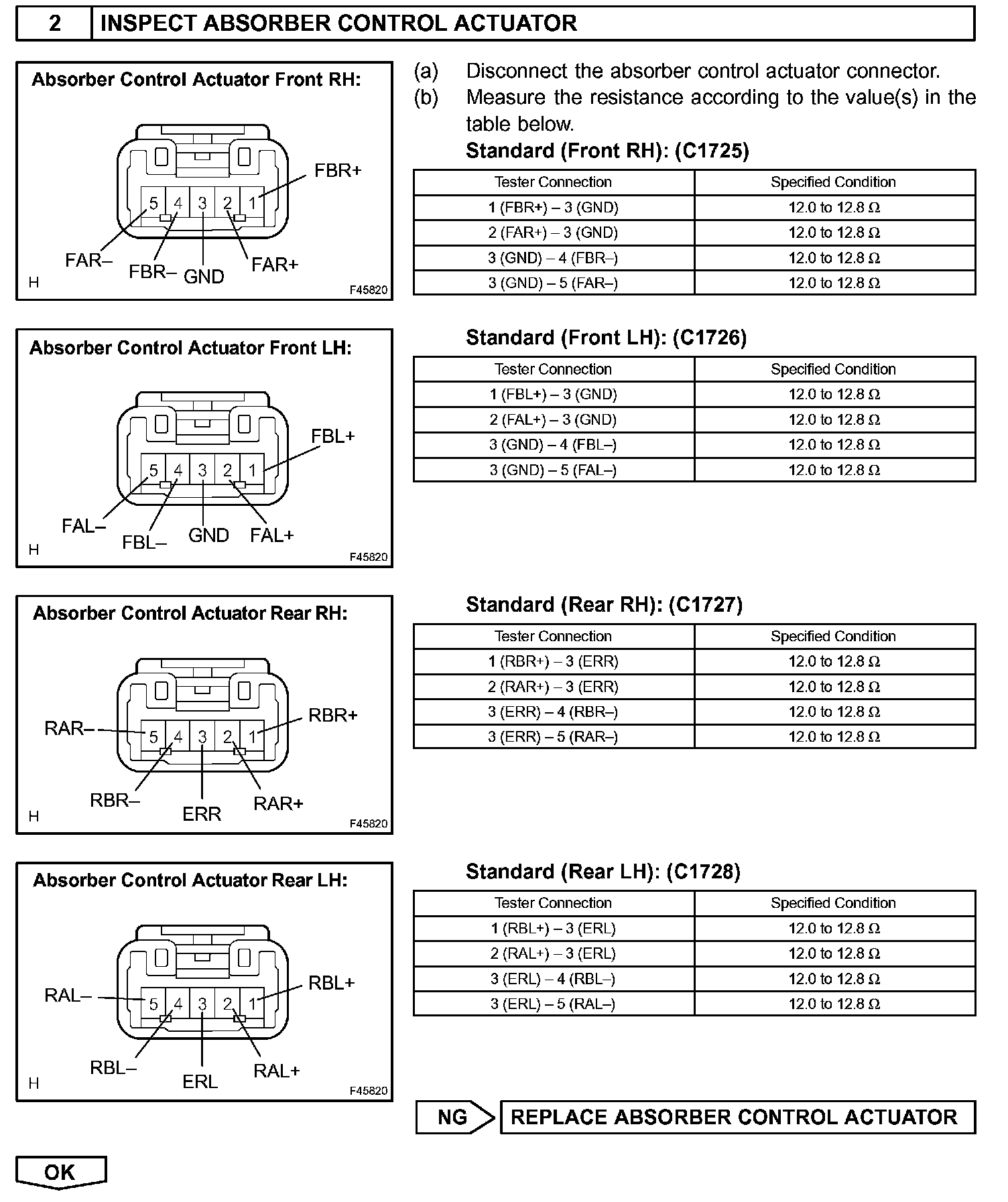

Step 2:

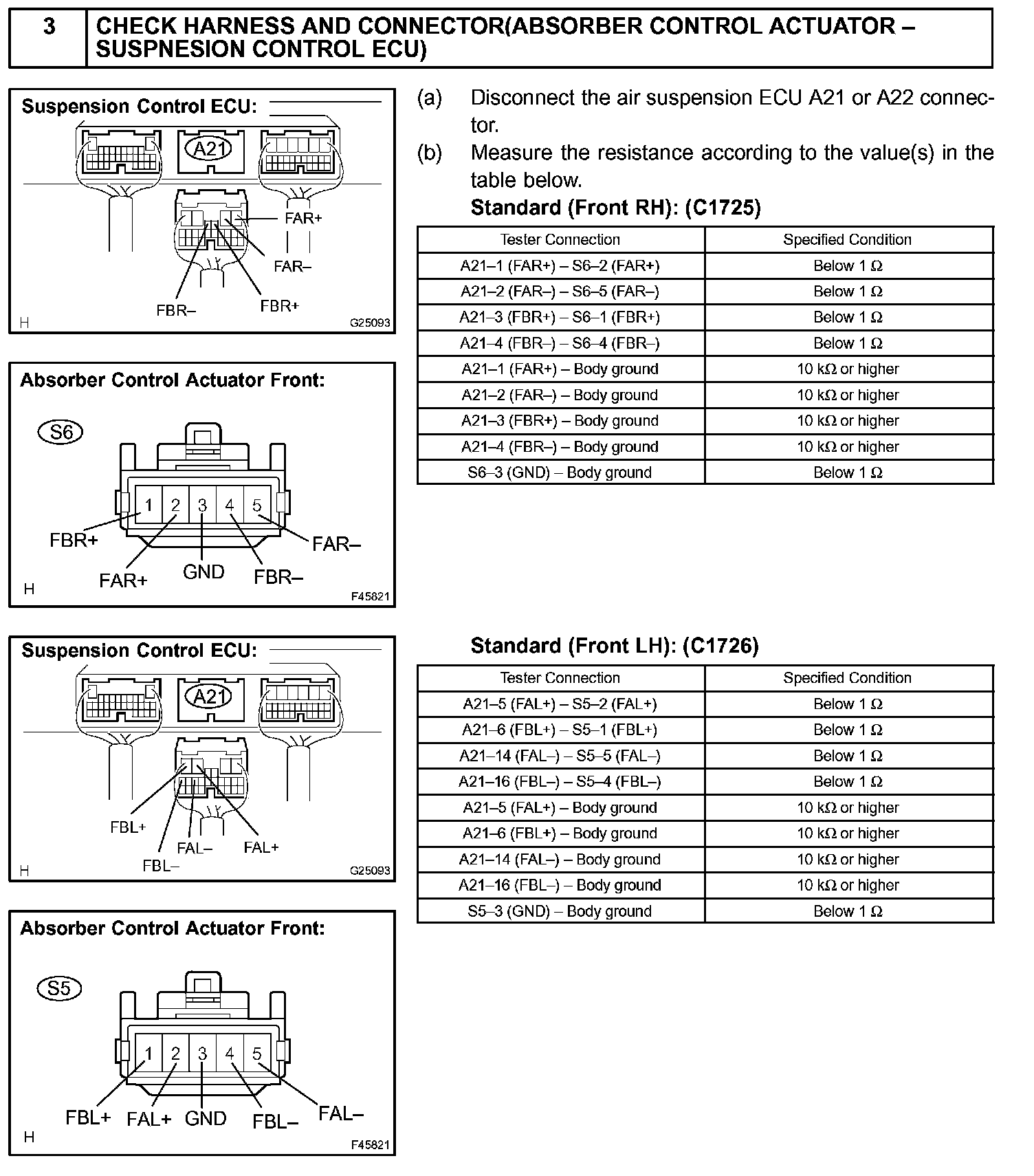

Step 3:

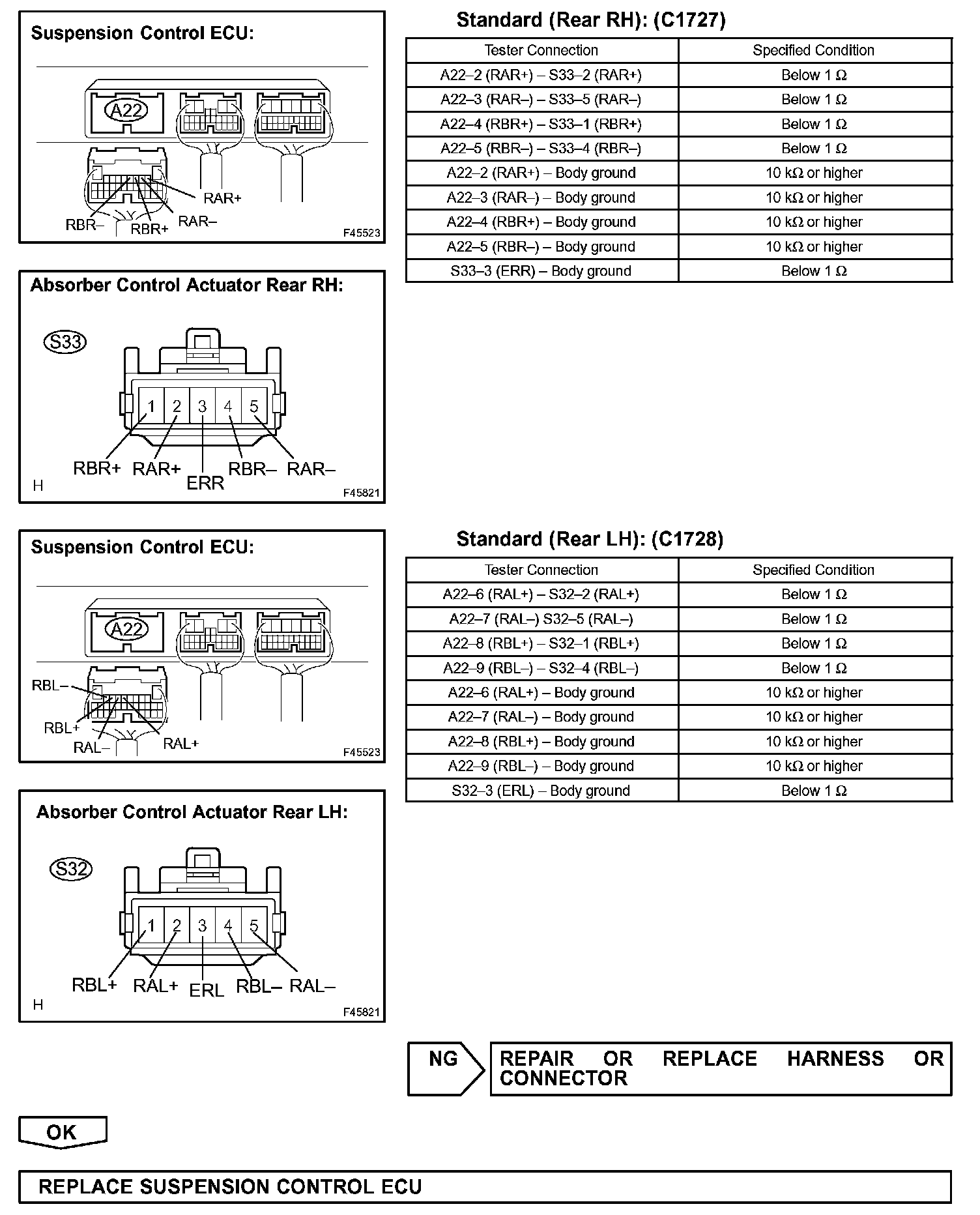

Step 3 (Continued):

INSPECTION PROCEDURE
