C1249

DTC C1249 OPEN CIRCUIT IN STOP LIGHT SWITCH CIRCUIT

CIRCUIT DESCRIPTION

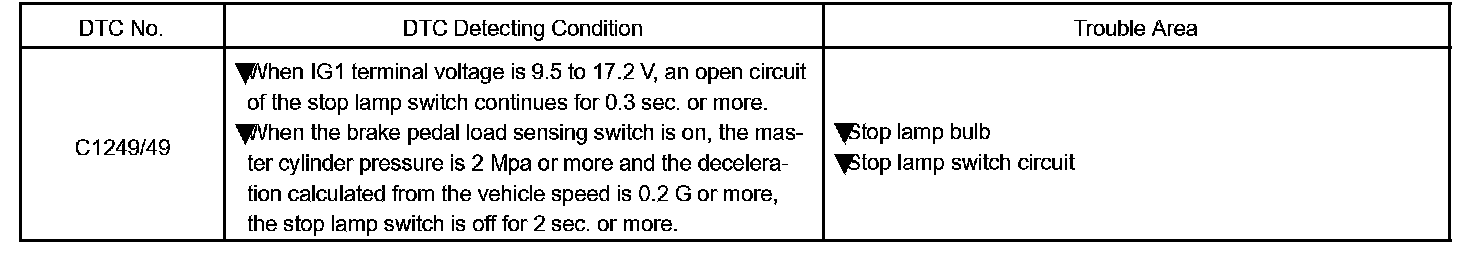

DTC Detecting Condition:

Recognition of brake operation by sending stop lamp signal to skid control ECU.

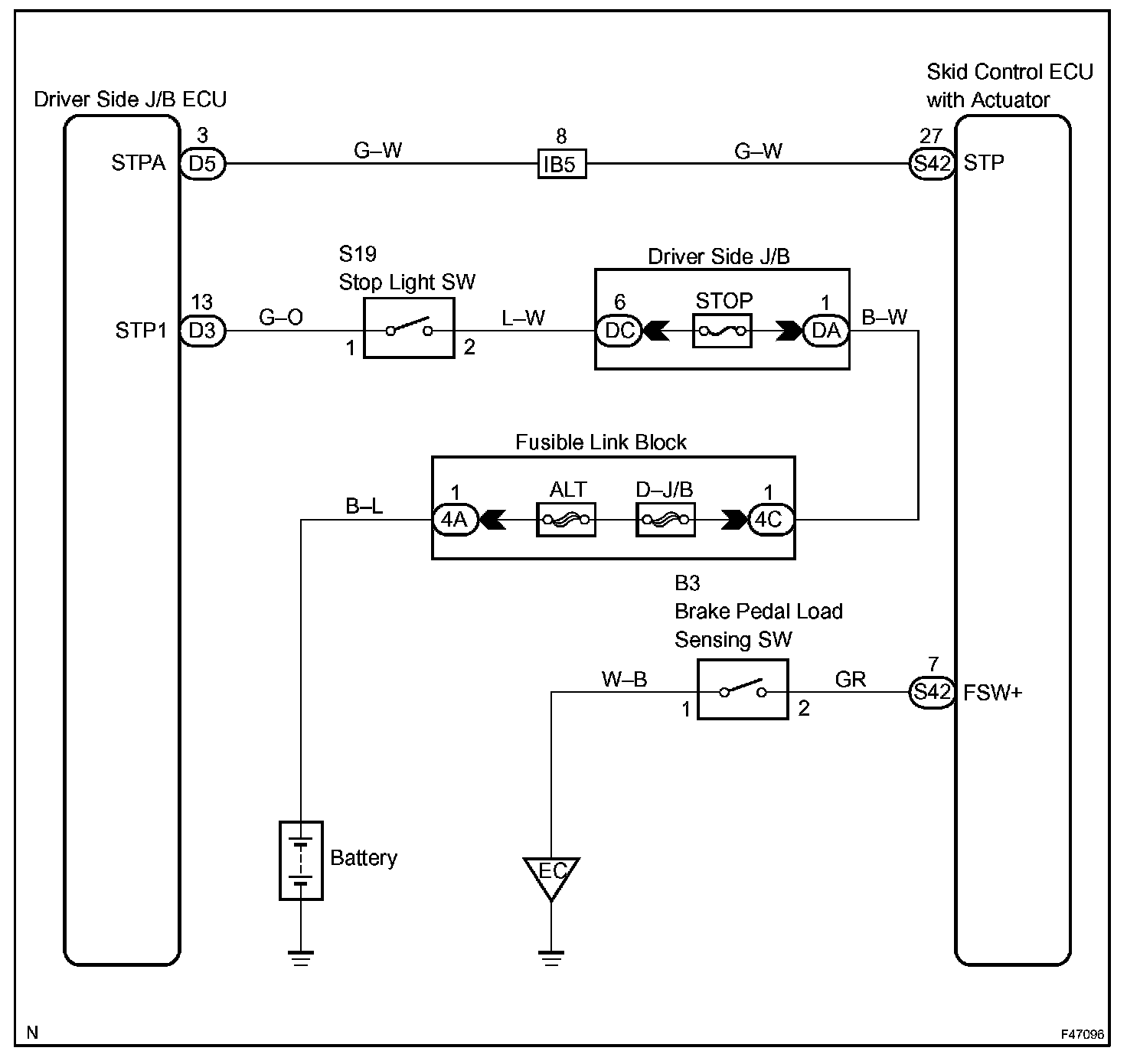

Wiring Diagram:

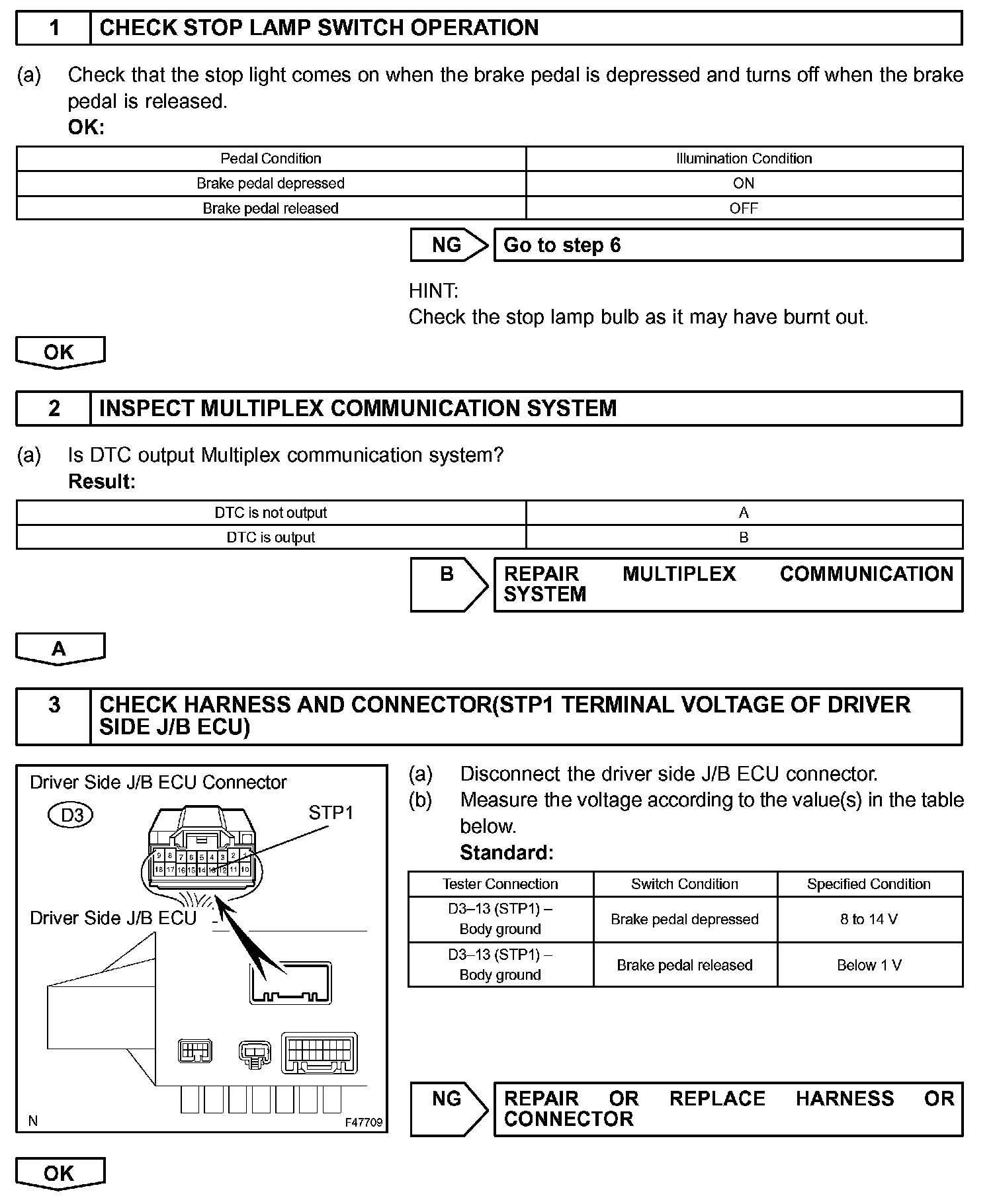

Step 1 - 3:

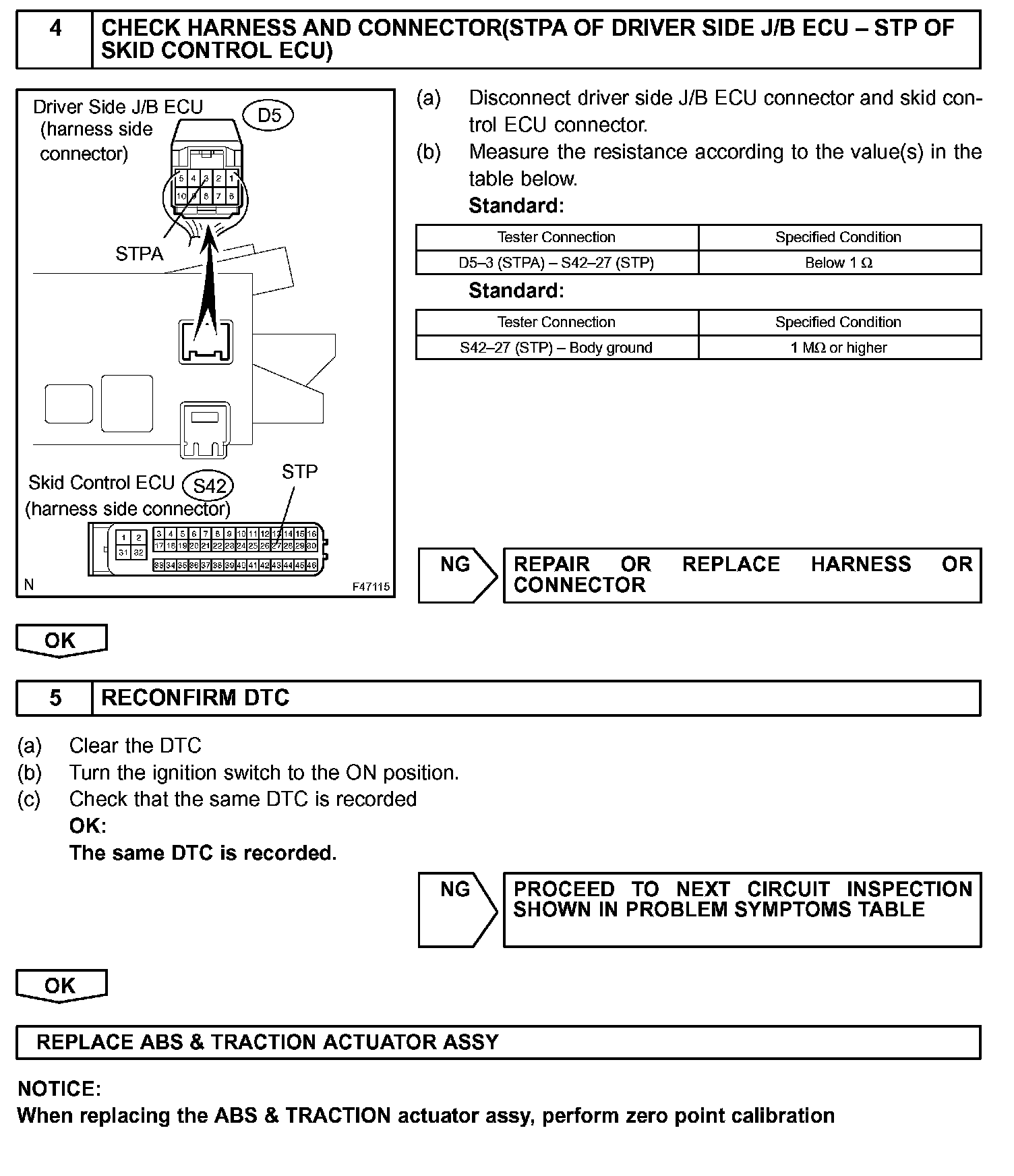

Step 4 - 5:

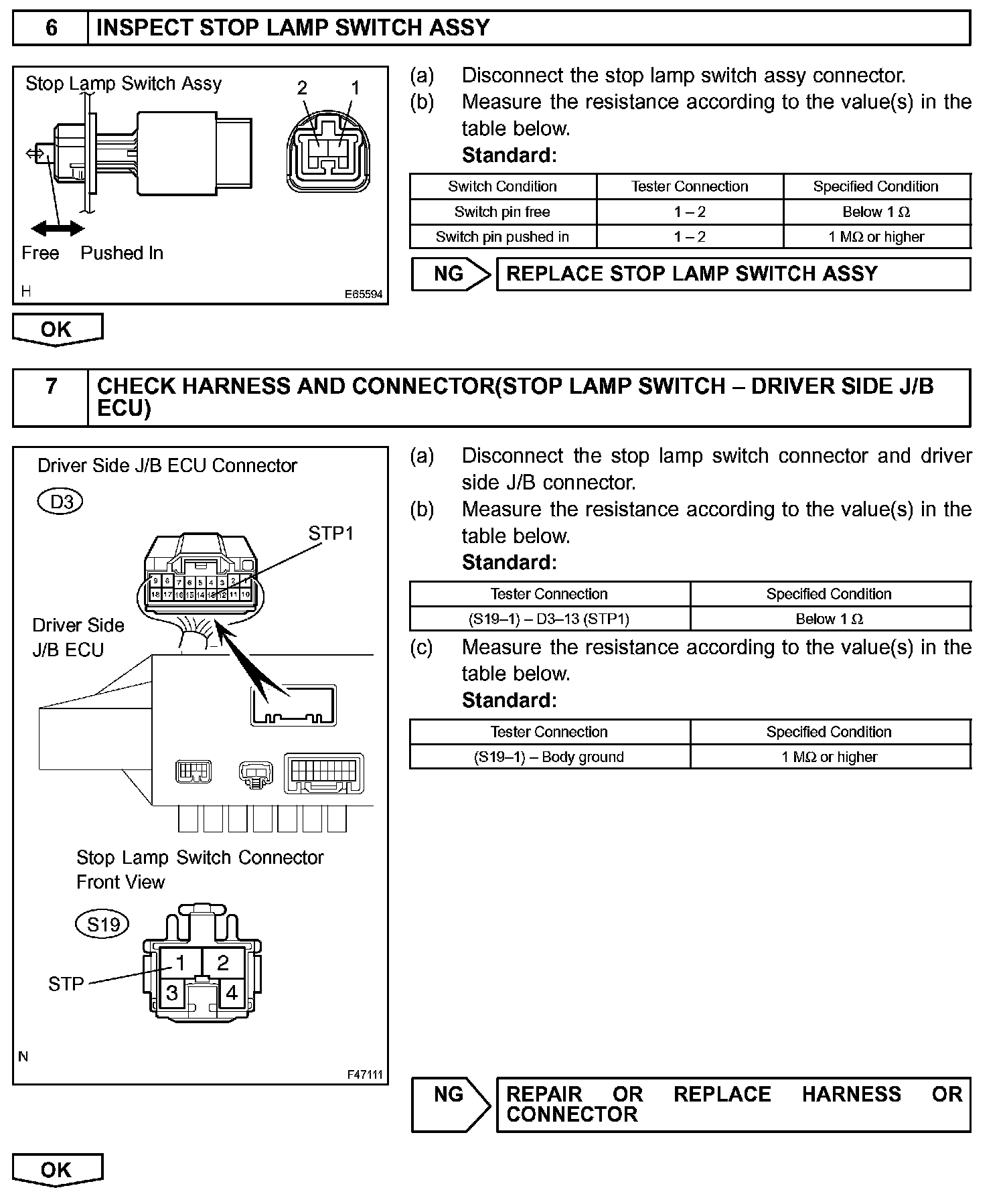

Step 6 - 7:

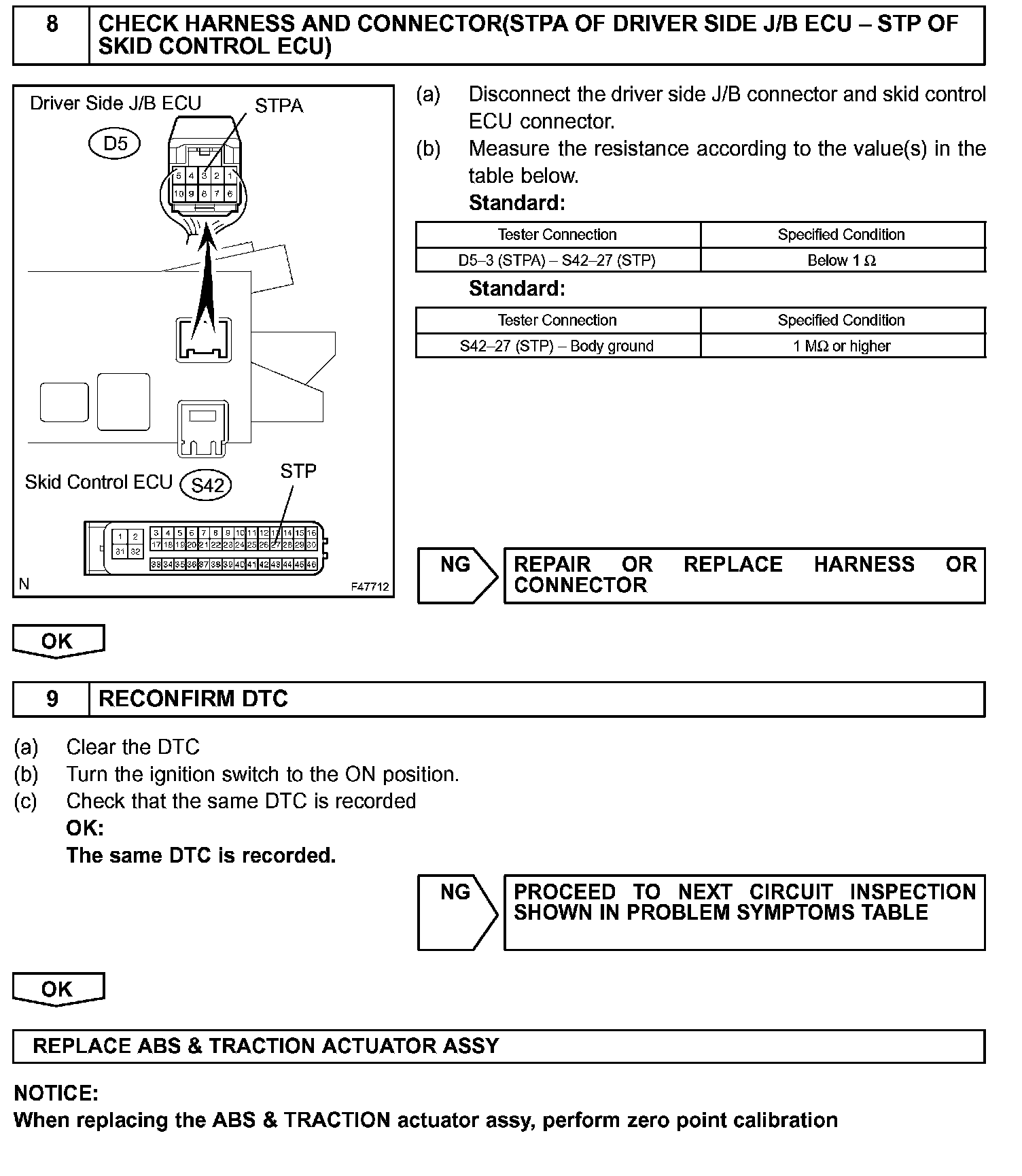

Step 8 - 9:

INSPECTION PROCEDURE
