B2799 - Engine Immobilizer System (W/O Smart Key System)

DTC B2799 ENGINE IMMOBILIZER SYSTEM MALFUNCTION

CIRCUIT DESCRIPTION

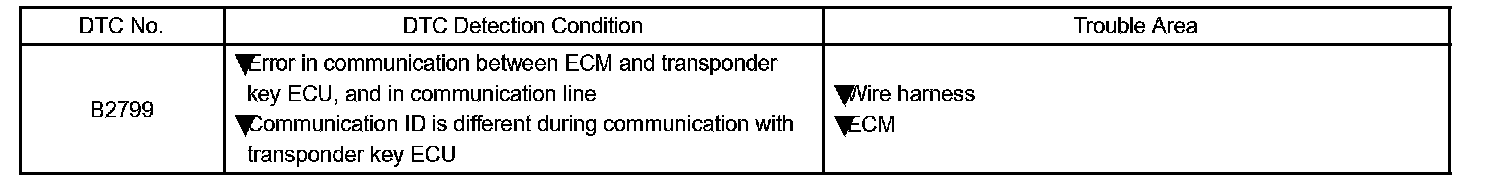

DTC Detection Condition:

This DTC is output when: 1) the ECM detects errors in its own communications with the transponder key ECU; 2) the ECM detects errors in the communication lines; and 3) the ECU communication ID between the transponder key ECU and the ECM are different and an engine start is attempted.

Before troubleshooting for this DTC, make sure no transponder key ECU DTCs are present. If the transponder key ECU has a key code related DTC, repair it first.

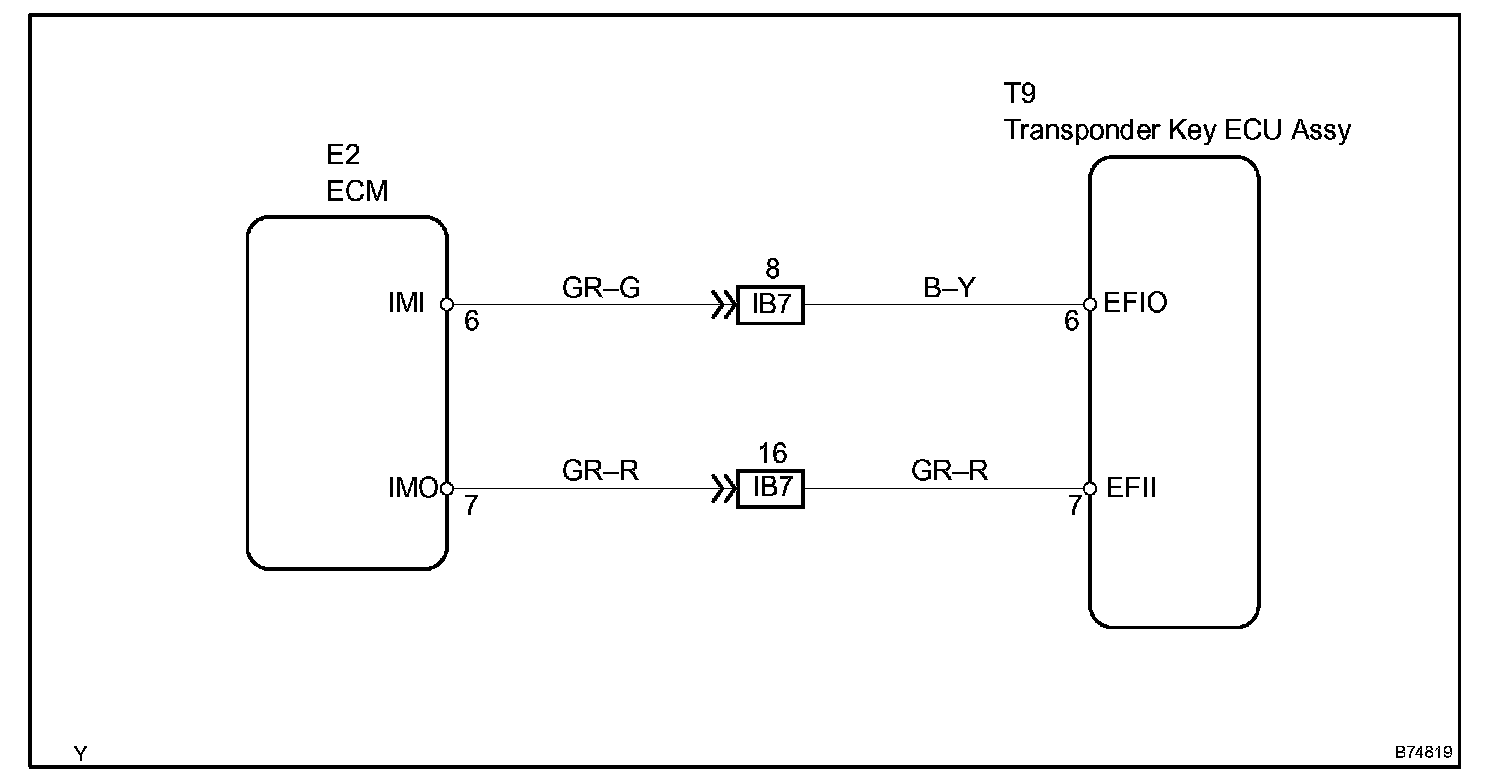

Wiring Diagram:

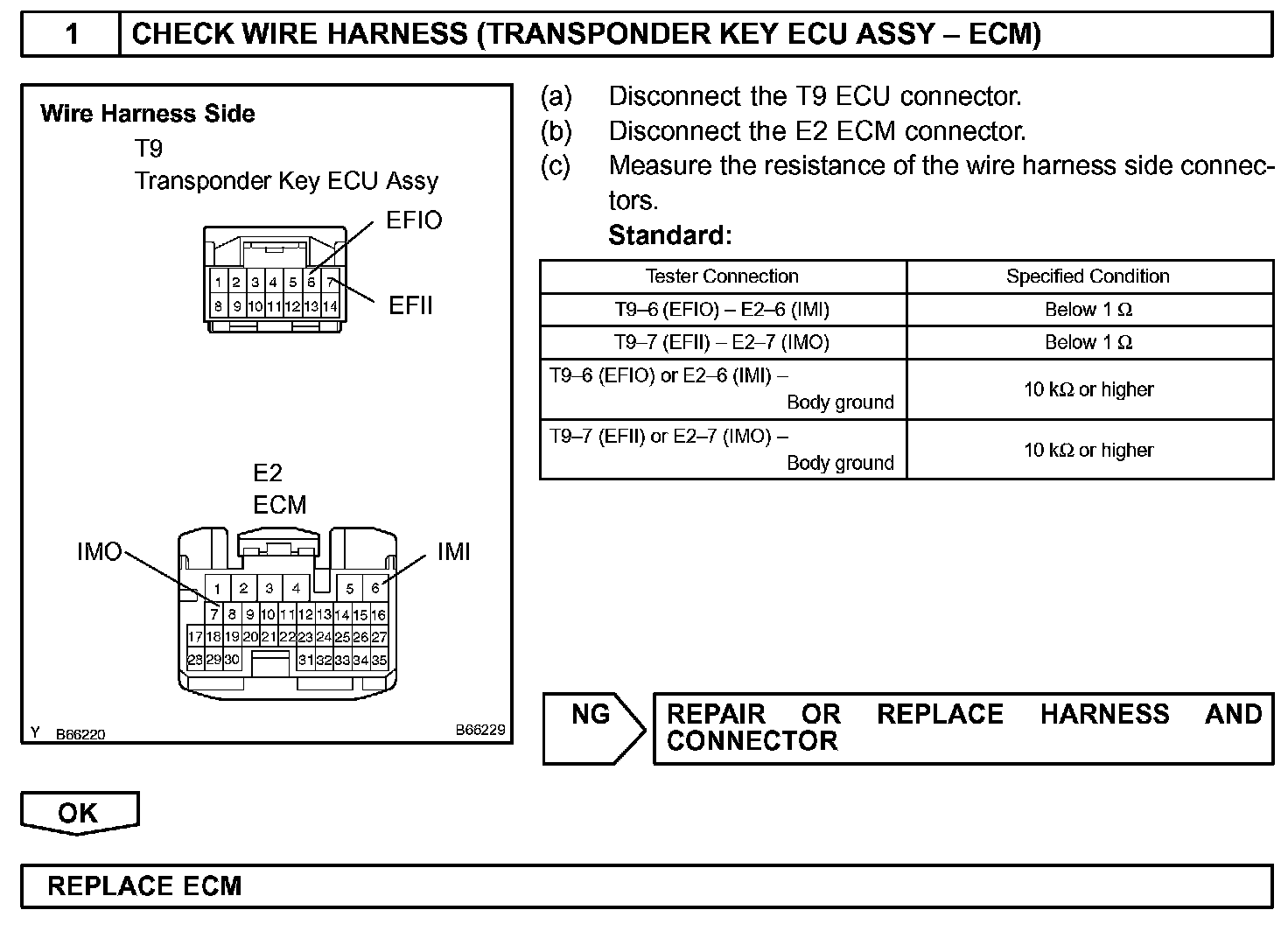

Step 1:

INSPECTION PROCEDURE
