B2798 - Steering Lock System

DTC B2798 COMMUNICATION MALFUNCTION NO.2

CIRCUIT DESCRIPTION

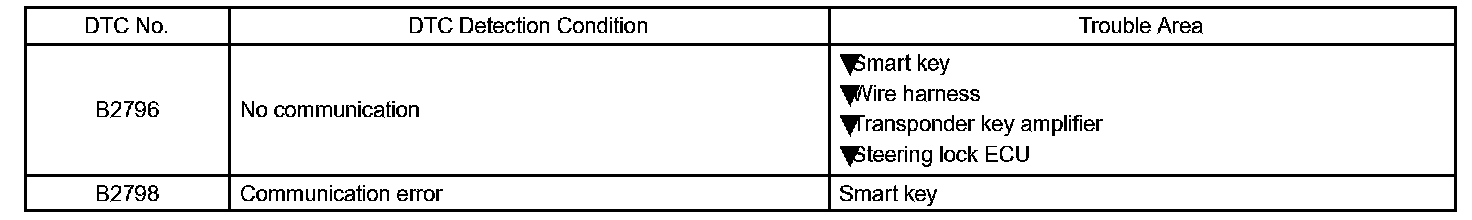

DTC Detection Condition:

This DTC is output when a key that does not have a transponder chip is inserted into the ignition key cylinder or if communication between the key and steering lock ECU is not possible.

Wiring Diagram:

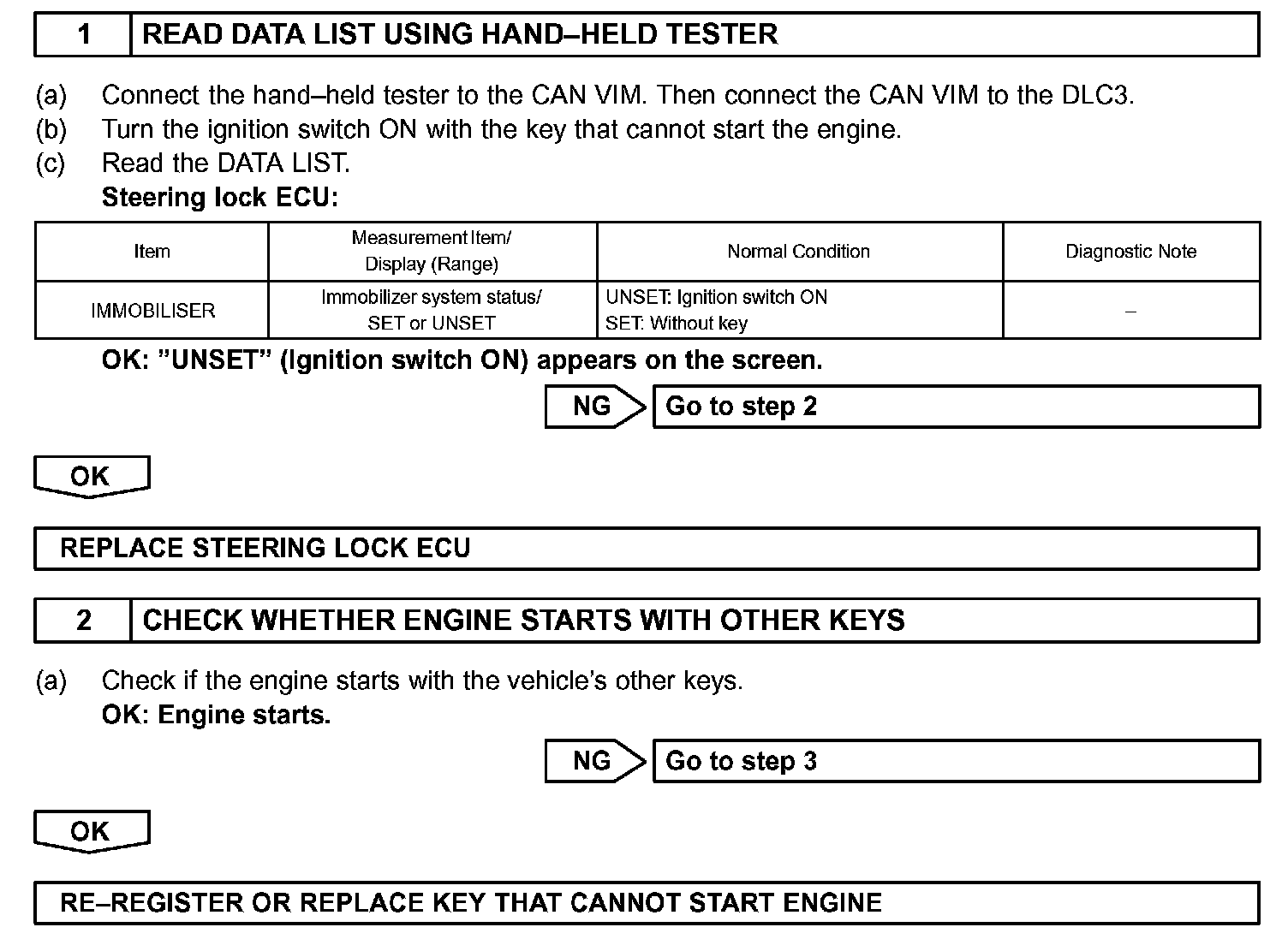

Step 1 - 2:

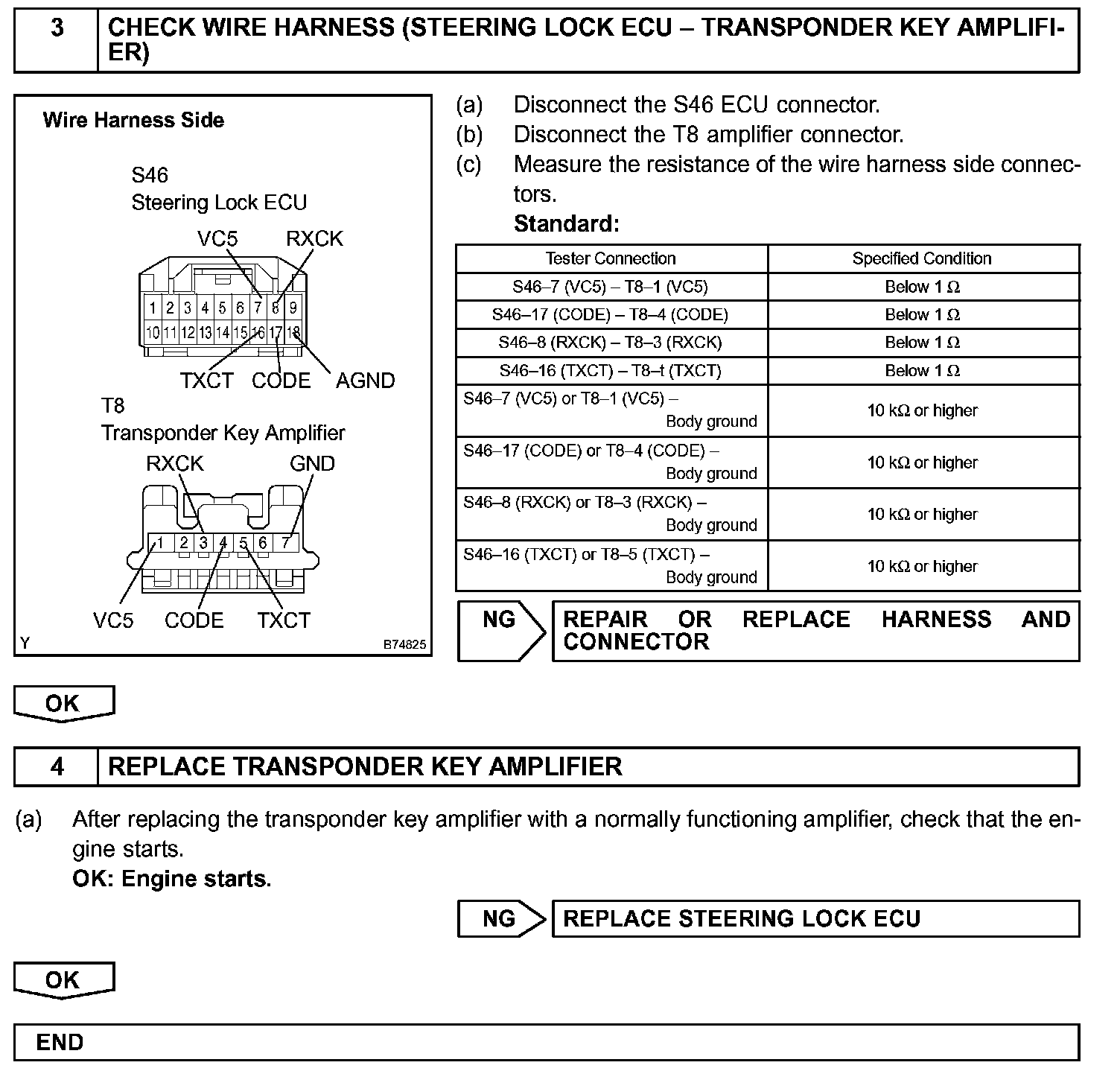

Step 3 - 4:

INSPECTION PROCEDURE
