B2796 - Steering Lock System

DTC B2797 COMMUNICATION MALFUNCTION NO.1

CIRCUIT DESCRIPTION

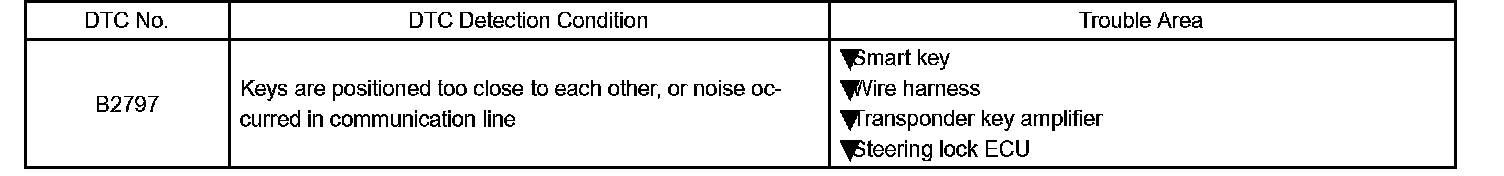

DTC Detection Condition:

This DTC is output when a communication error occurs between the transponder key amplifier and steering lock ECU. Some possible reasons for the communication error are: 1) 2 or more smart keys are positioned too close together, or 2) noise is occurring in the communication line. Follow the inspection procedure.

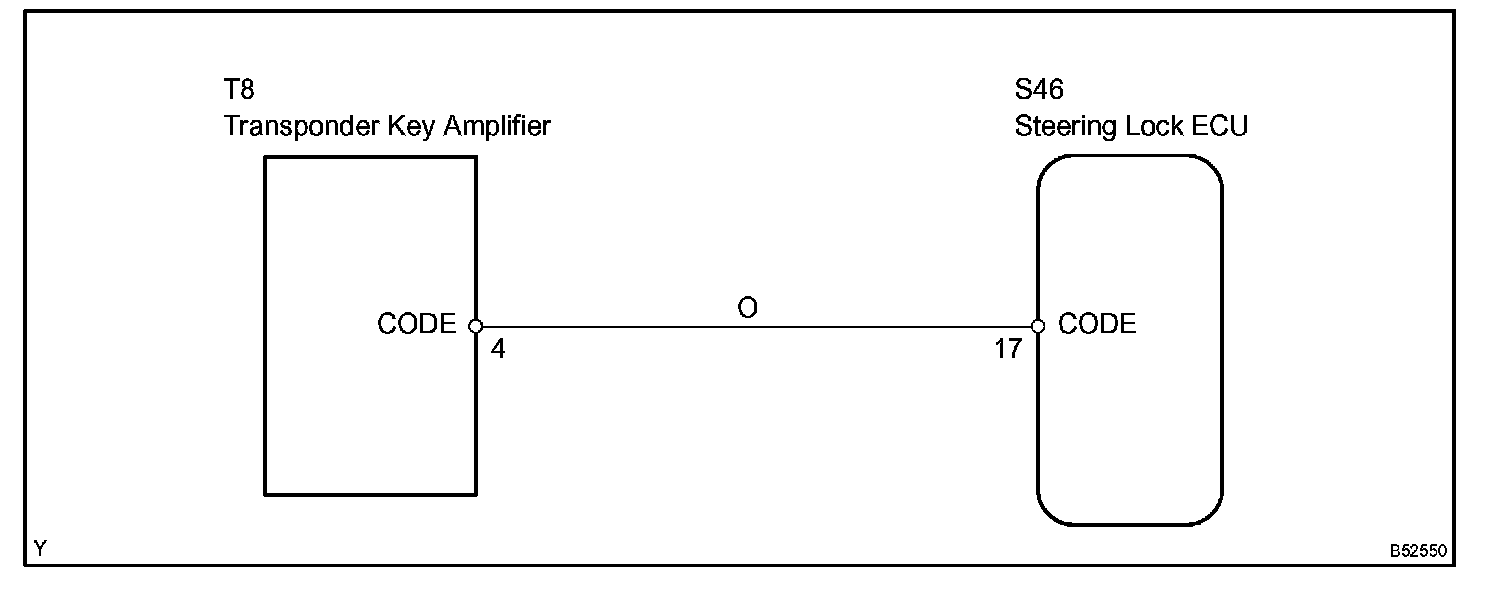

Wiring Diagram:

Step 1 - 3:

Step 4 - 5:

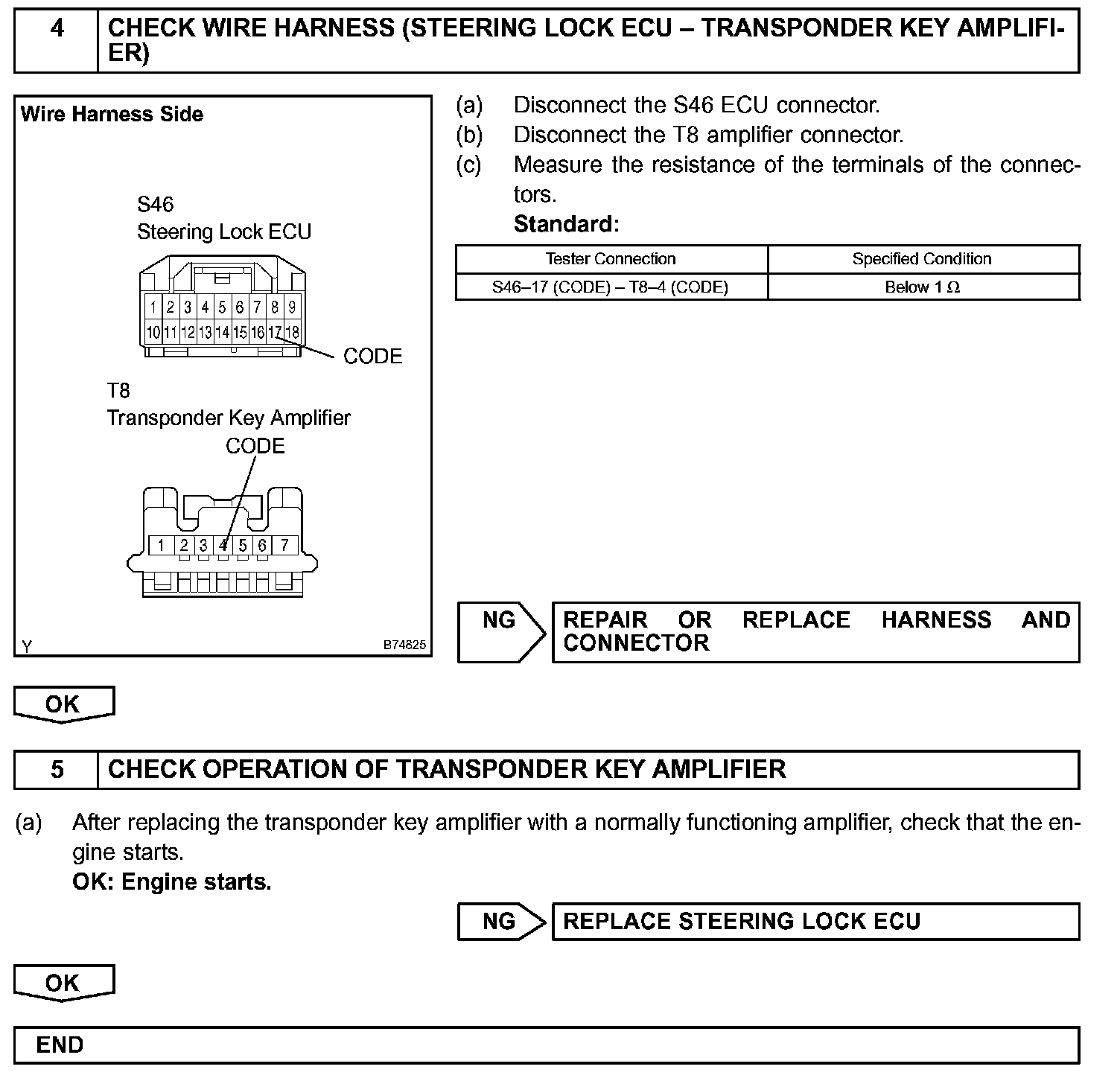

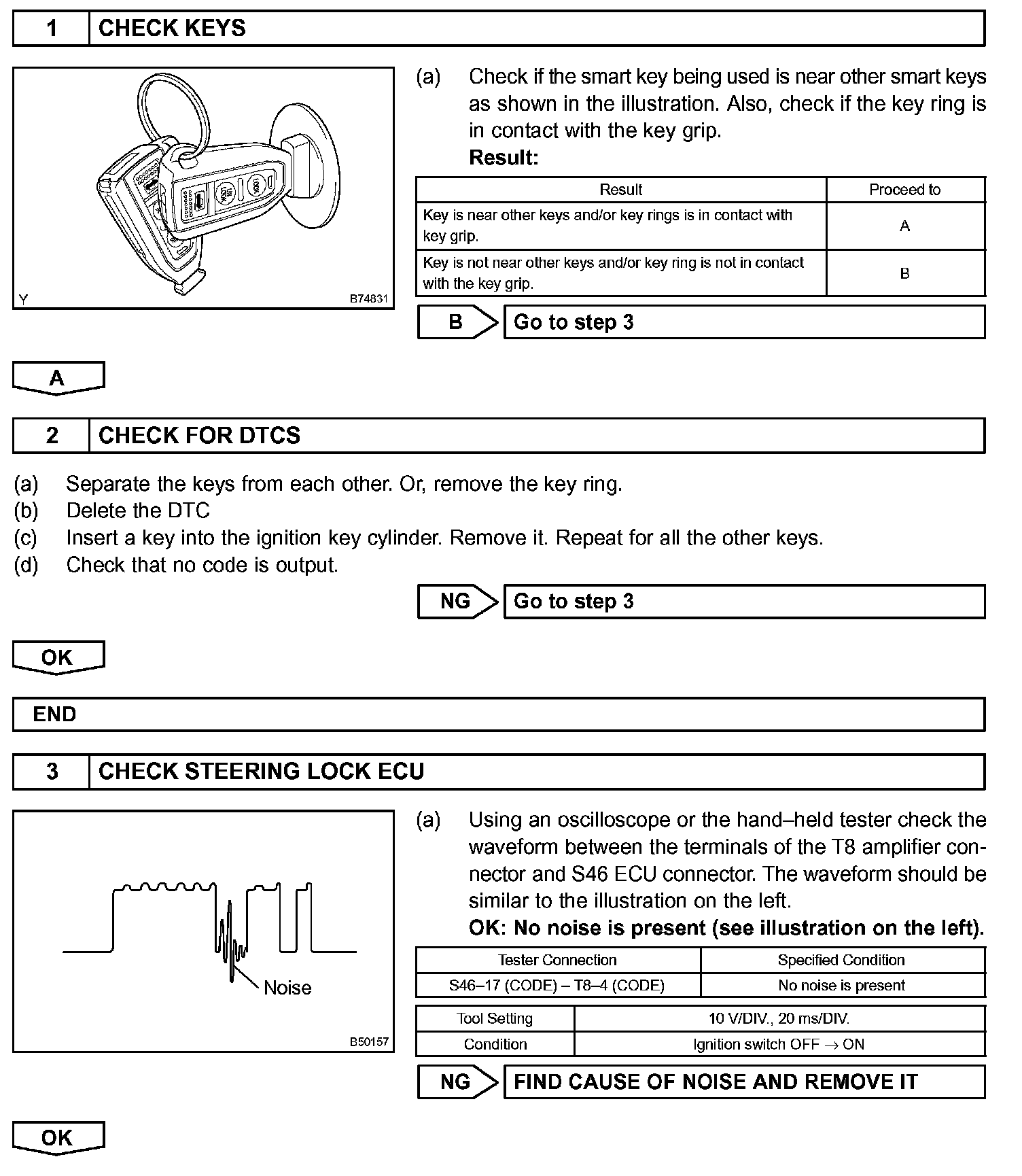

INSPECTION PROCEDURE
