B2793 - Engine Immobilizer System (W/O Smart Key System)

DTC B2793 TRANSPONDER CHIP MALFUNCTION

CIRCUIT DESCRIPTION

DTC Detection Condition:

This DTC is output when: 1) during the key code registration, a key malfunction occurs; or 2) the key code was unable to be registered properly. Follow the inspection procedure.

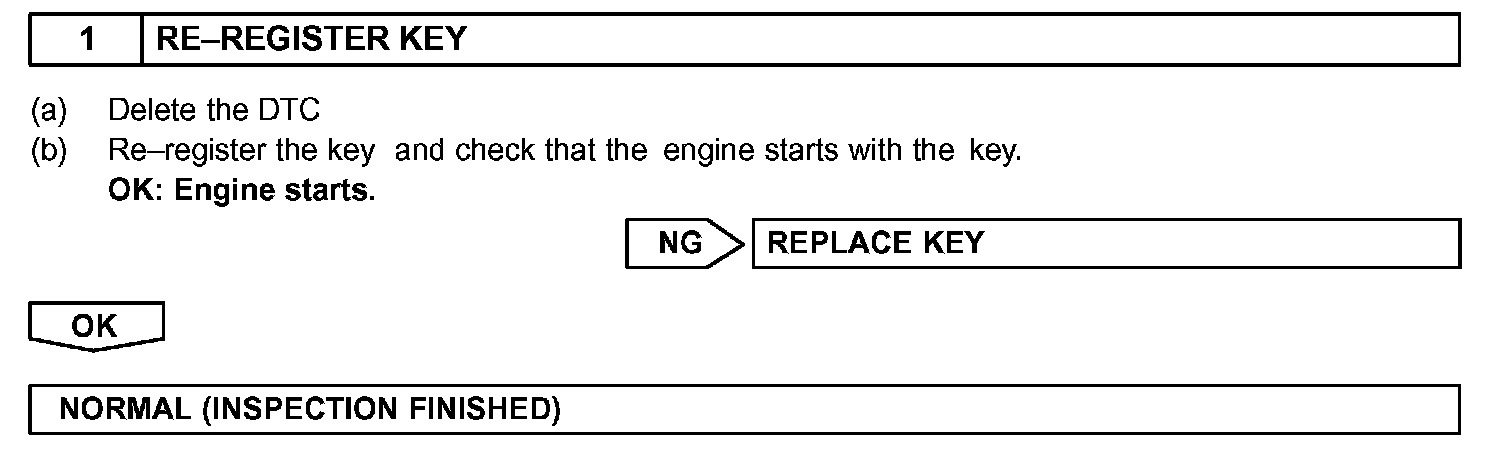

Step 1:

INSPECTION PROCEDURE
