B2621

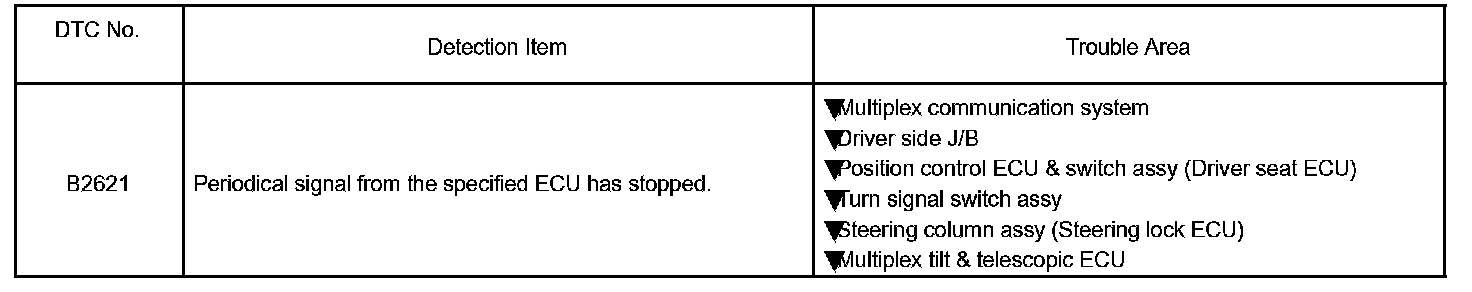

DTC B2621 COMMUNICATION INTERRUPTION

CIRCUIT DESCRIPTION

Detection Item:

The multiplex tilt & telescopic ECU forms a network with the ECUs of other systems through the communication bus. Each ECU informs the other ECUs that it connects to the network with by outputting a specified signal (periodical signal) onto the communication bus on a regular schedule. The multiplex tilt & telescopic ECU detects the connection of each ECU based on the signal.

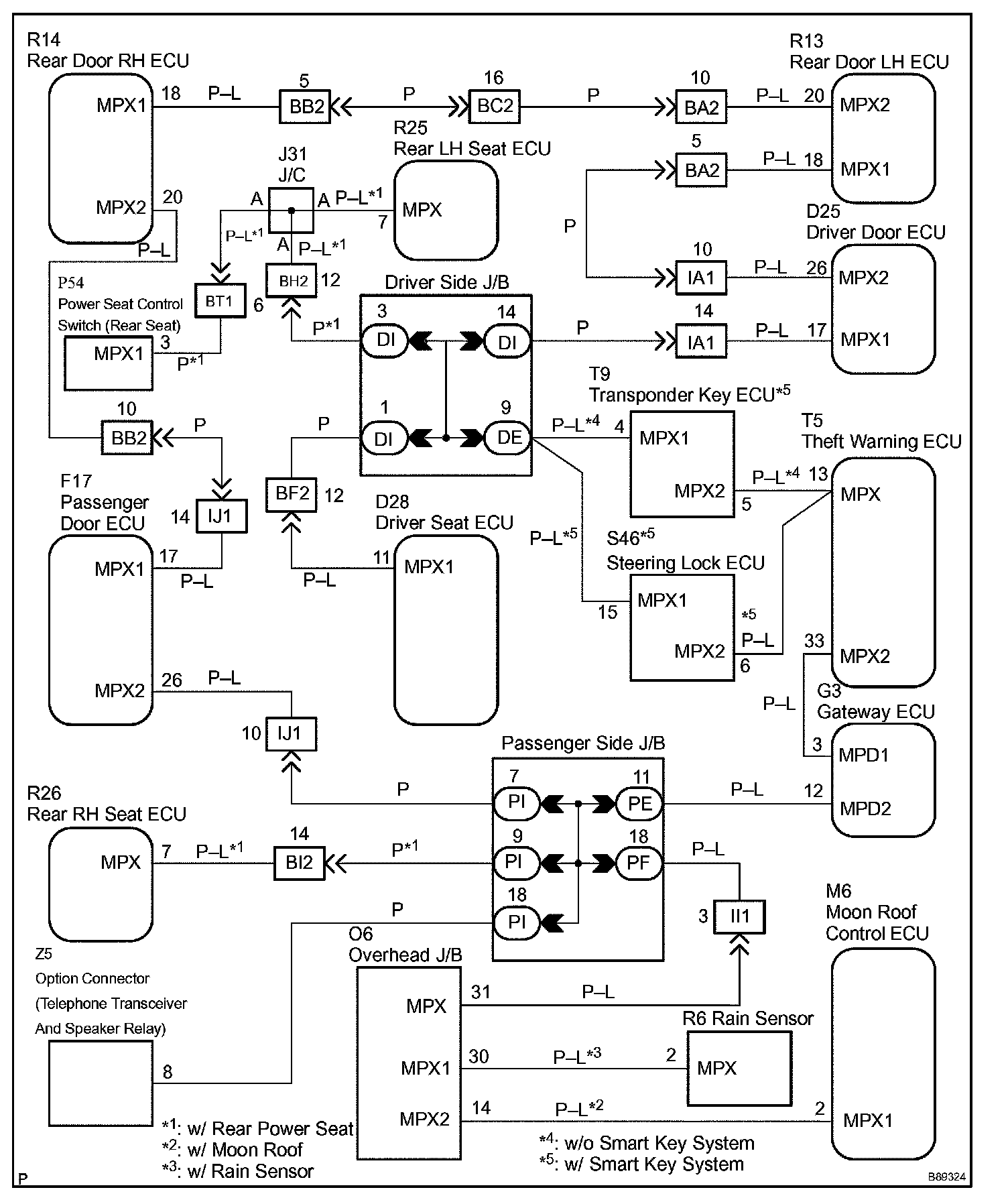

Wiring Diagram:

Wiring Diagram:

Step 1:

Step 2 - 4:

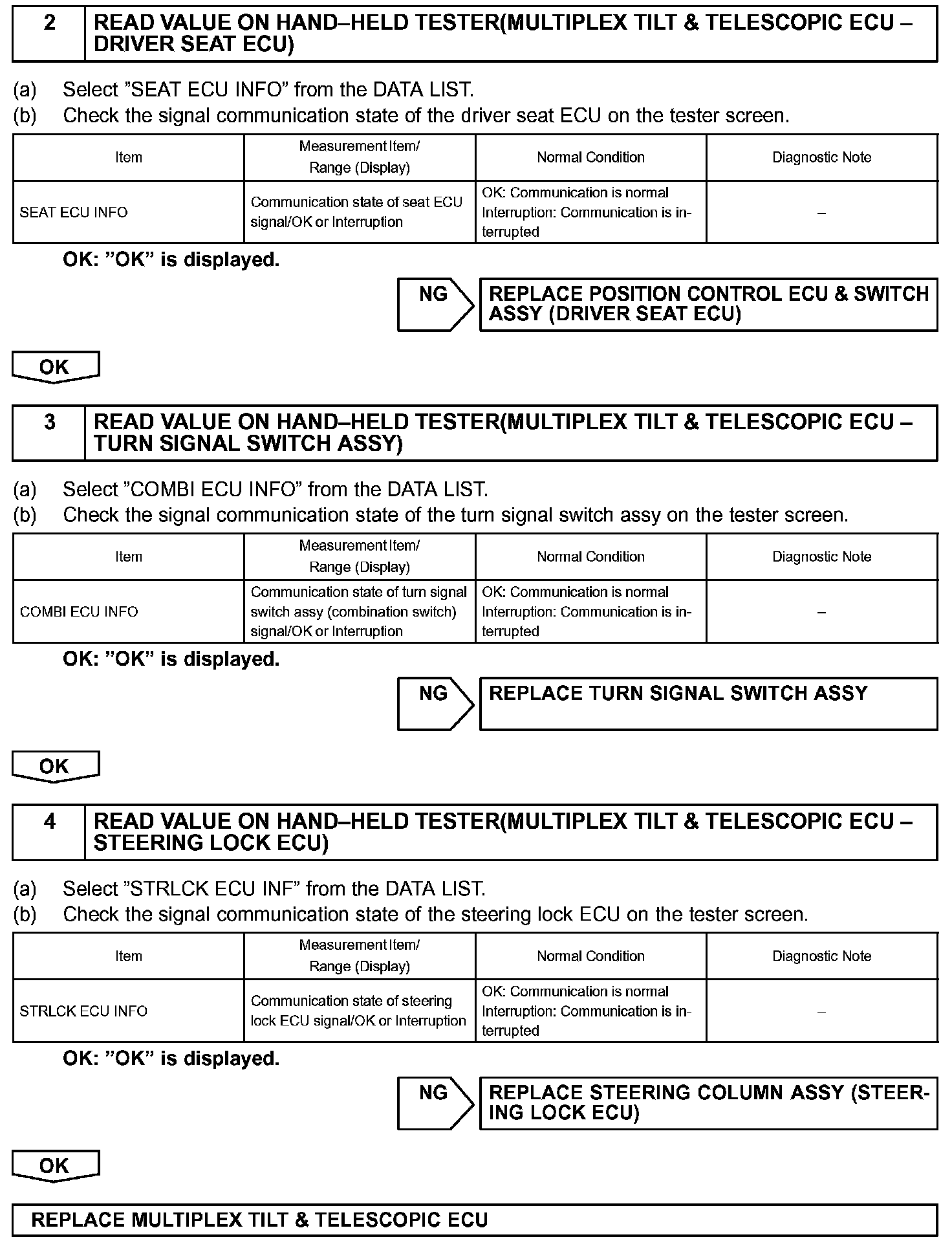

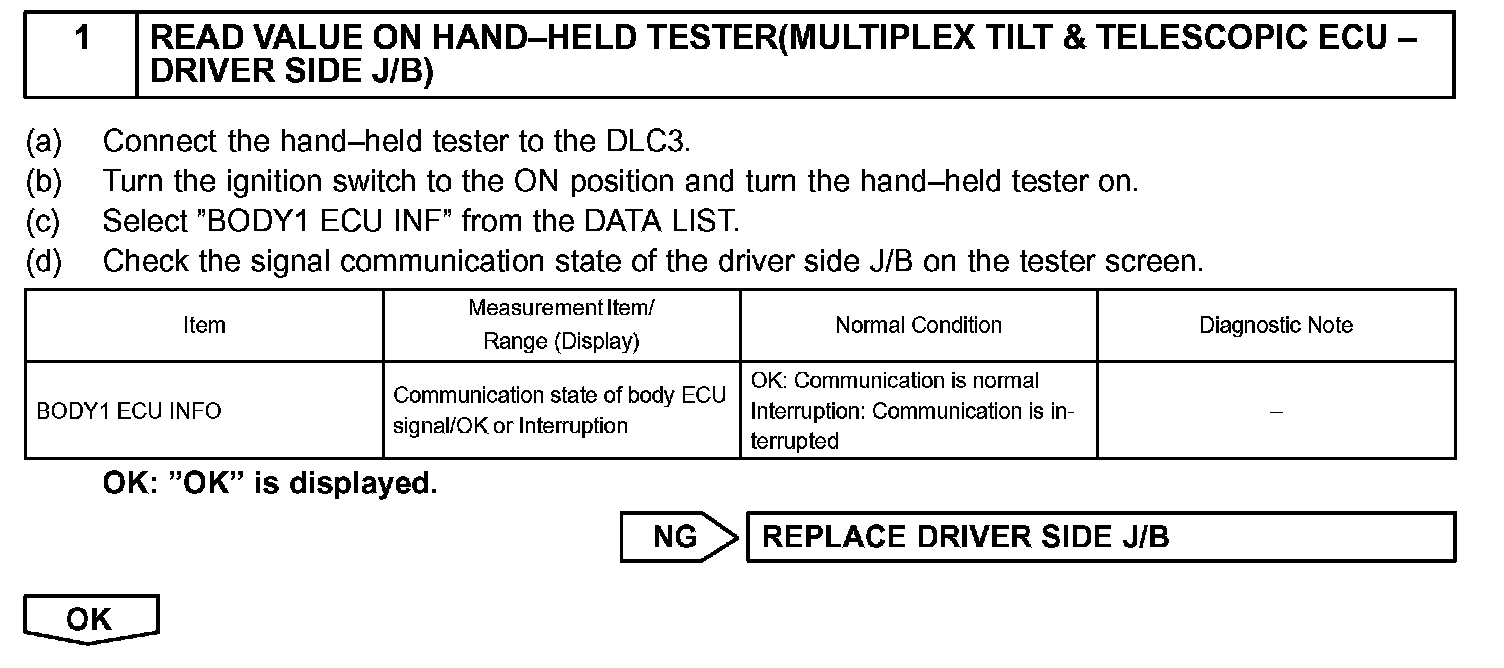

INSPECTION PROCEDURE
