B2214

DTC B2214 DOOR CLOSER MOTOR MALFUNCTION ON REAR LEFT SIDE DOOR

CIRCUIT DESCRIPTION

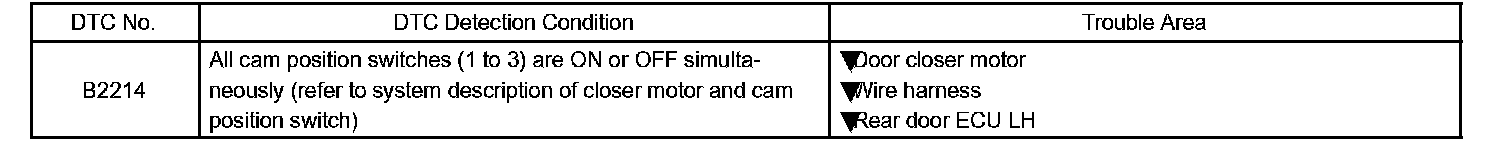

DTC Detection Condition:

This DTC is output when a malfunction is detected in the cam position circuit.

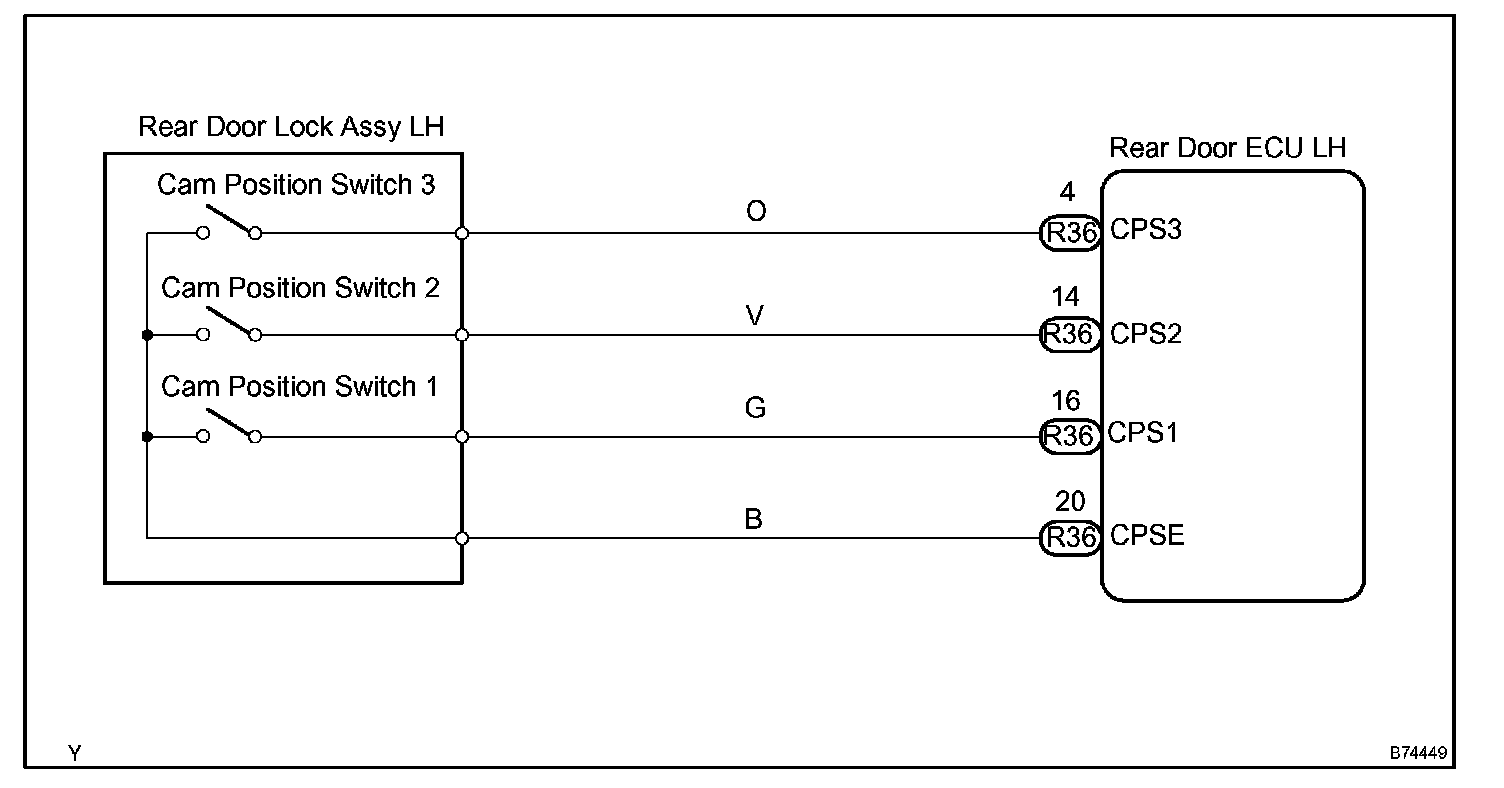

Wiring Diagram:

Step 1 - 2:

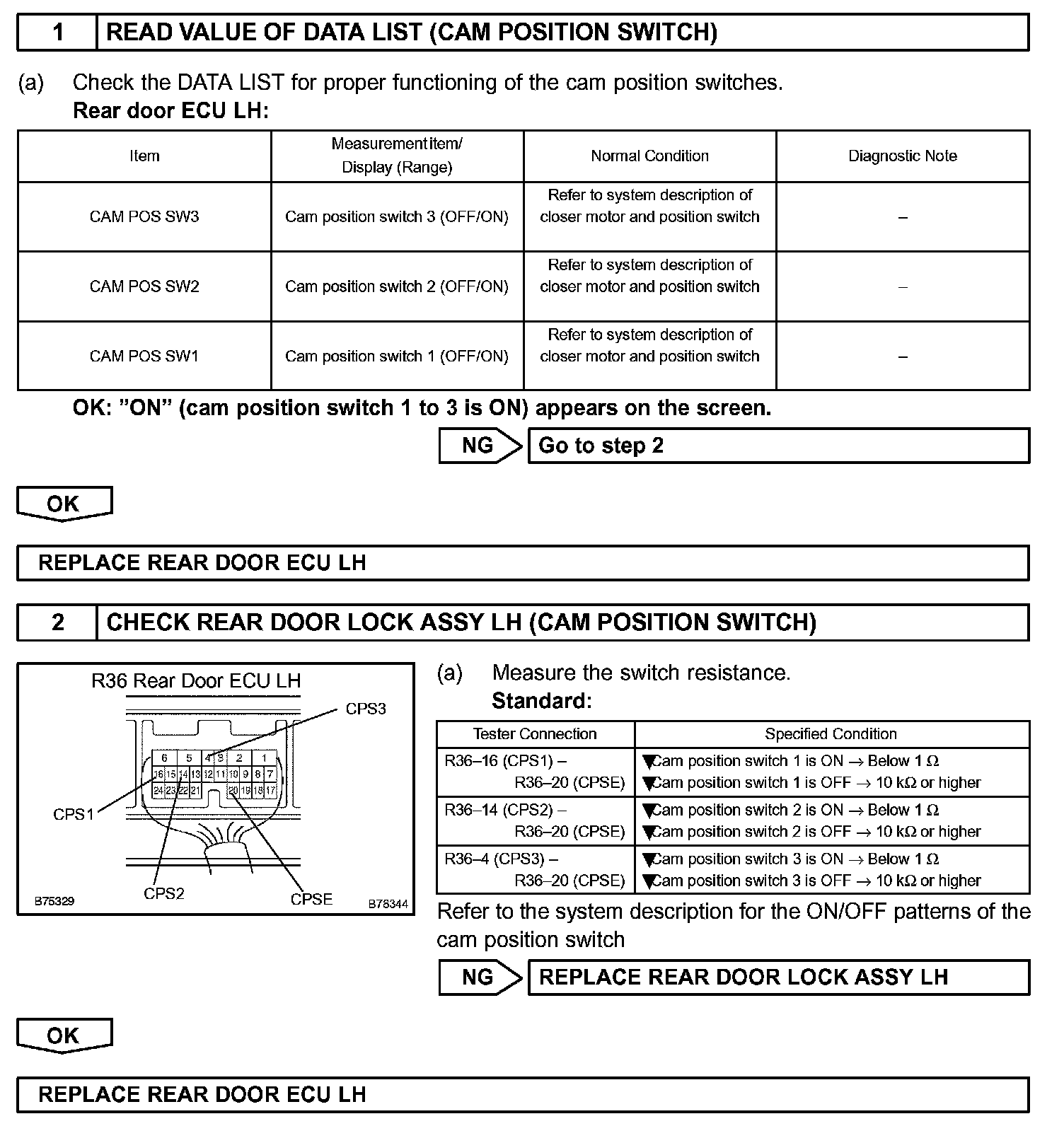

INSPECTION PROCEDURE
