B1461

DTC B1461 EMISSION GAS NOX SENSOR CIRCUIT

CIRCUIT DESCRIPTION

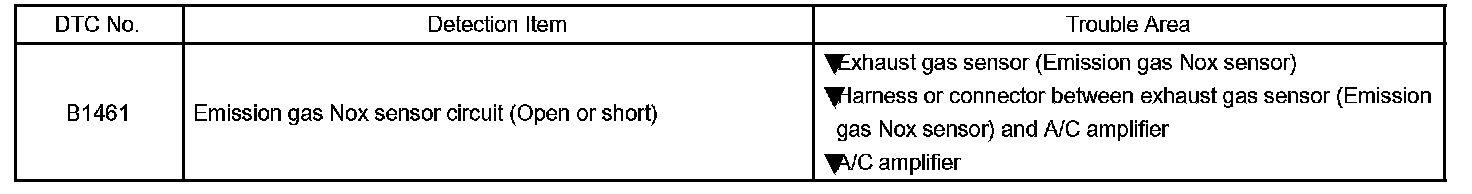

Detection Item:

This sensor detects the exhaust gas (NOx) outside the vehicle and sends a signal to the A/C amplifier.

Wiring Diagram:

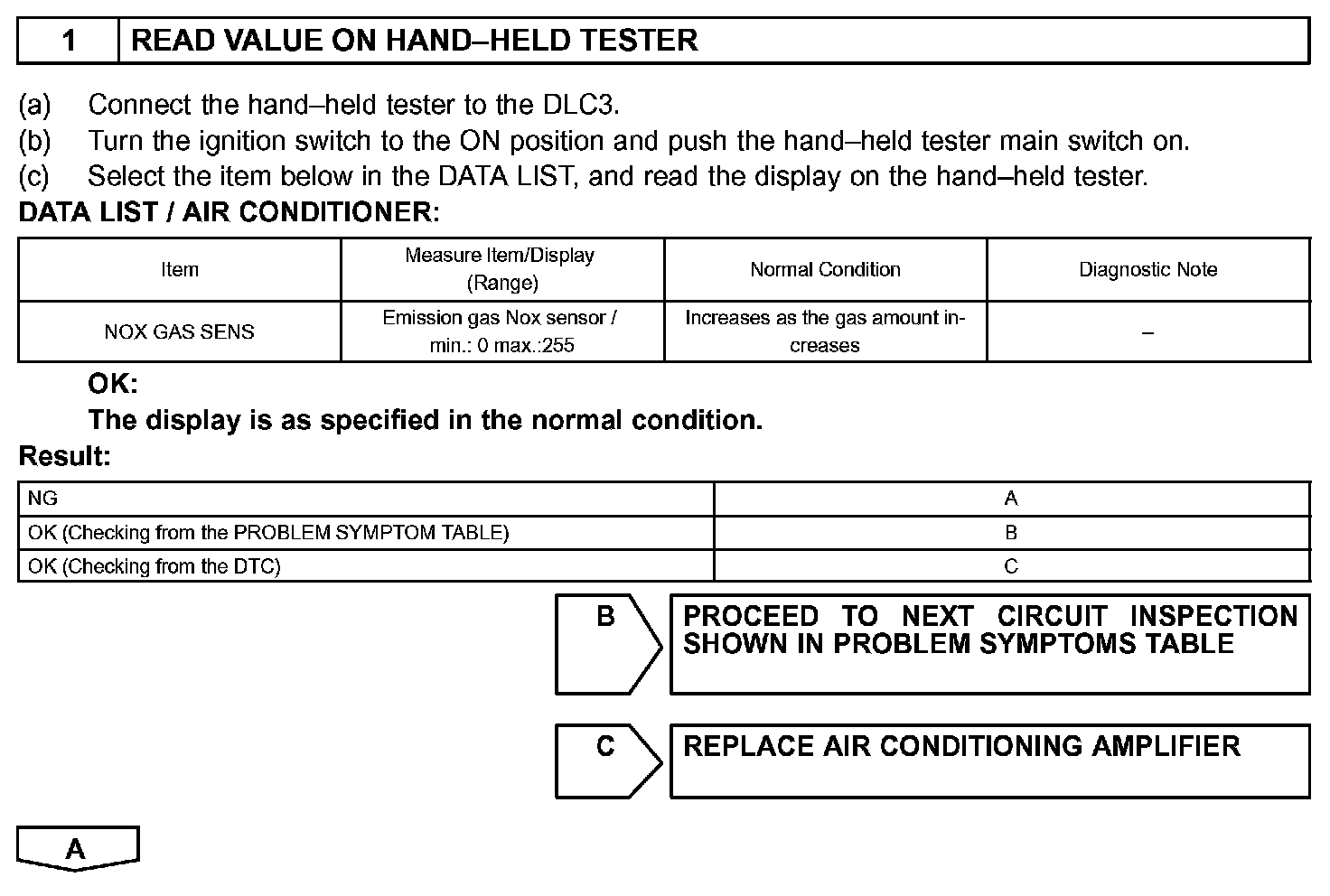

Step 1:

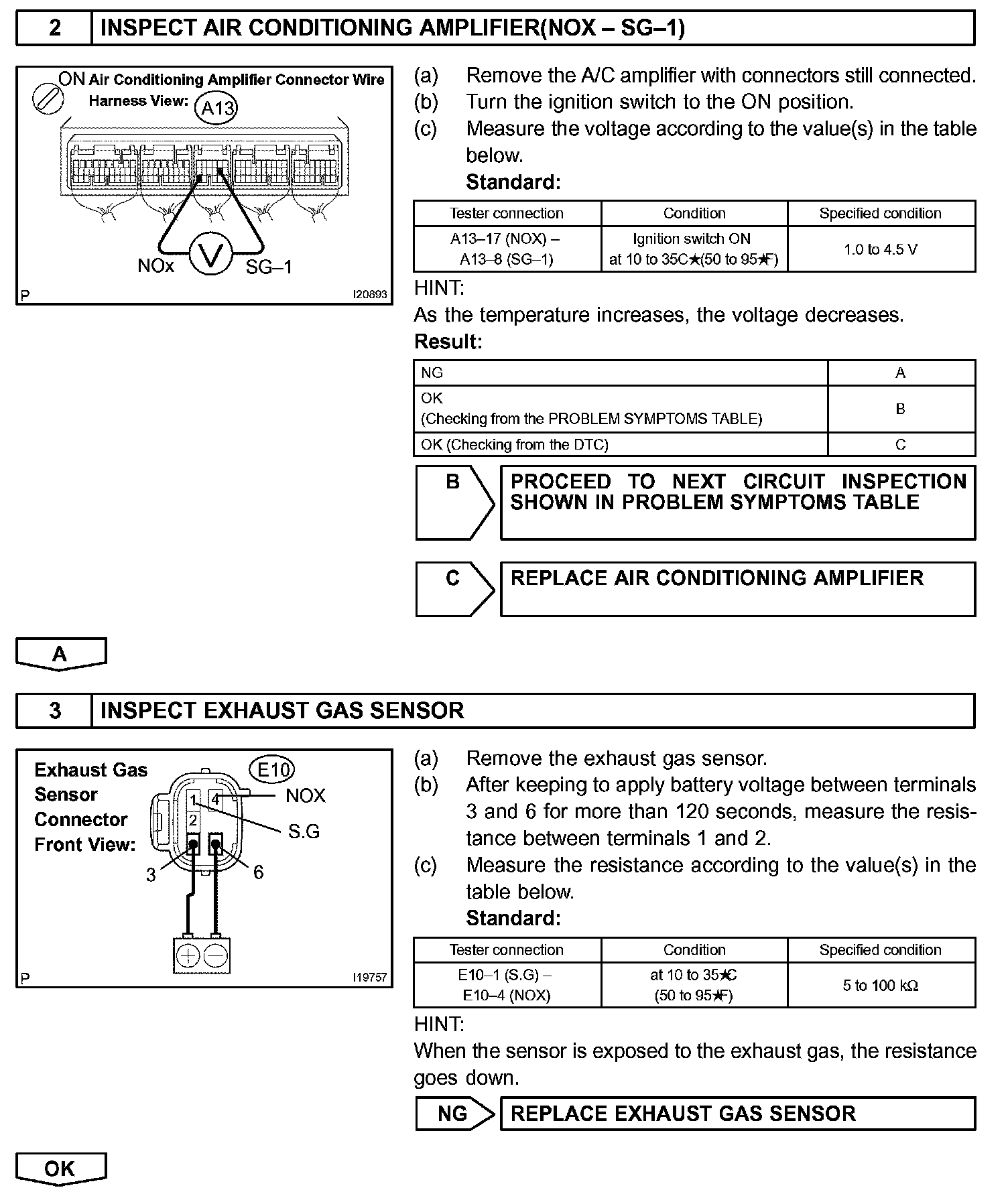

Step 2 - 3:

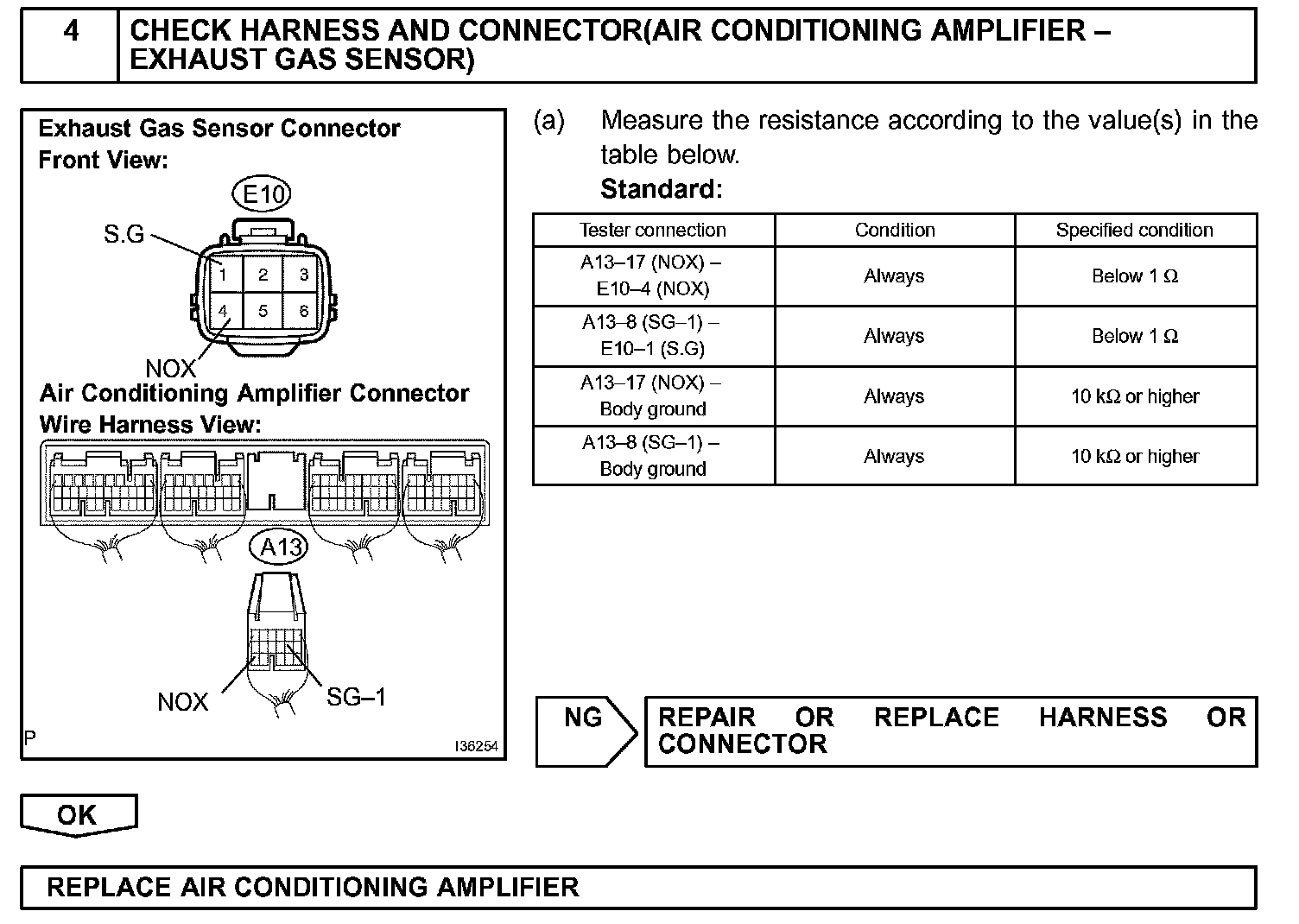

Step 4:

INSPECTION PROCEDURE
