B1451

DTC B1451 COMPRESSOR SOLENOID CIRCUIT

CIRCUIT DESCRIPTION

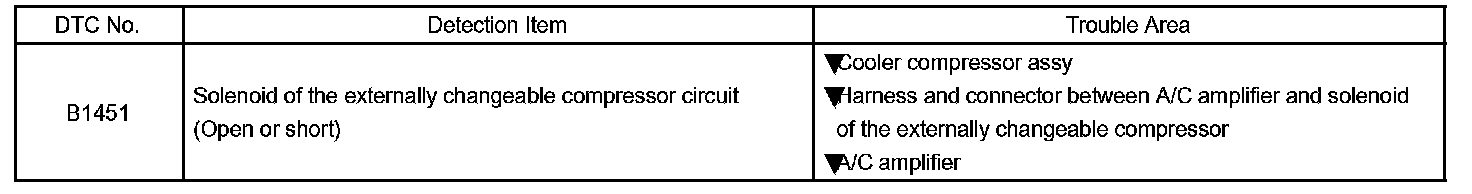

Detection Item:

In this circuit, the compressor assembly receives a signal on refrigerant compression required by the air conditioning amplifier. Based on the signal, the compressor assembly changes the degree of refrigerant compression.

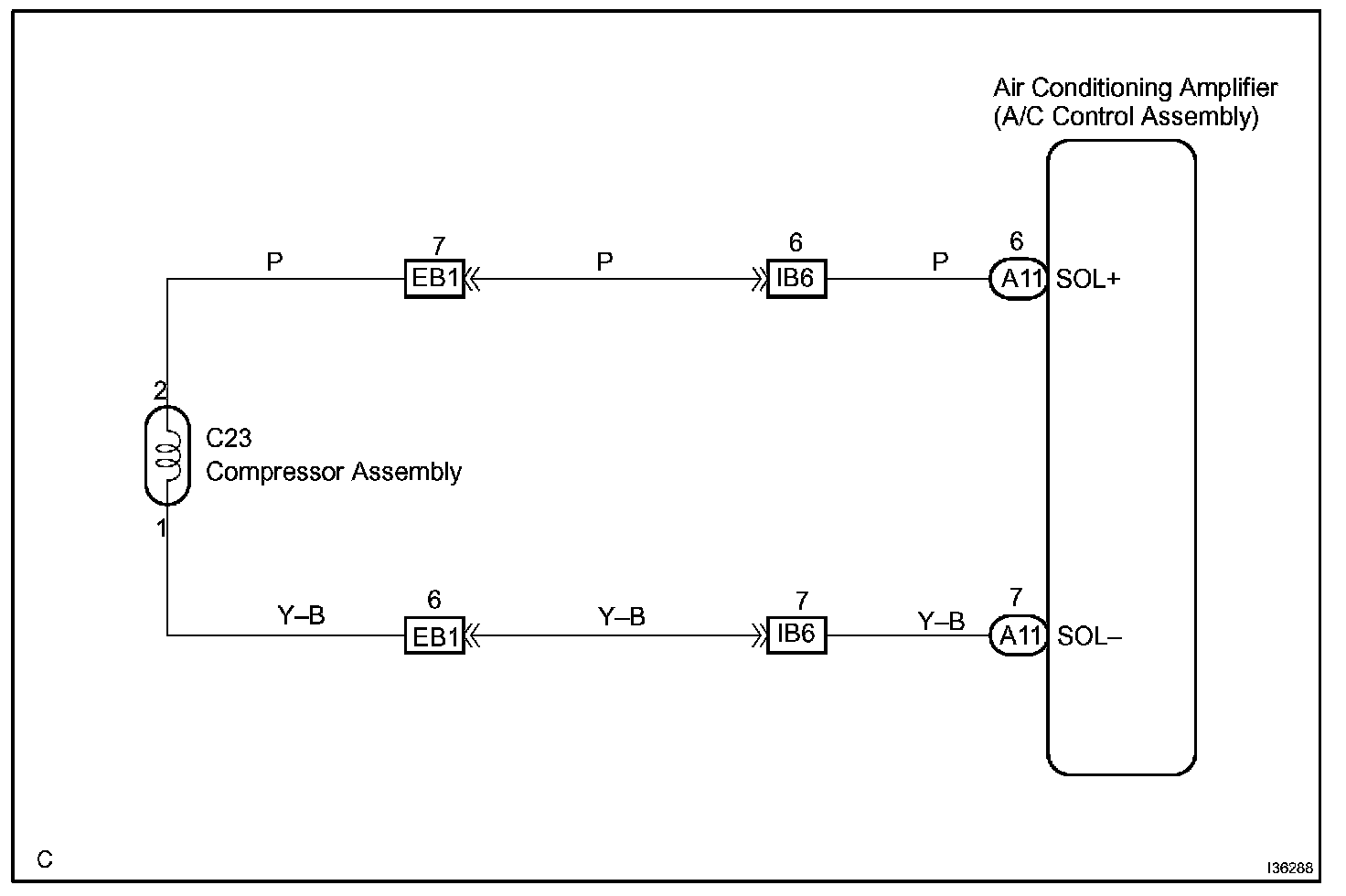

Wiring Diagram:

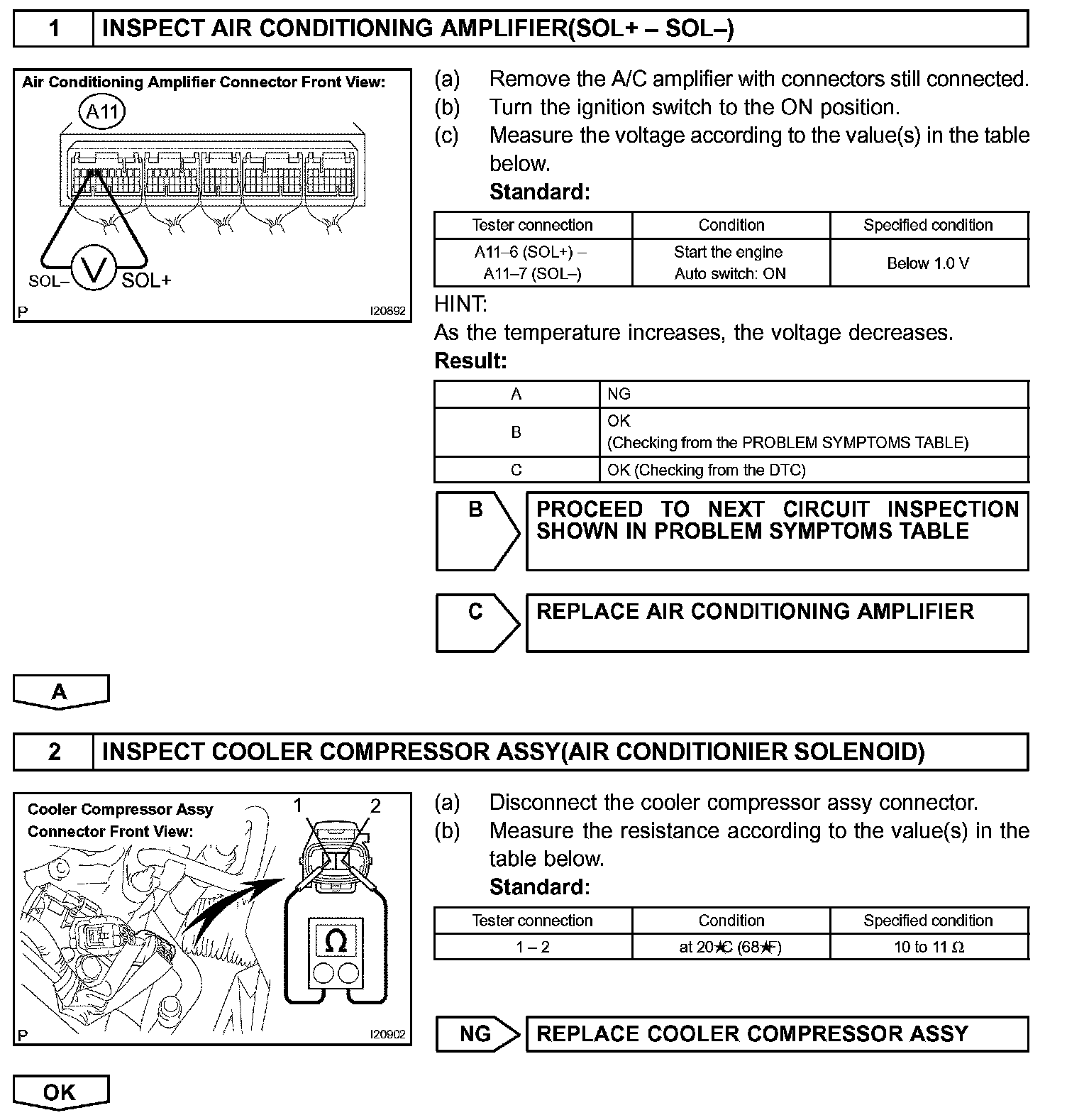

Step 1 - 2:

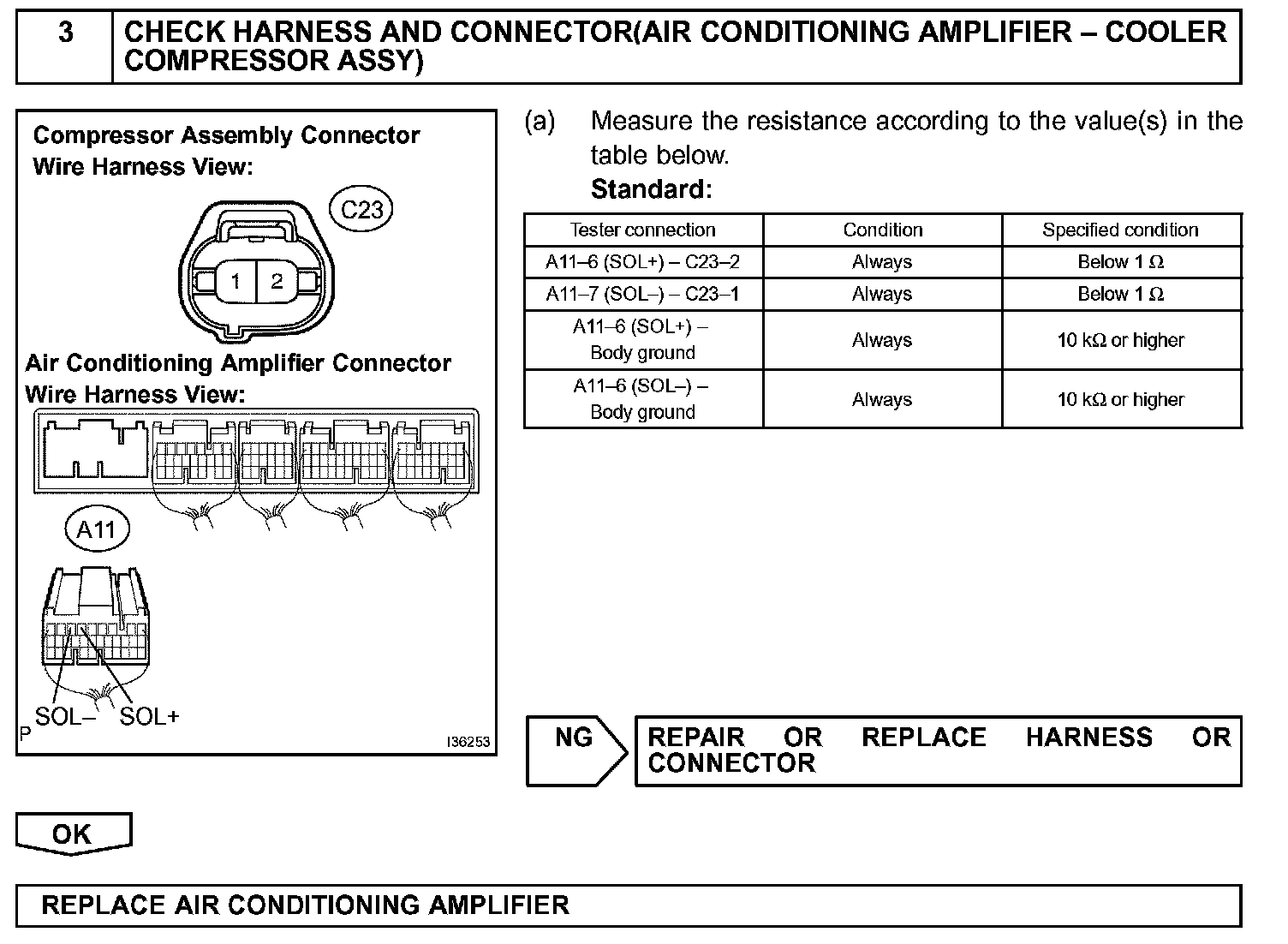

Step 3:

INSPECTION PROCEDURE
