B1442

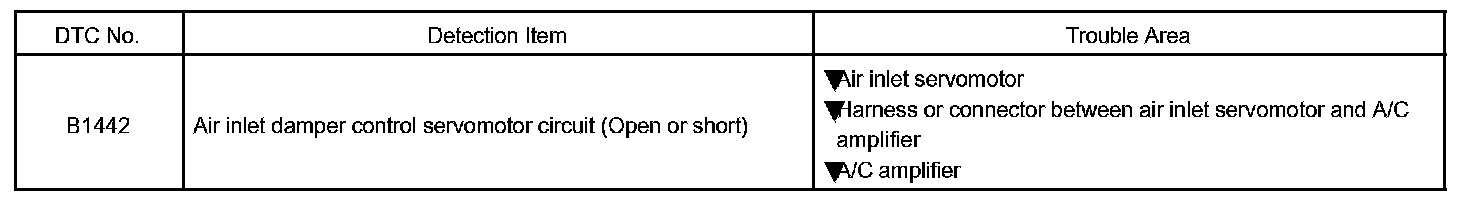

DTC B1442 AIR INLET DAMPER CONTROL SERVOMOTOR CIRCUIT

CIRCUIT DESCRIPTION

Detection Item:

The air inlet servomotor is controlled by the A/C amplifier and moves the air inlet servomotor to the desired position.

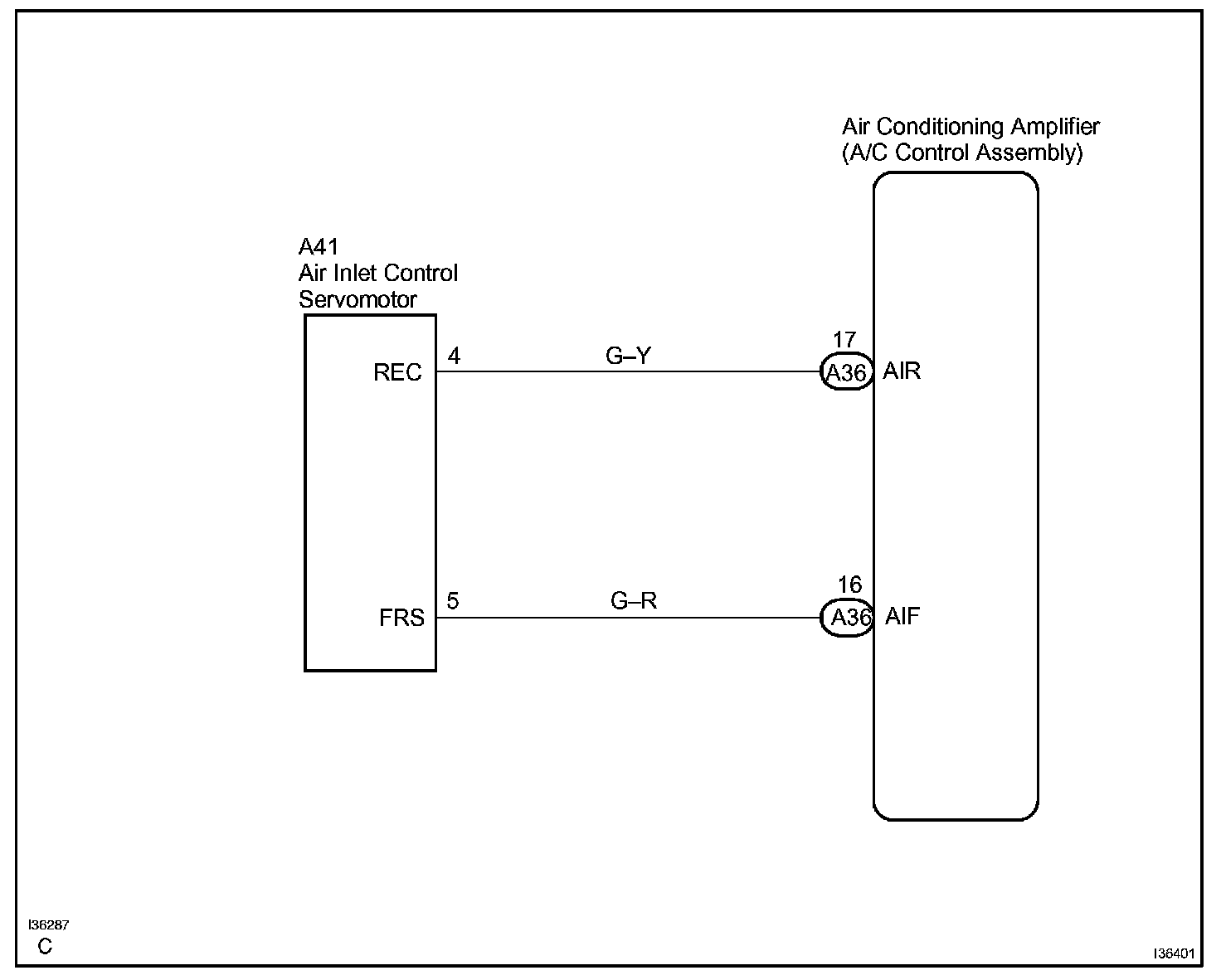

Wiring Diagram:

Step 1:

Step 2 - 3:

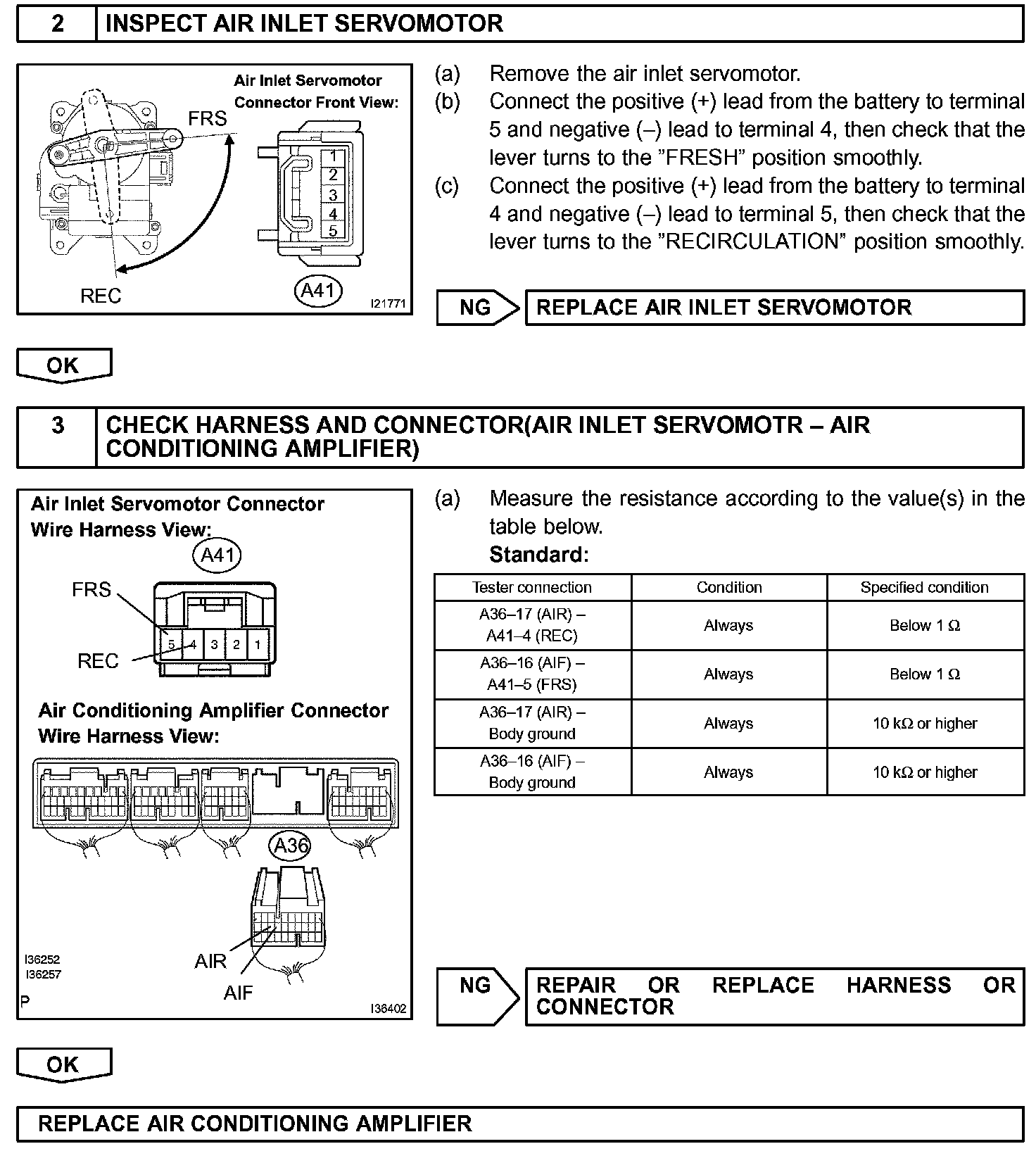

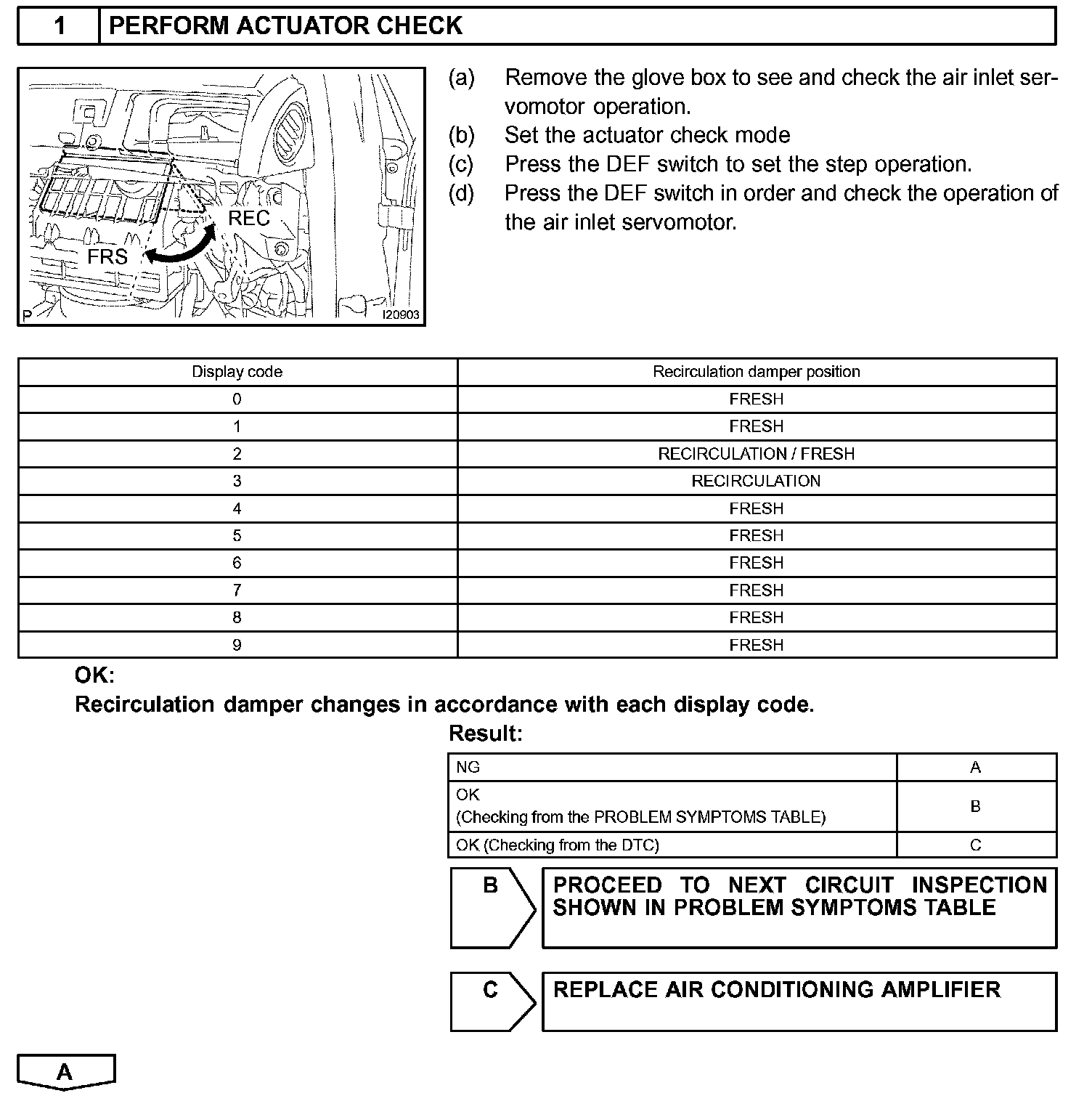

INSPECTION PROCEDURE
