B1435

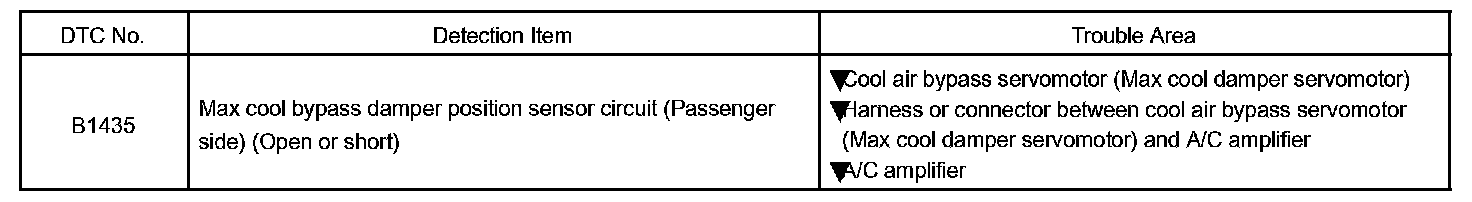

DTC B1435 MAX COOL DAMPER POSITION SENSOR CIRCUIT (PASSENGER SIDE)

CIRCUIT DESCRIPTION

Detection Item:

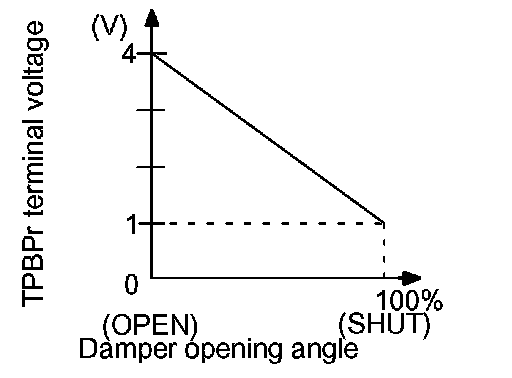

This sensor detects the position of the cool air bypass servomotor (Max cool damper servomotor) and sends the appropriate signals to the A/C amplifier. The position sensor is built in the cool air bypass servomotor.

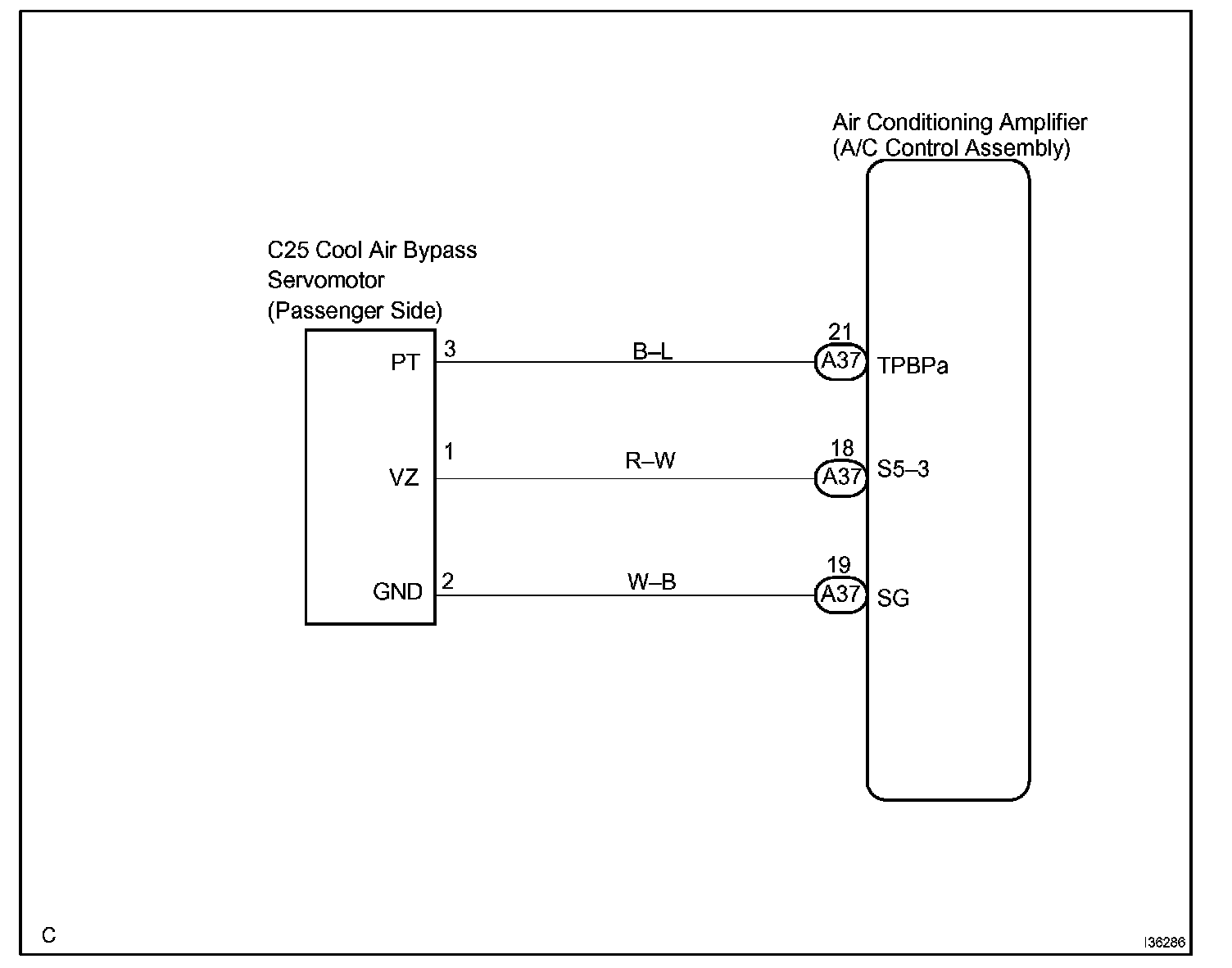

Wiring Diagram:

Step 1:

Step 2:

Step 3:

Step 4:

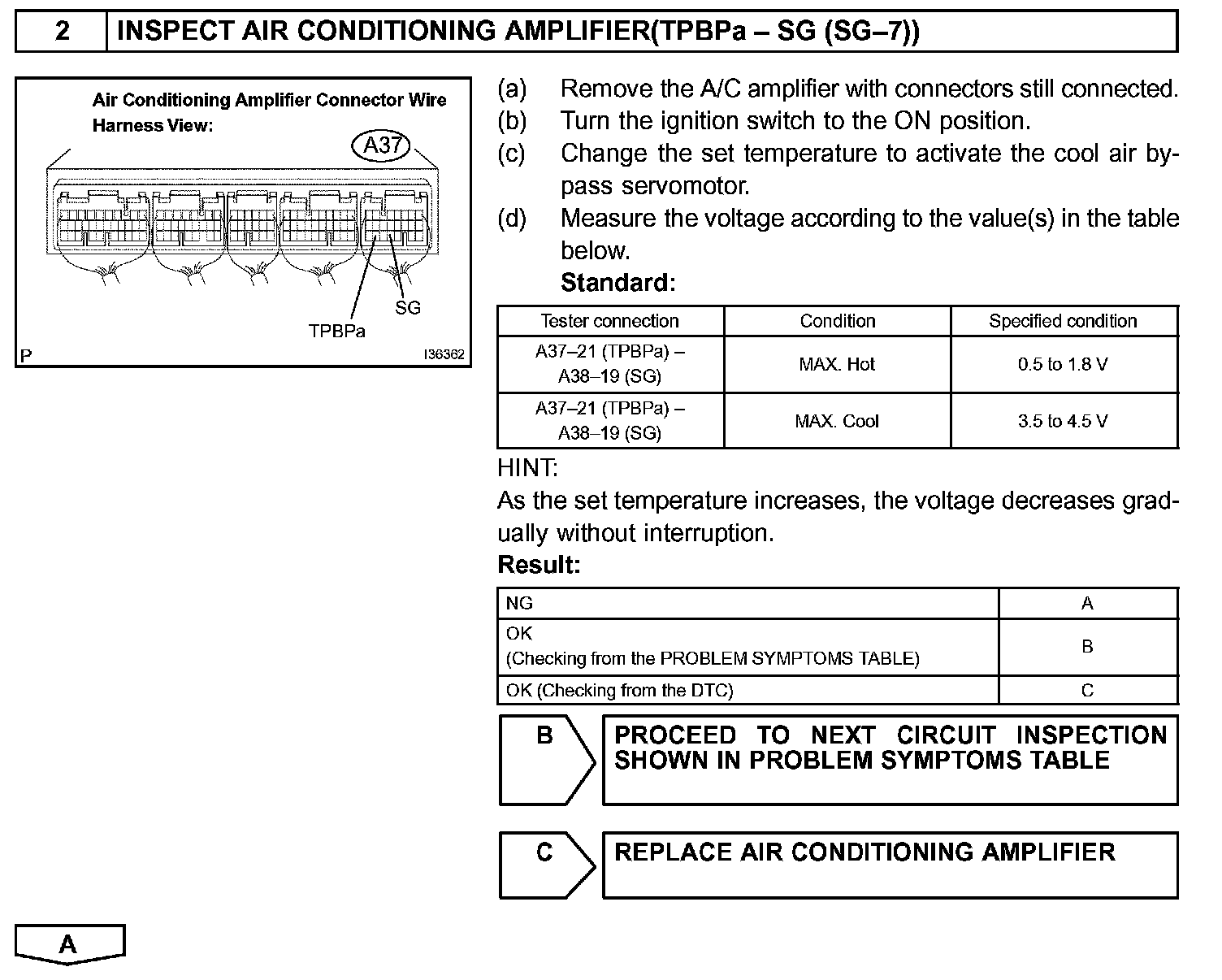

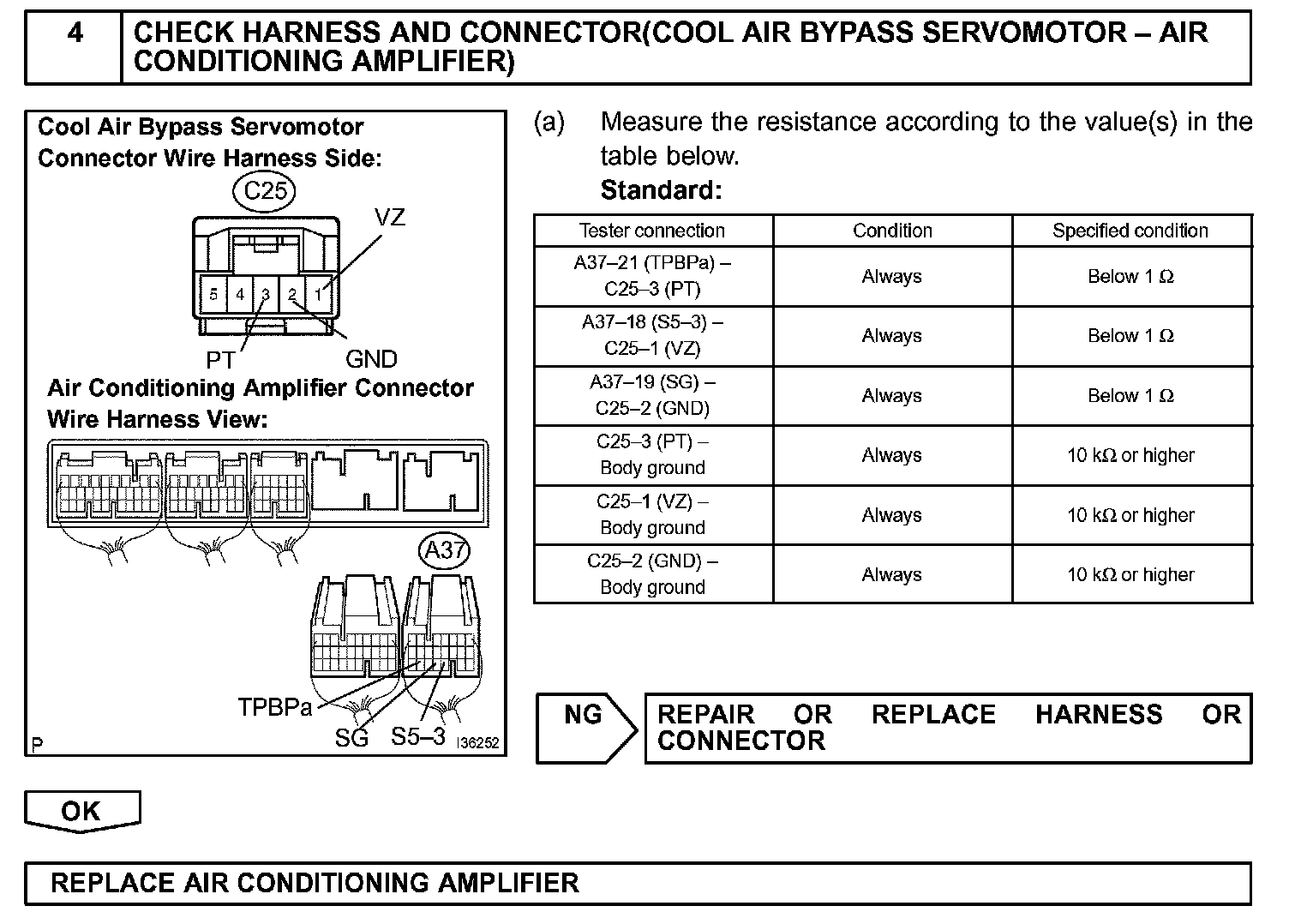

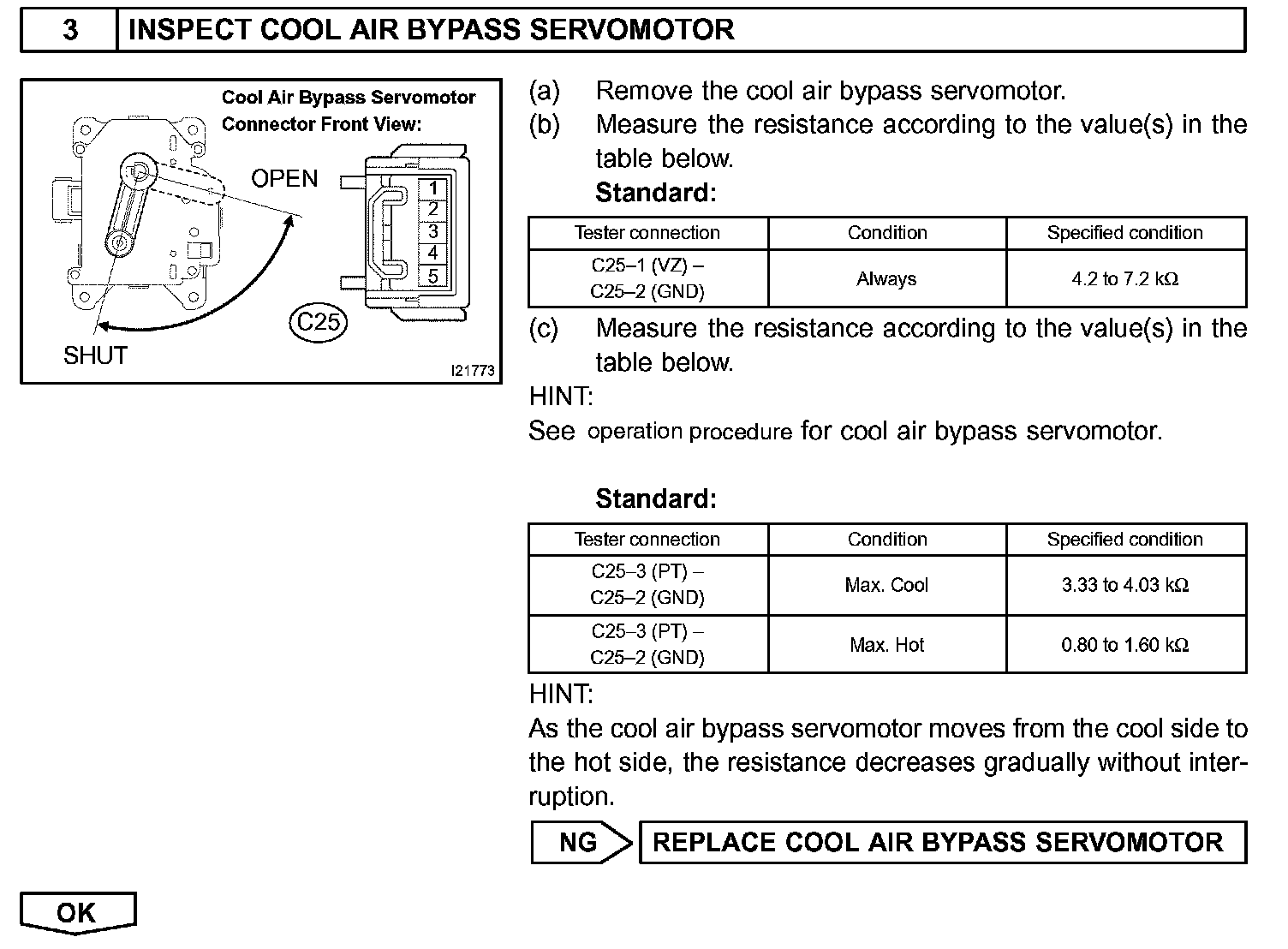

INSPECTION PROCEDURE
