B1432

DTC B1432 AIR INLET DAMPER POSITION SENSOR CIRCUIT

CIRCUIT DESCRIPTION

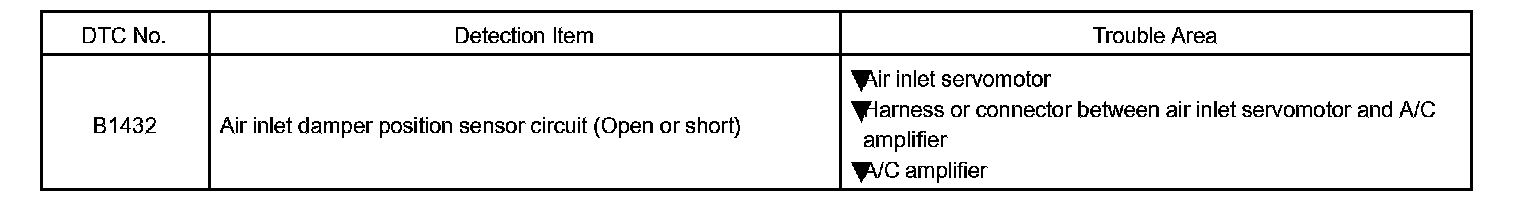

Detection Item:

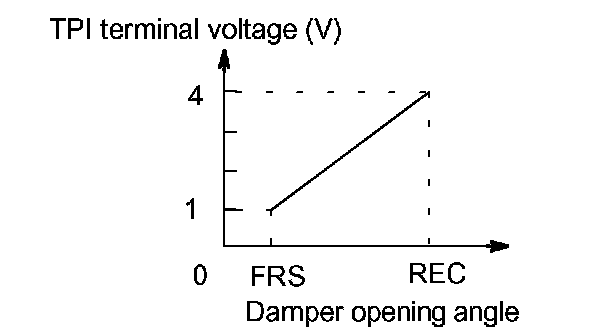

This sensor detects the position of the air inlet servomotor and sends the appropriate signals to the A/C amplifier. The position sensor is built in the air inlet servomotor.

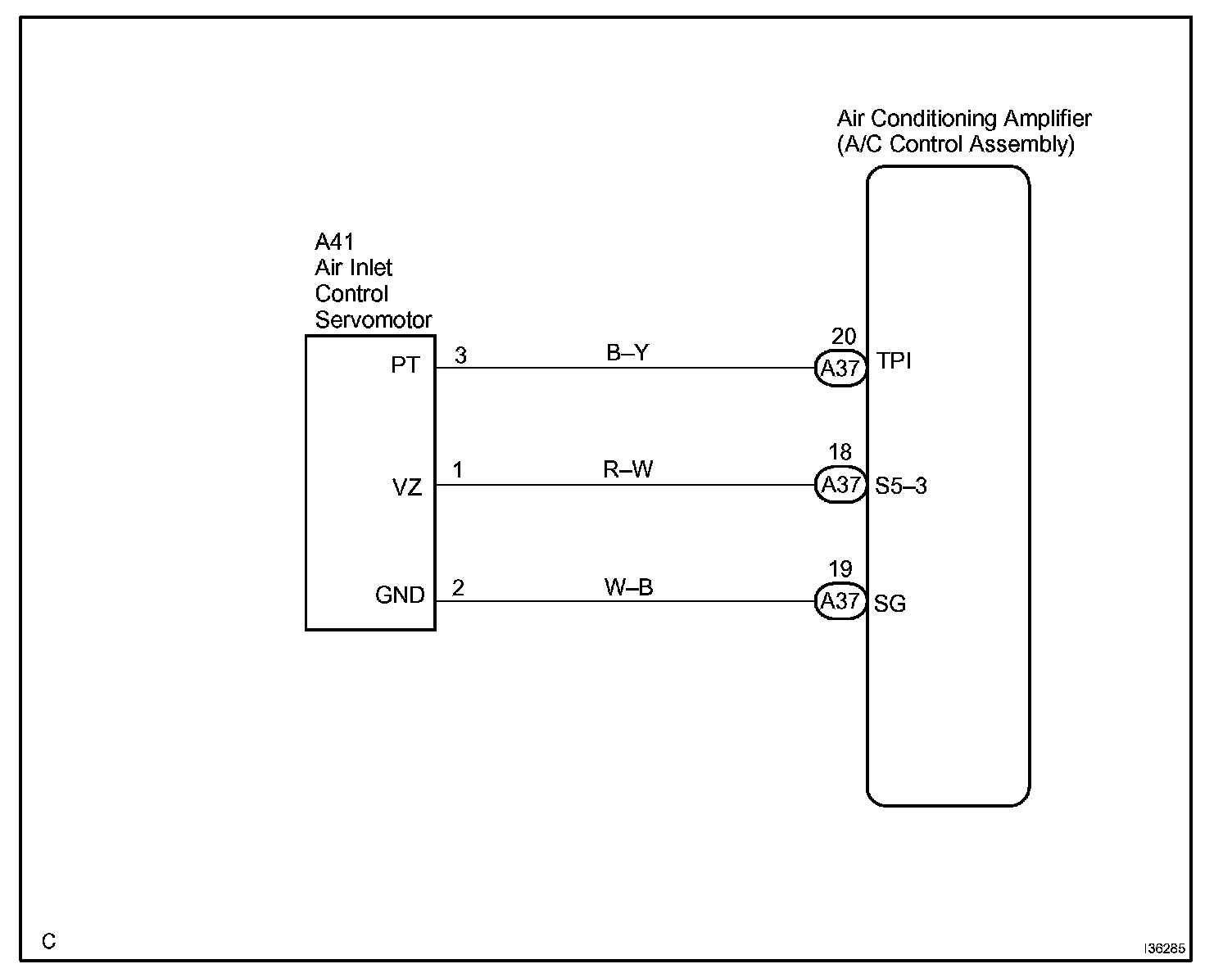

Wiring Diagram:

Step 1:

Step 2:

Step 3:

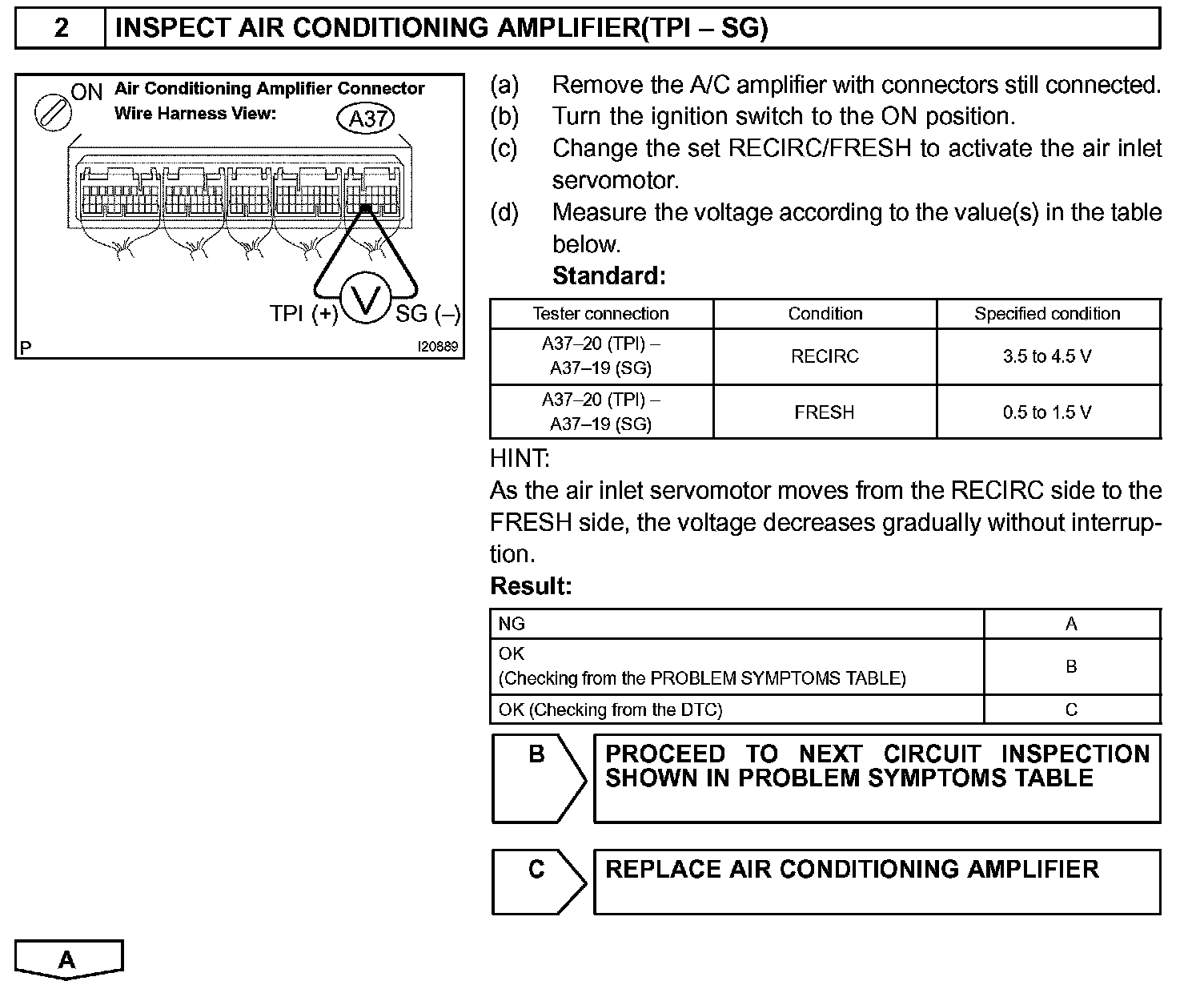

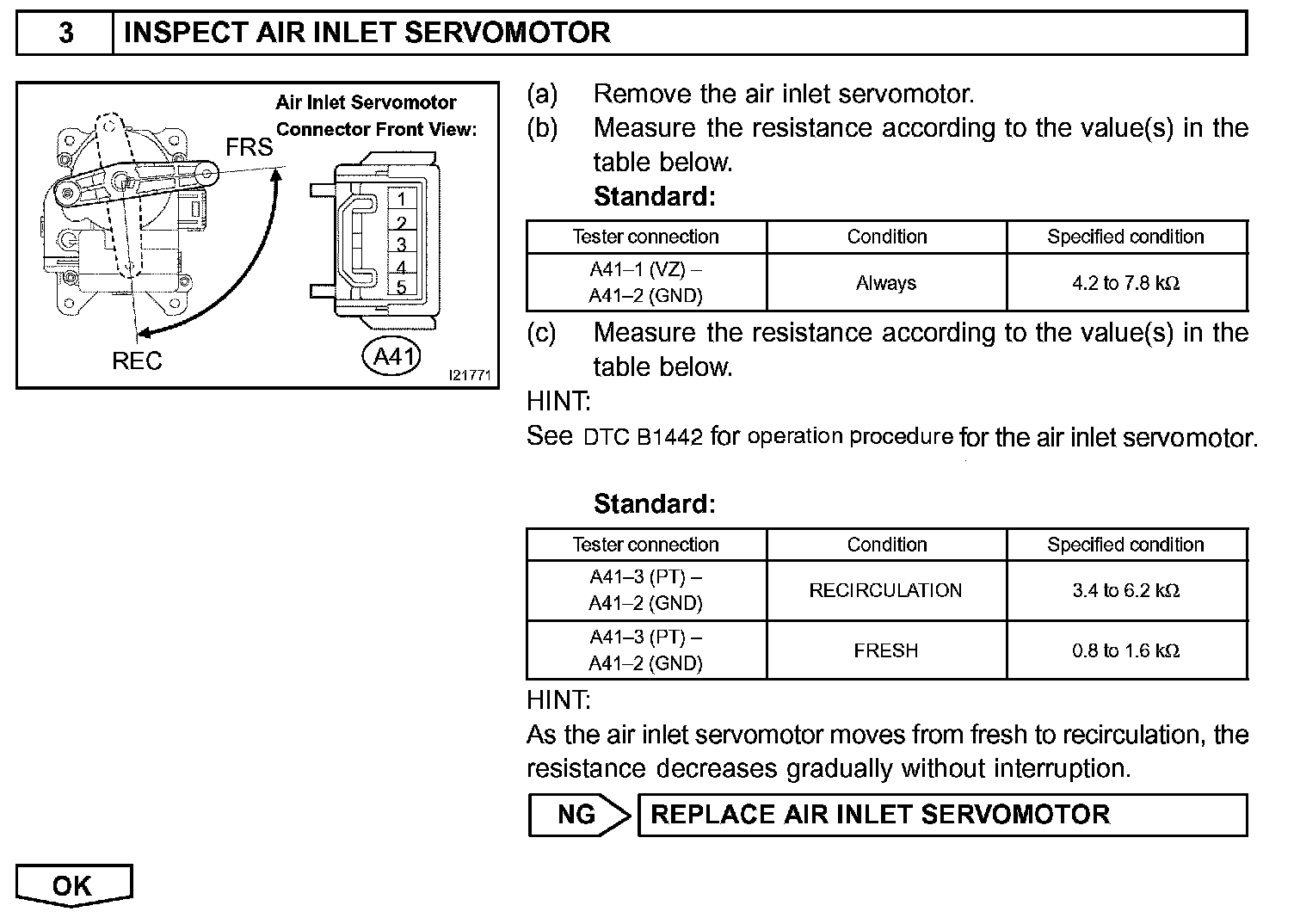

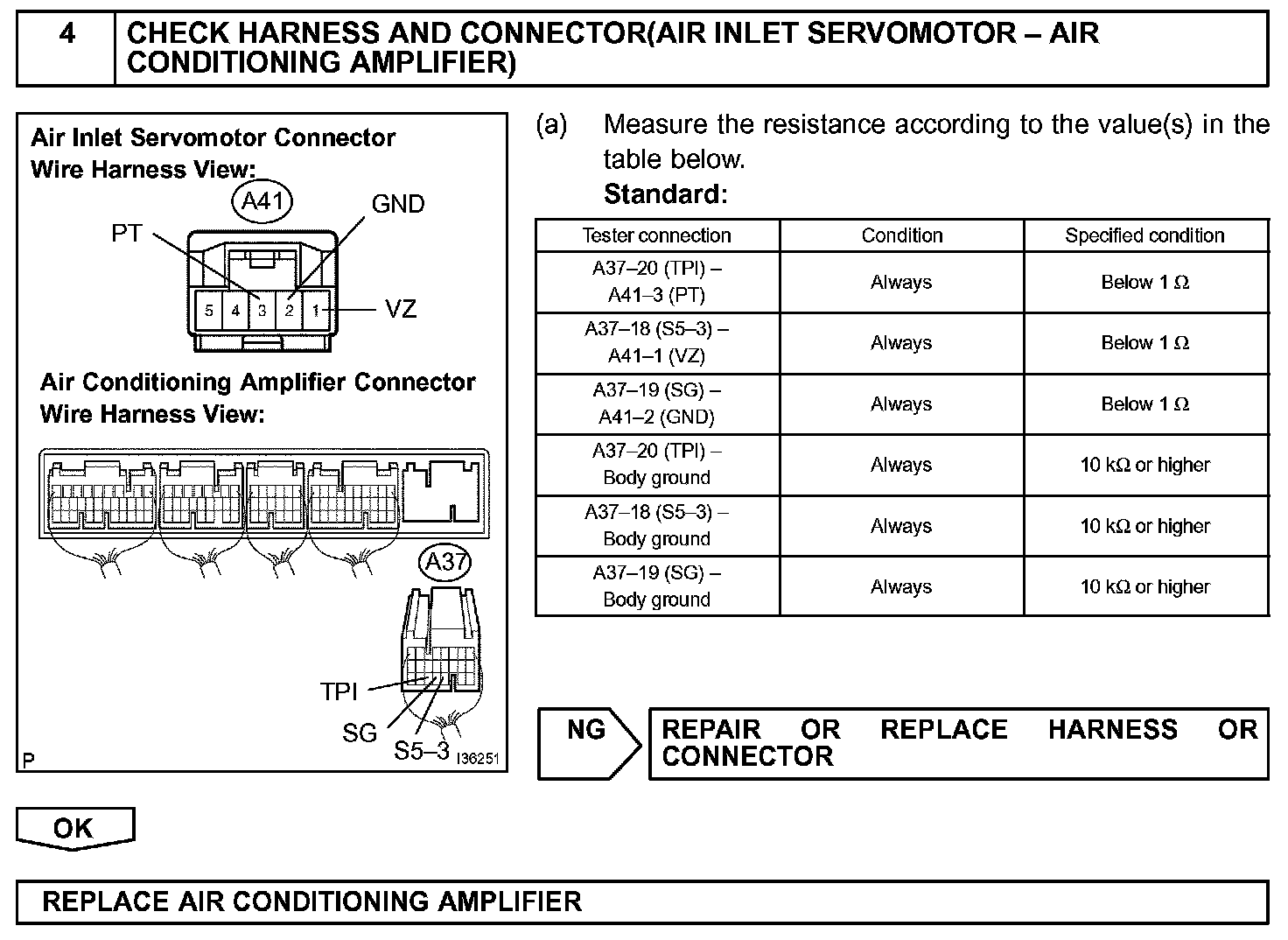

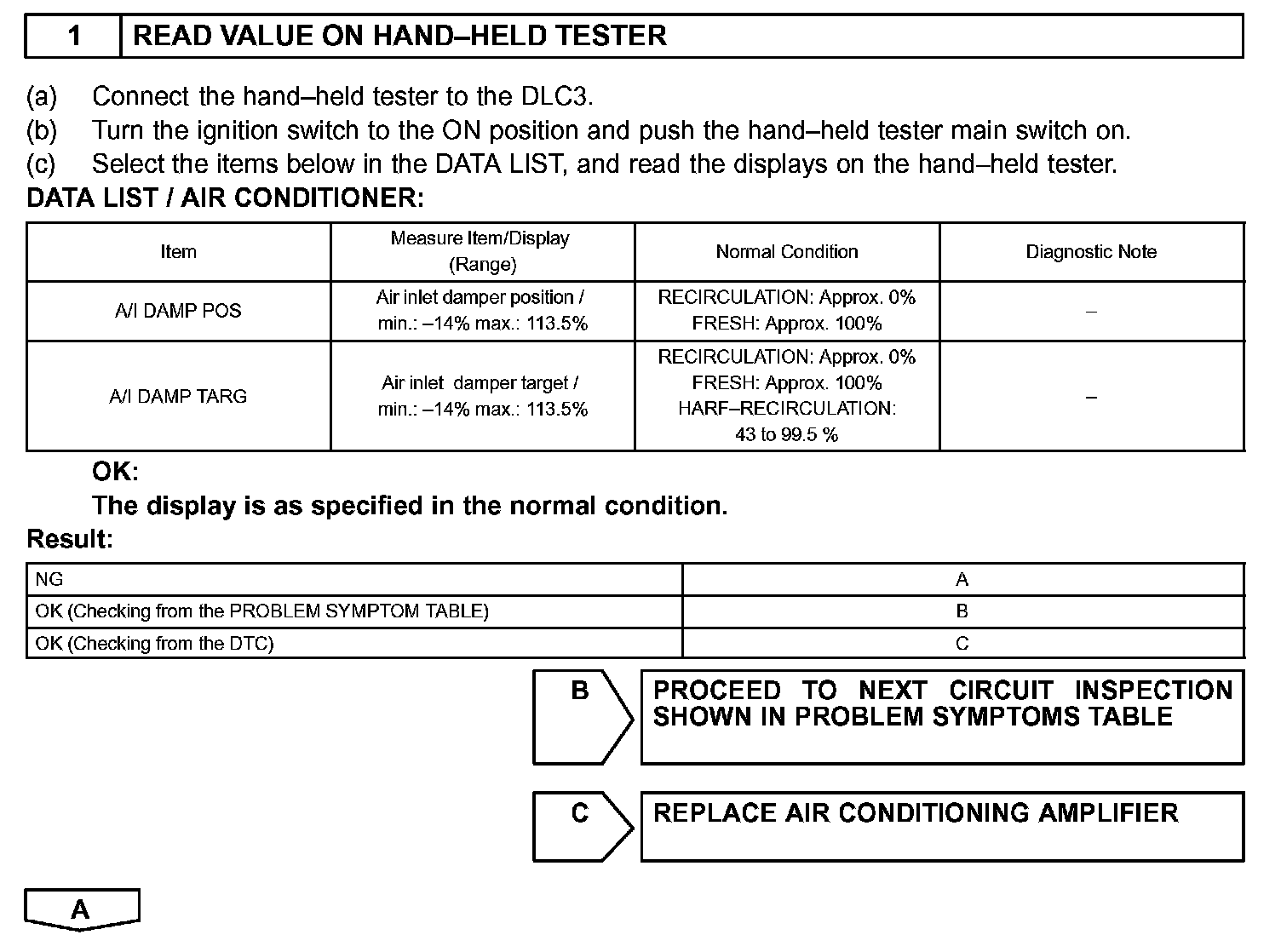

Step 4:

INSPECTION PROCEDURE
