B1428

DTC B1428 REAR SOLAR SENSOR CIRCUIT

CIRCUIT DESCRIPTION

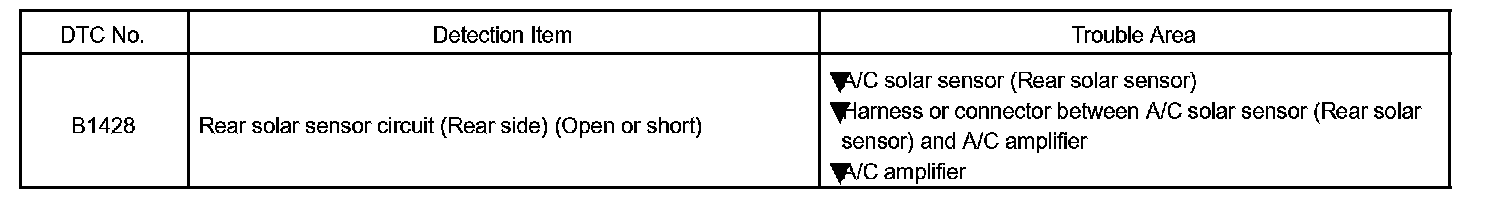

Detection Item:

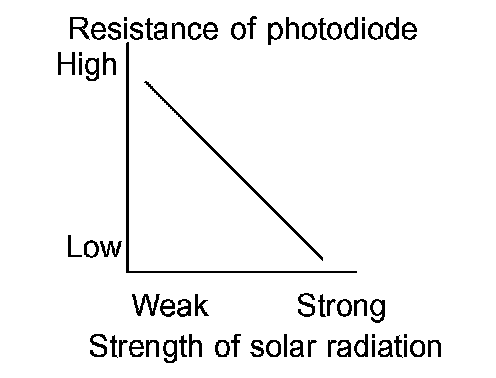

A photodiode in the A/C solar sensor detects solar radiation and sends signals to the A/C amplifier.

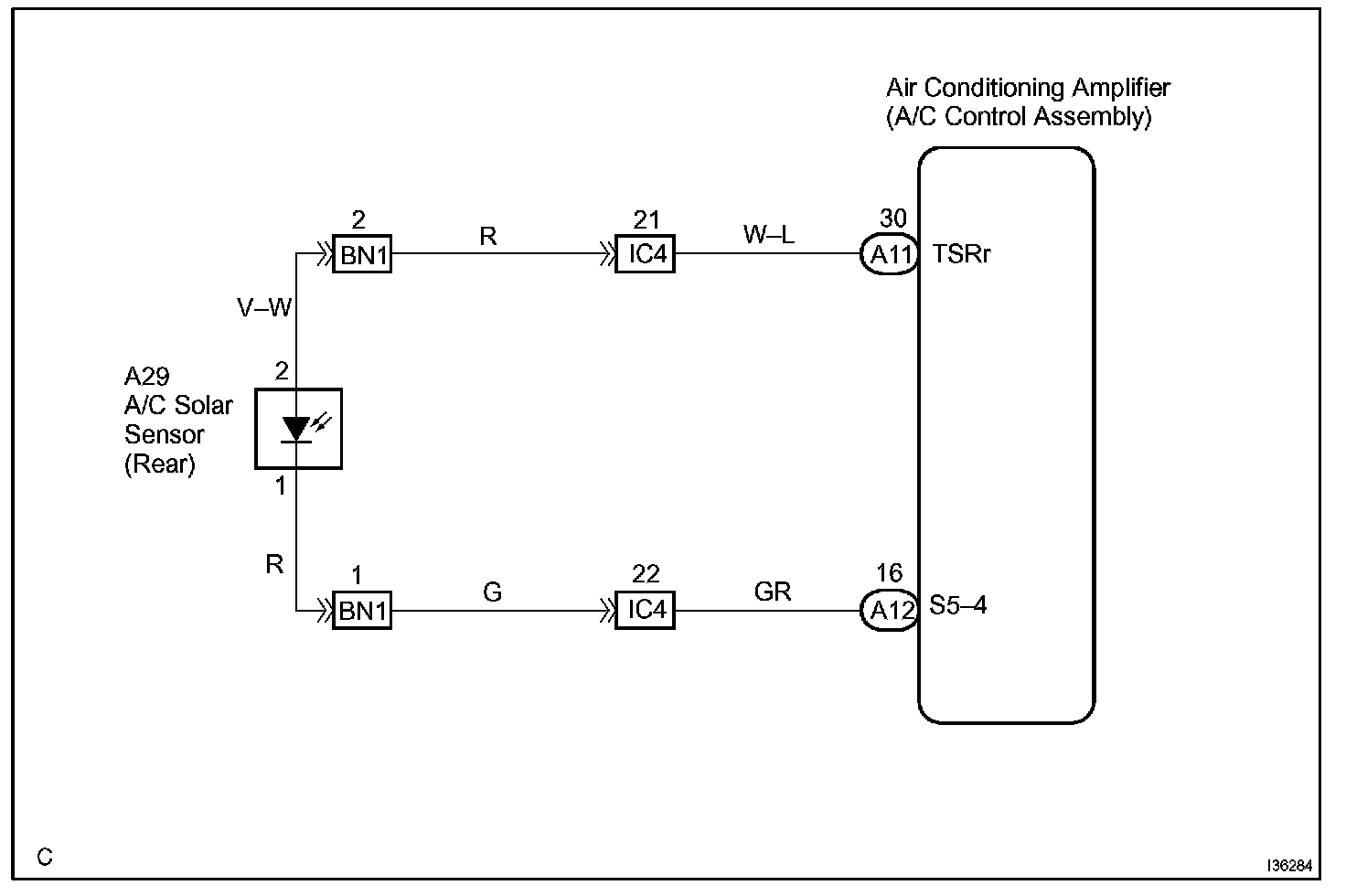

Wiring Diagram:

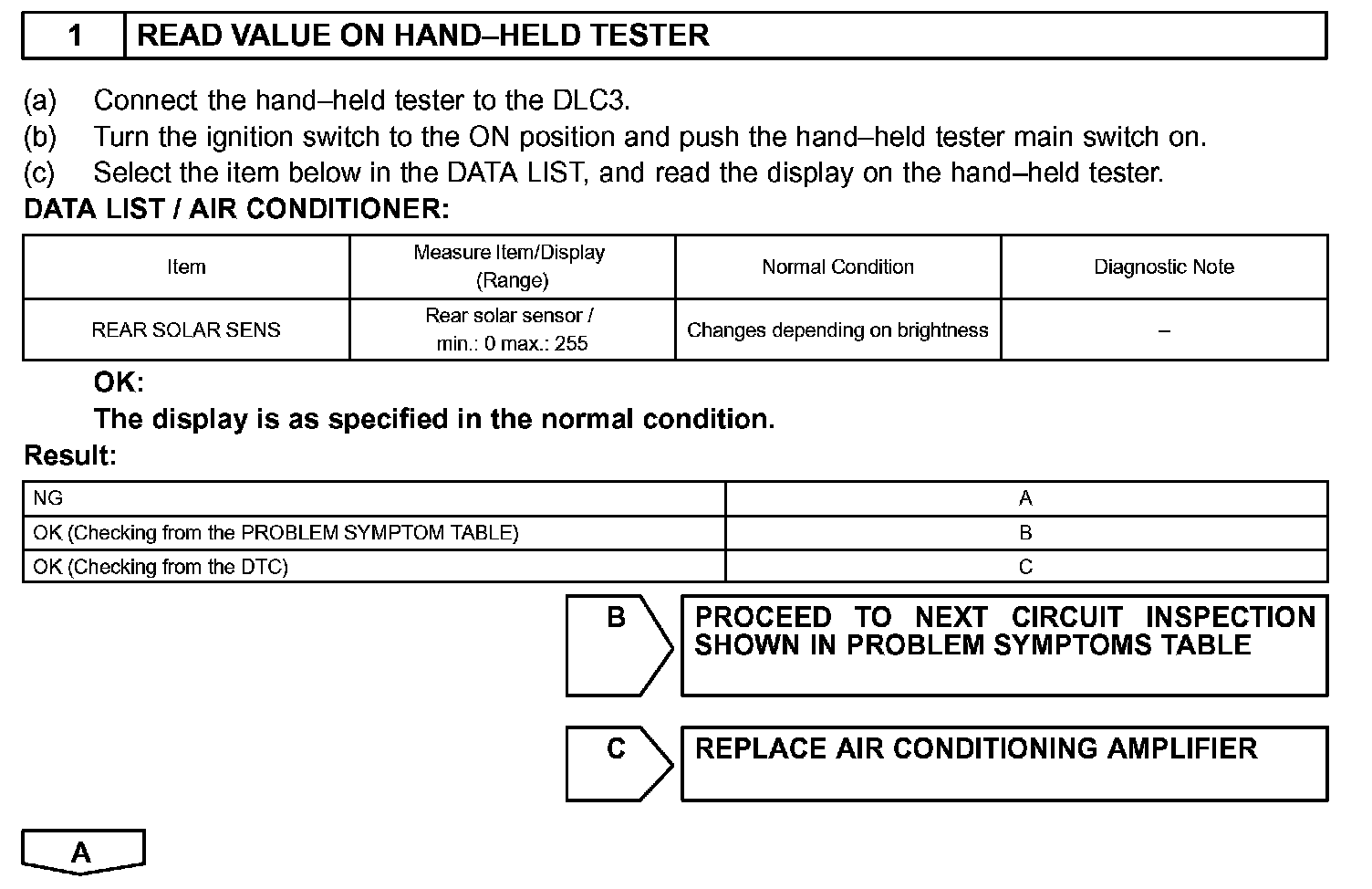

Step 1:

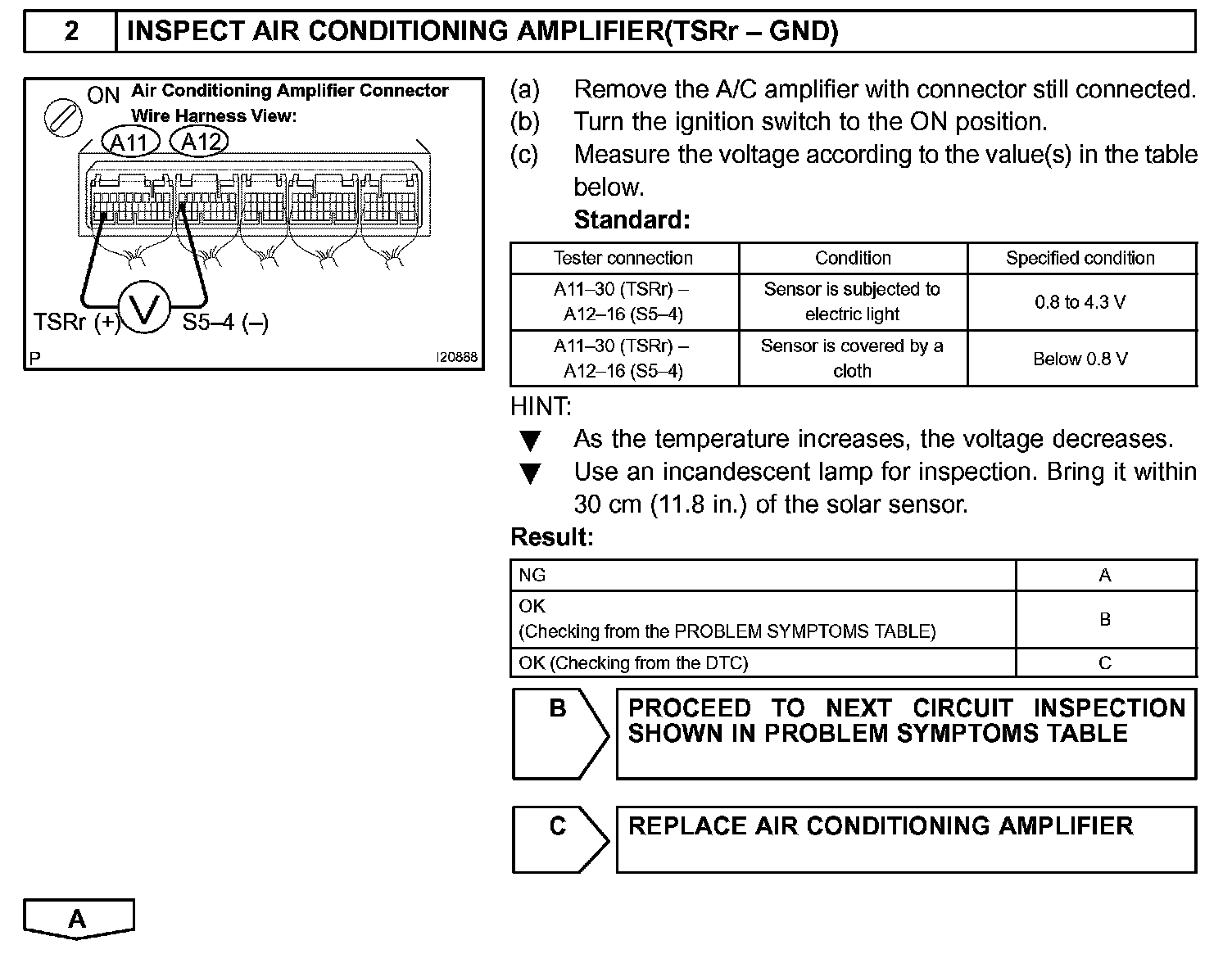

Step 2:

Step 3:

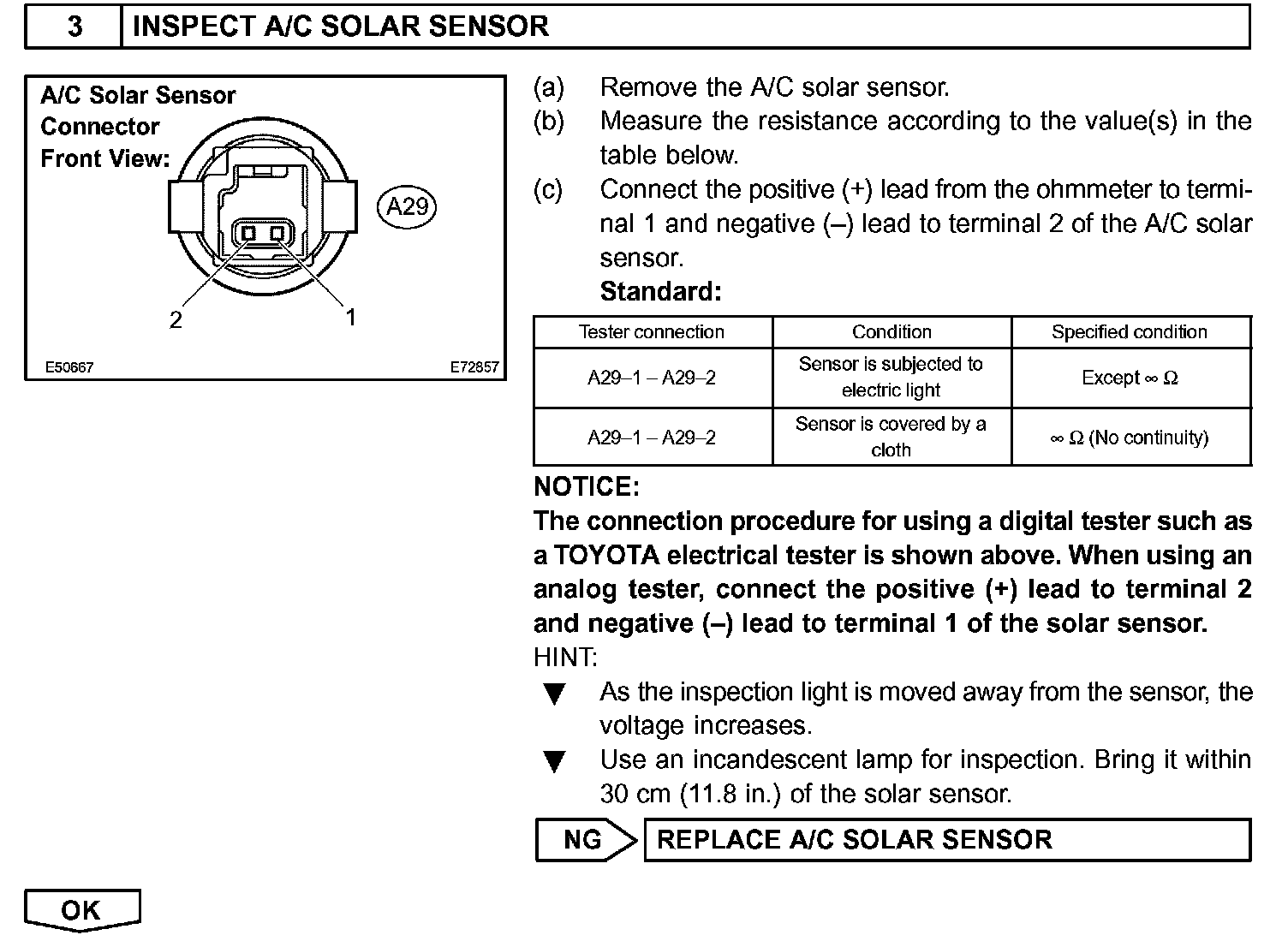

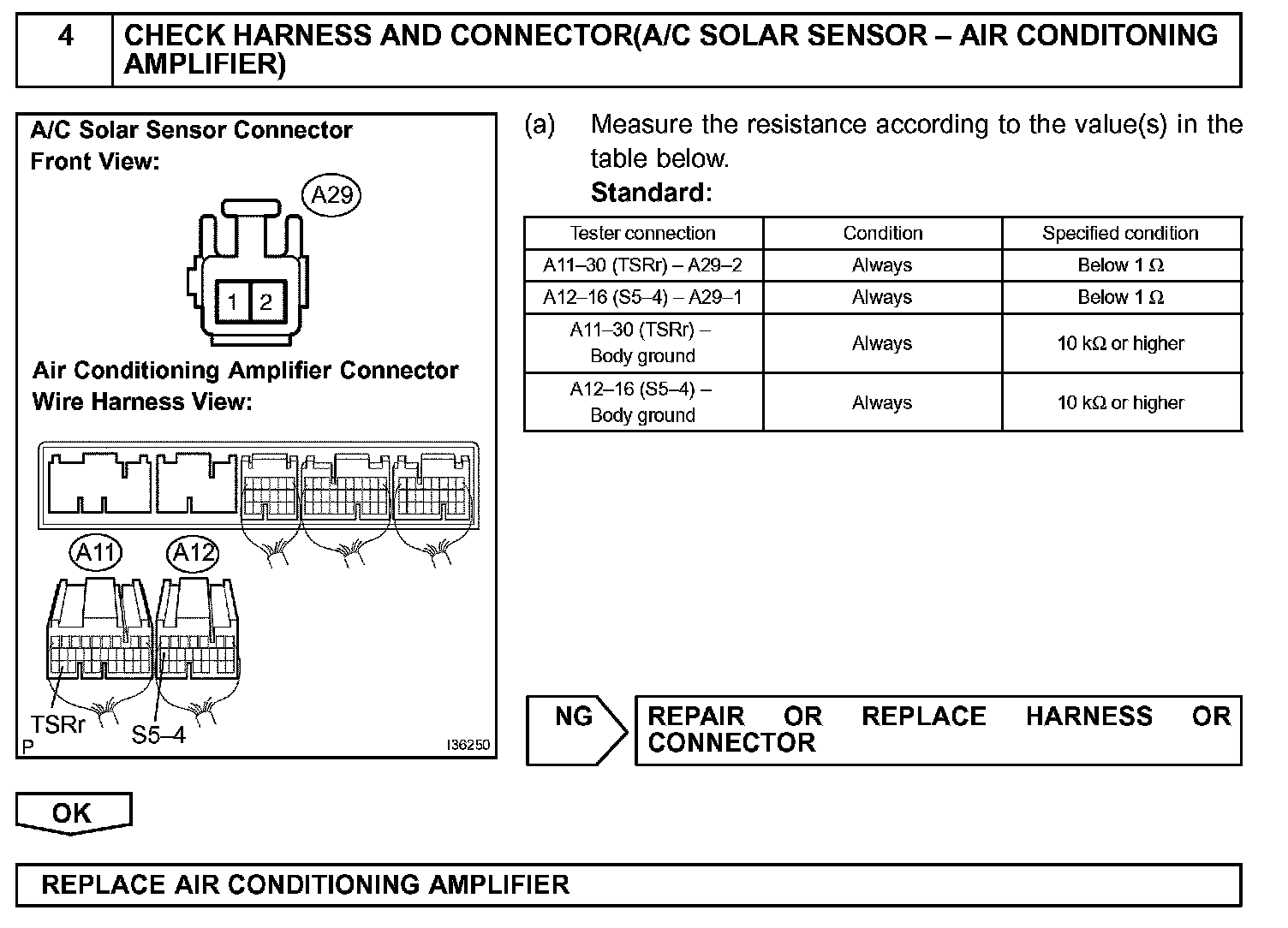

Step 4:

INSPECTION PROCEDURE
