DTC B1421 SOLAR SENSOR CIRCUIT (PASSENGER SIDE)

CIRCUIT DESCRIPTION

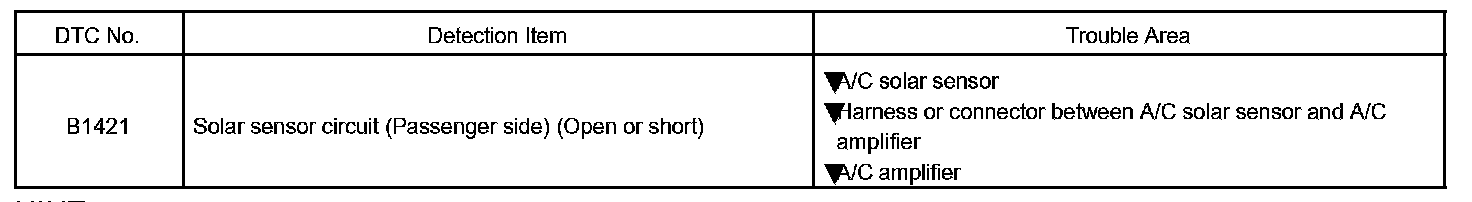

Detection Item:

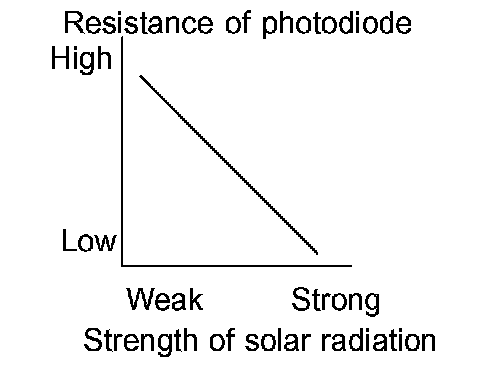

A photodiode in the A/C solar sensor detects solar radiation and sends signals to the A/C amplifier.

HINT: If DTC B1244 is output at the same time, troubleshoot DTC B1244 first.

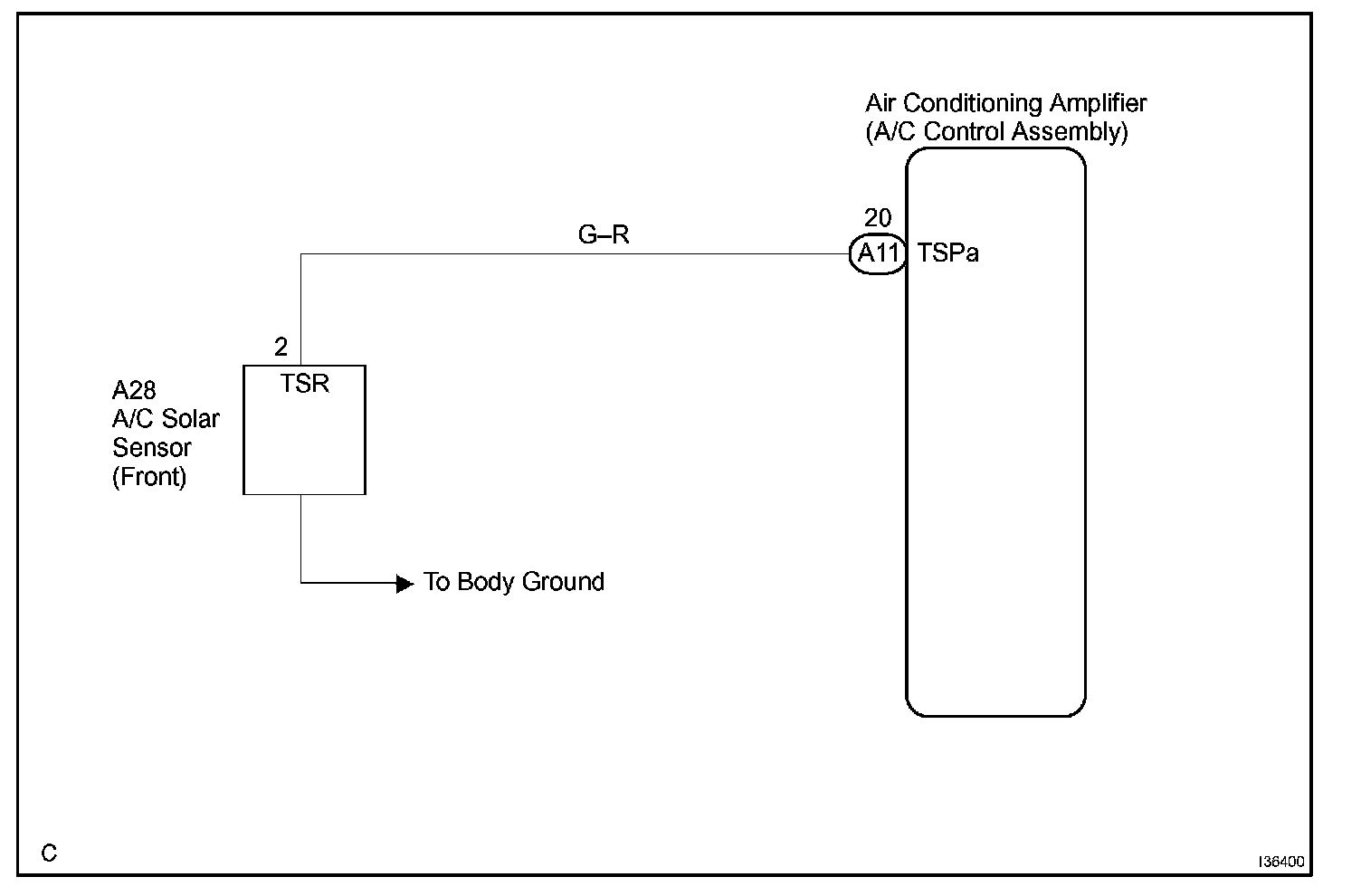

Wiring Diagram:

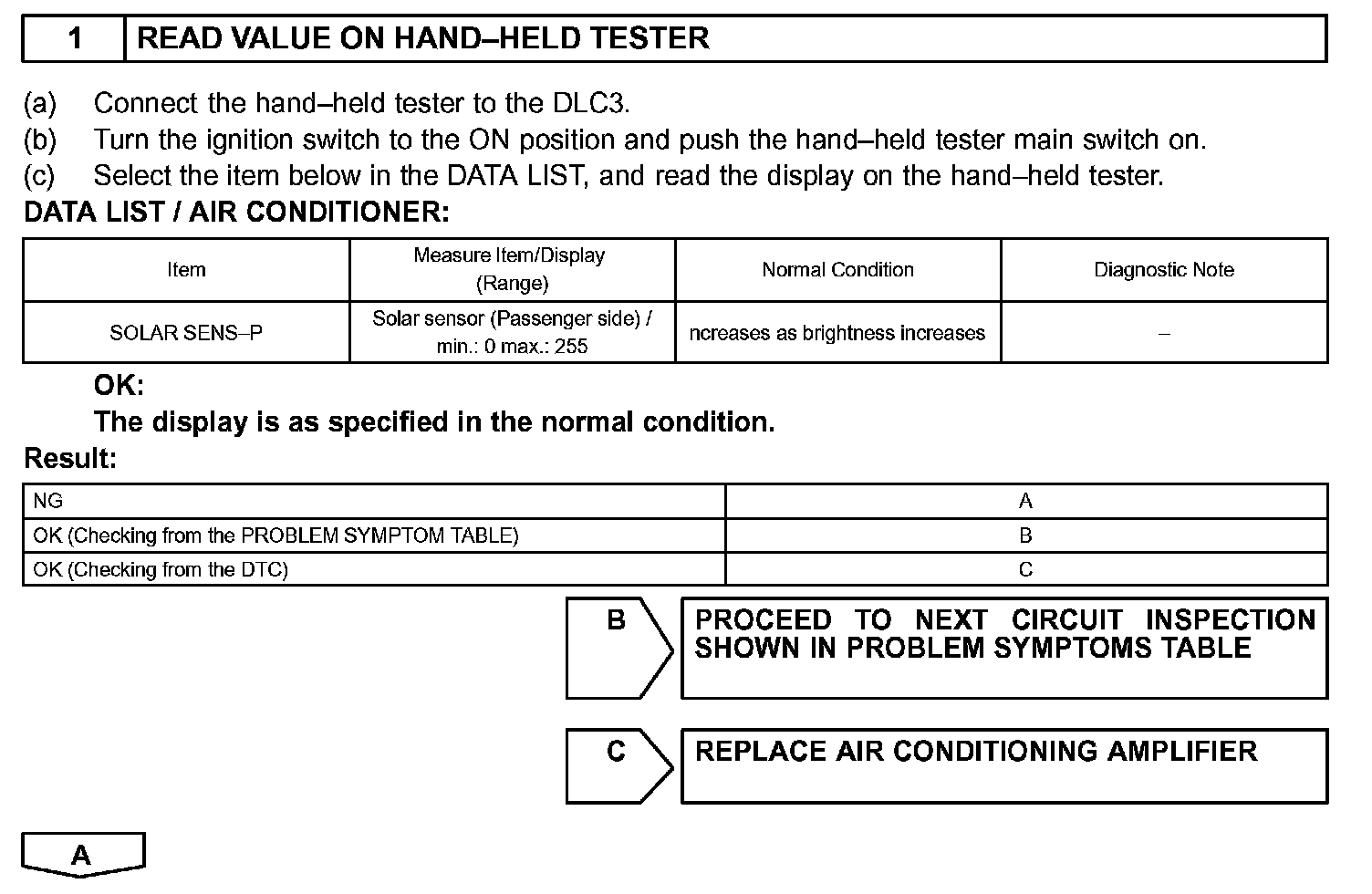

Step 1:

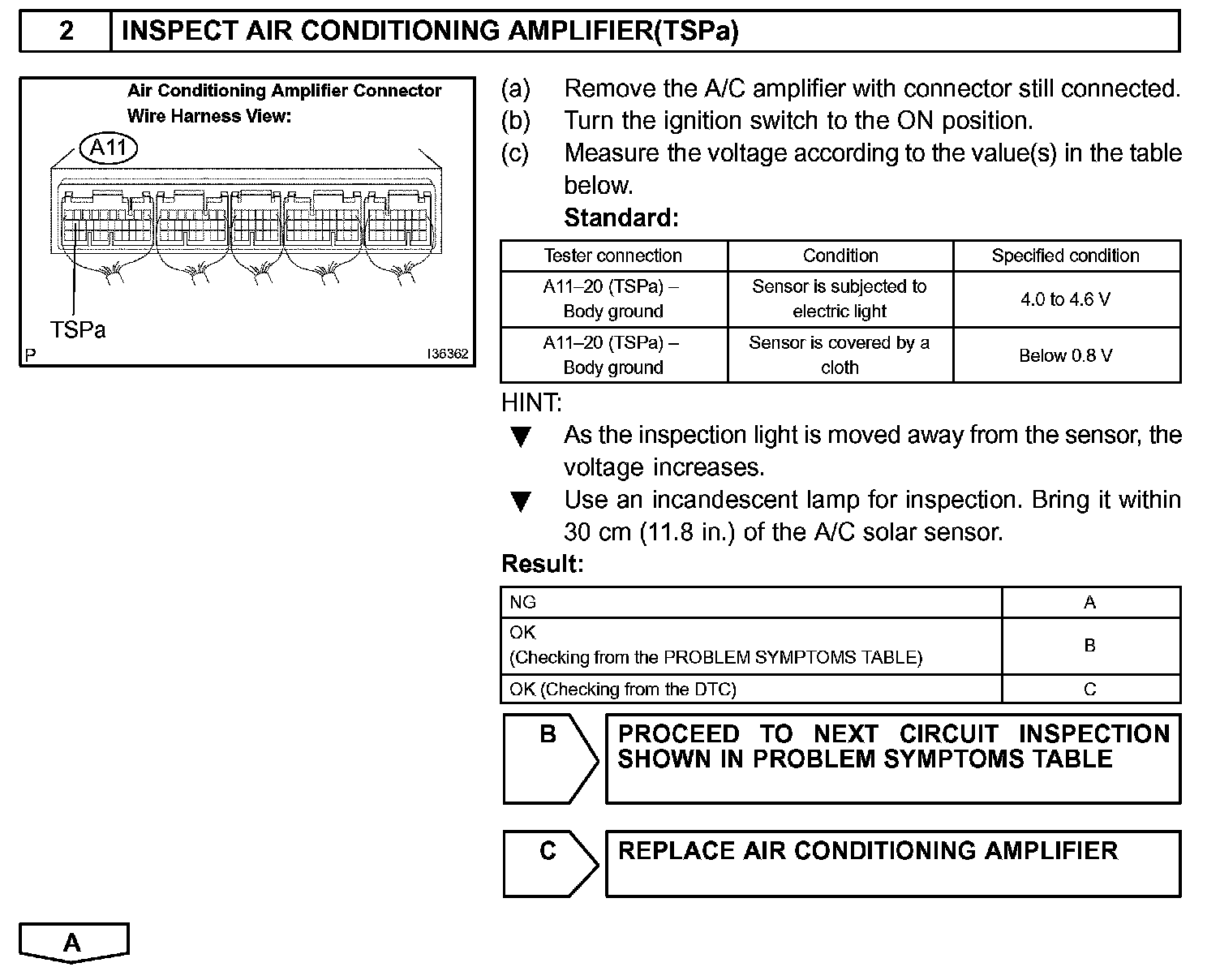

Step 2:

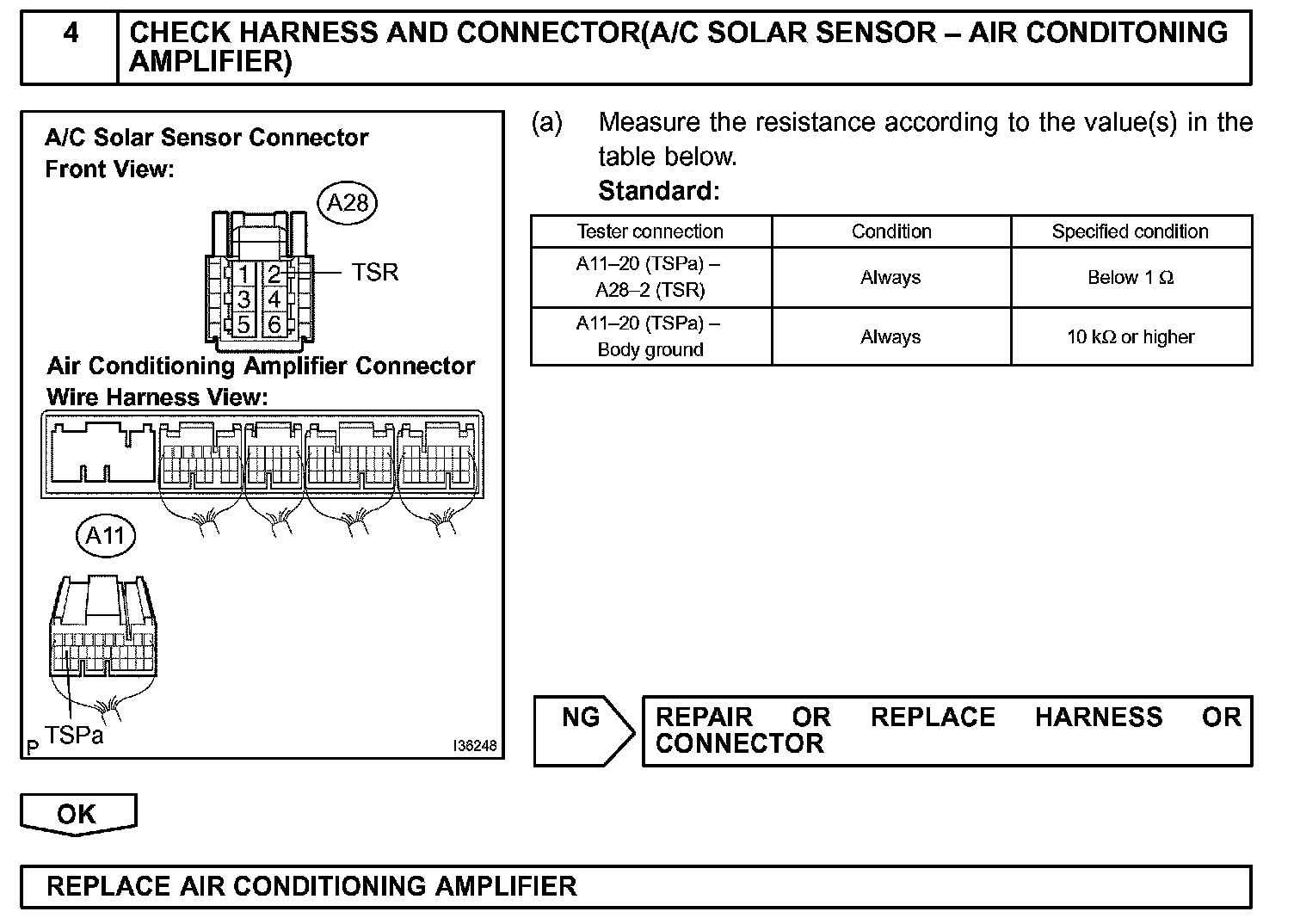

Step 3:

Step 4:

INSPECTION PROCEDURE
