B1418

DTC B1418 EMISSION GAS SENSOR CIRCUIT

CIRCUIT DESCRIPTION

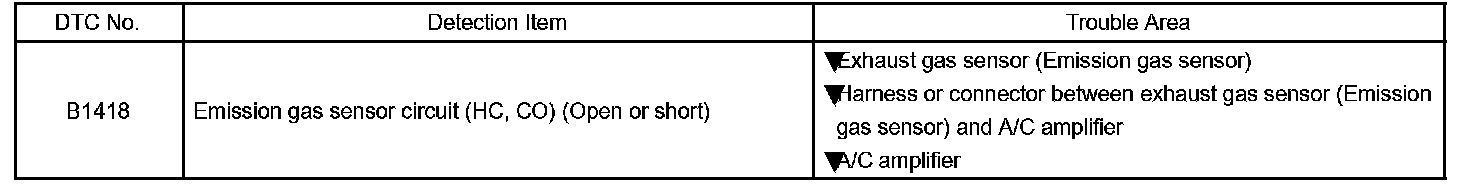

Detection Item:

This sensor detects the exhaust gas (HC, CO) outside the vehicle and sends a signal to the A/C amplifier.

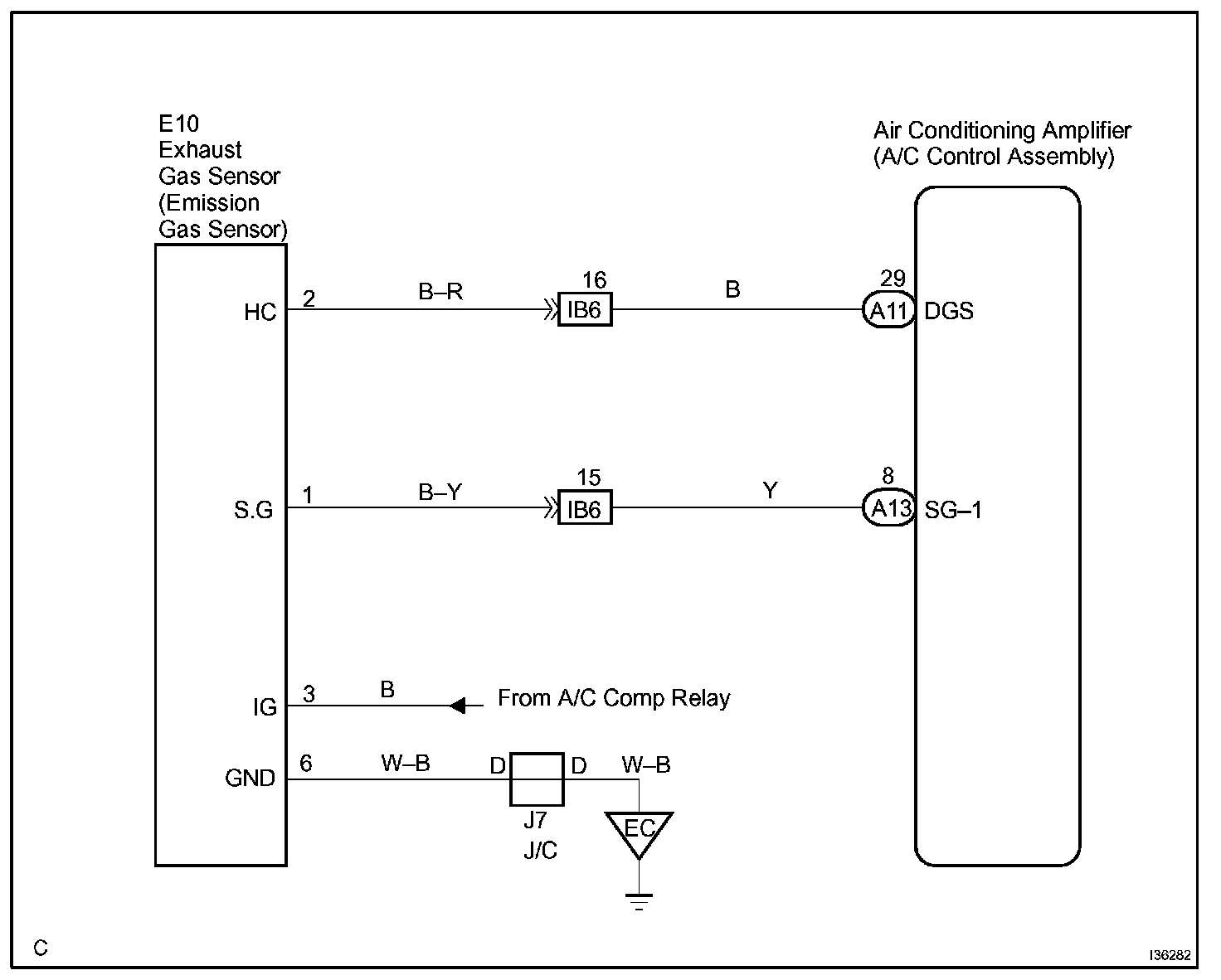

Wiring Diagram:

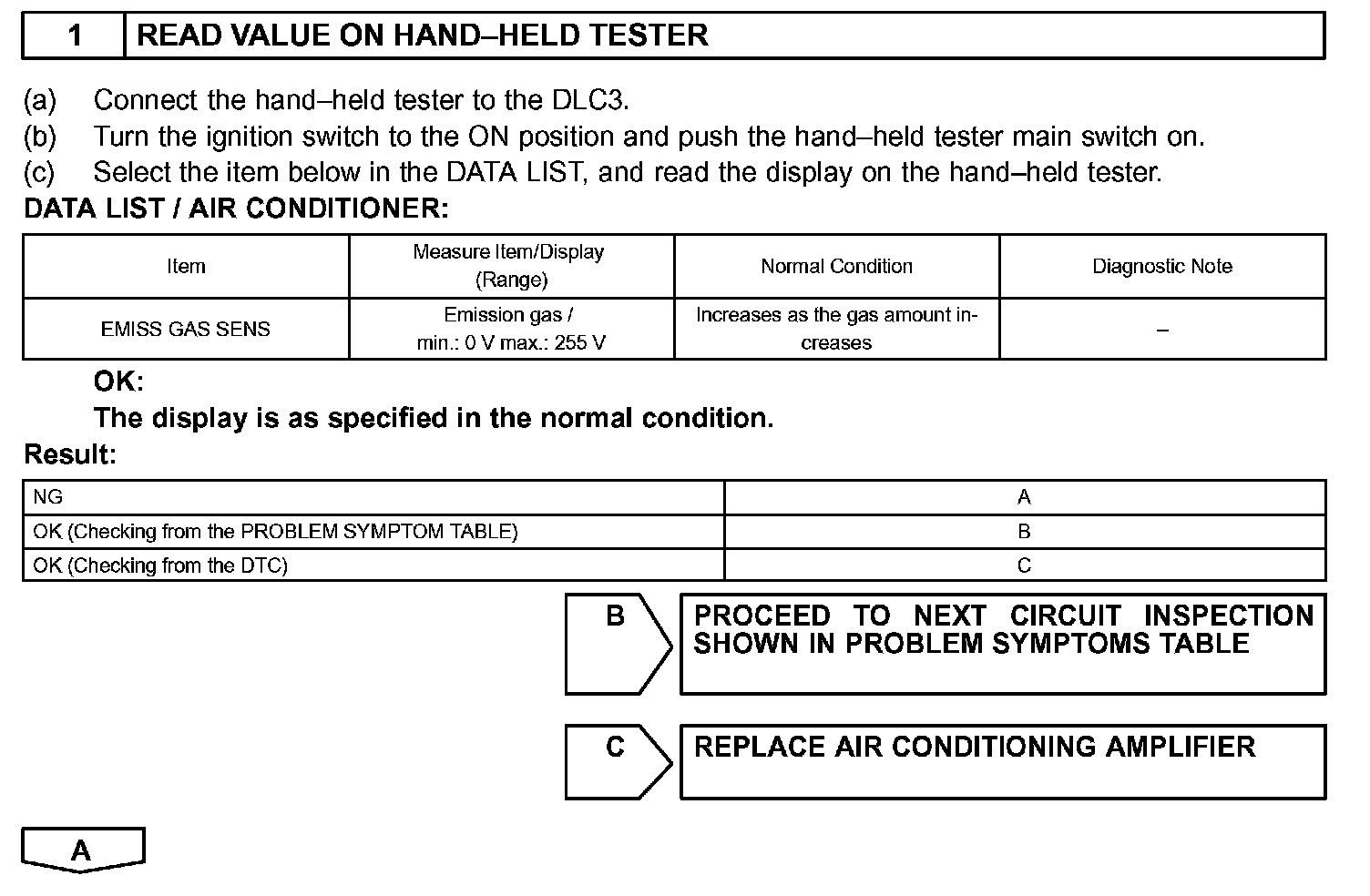

Step 1:

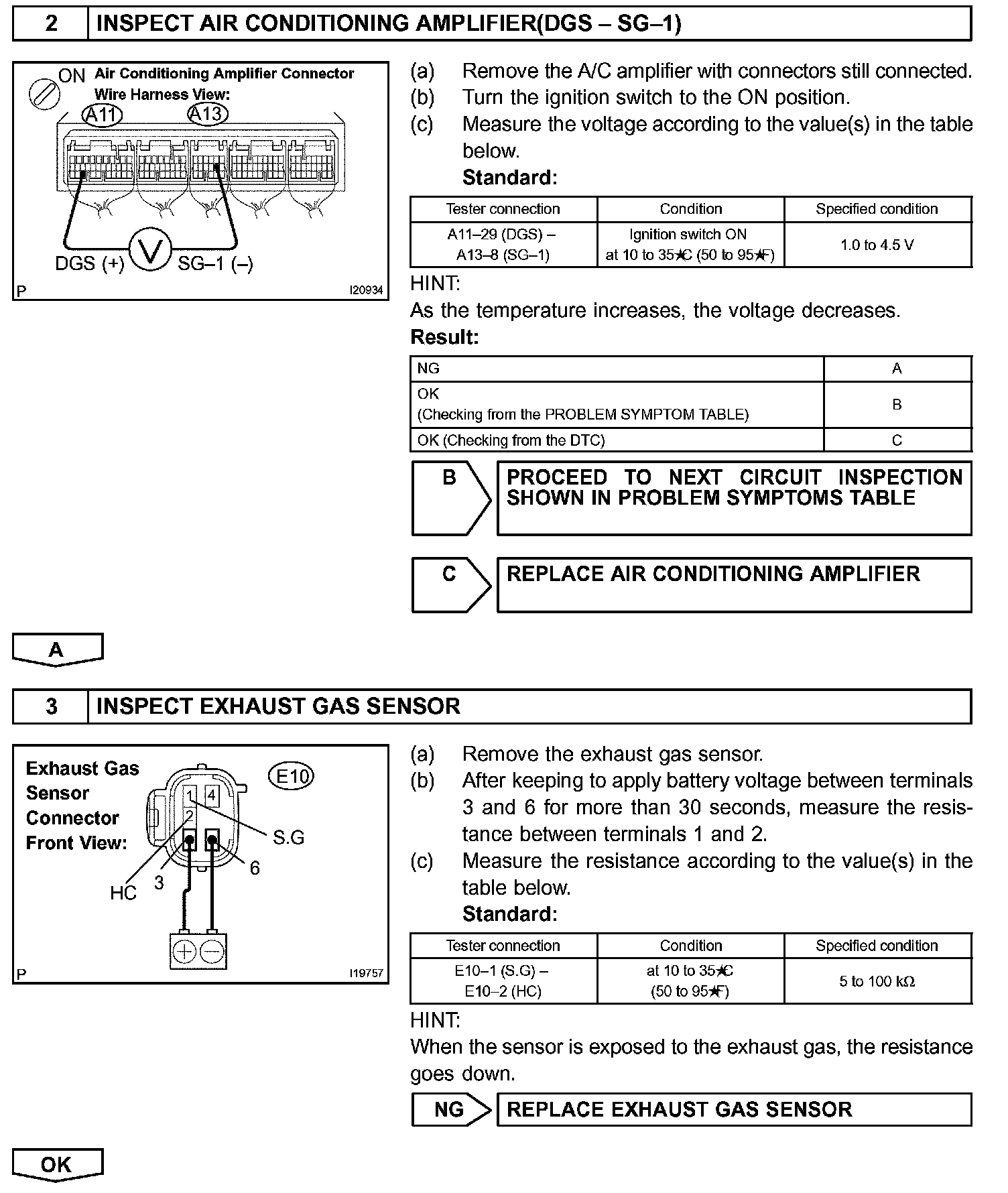

Step 2 - 3:

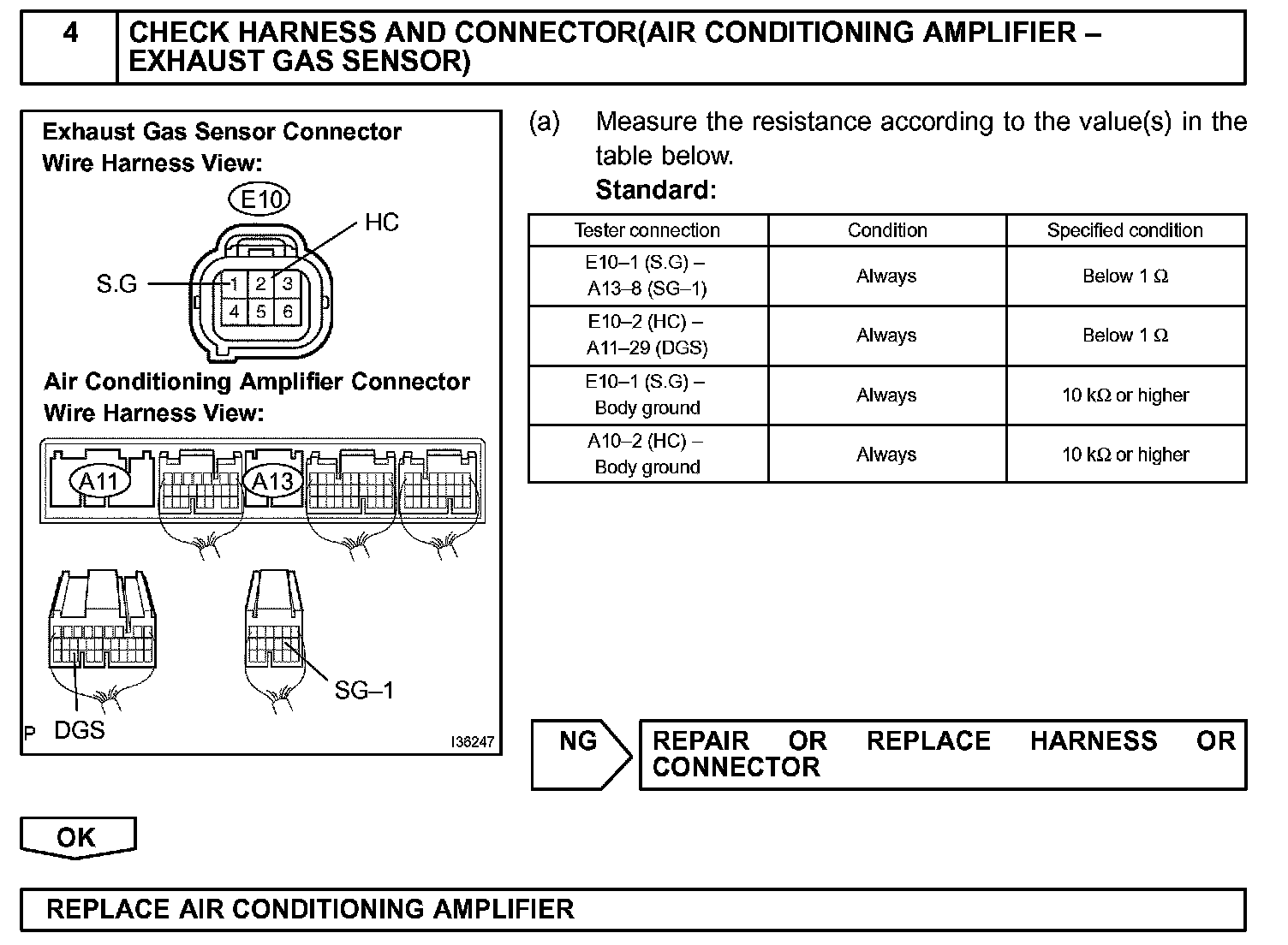

Step 4:

INSPECTION PROCEDURE
