B1415

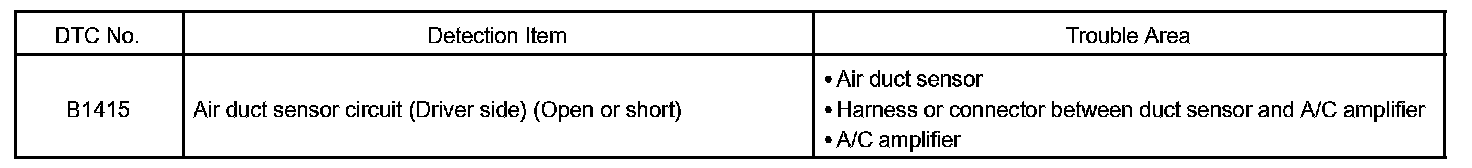

DTC B1415 AIR DUCT SENSOR CIRCUIT (DRIVER SIDE)

CIRCUIT DESCRIPTION

Detection Item:

This sensor detects the register temperature and sends the appropriate signals to the A/C amplifier.

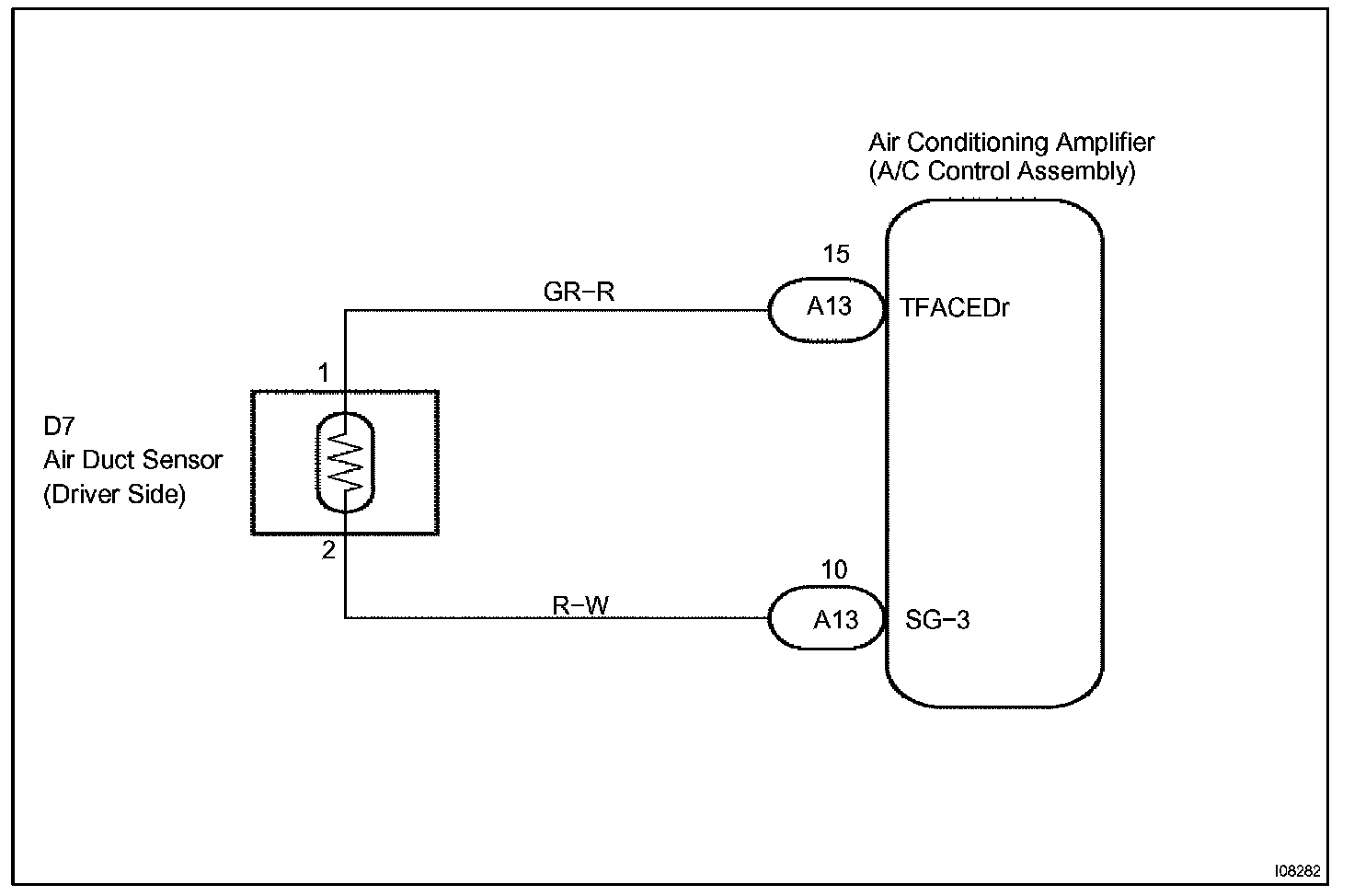

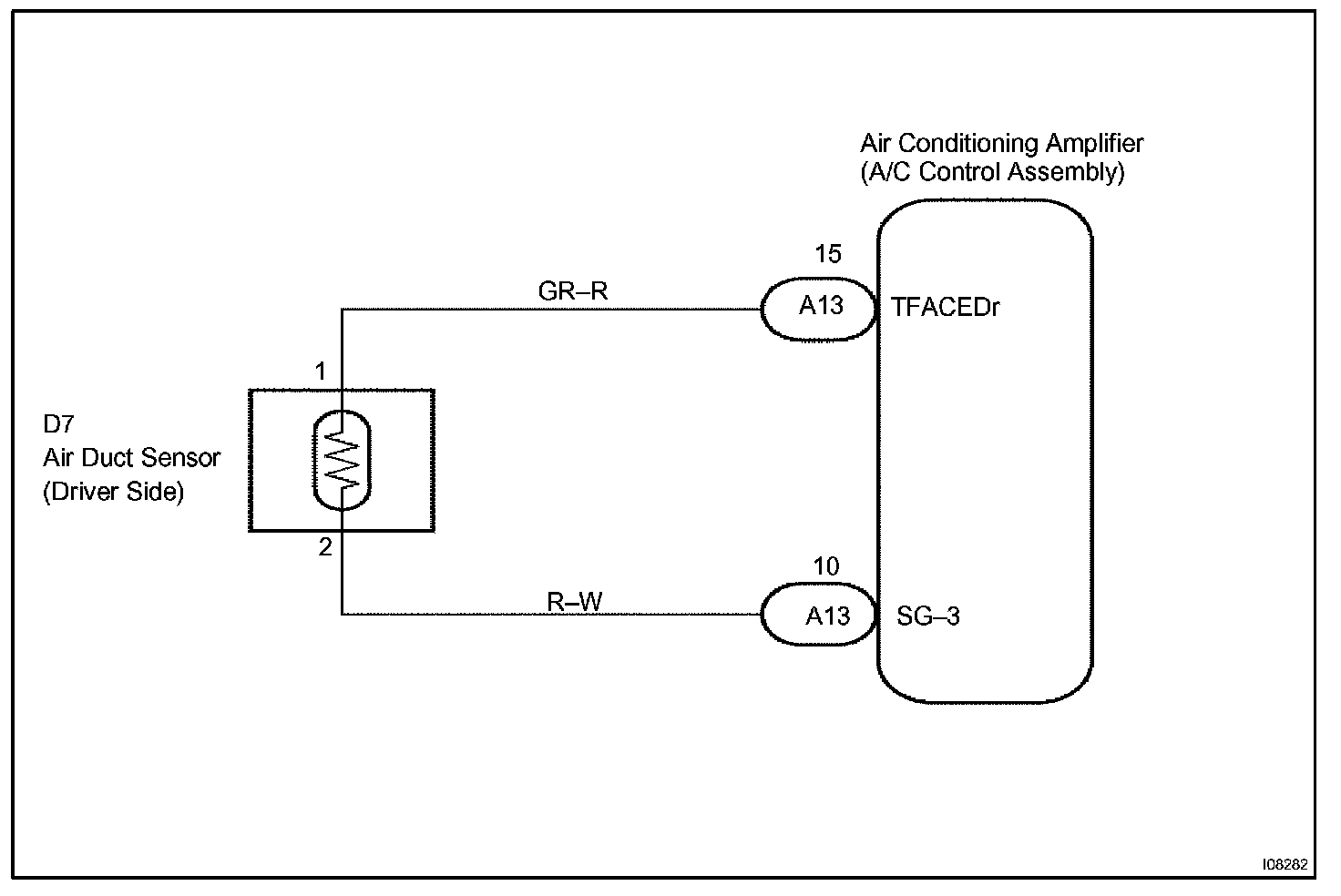

Wiring Diagram:

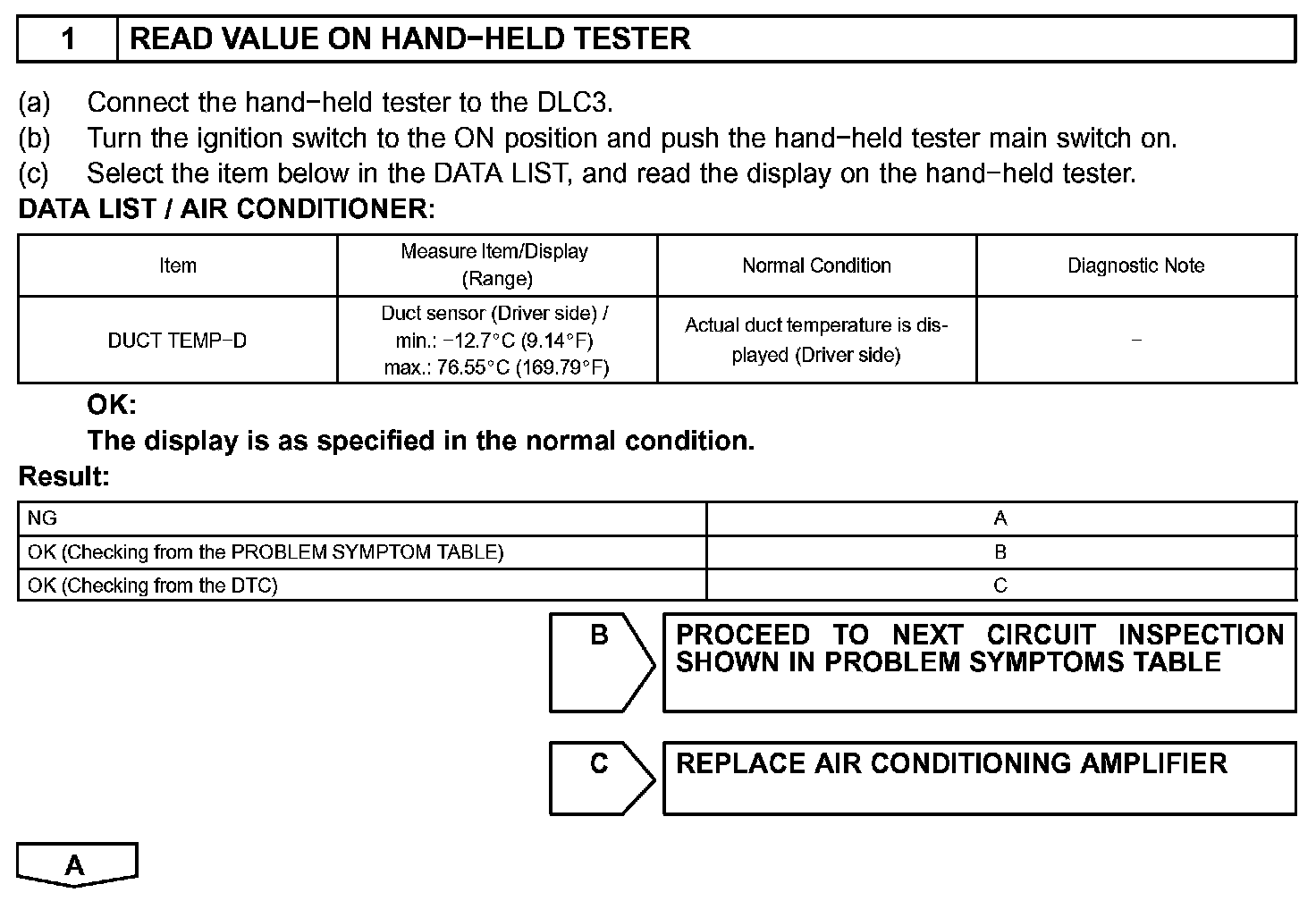

Step 1:

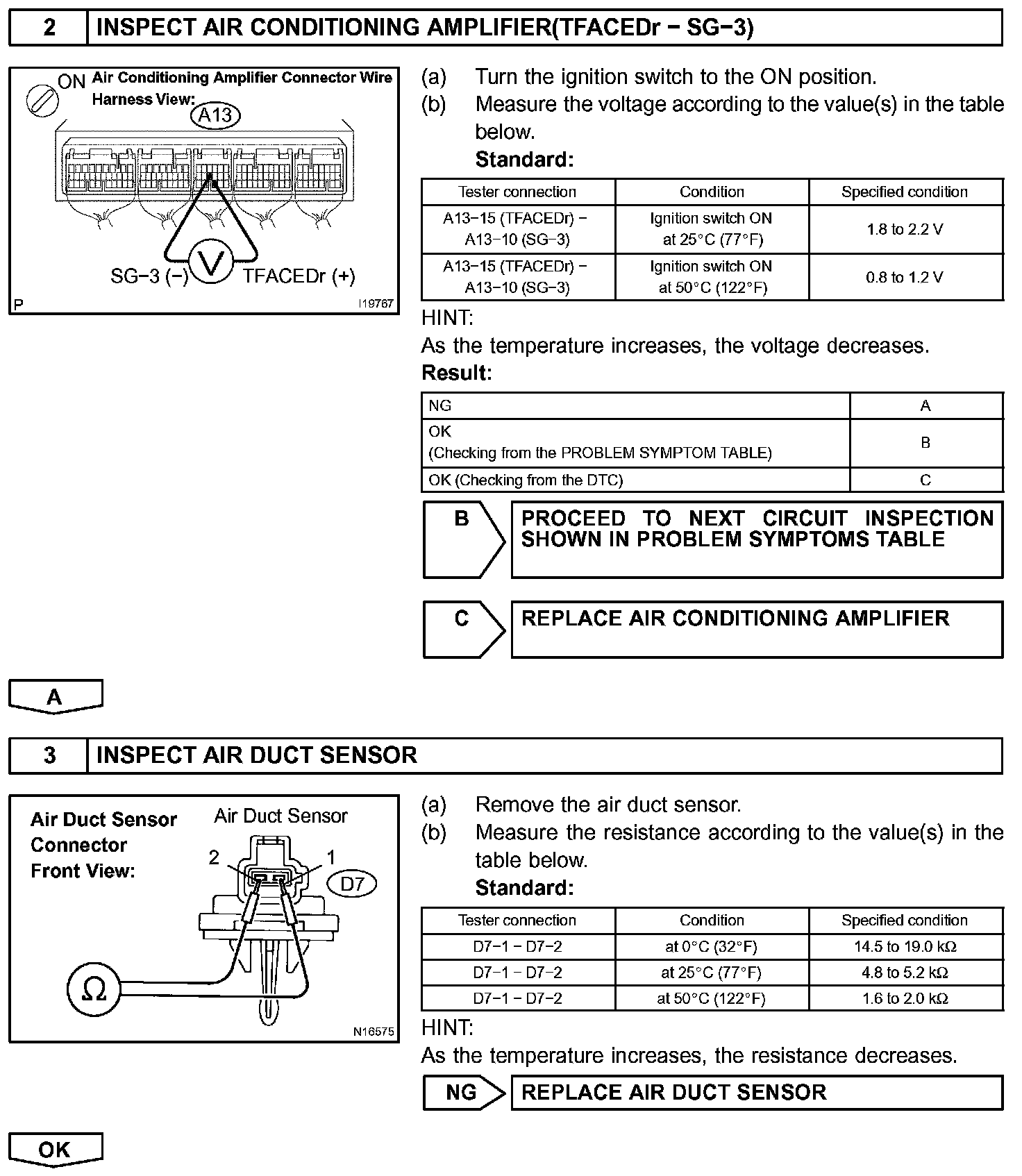

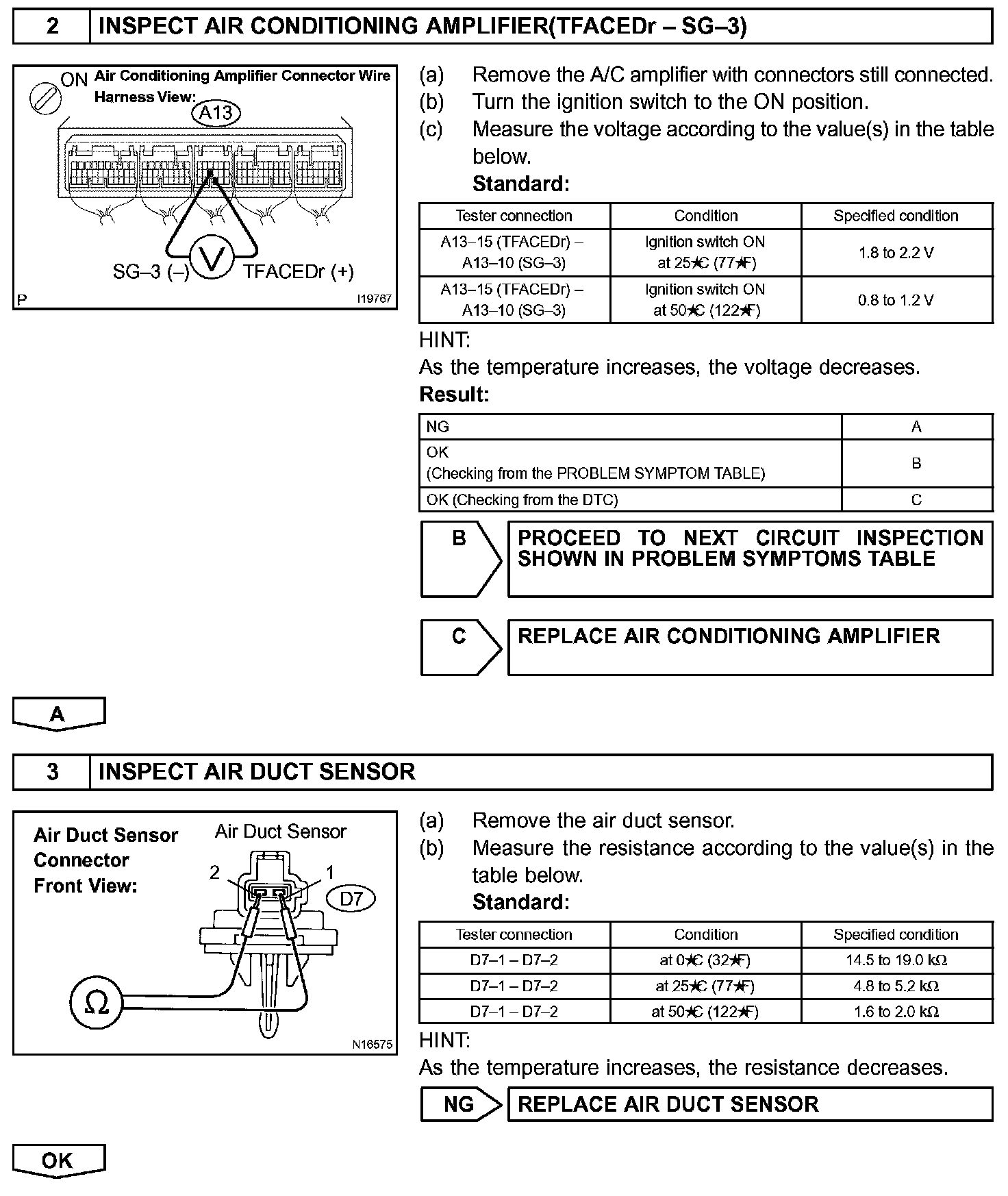

Step 2 - 3:

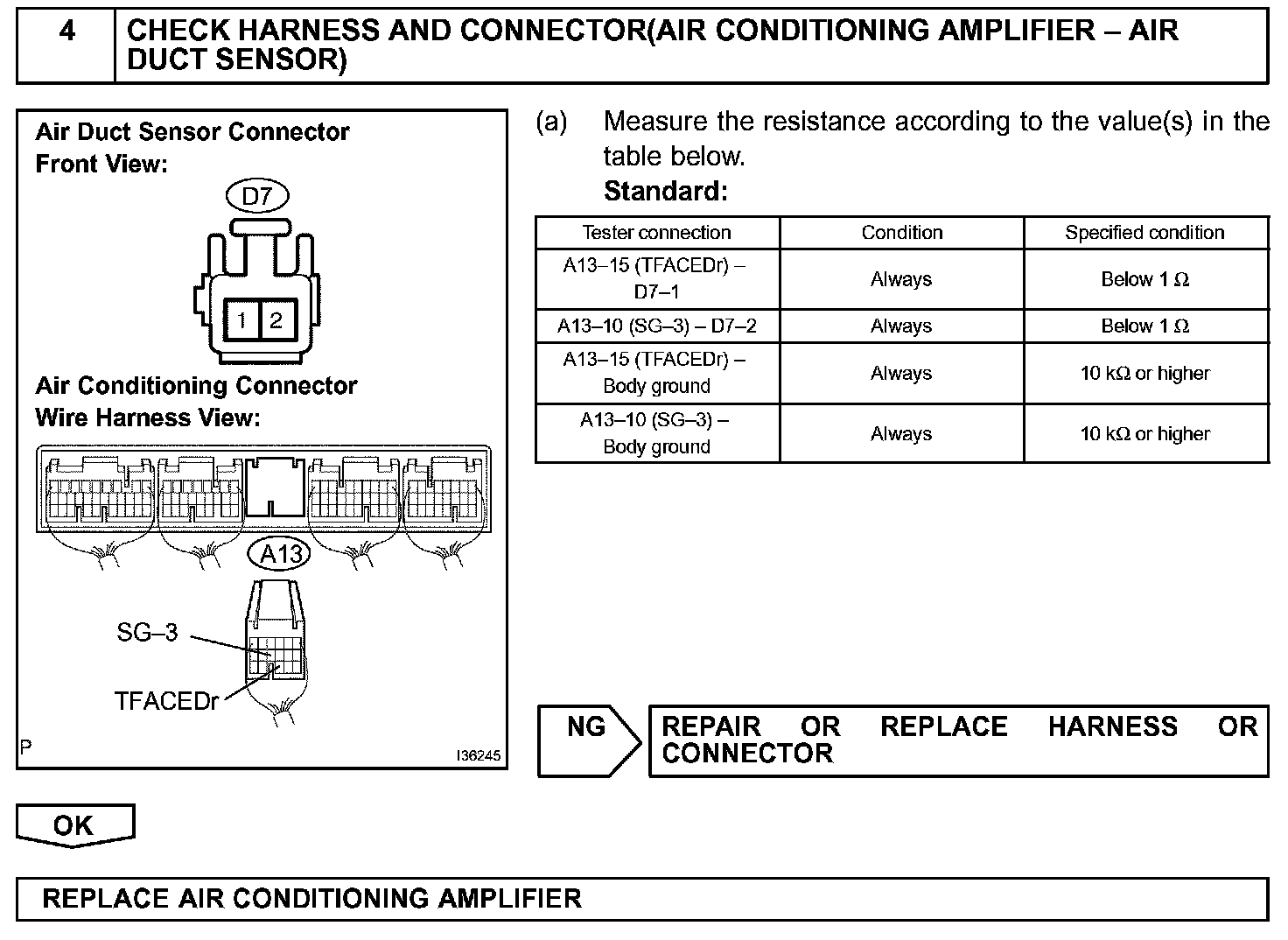

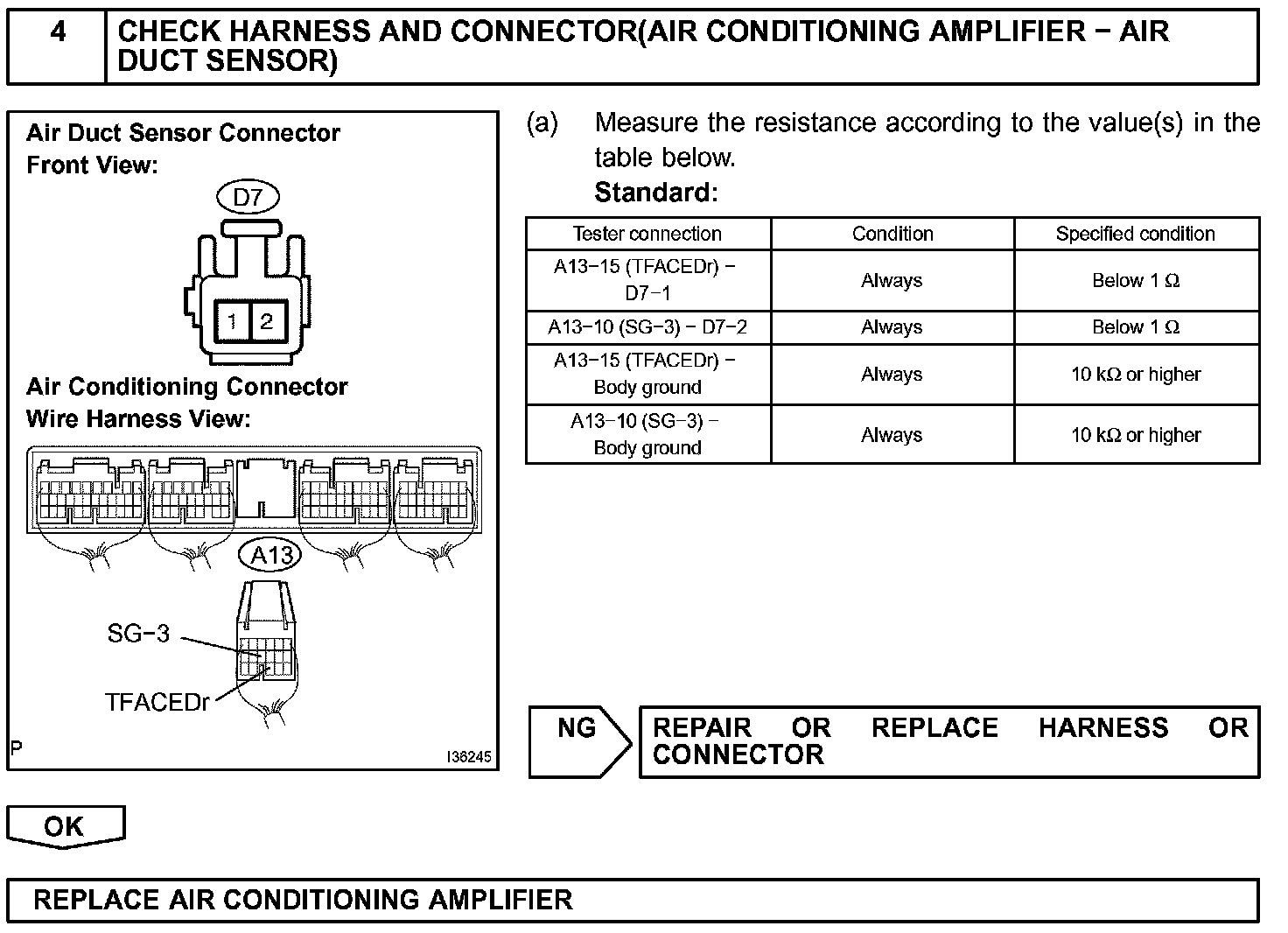

Step 4:

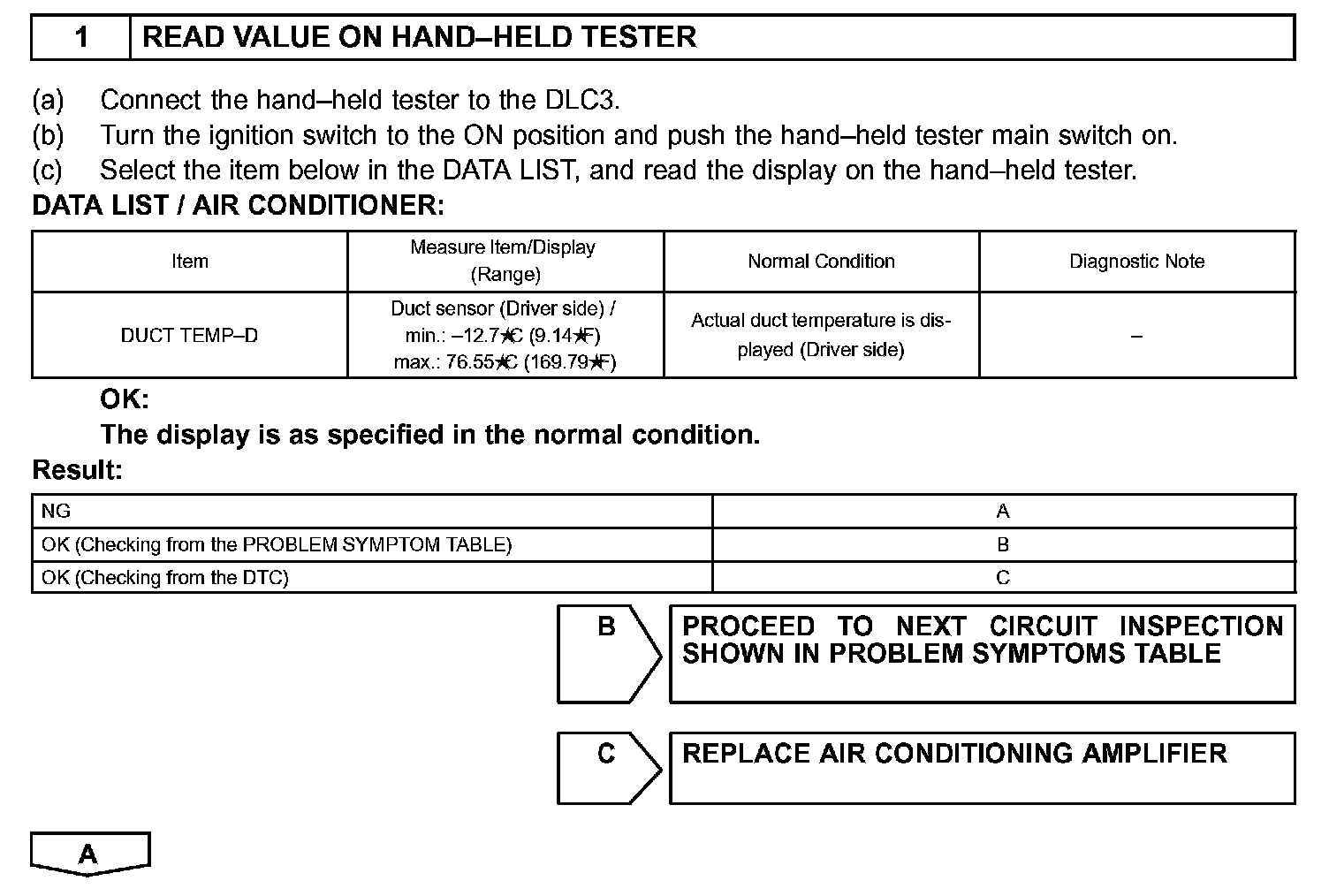

INSPECTION PROCEDURE
