B1413

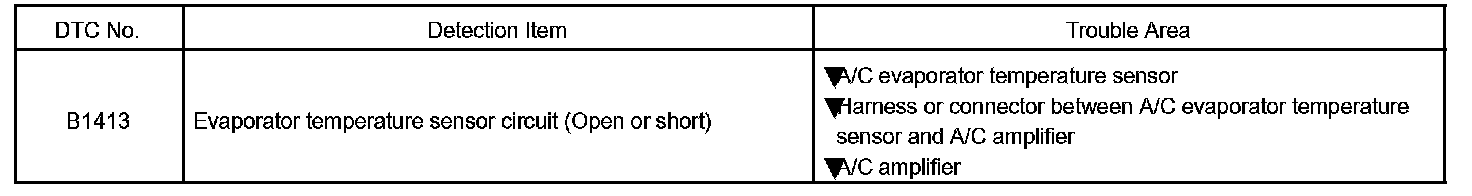

DTC B1413 EVAPORATOR TEMPERATURE SENSOR CIRCUIT

CIRCUIT DESCRIPTION

Detection Item:

This sensor detects the evaporator temperature and sends the appropriate signals to the A/C amplifier. It is used for frost prevention, temperature and time-lag air flow control.

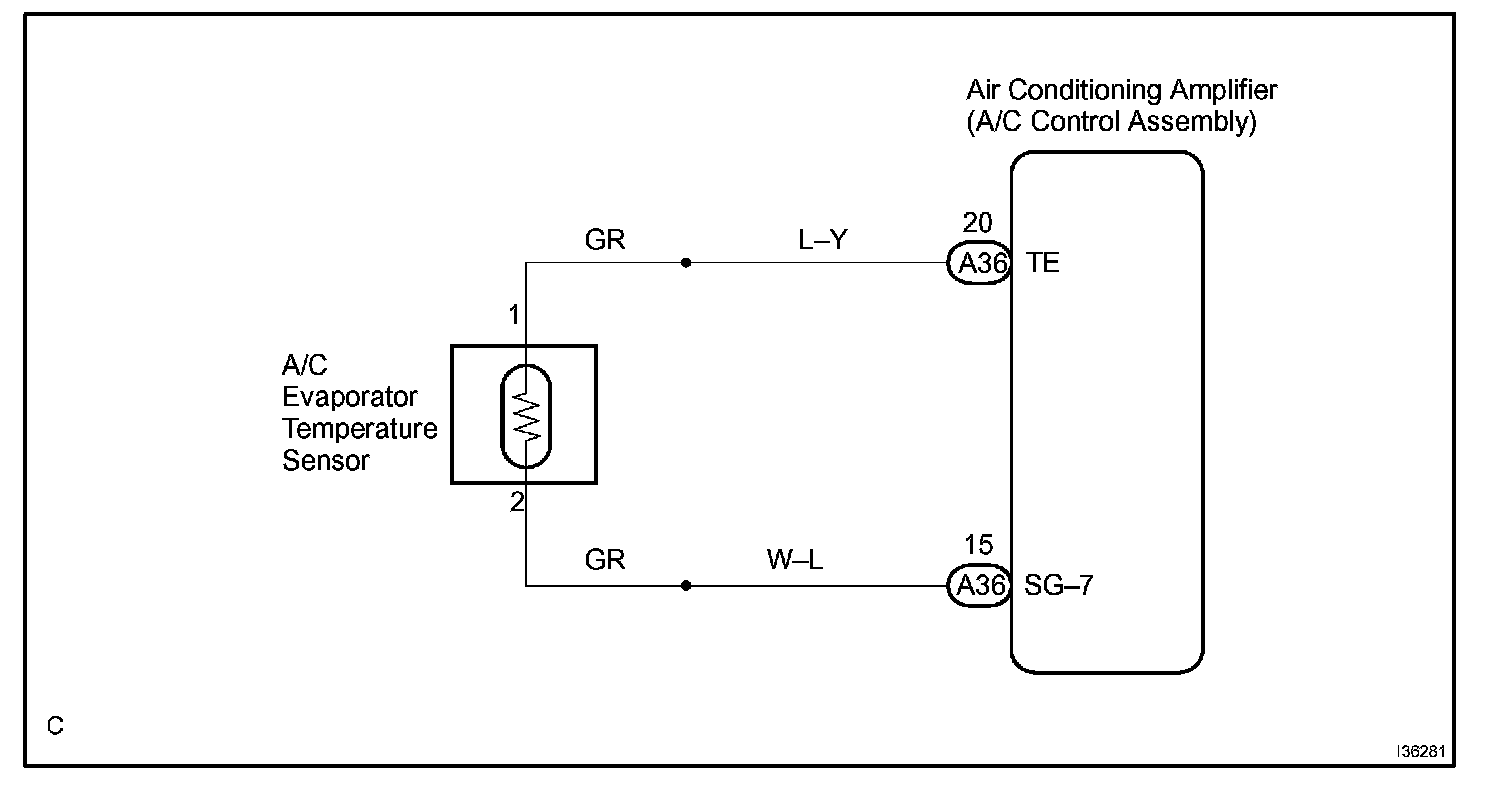

Wiring Diagram:

Step 1:

Step 2:

Step 3:

Step 3 (Continued) - 4:

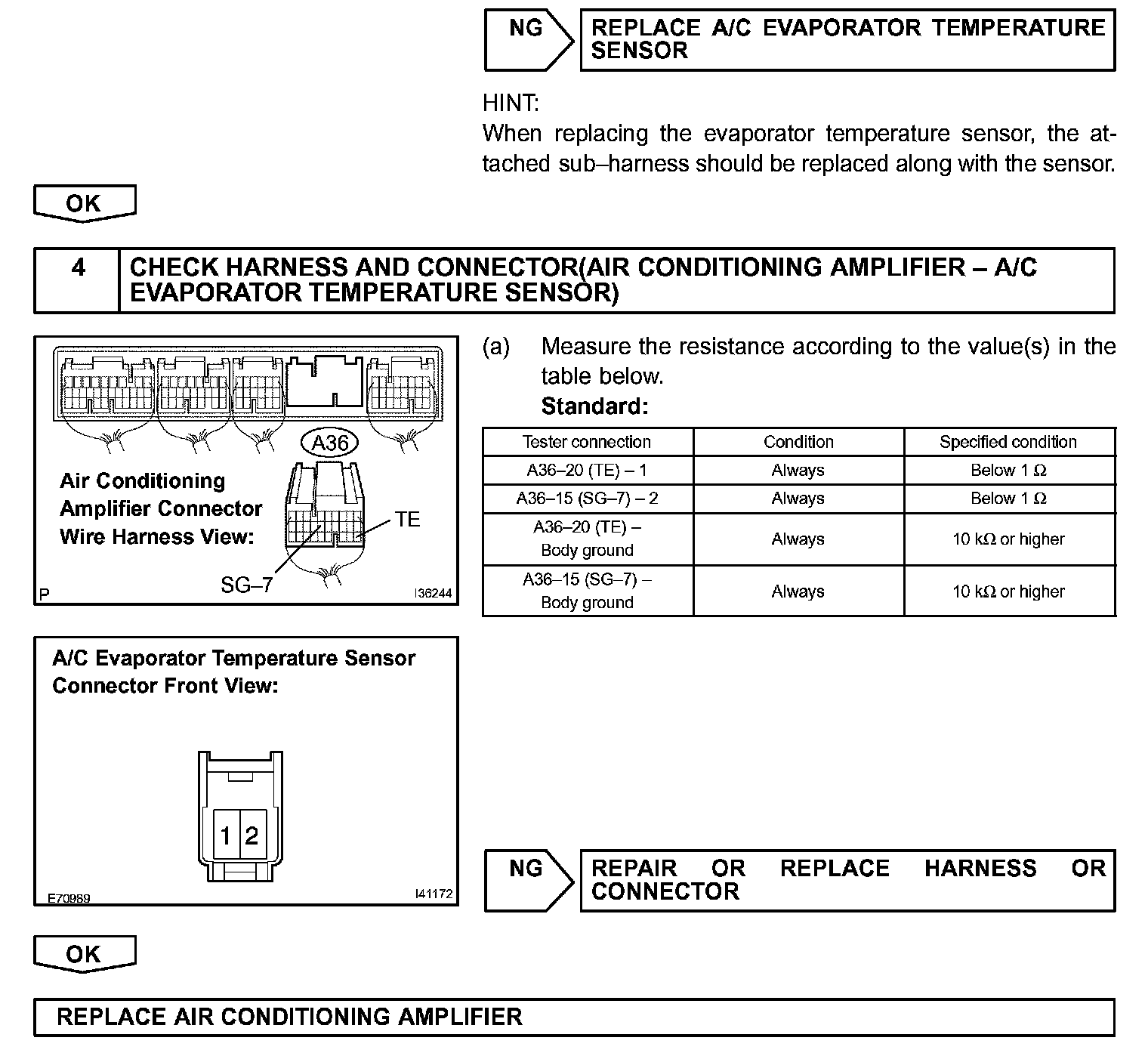

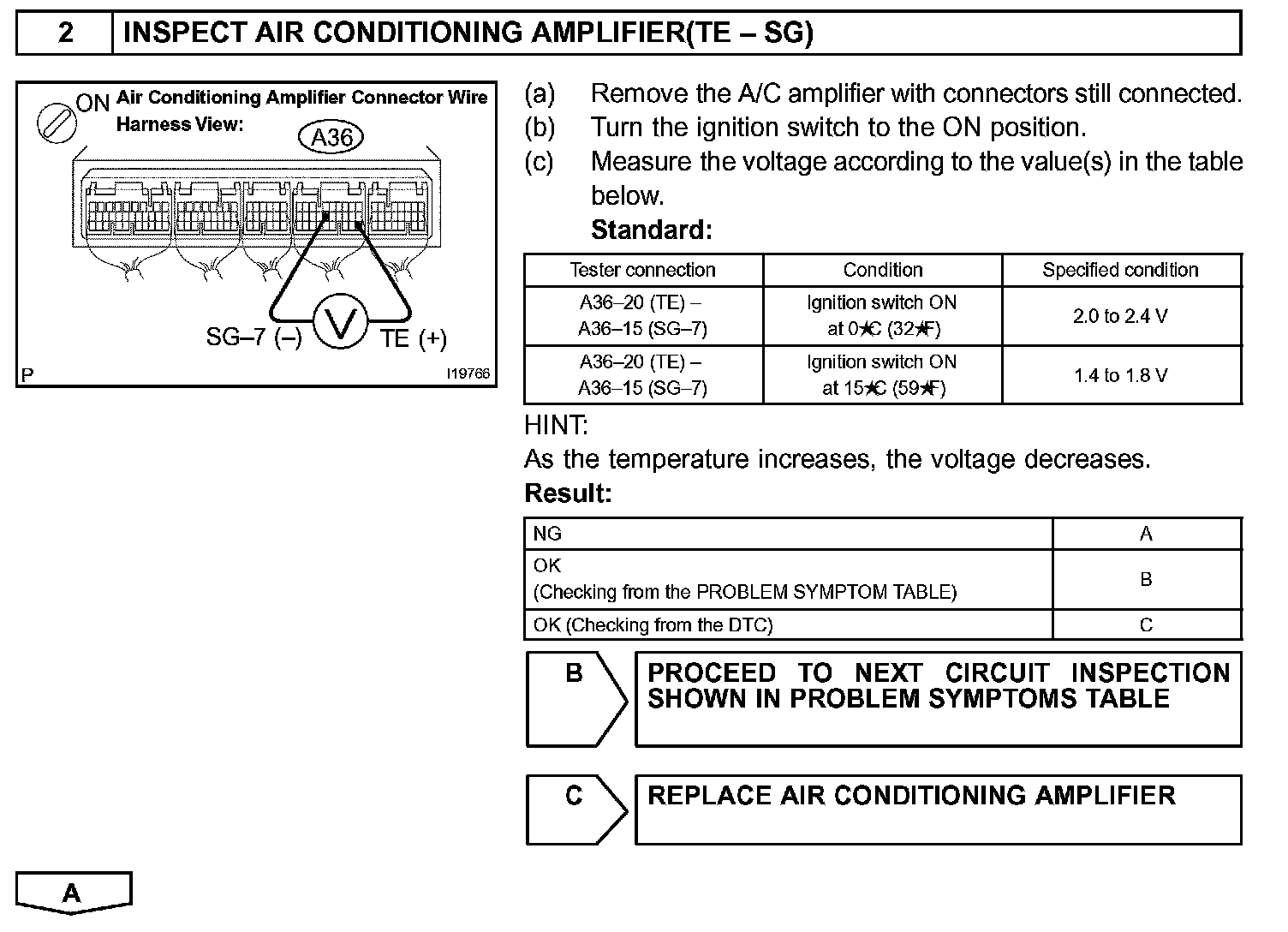

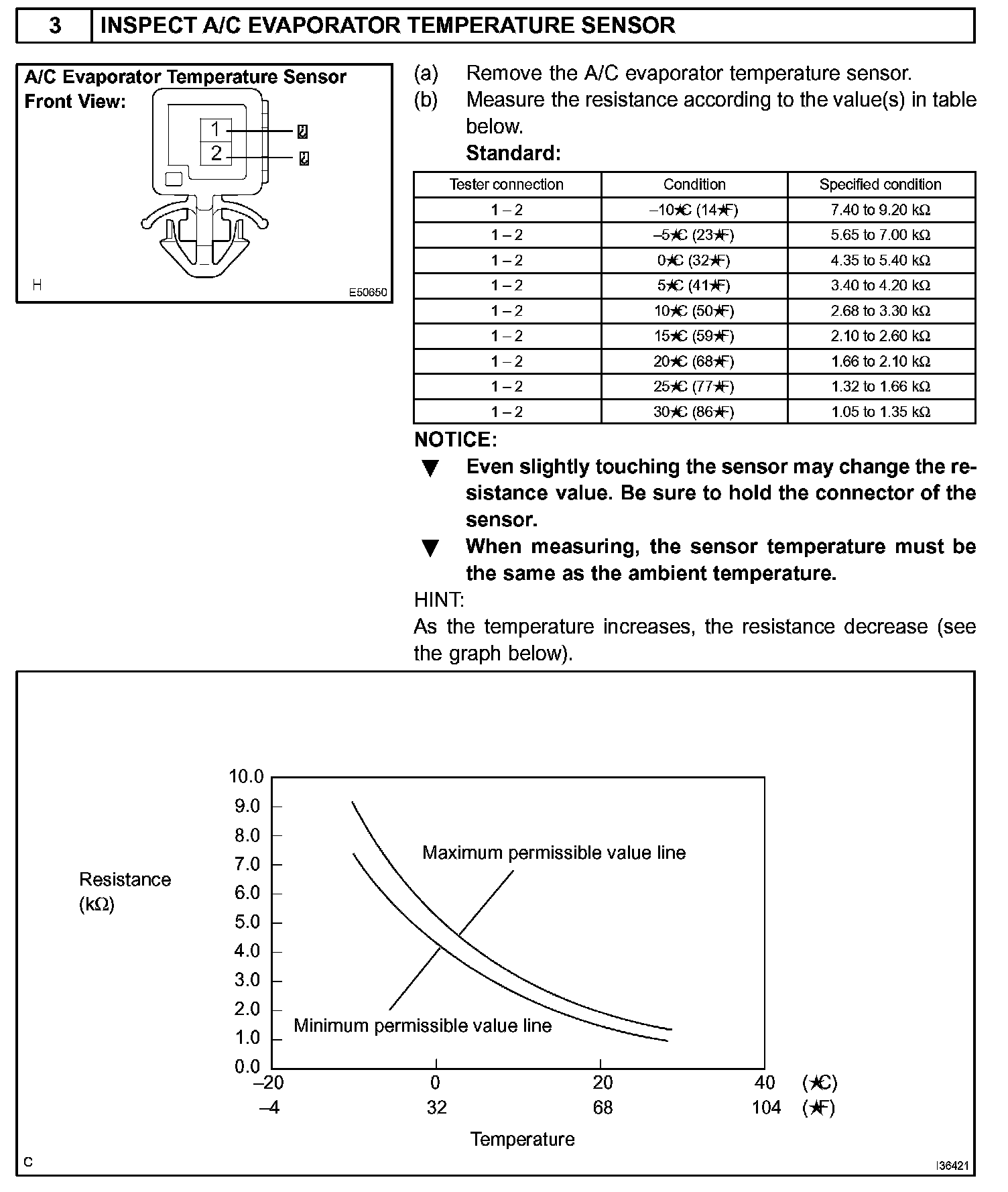

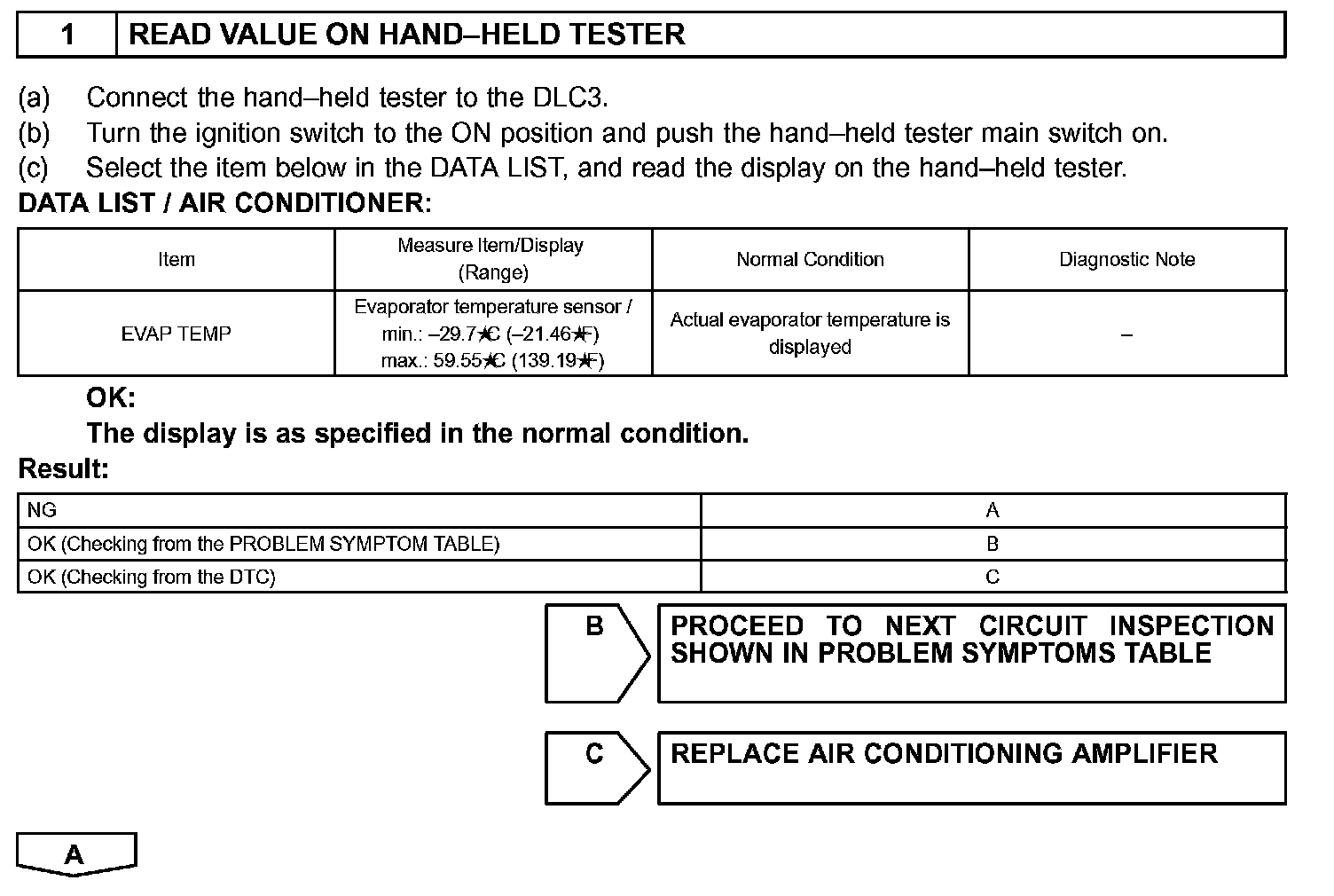

INSPECTION PROCEDURE
