B1412

DTC B1412 AMBIENT TEMPERATURE SENSOR CIRCUIT

CIRCUIT DESCRIPTION

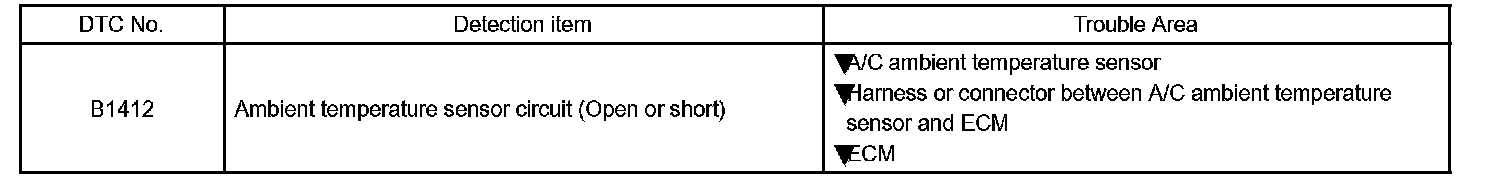

Detection Item:

The sensor connected to the ECM detects fluctuations in the ambient temperature that is used for controlling the interior temperature. The sensor sends a signal to the A/C amplifier via the ECM.

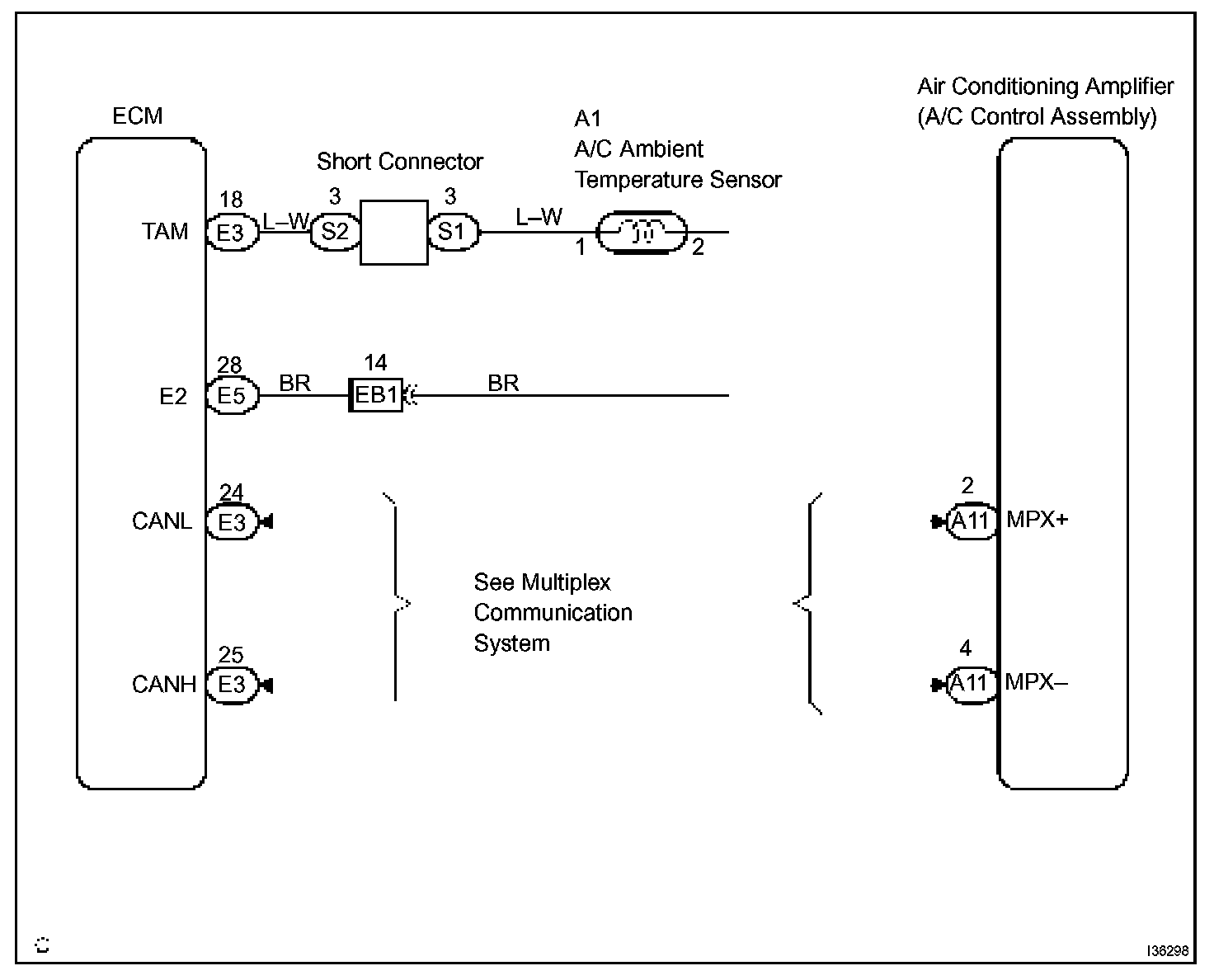

Wiring Diagram:

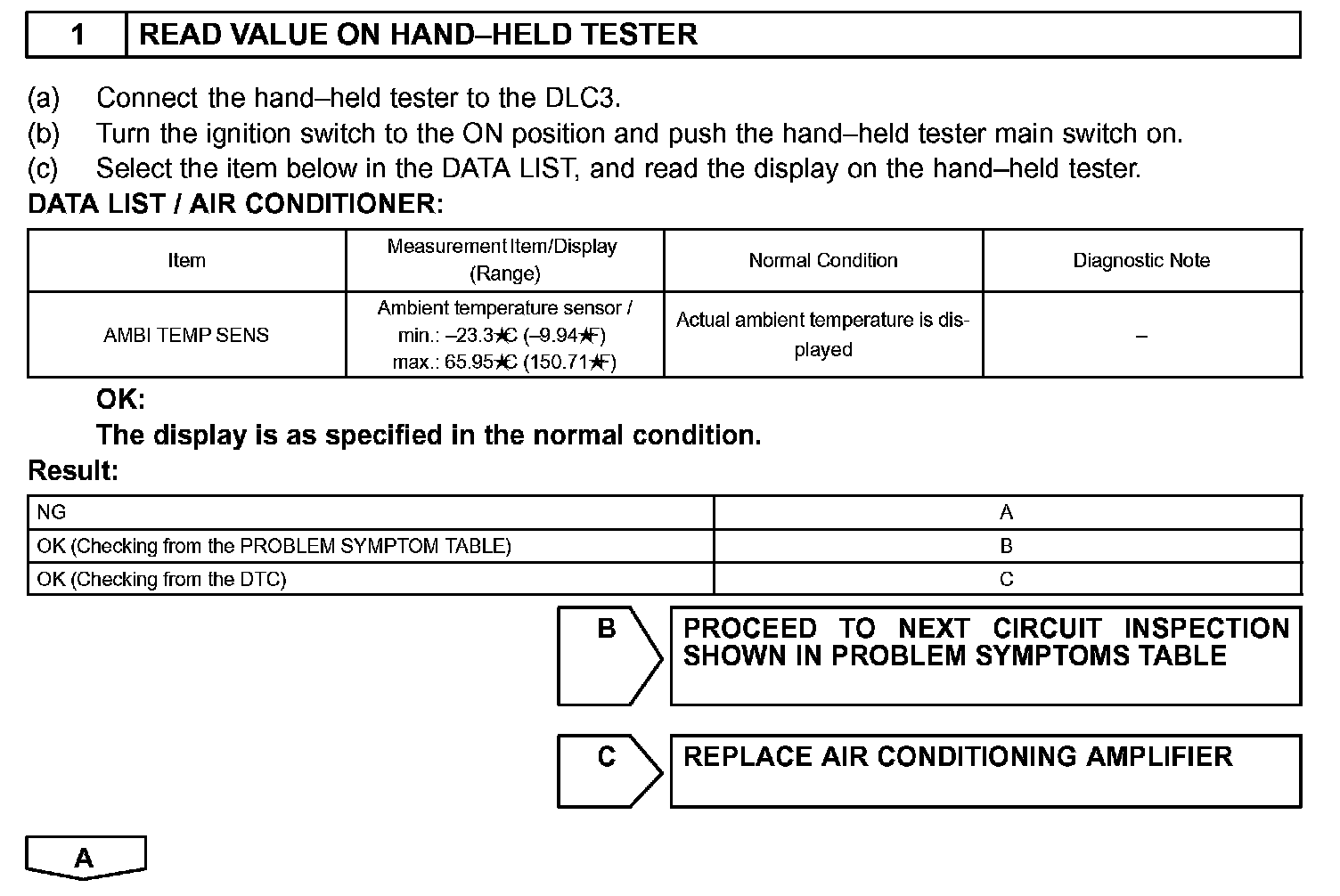

Step 1:

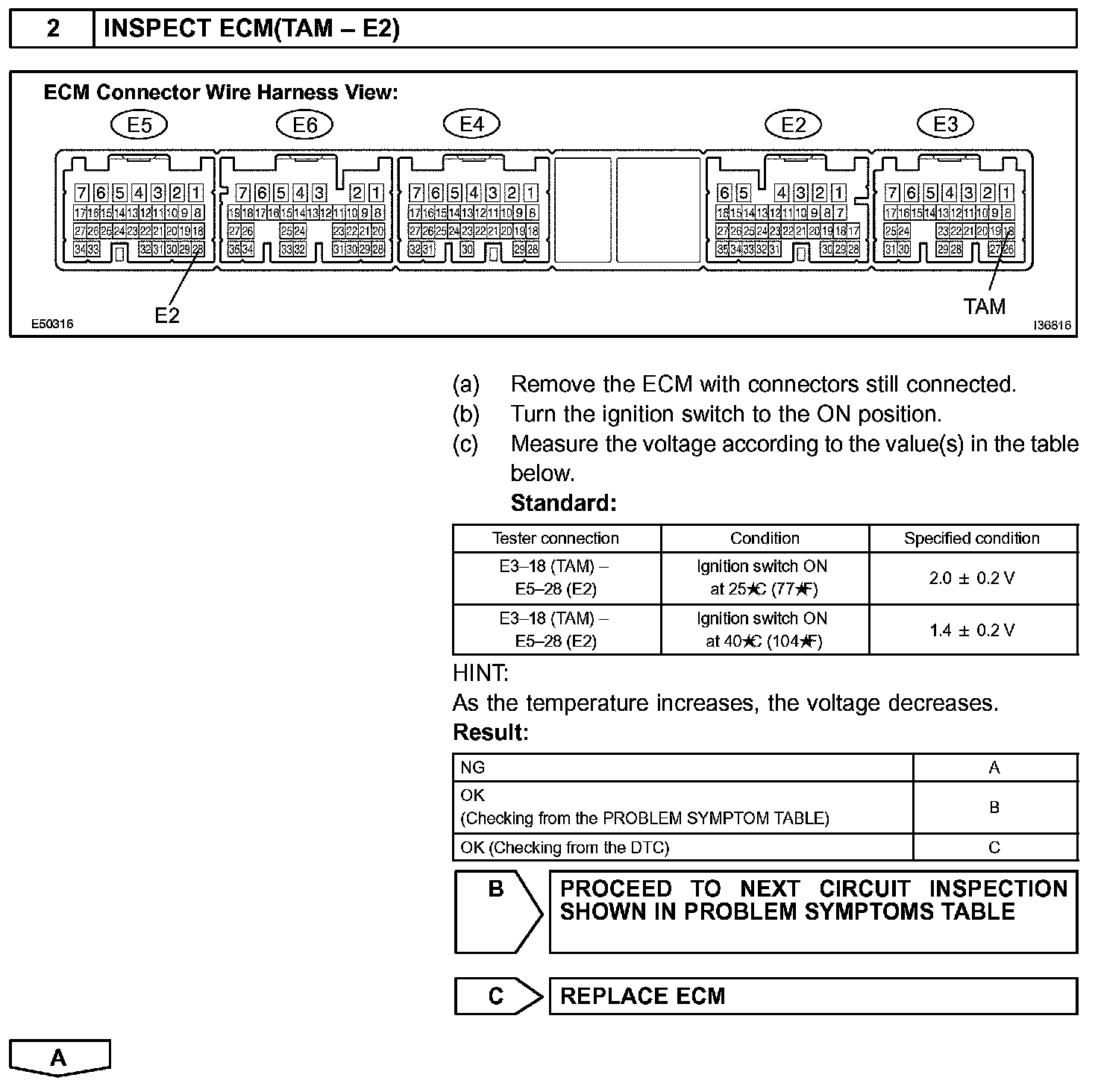

Step 2:

Step 3:

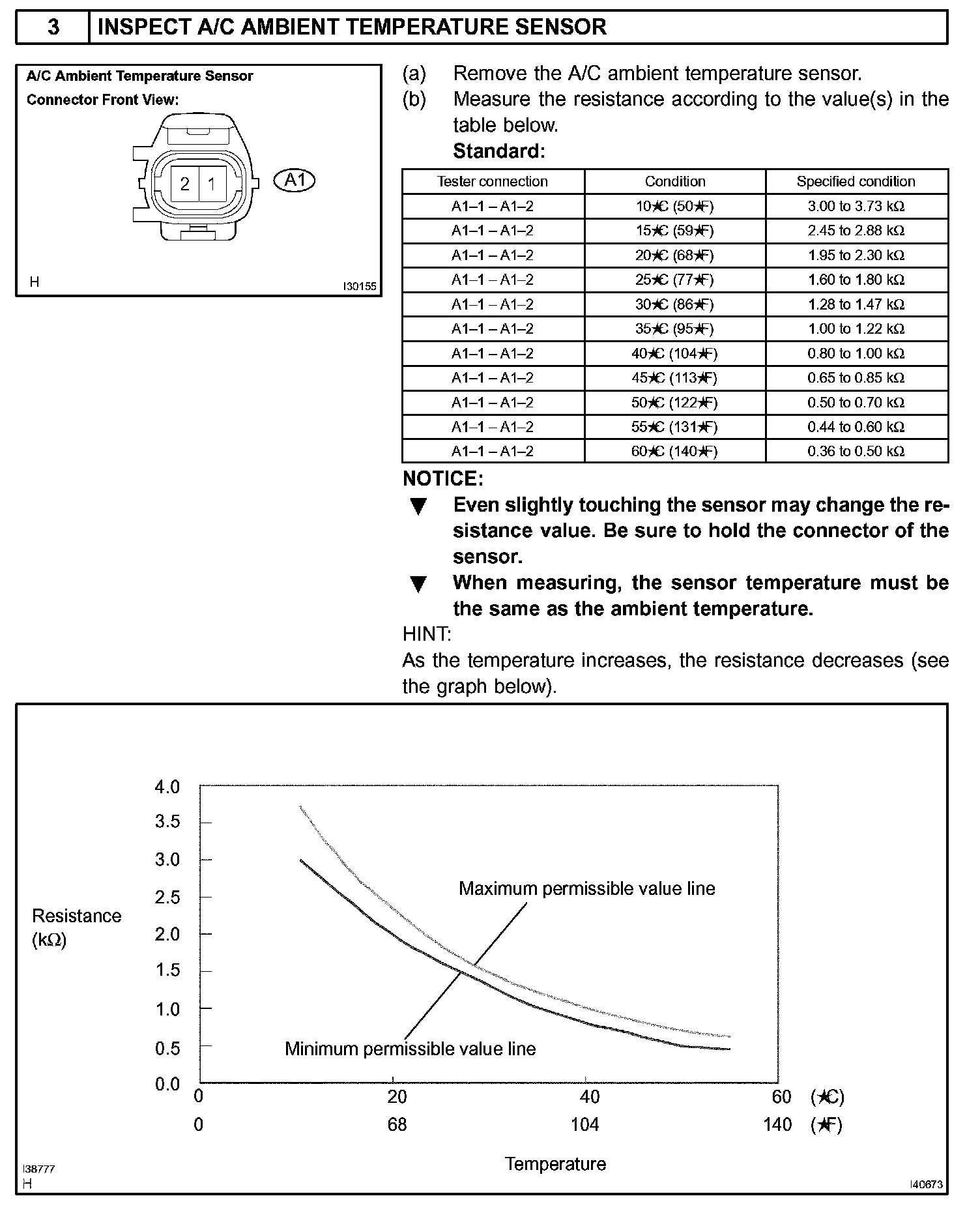

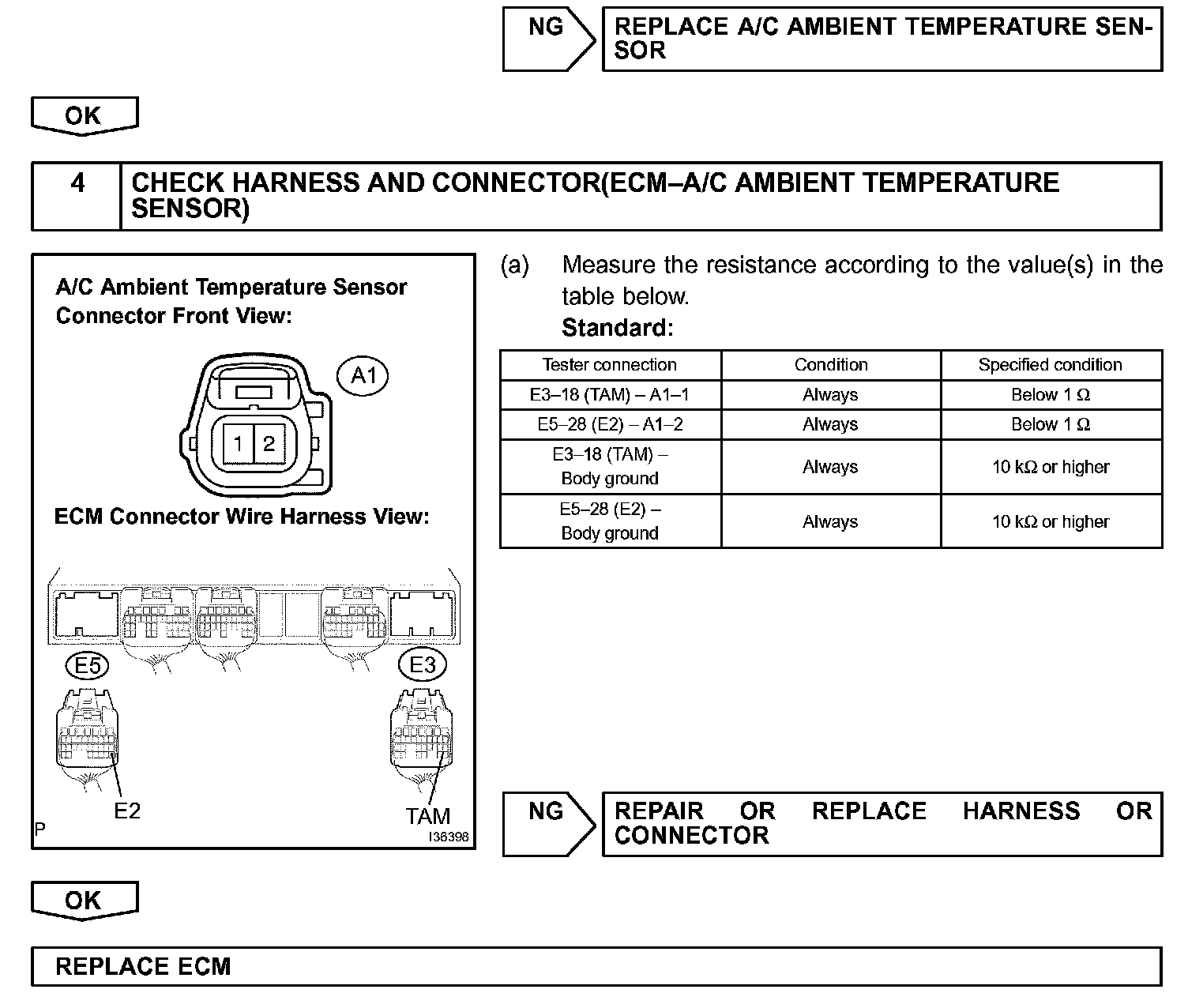

Step 3 (Continued) - 4:

INSPECTION PROCEDURE
