B1411

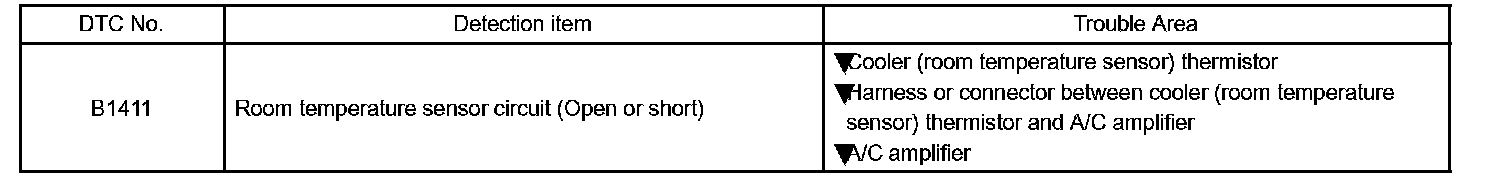

DTC B1411 ROOM TEMPERATURE SENSOR CIRCUIT

CIRCUIT DESCRIPTION

Detection Item:

This sensor detects the interior temperature that is used as the basis for temperature control and sends appropriate signals to the A/C amplifier.

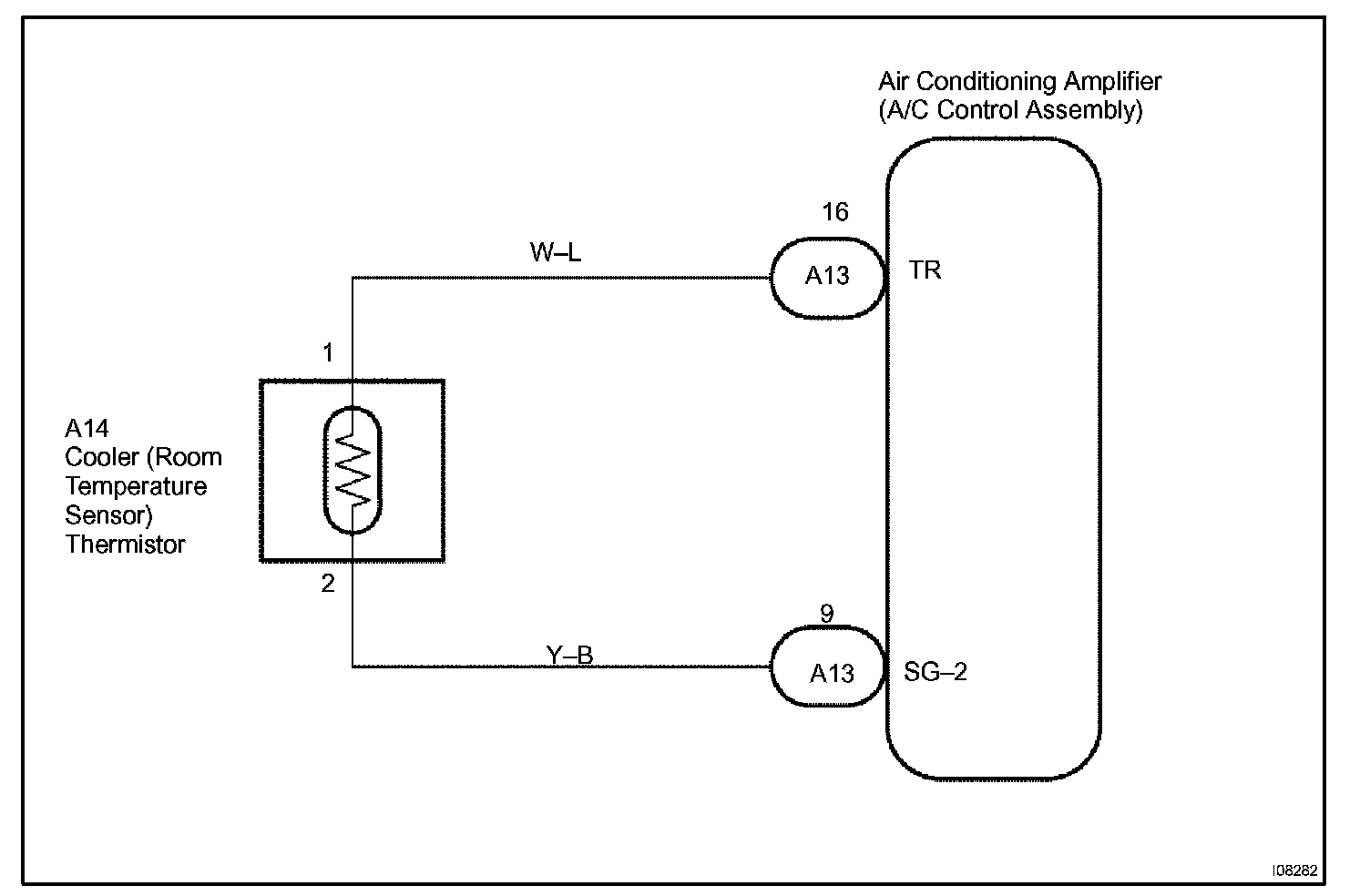

Wiring Diagram:

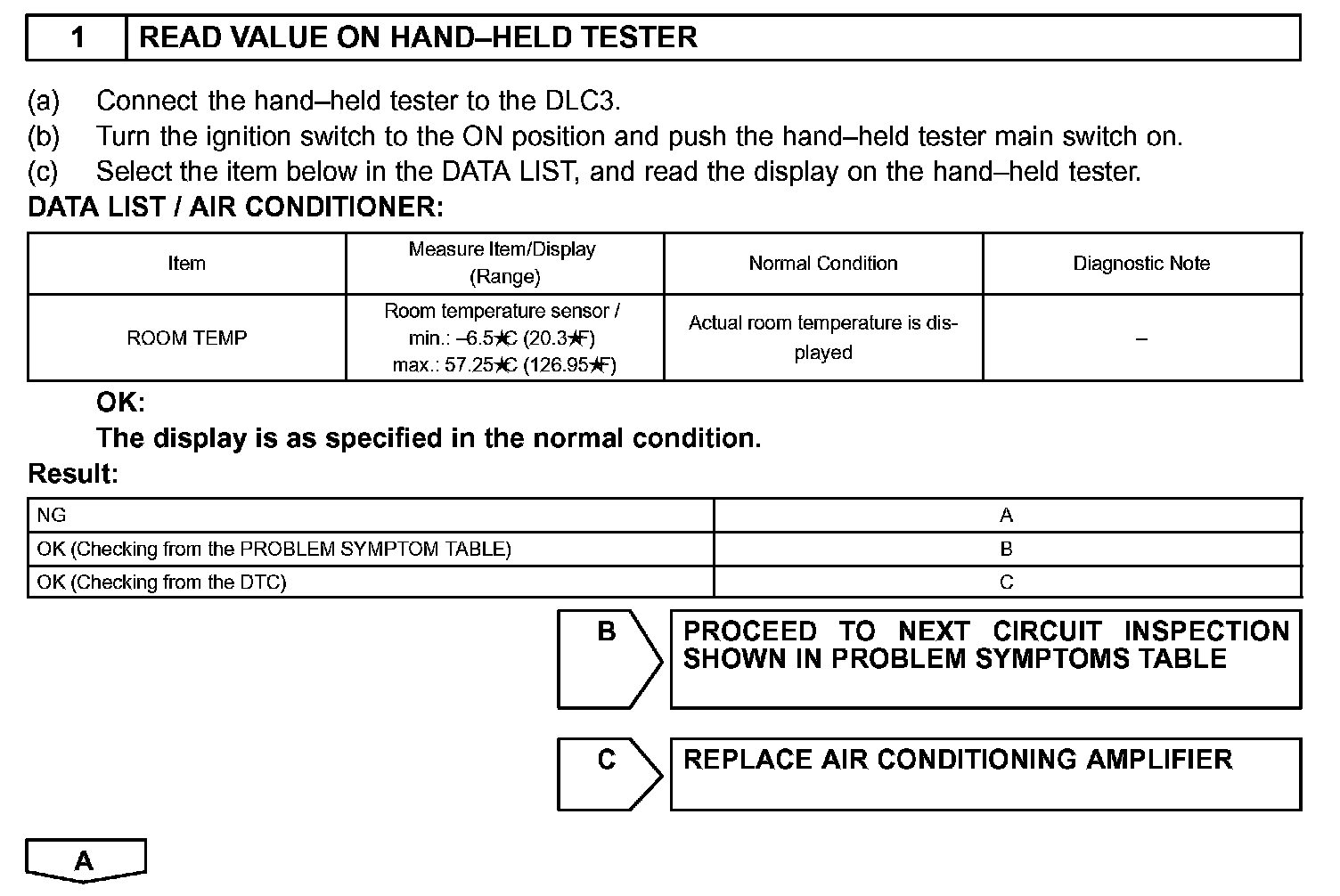

Step 1:

Step 2:

Step 2 (Continued) - 3:

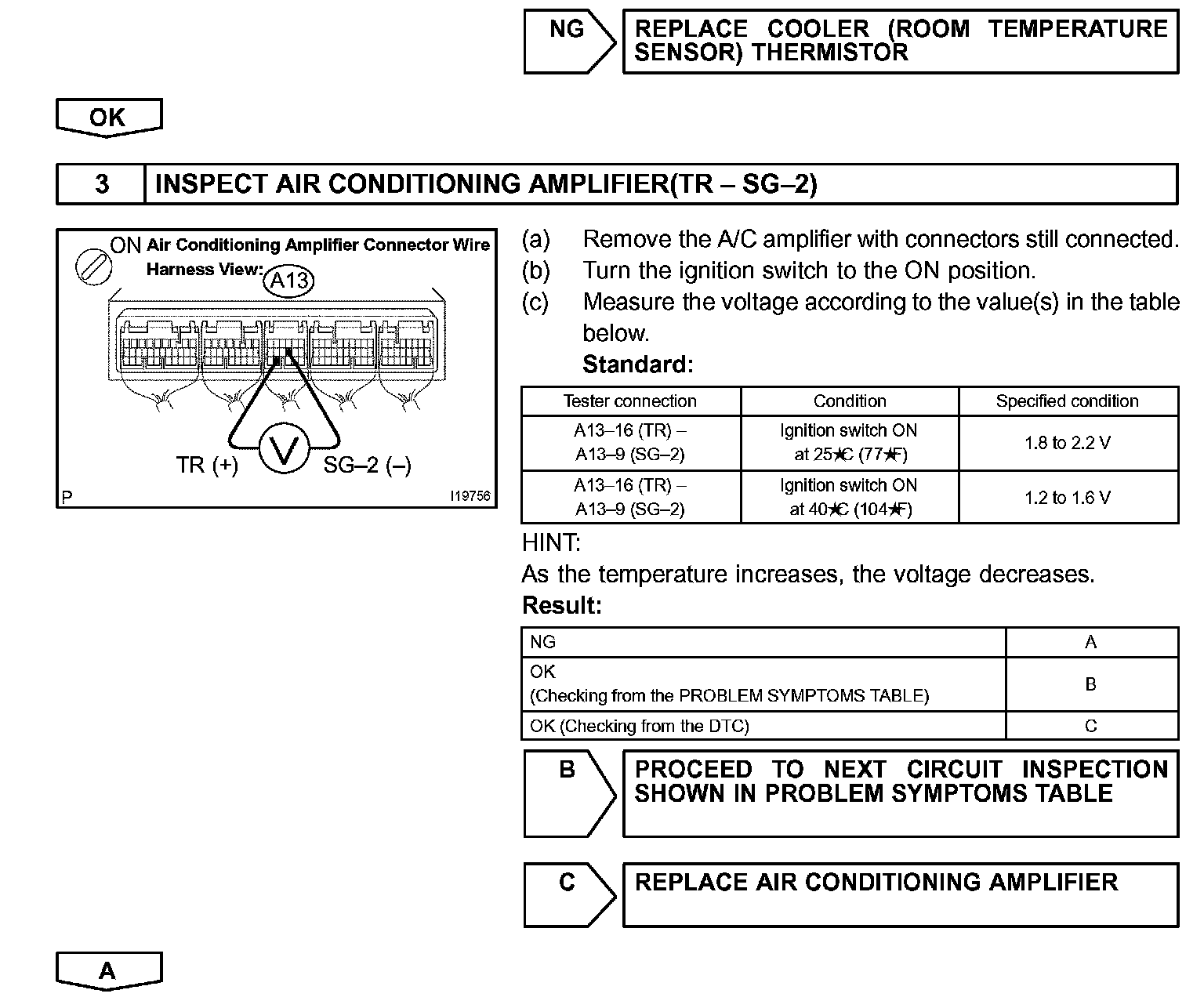

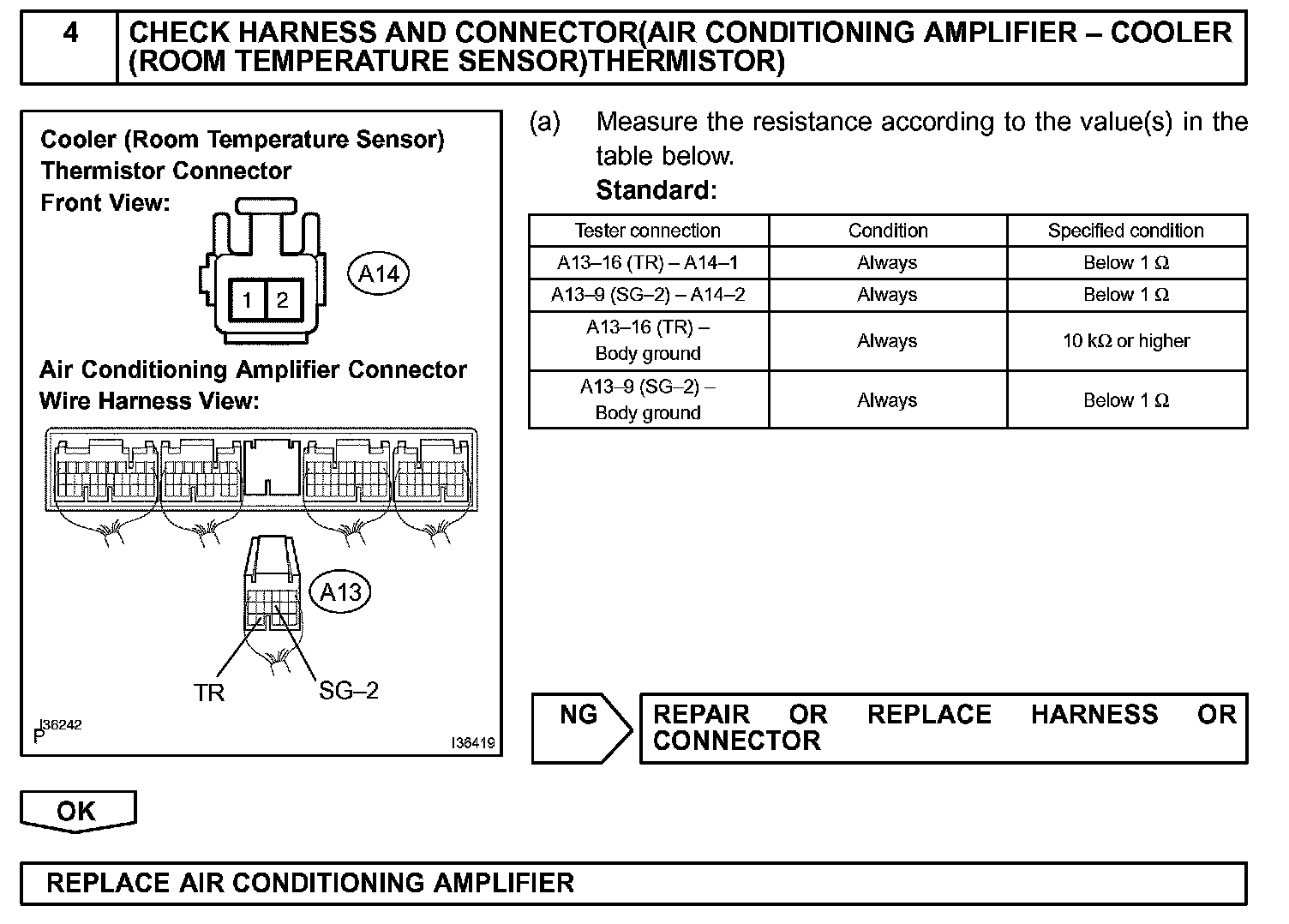

Step 4:

INSPECTION PROCEDURE
