B1297

DTC B1297 CLEARANCE SONAR ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

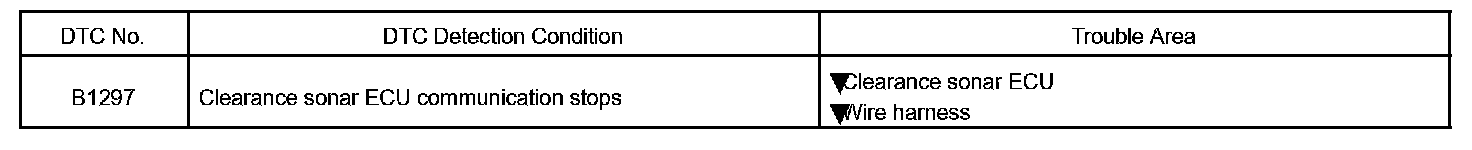

DTC Detection Condition:

This DTC is detected when communication between the clearance sonar ECU and gateway ECU stops for more than 10 seconds.

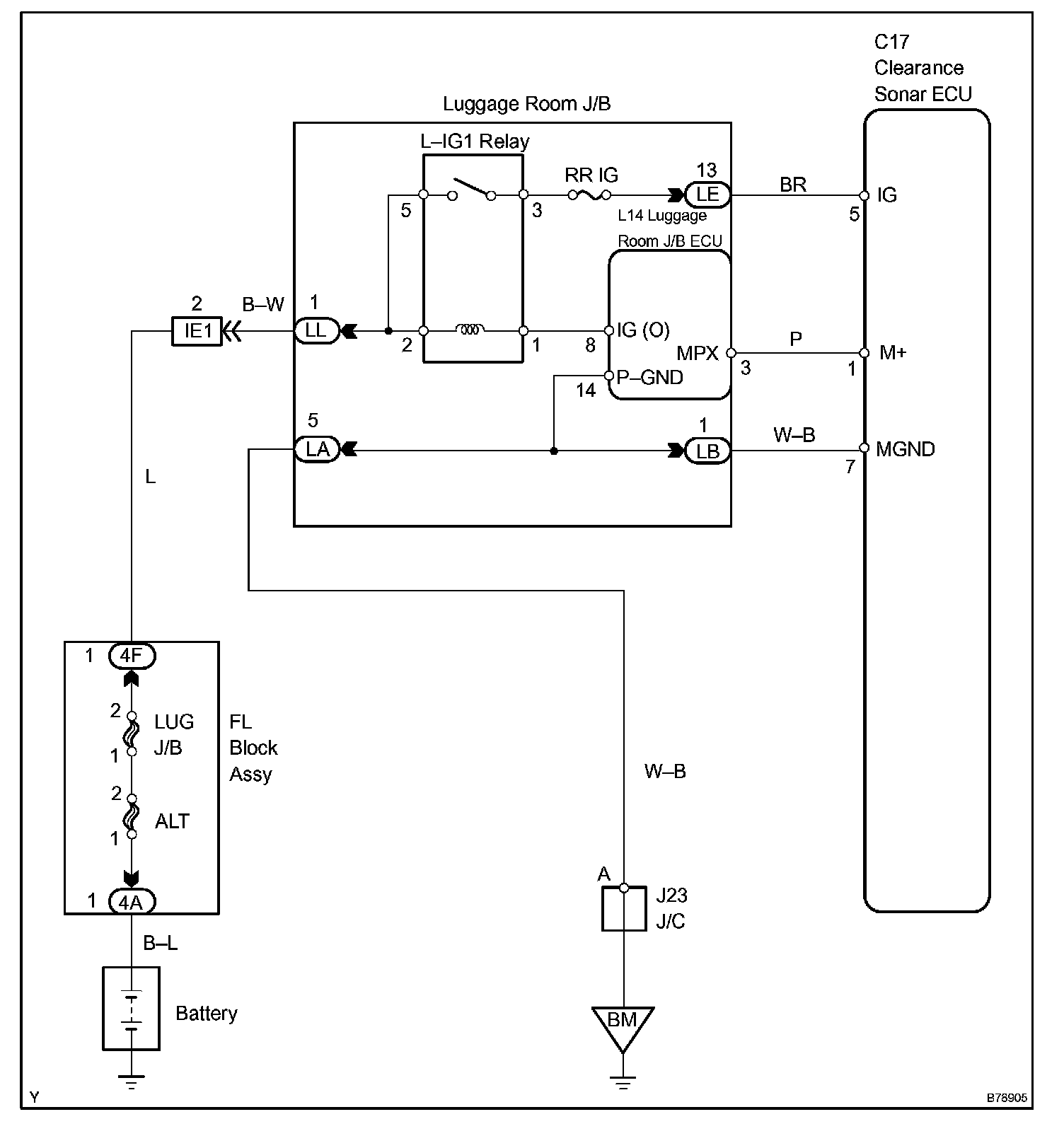

Wiring Diagram:

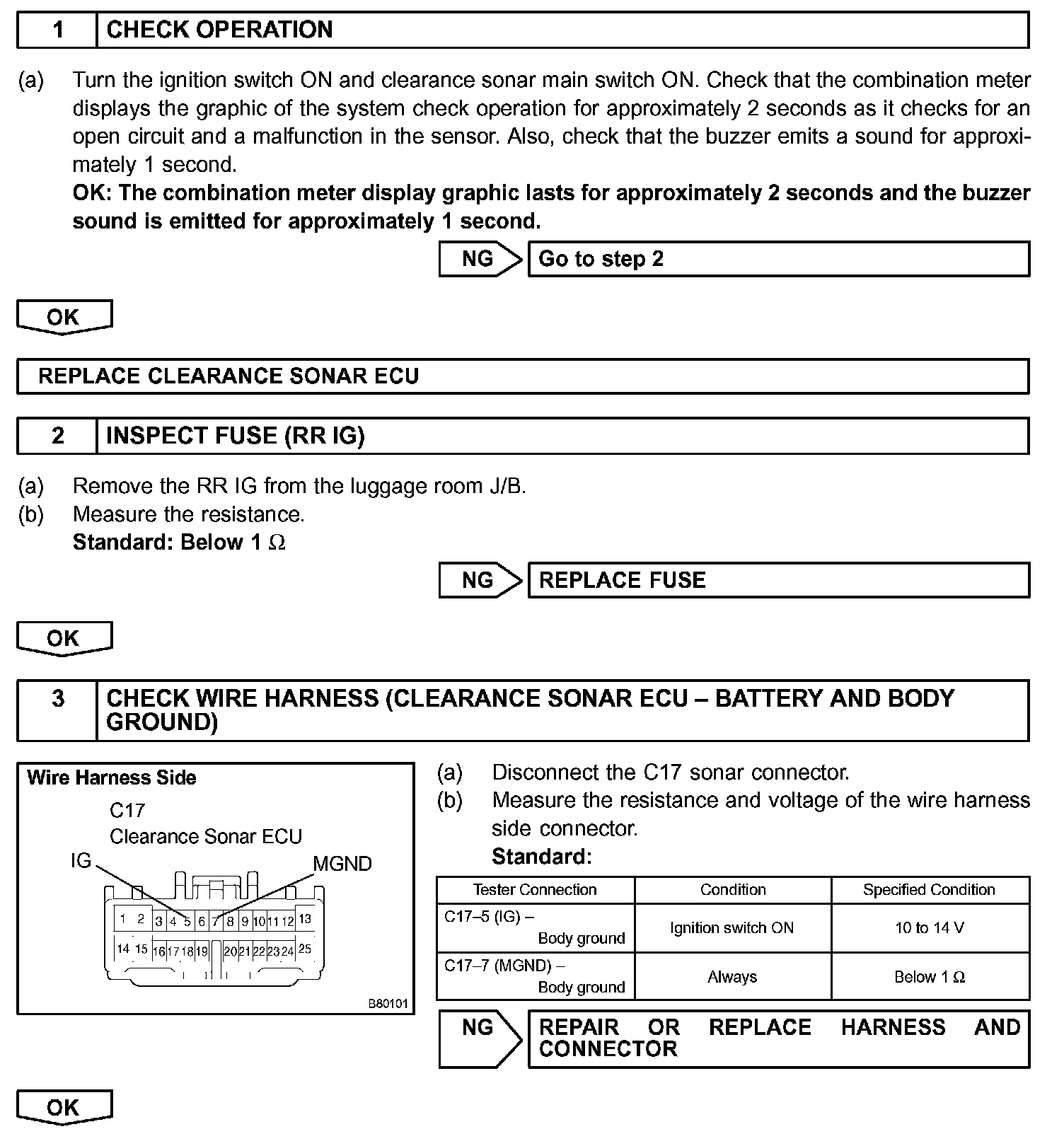

Step 1 - 3:

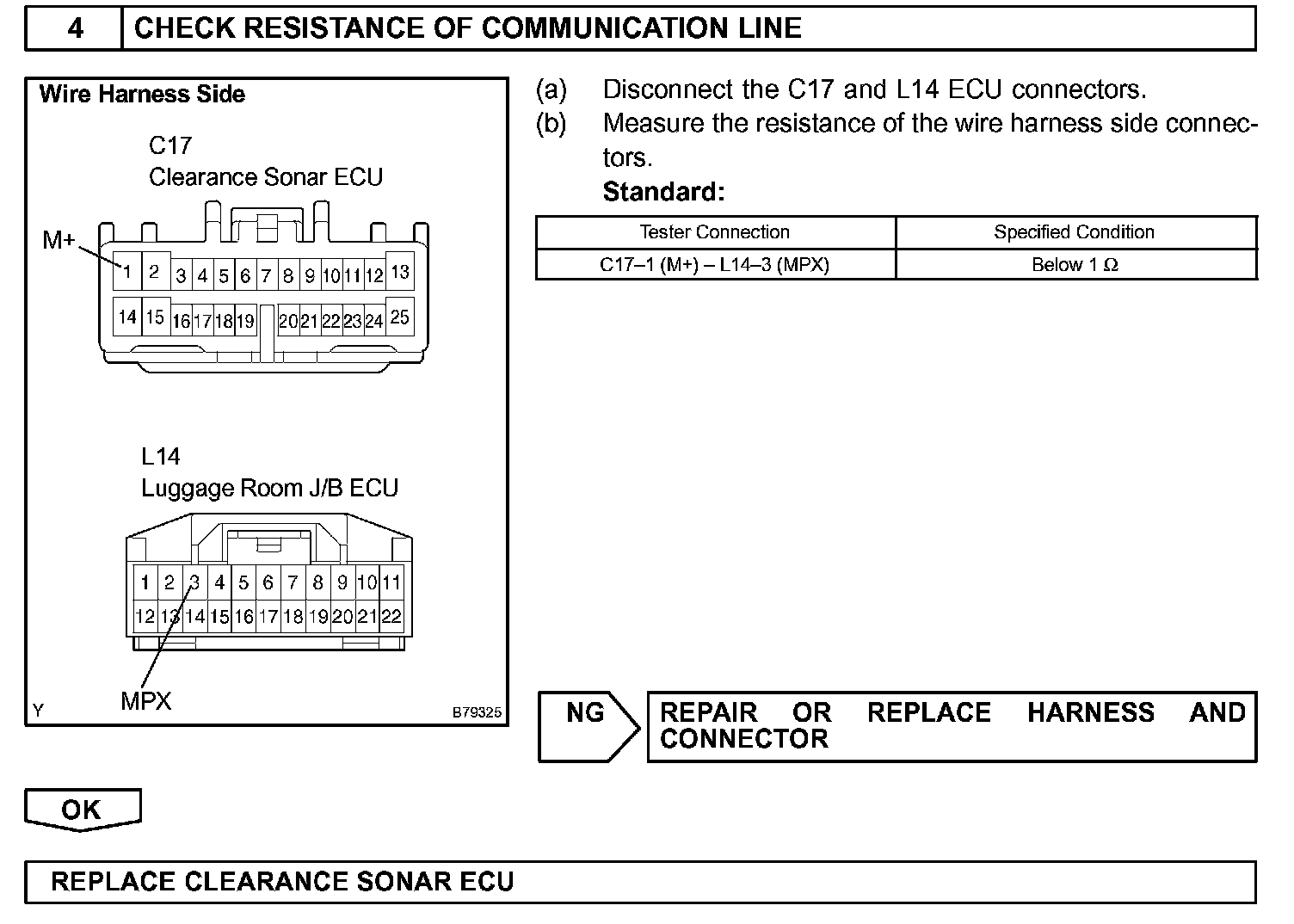

Step 4:

INSPECTION PROCEDURE
