B1294

DTC B1294 IMMOBILIZER ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

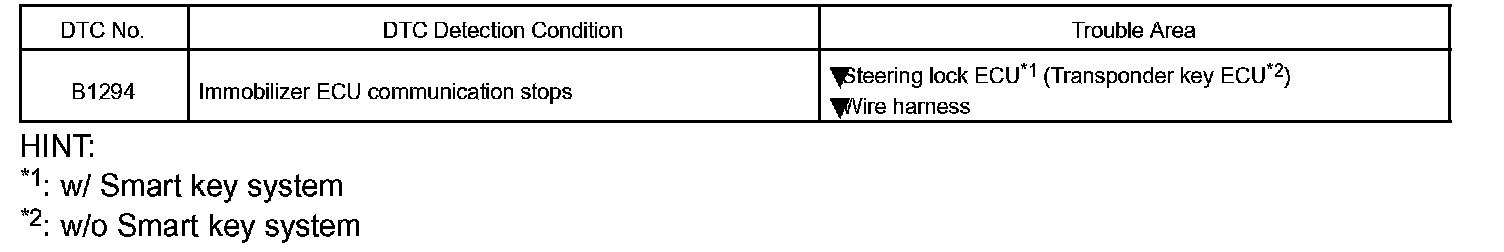

DTC Detection Condition:

This DTC is detected when communication between the immobilizer ECU (steering lock ECU*1 or transponder key ECU*2) and gateway ECU stops more than 10 seconds.

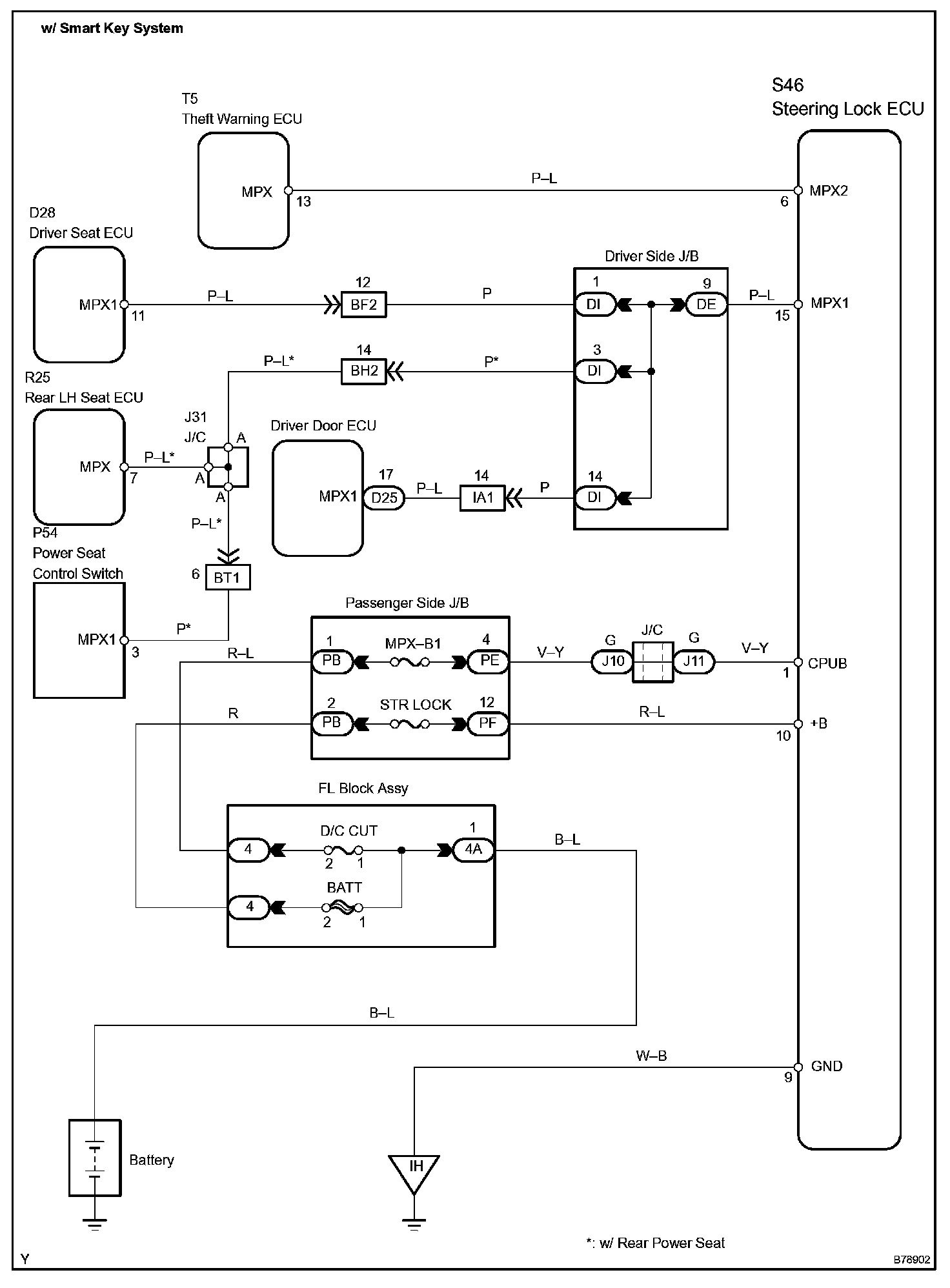

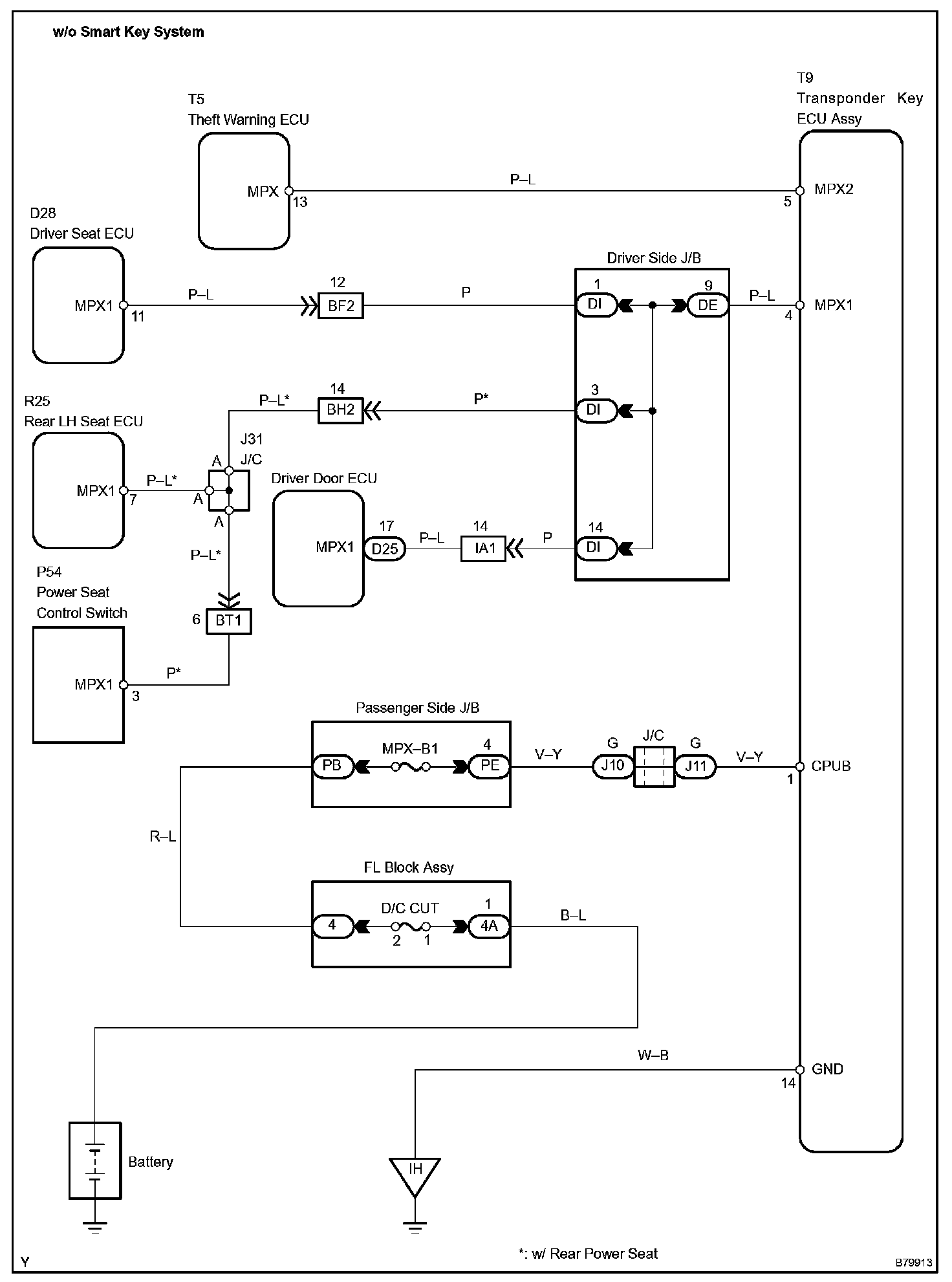

Wiring Diagram:

INSPECTION PROCEDURE

Step 1 - 2:

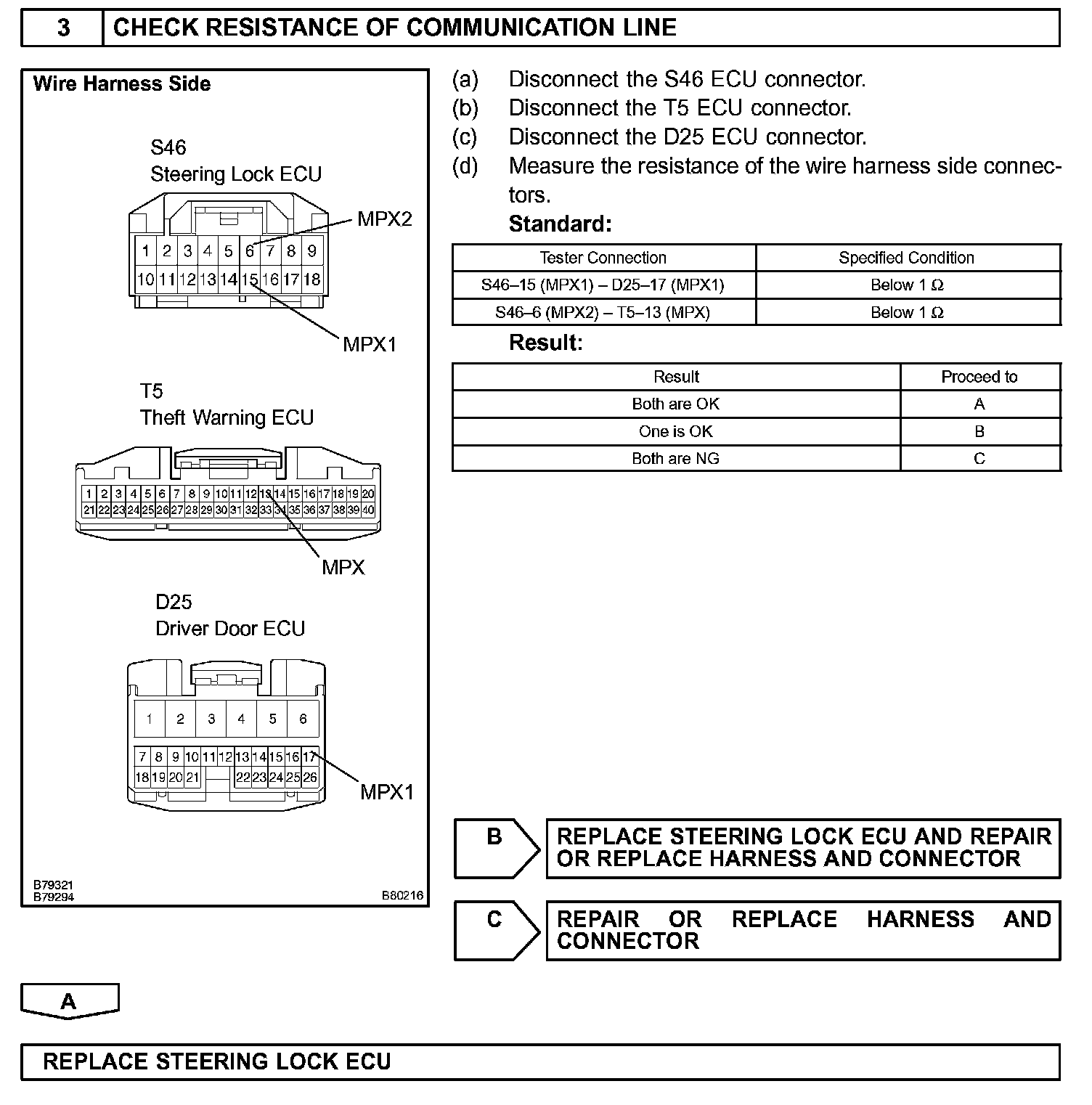

Step 3:

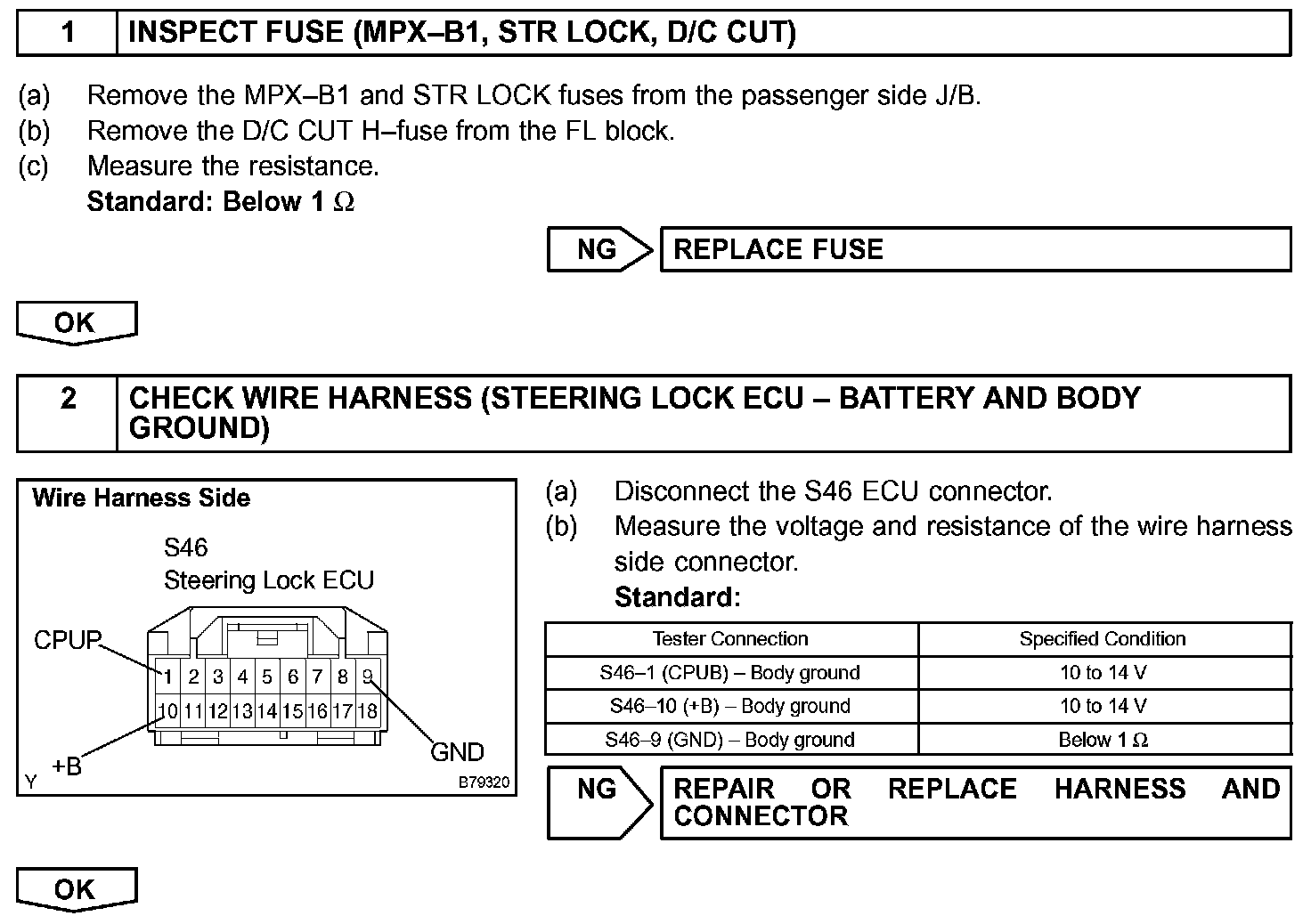

w/ Smart key system

Step 1 - 2:

Step 3:

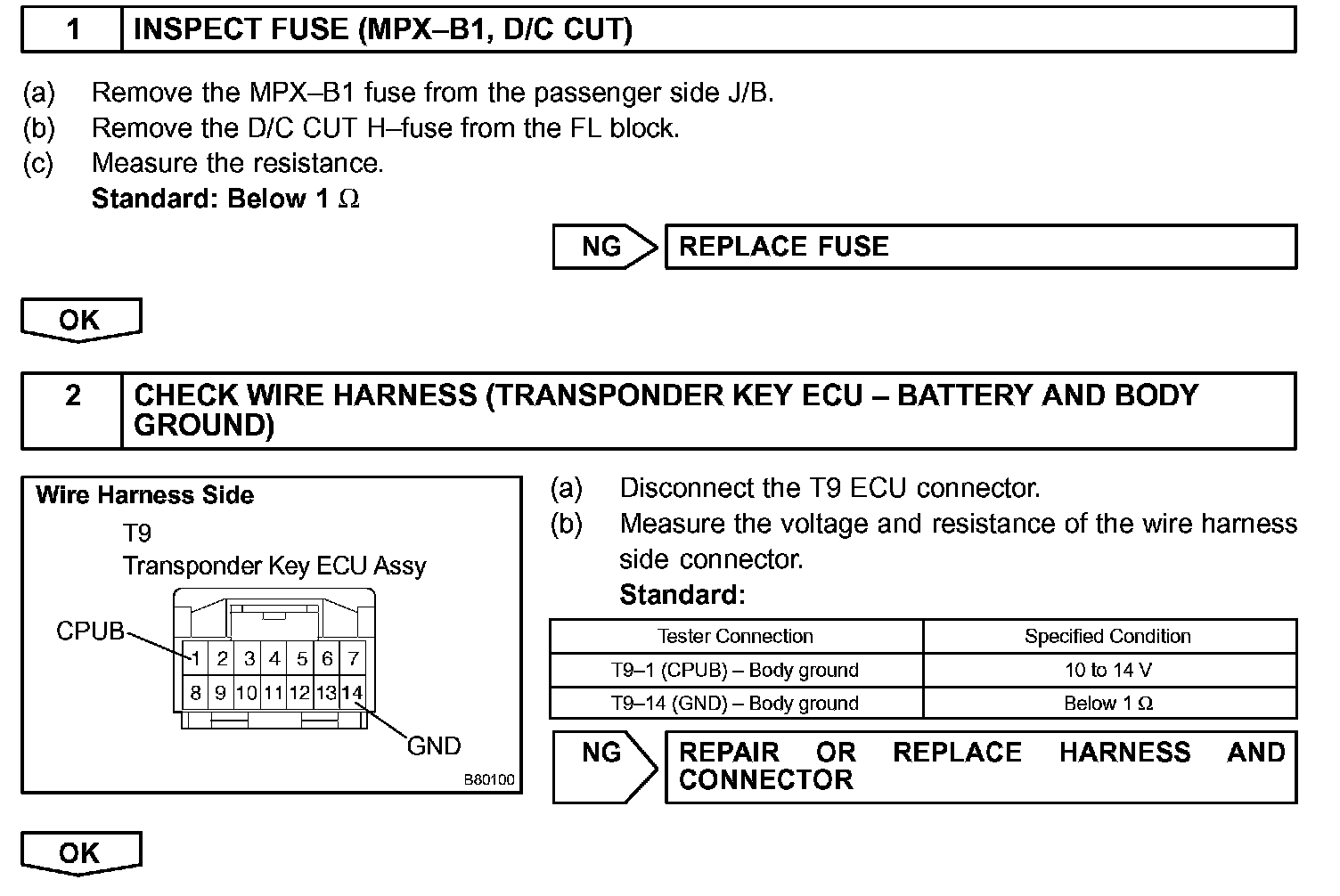

w/o Smart key system
