B1283

DTC B1283 DRIVER SIDE JUNCTION BLOCK ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

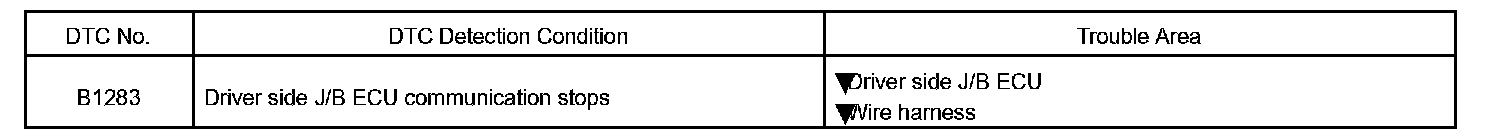

DTC Detection Condition:

This DTC is detected when communication between the driver side J/B ECU and the gateway ECU stops for more than 10 seconds.

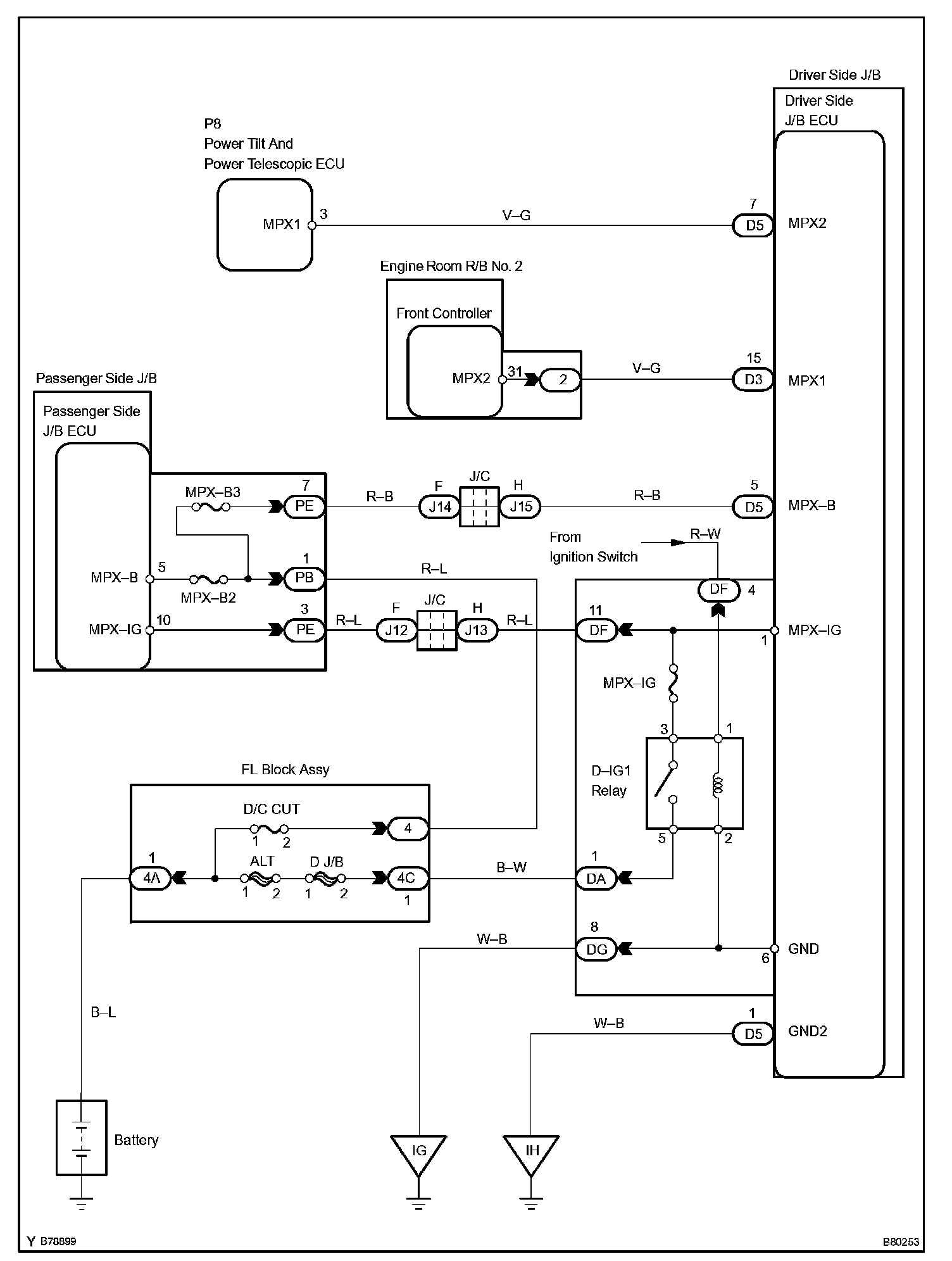

Wiring Diagram:

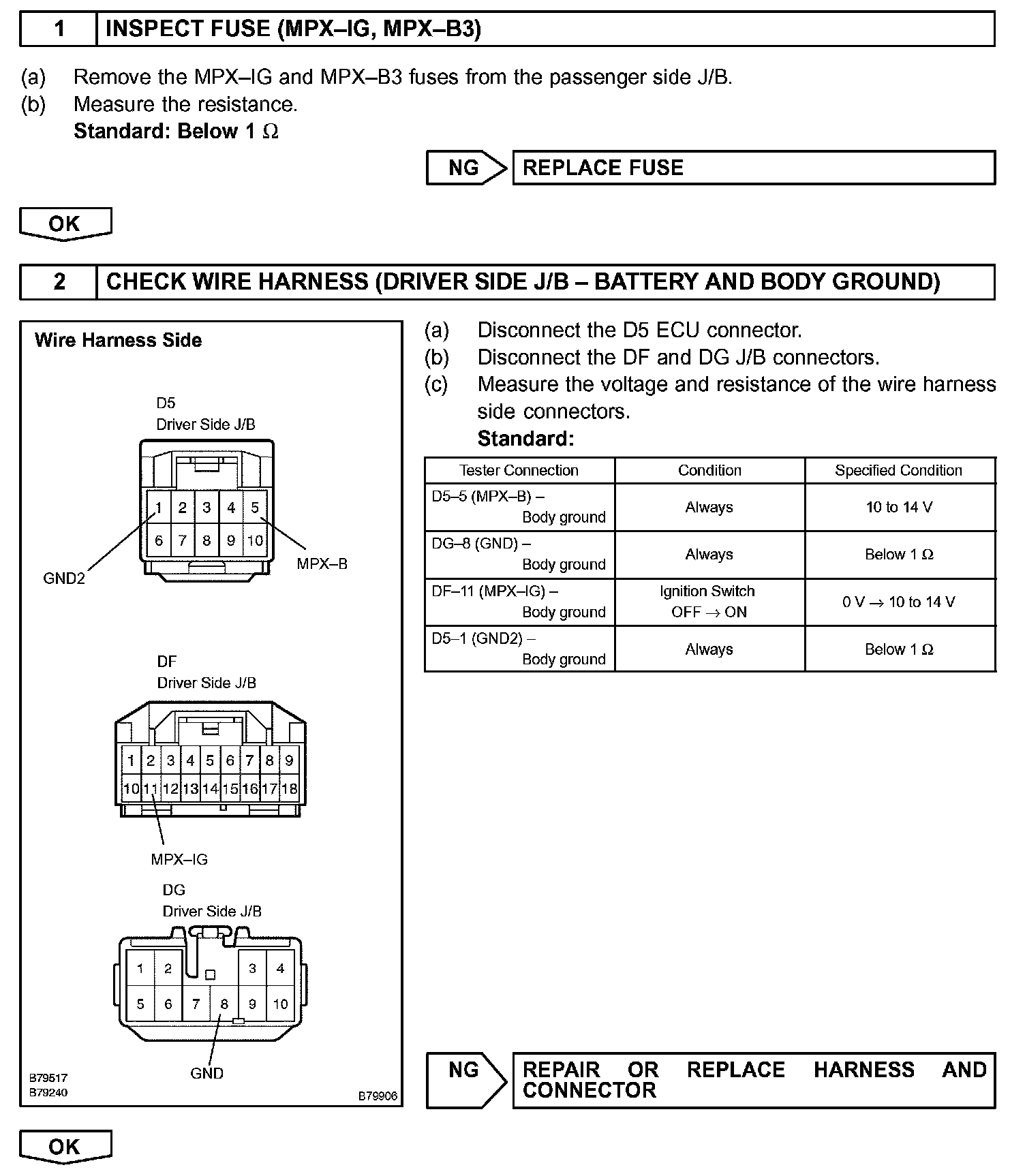

Step 1 - 2:

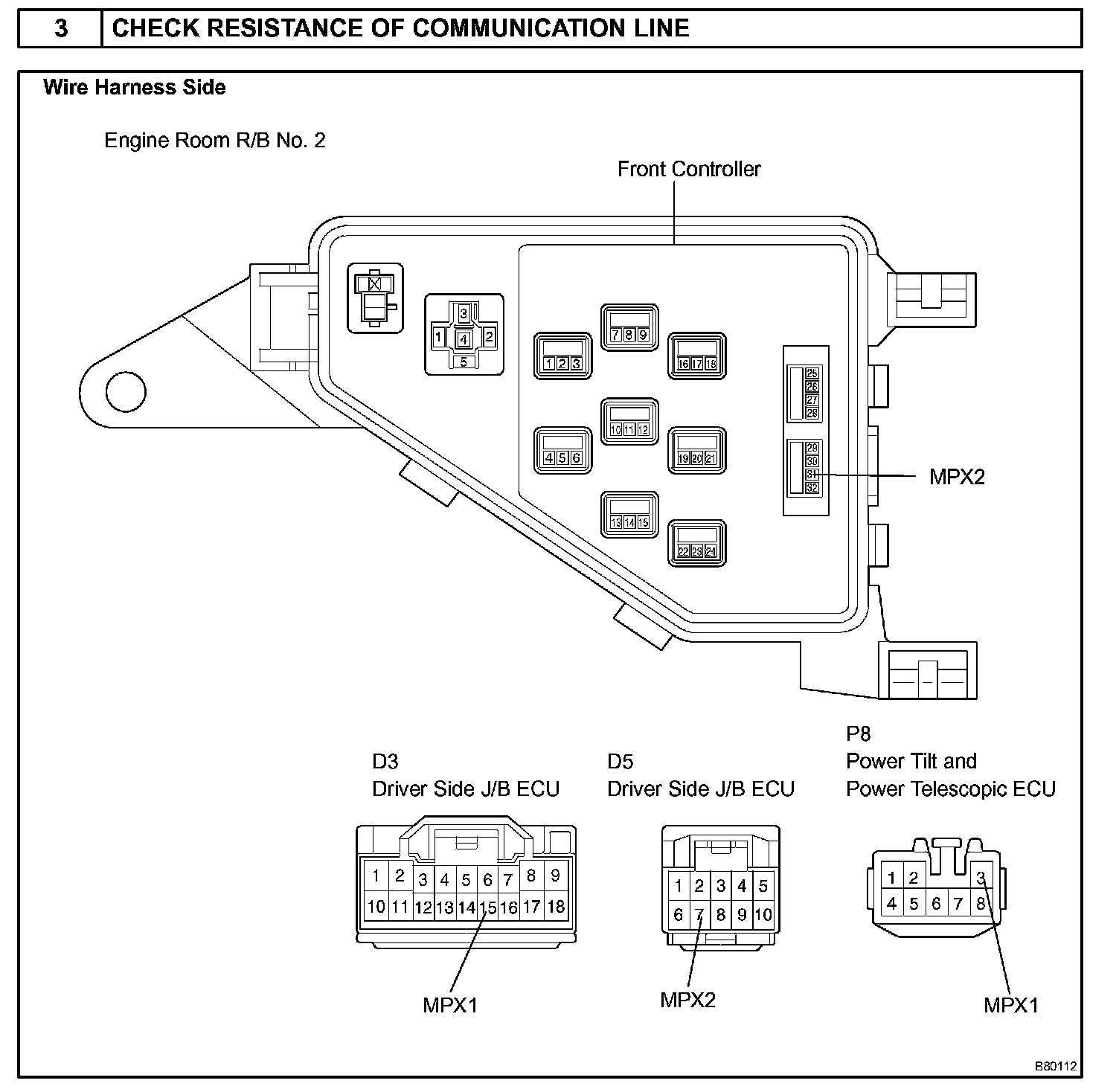

Step 3:

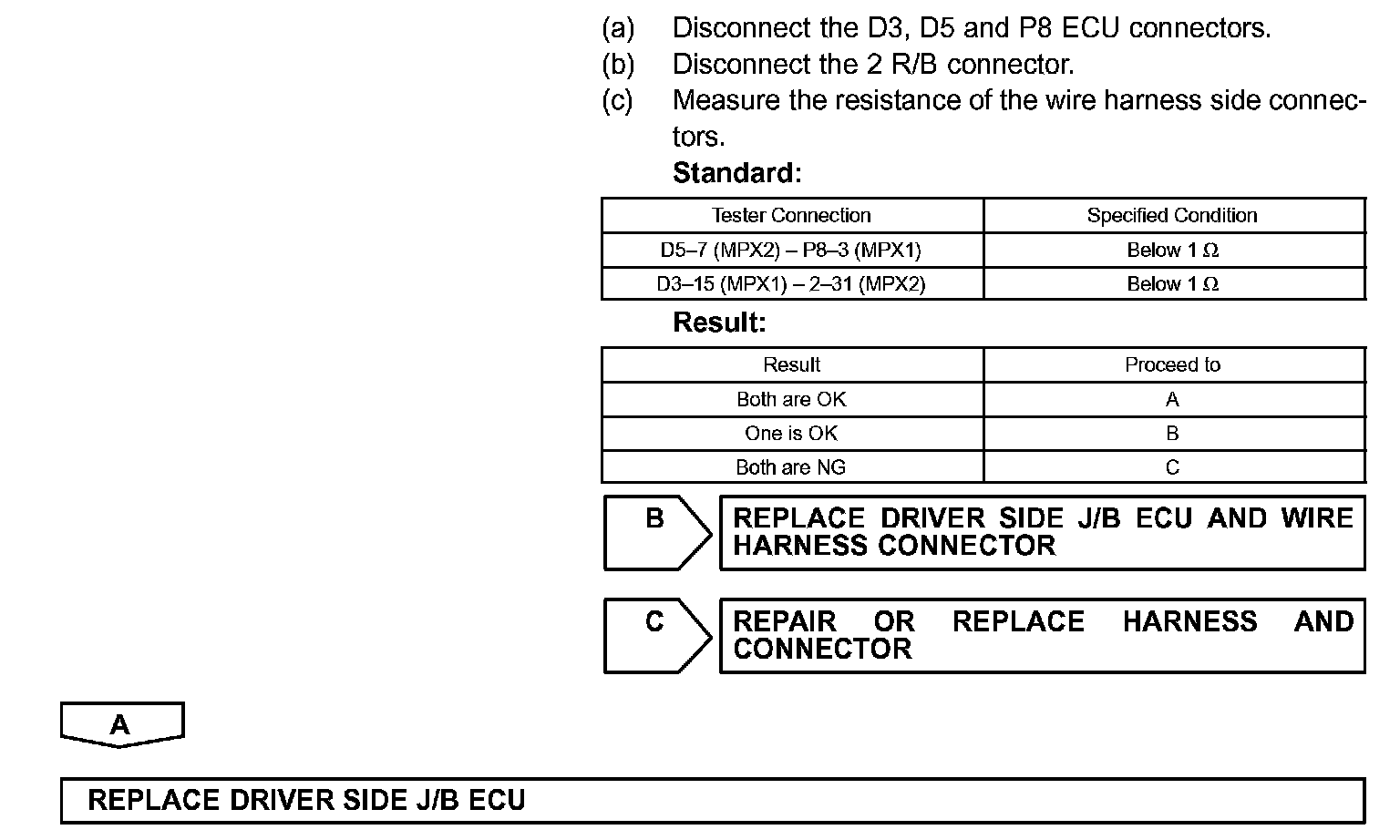

Step 3 (Continued):

INSPECTION PROCEDURE
