B1277

DTC B1277 CENTER INTEGRATION ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

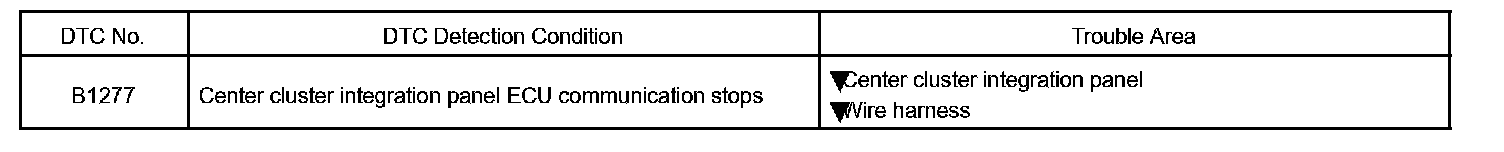

DTC Detection Condition:

This DTC is detected when communication between the center cluster integration panel ECU and gateway ECU stops for more than 10 seconds.

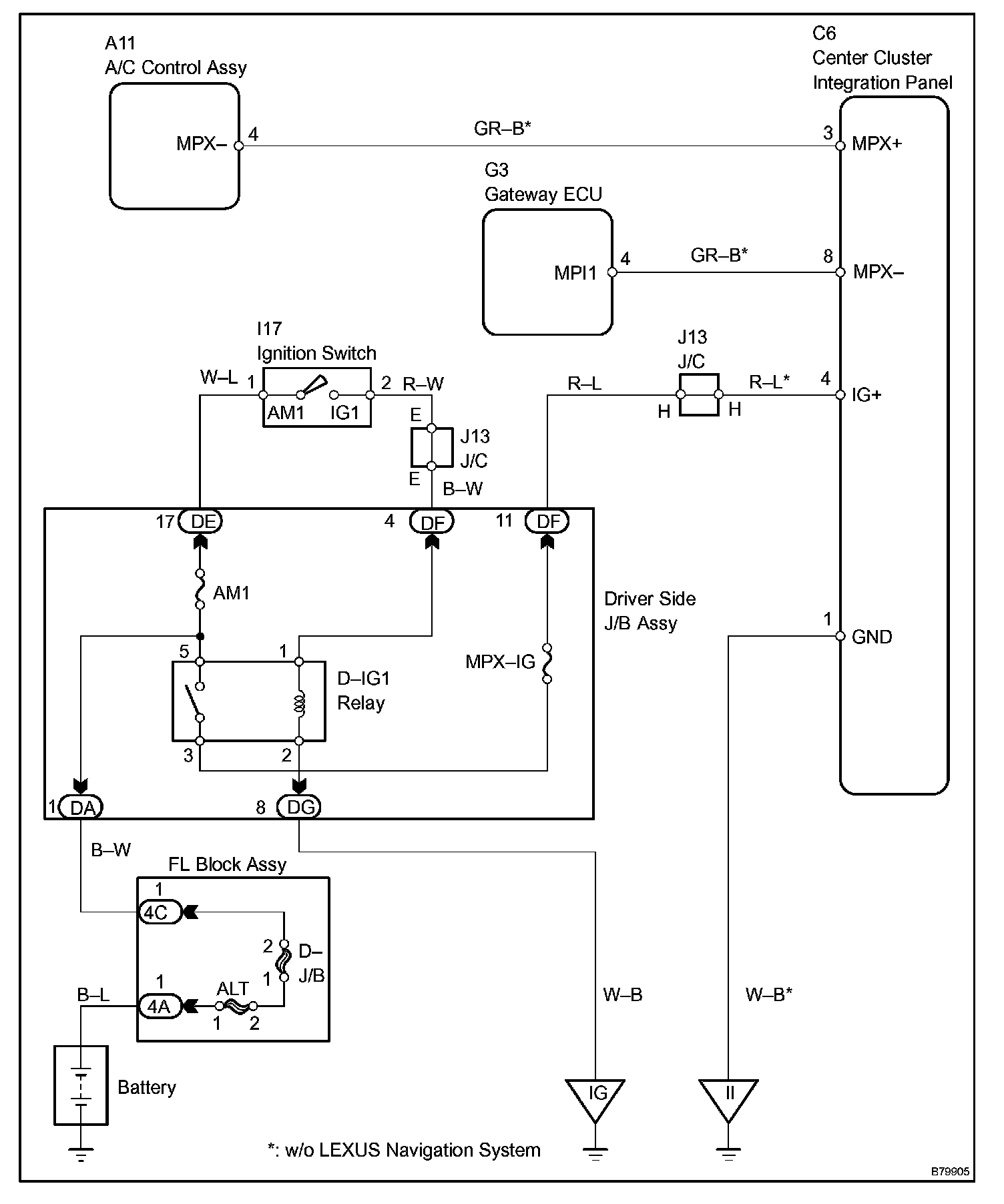

Wiring Diagram:

Step 1:

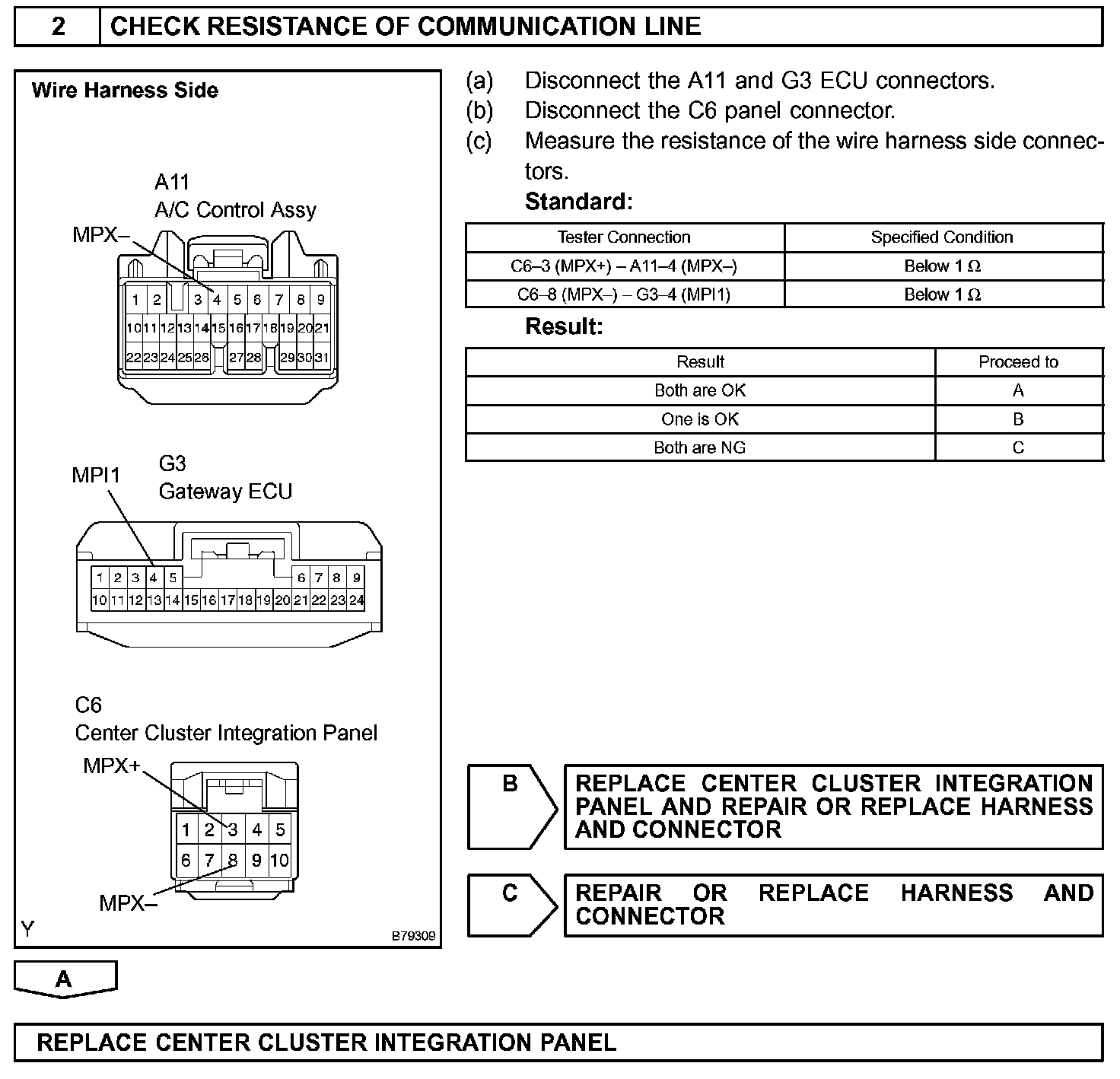

Step 2:

INSPECTION PROCEDURE
