B1273

DTC B1273 SLIDING ROOF ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

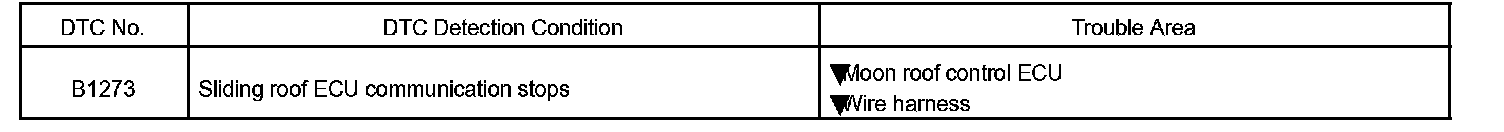

DTC Detection Condition:

This DTC is detected when communication between the moon roof control ECU (sliding roof ECU) and gateway ECU stops more than 10 seconds.

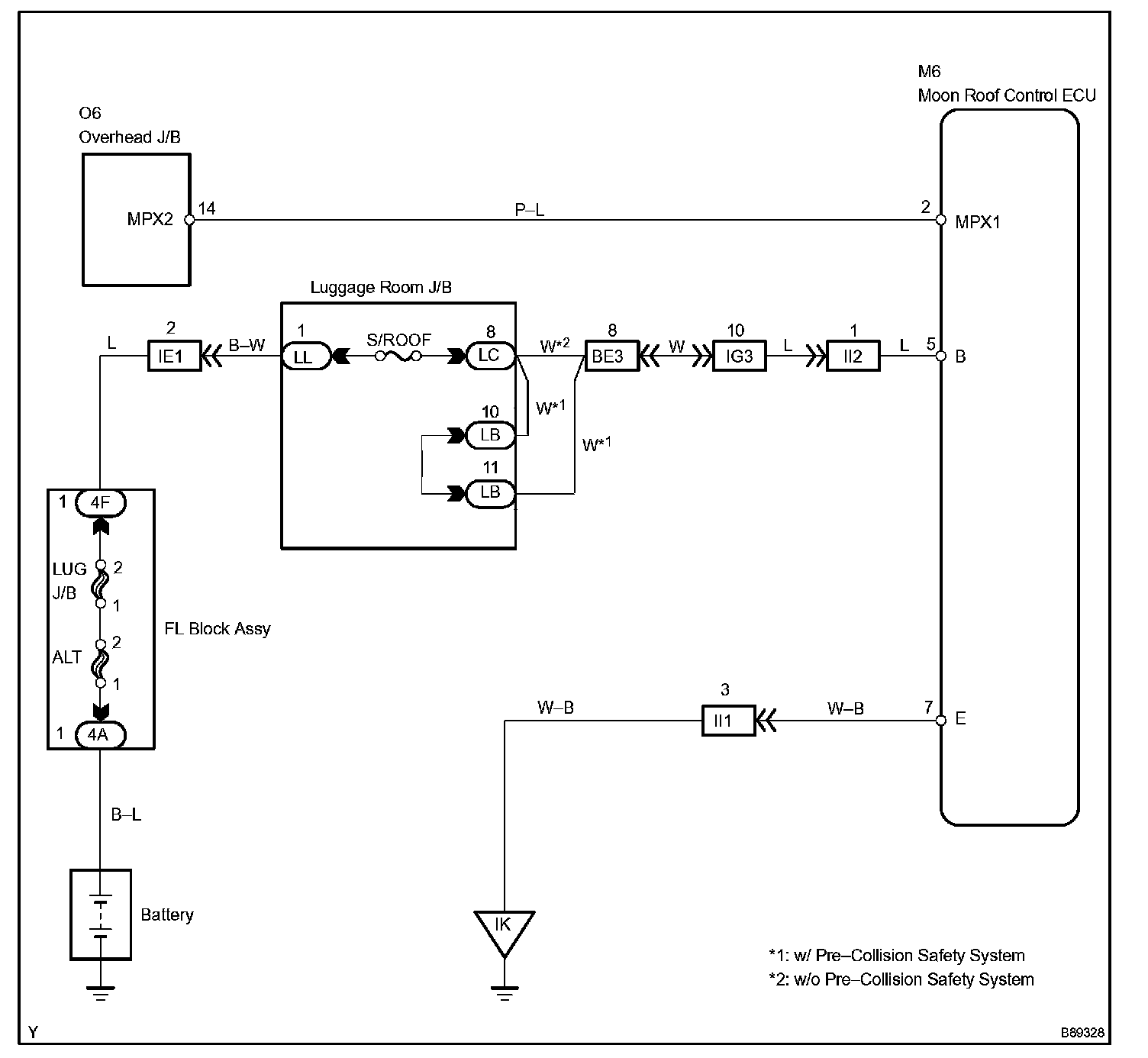

Wiring Diagram:

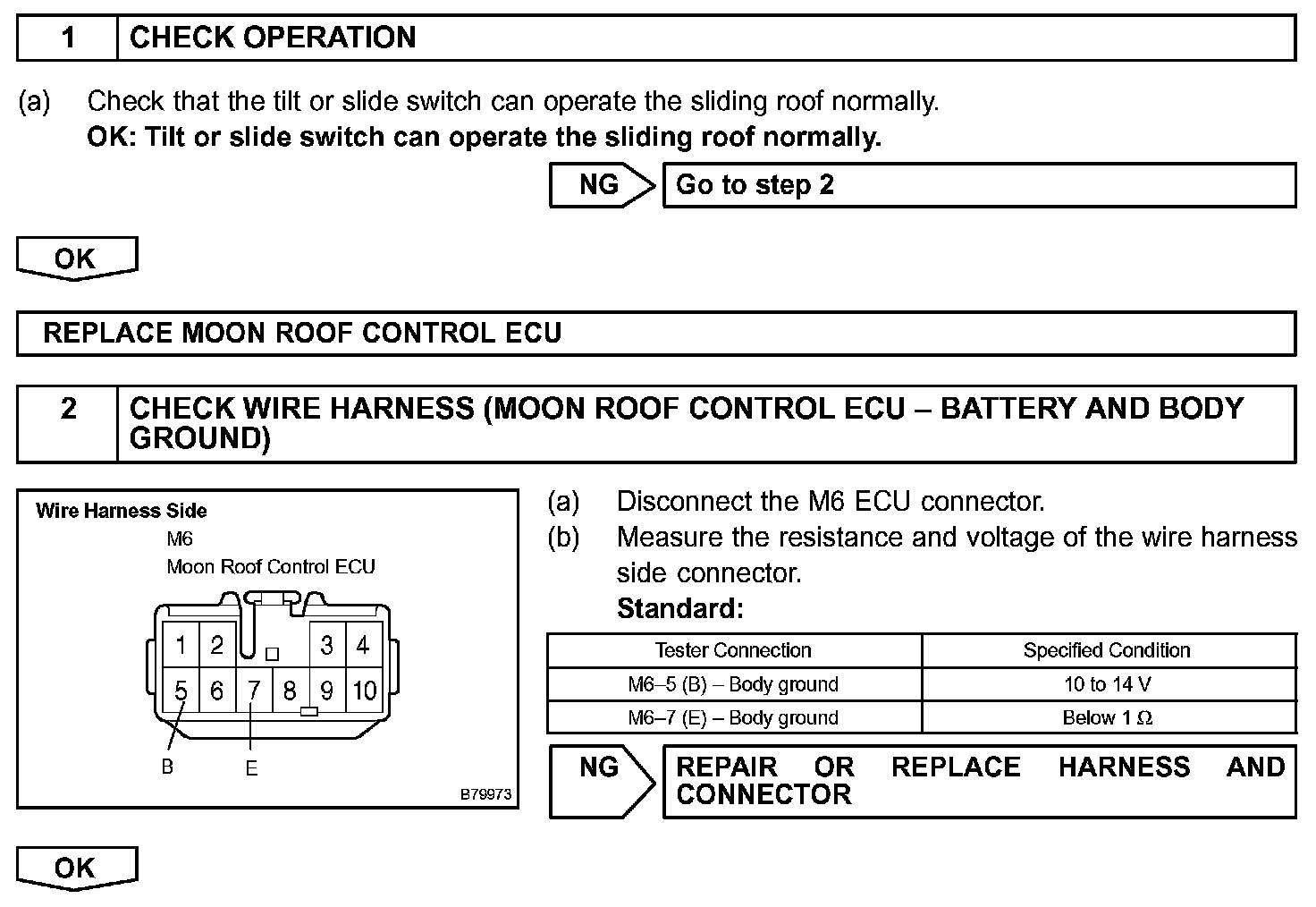

Step 1 - 2:

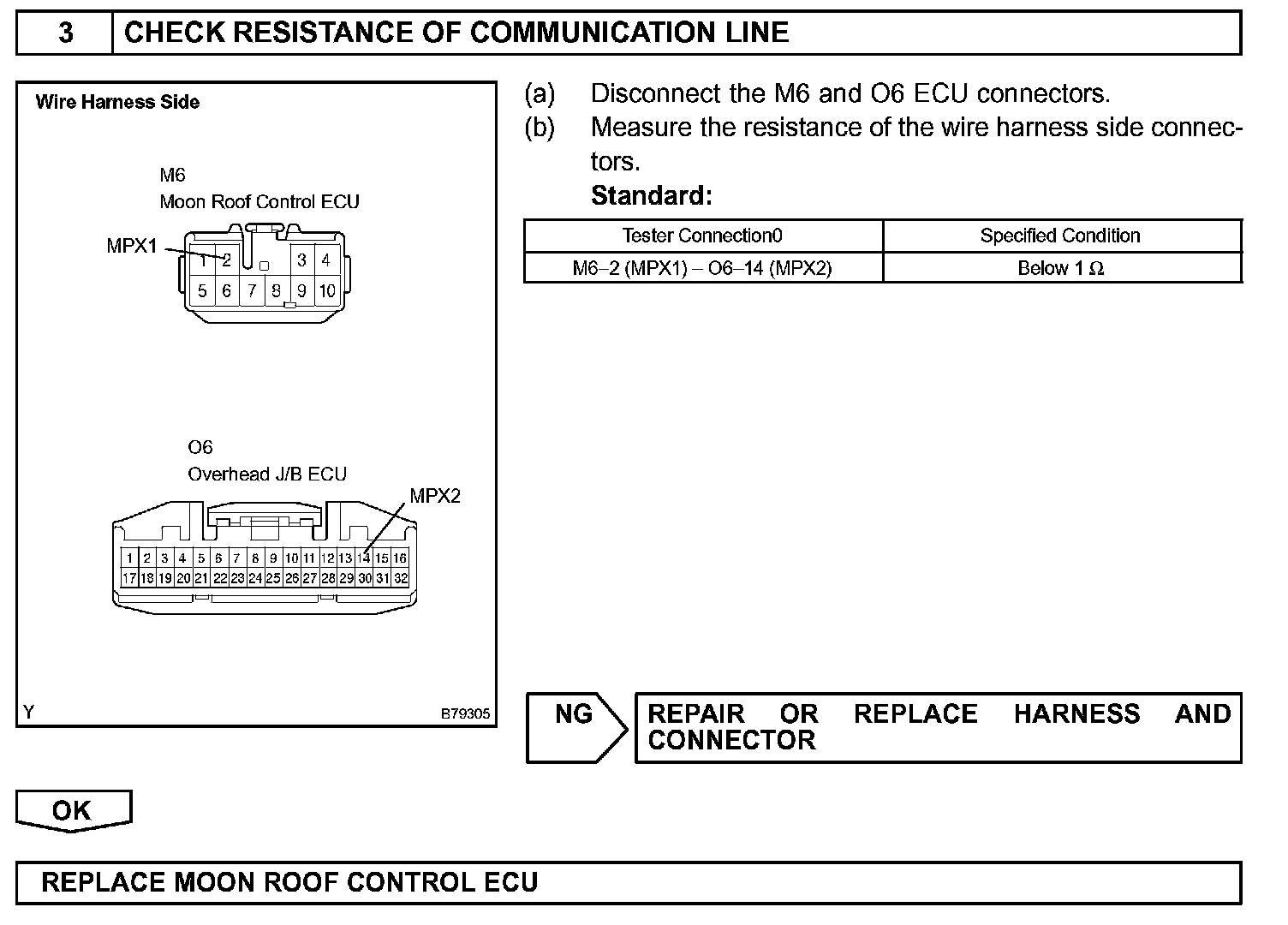

Step 3:

INSPECTION PROCEDURE
