B1262

DTC B1262 A/C ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

DTC Detection Condition:

This DTC is detected when communication between the A/C control (A/C ECU) and gateway ECU stops for more than 10 seconds.

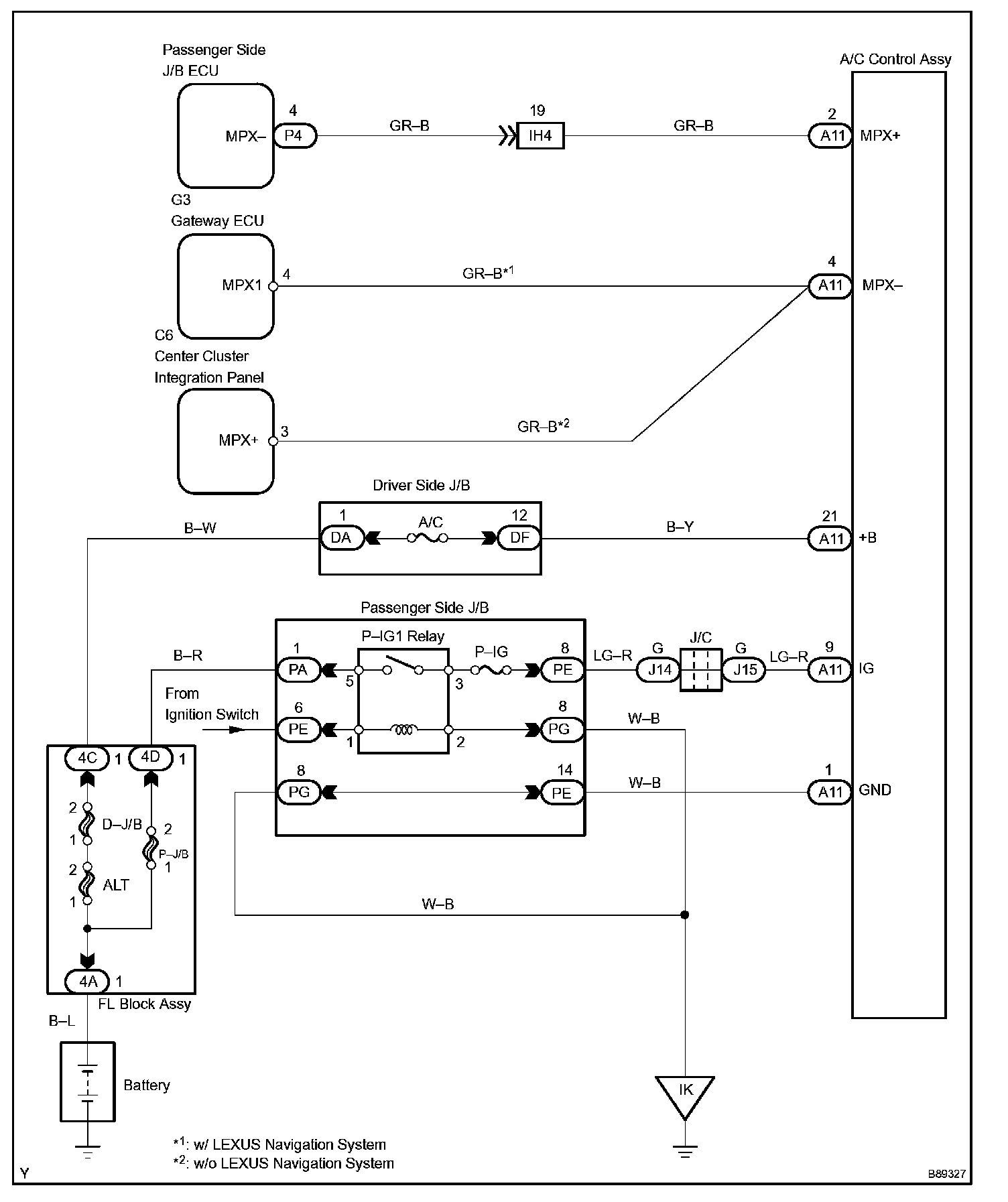

Wiring Diagram:

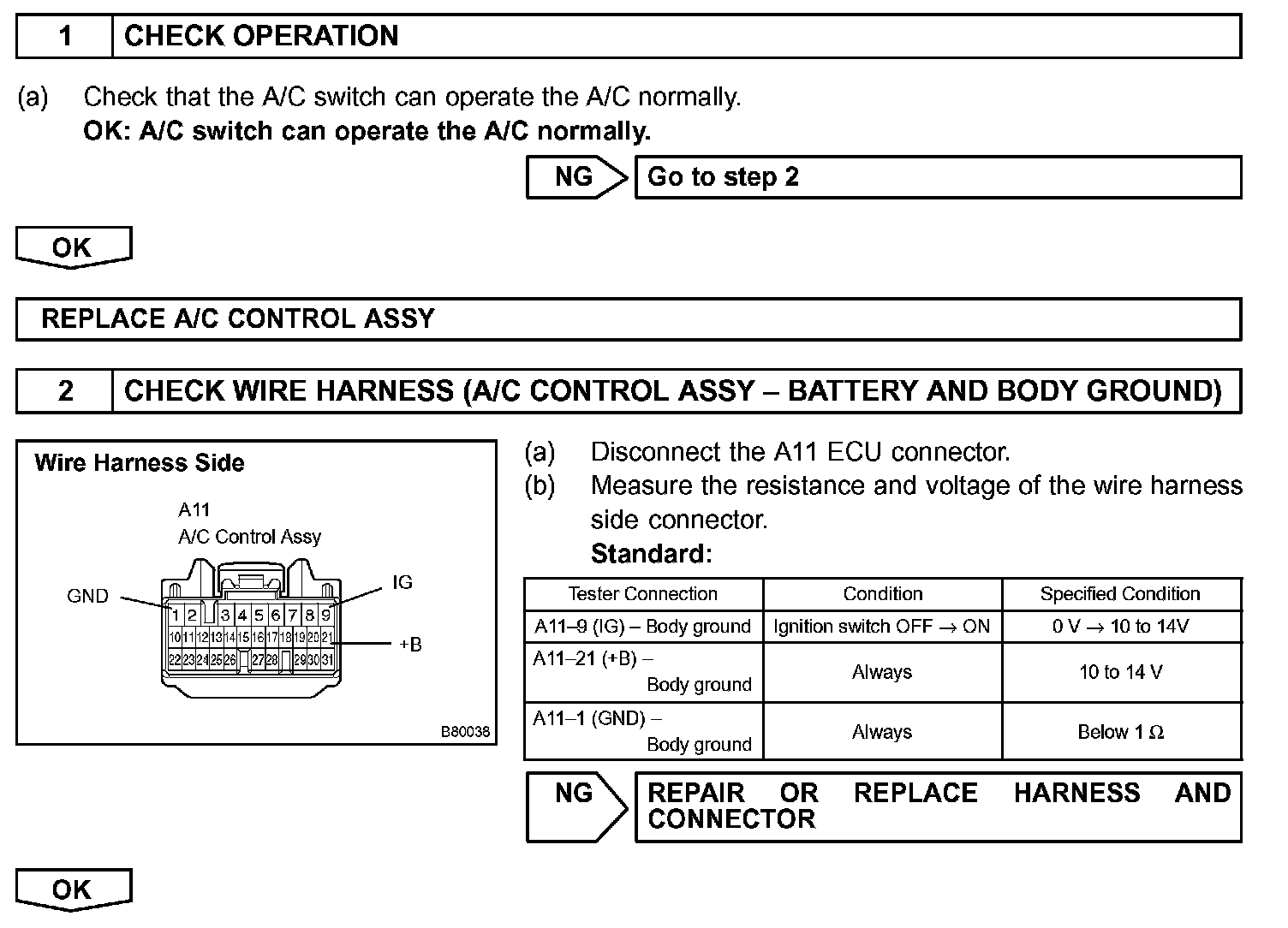

Step 1 - 2:

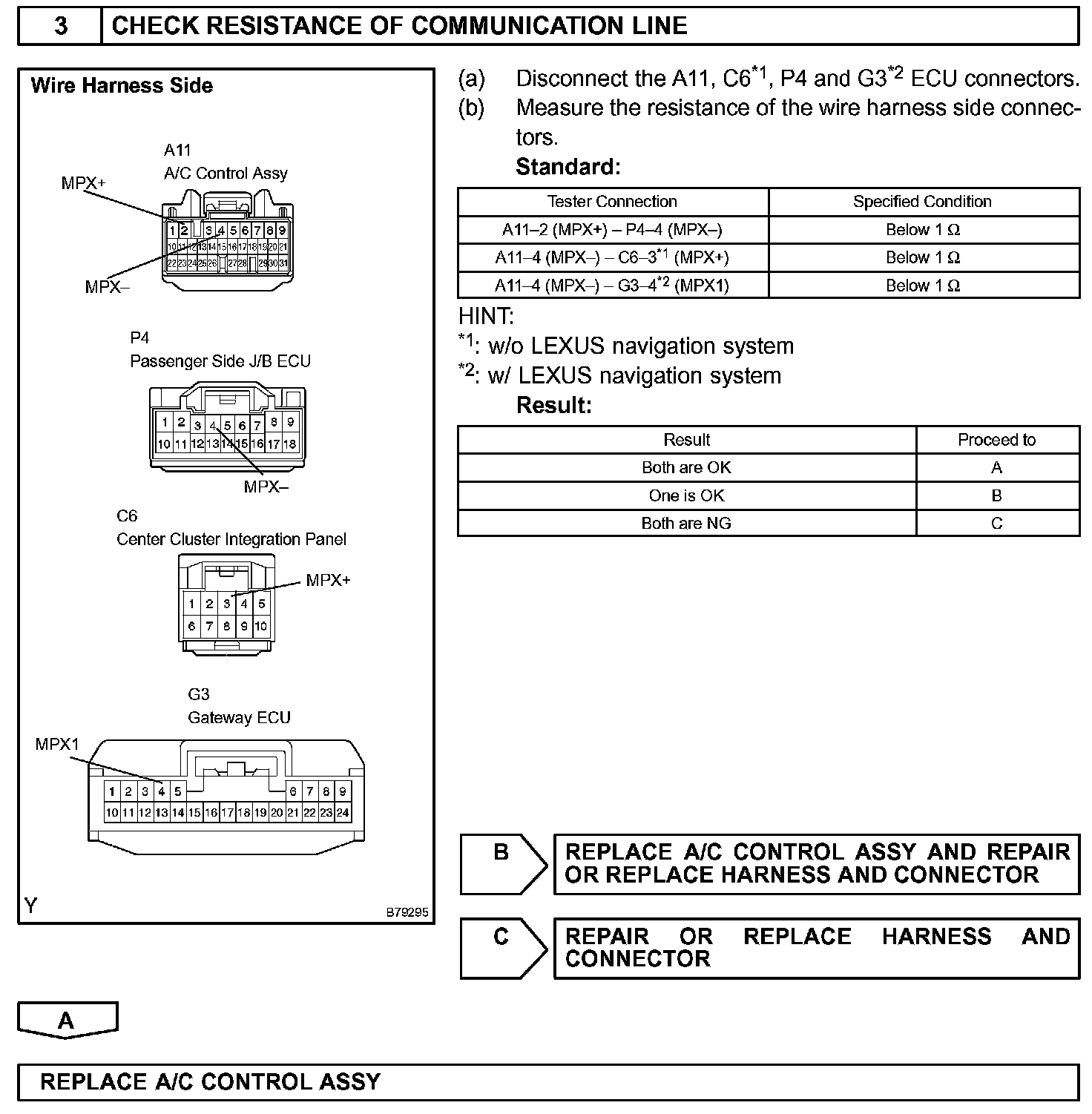

Step 3:

INSPECTION PROCEDURE
