B1237

DTC B1237 JAM PROTECTION LIMIT SWITCH CIRCUIT ON REAR LEFT DOOR

CIRCUIT DESCRIPTION

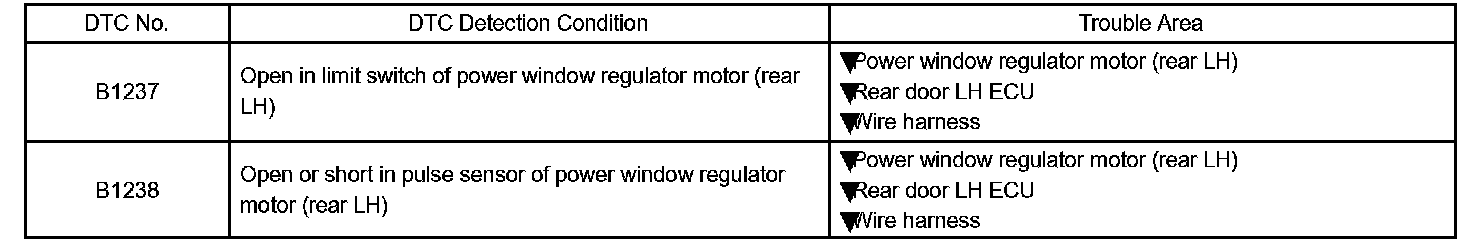

DTC Detection Condition:

These DTCs are output when the power window motor rear LH is malfunctioning.

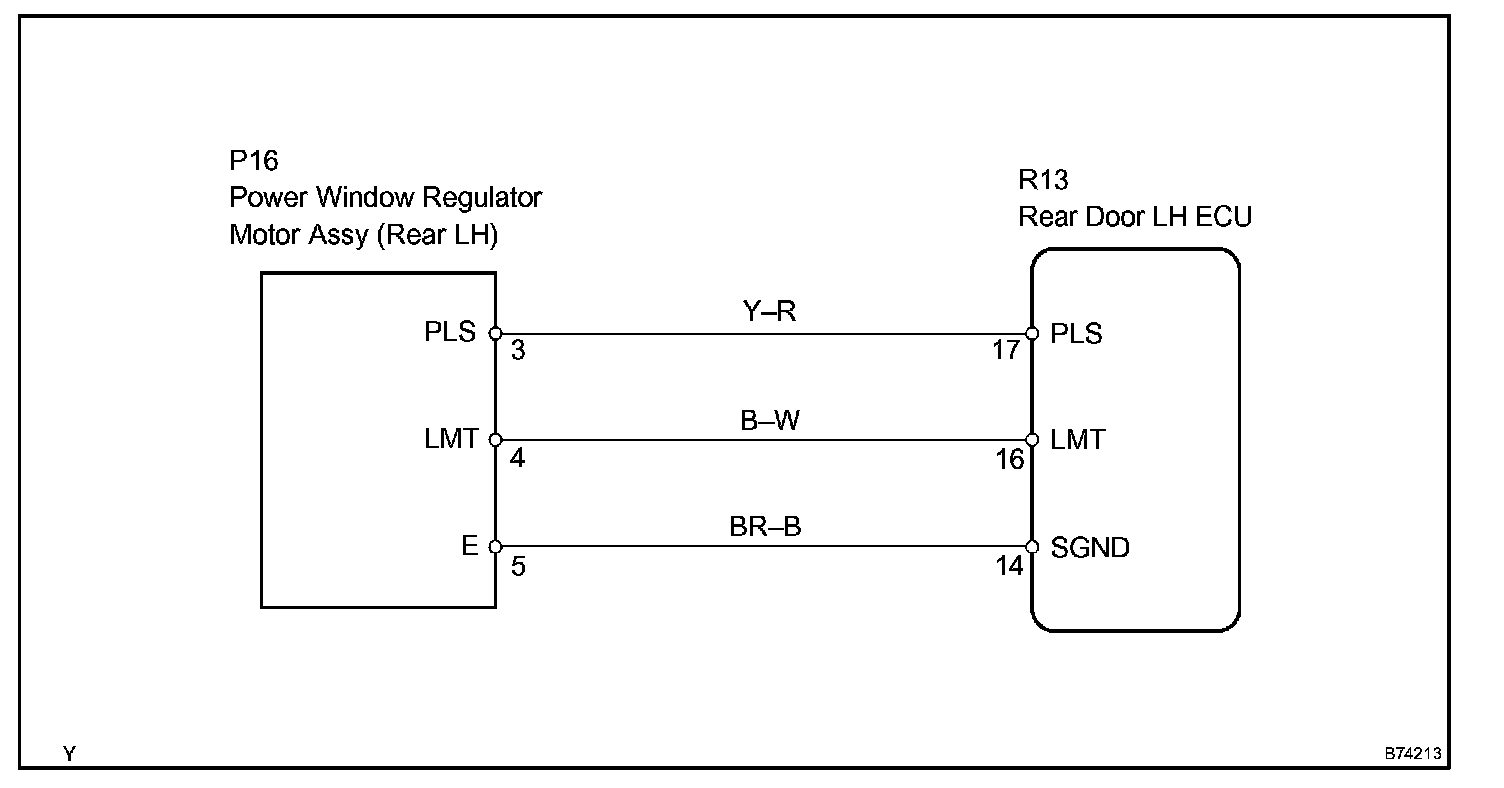

Wiring Diagram:

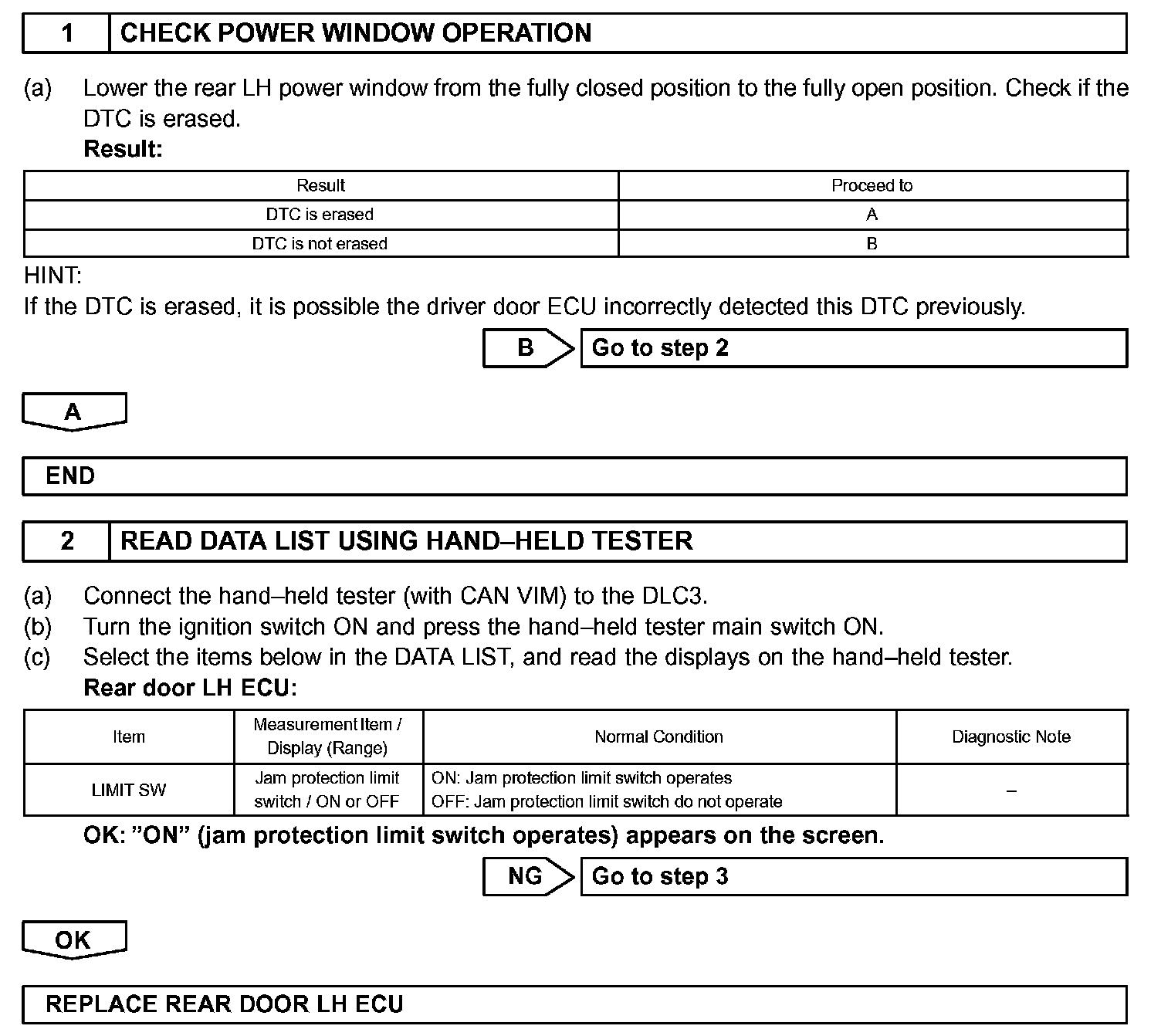

Step 1 - 2:

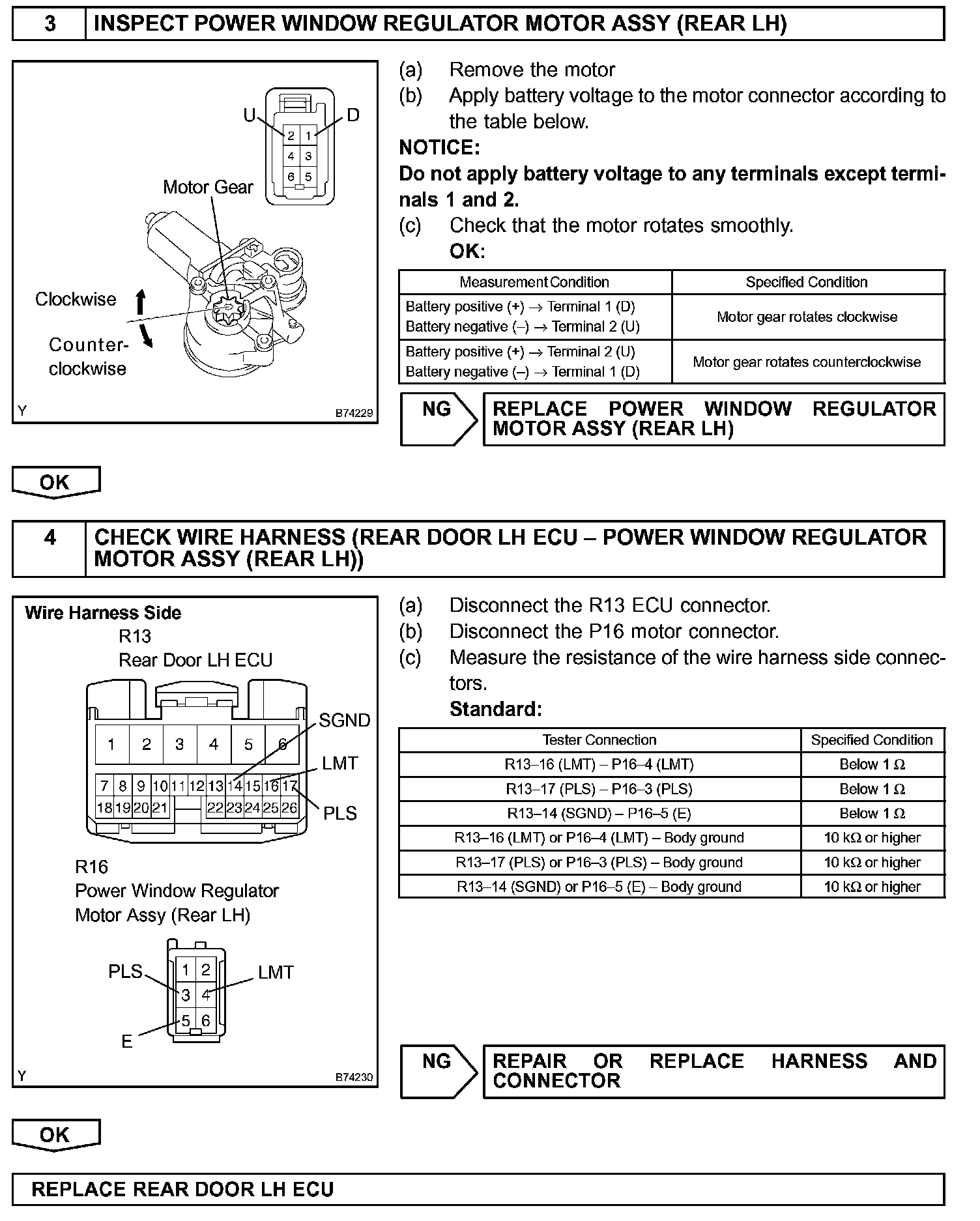

Step 3 - 4:

INSPECTION PROCEDURE
