B1235

DTC B1235 JAM PROTECTION LIMIT SWITCH CIRCUIT ON REAR RIGHT DOOR

CIRCUIT DESCRIPTION

DTC Detection Condition:

These DTCs are output when the power window motor rear RH circuit is malfunctioning.

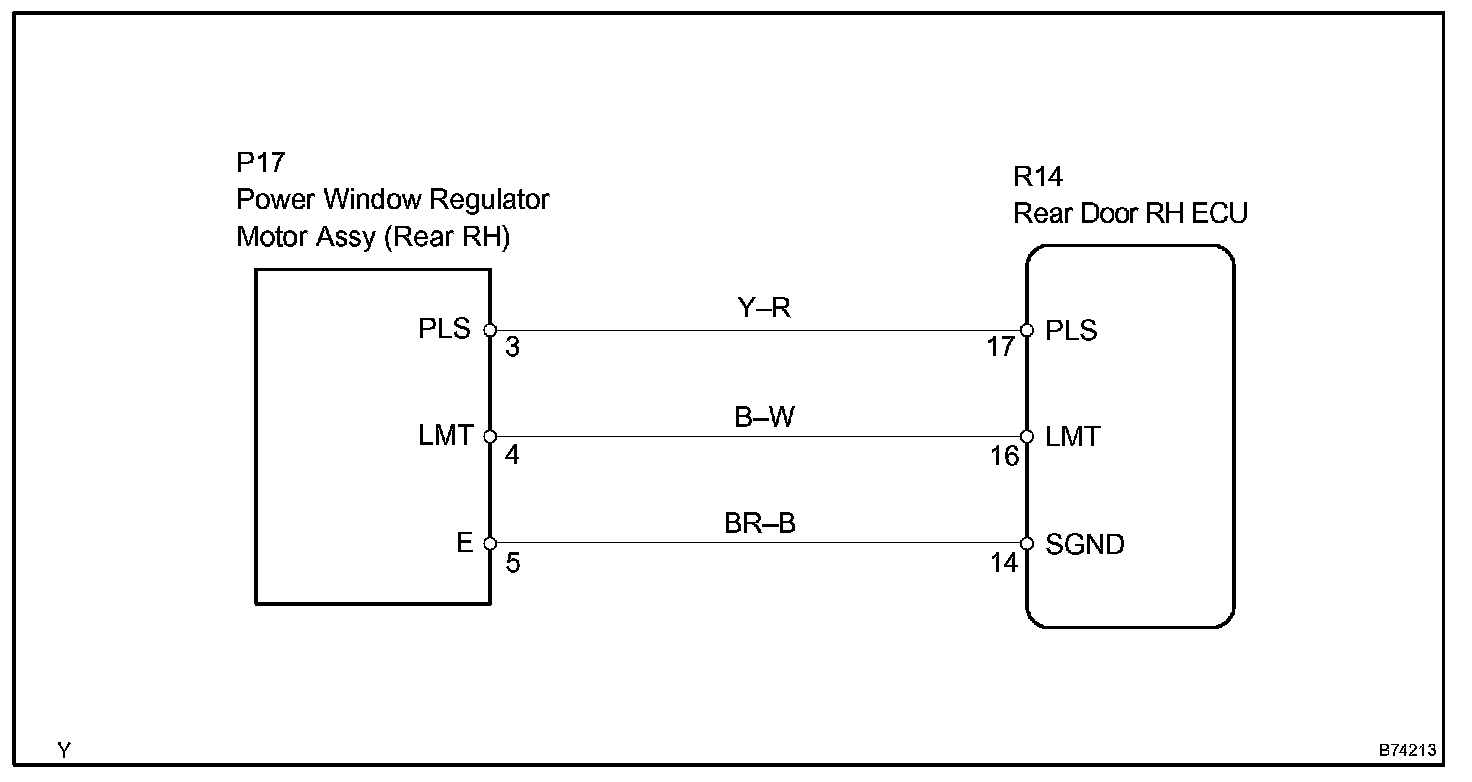

Wiring Diagram:

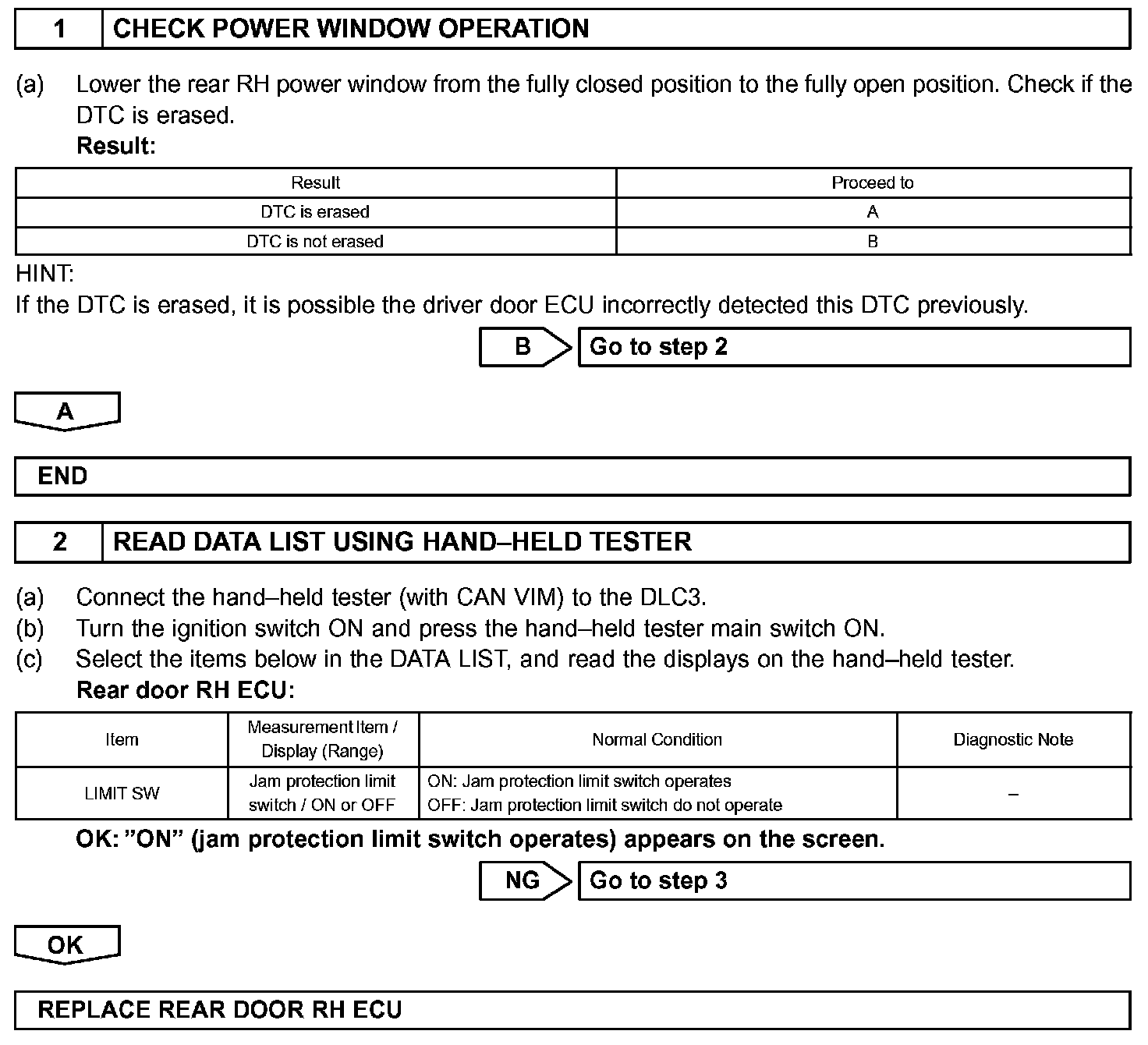

Step 1 - 2:

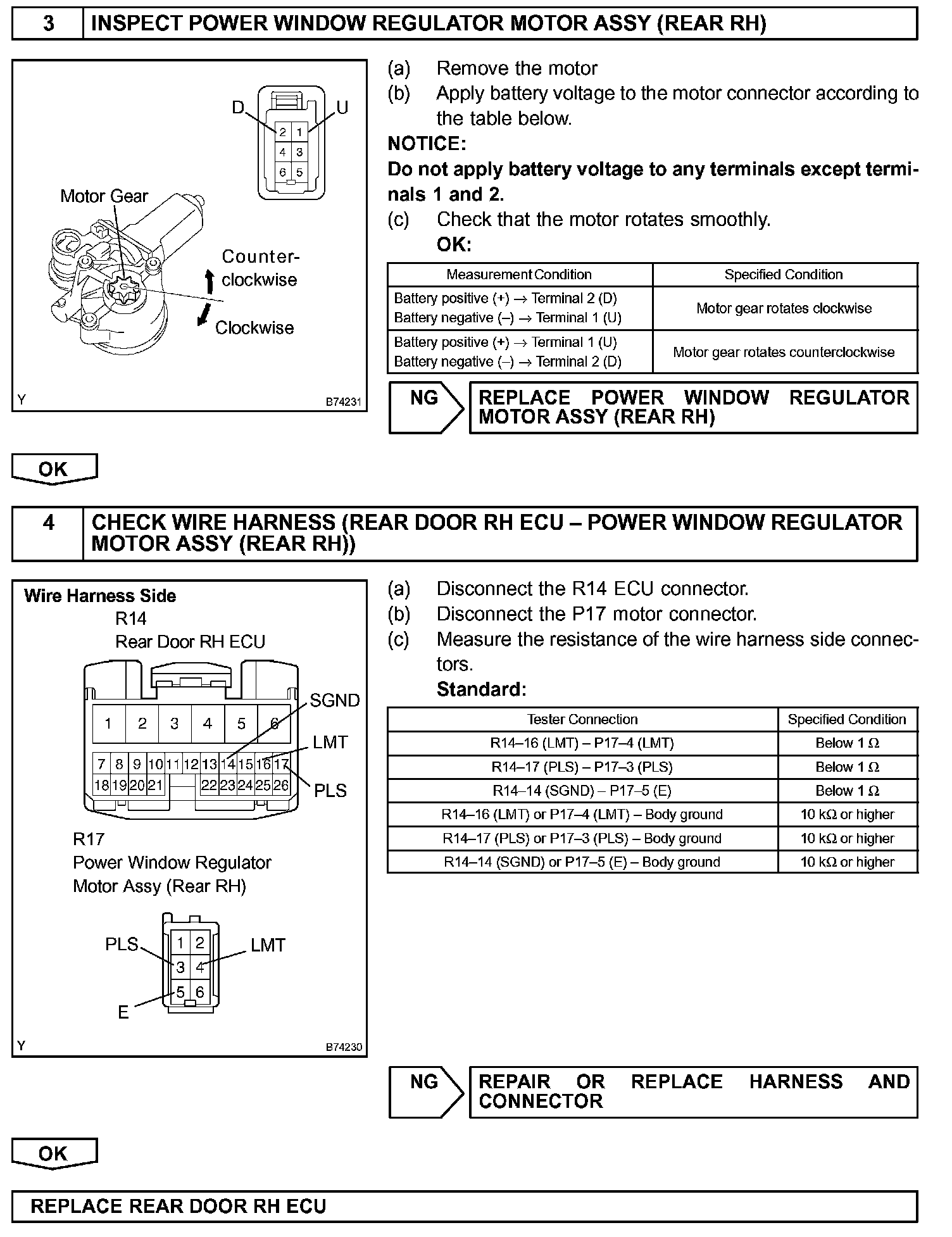

Step 3 - 4:

INSPECTION PROCEDURE
