B1233

DTC B1233 JAM PROTECTION LIMIT SWITCH CIRCUIT ON PASSENGER DOOR

CIRCUIT DESCRIPTION

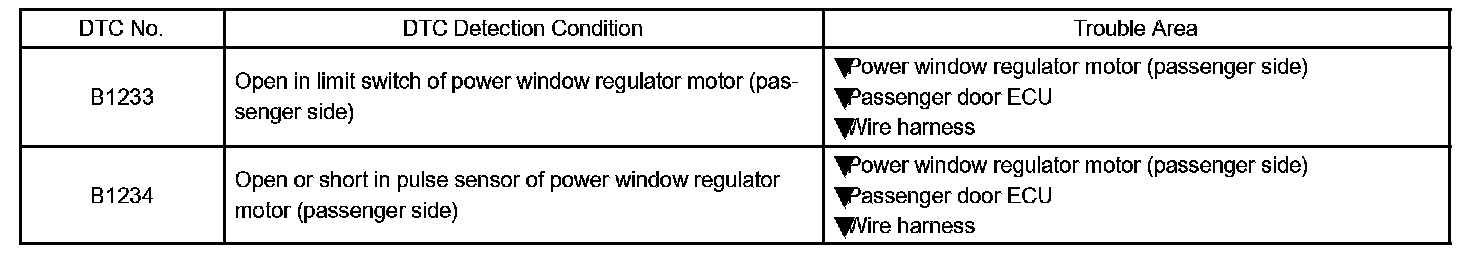

DTC Detection Condition:

These DTCs are output when the passenger door power window motor is malfunctioning.

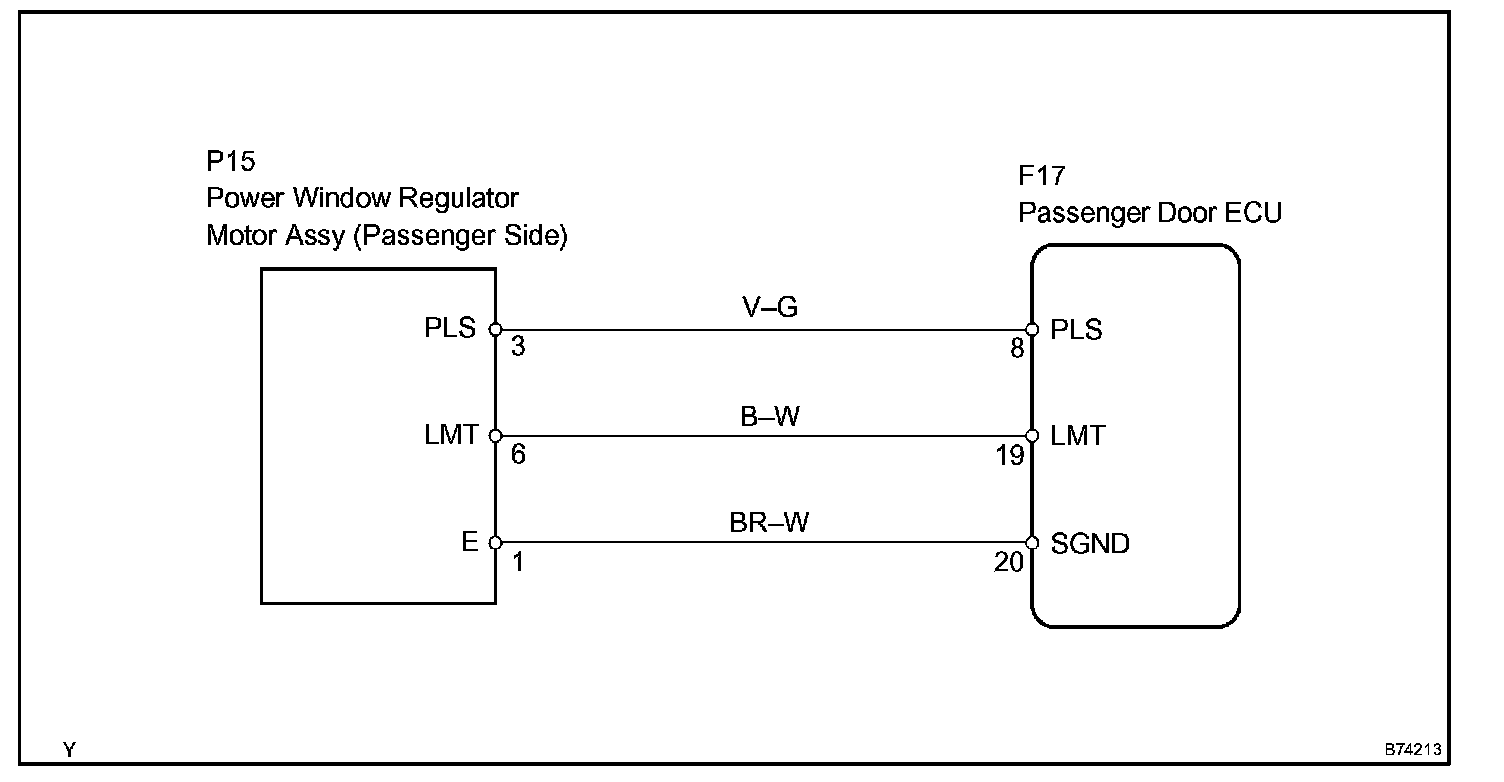

Wiring Diagram:

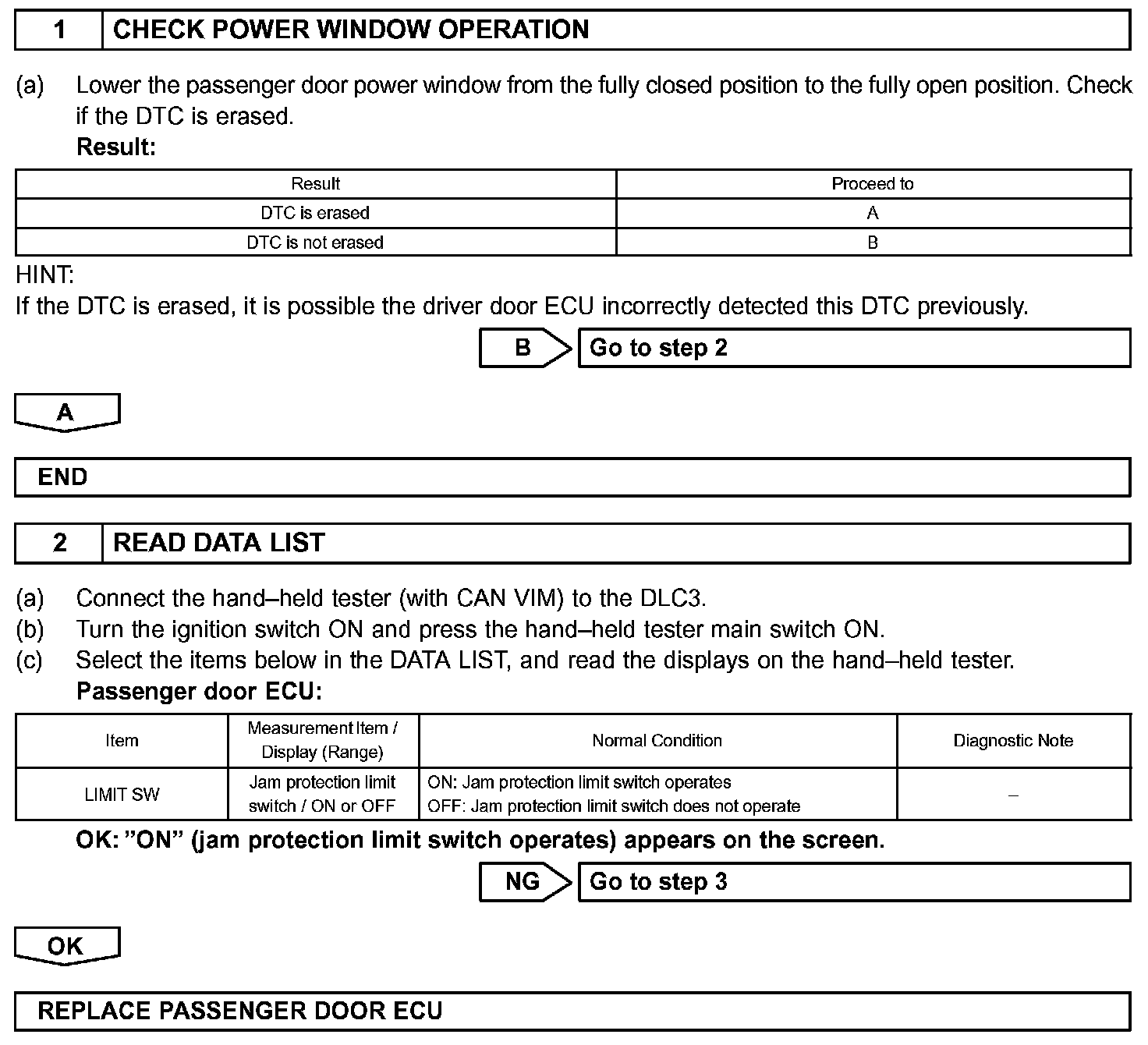

Step 1 - 2:

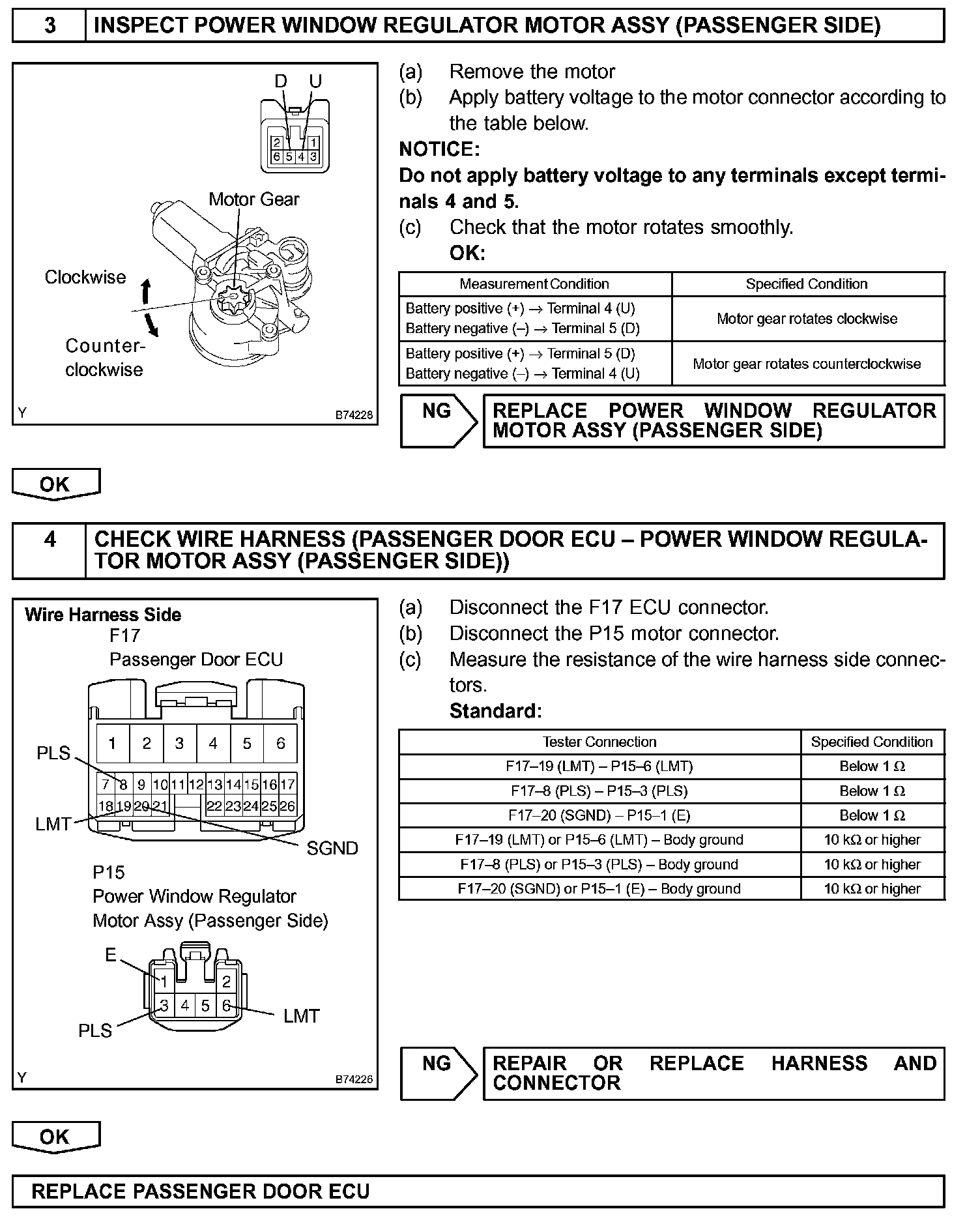

Step 3 - 4:

INSPECTION PROCEDURE
