B1231

DTC B1231 JAM PROTECTION LIMIT SWITCH CIRCUIT ON DRIVER DOOR

CIRCUIT DESCRIPTION

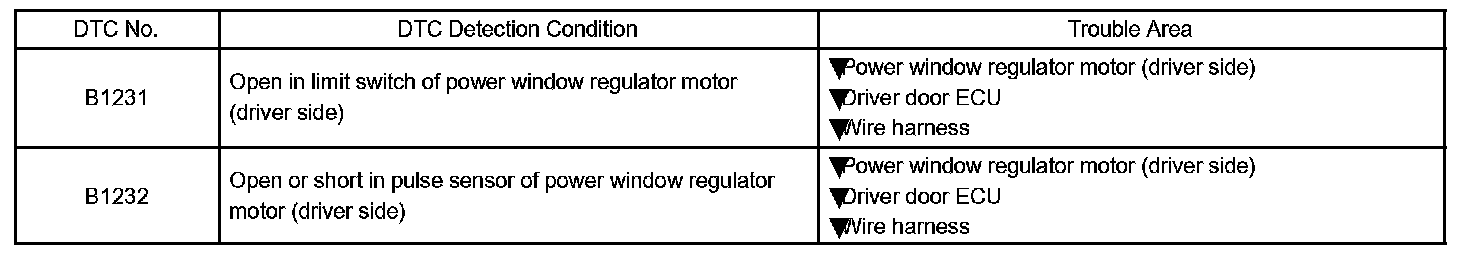

DTC Detection Condition:

These DTCs are output when the driver door power window regulator motor circuit is malfunctioning.

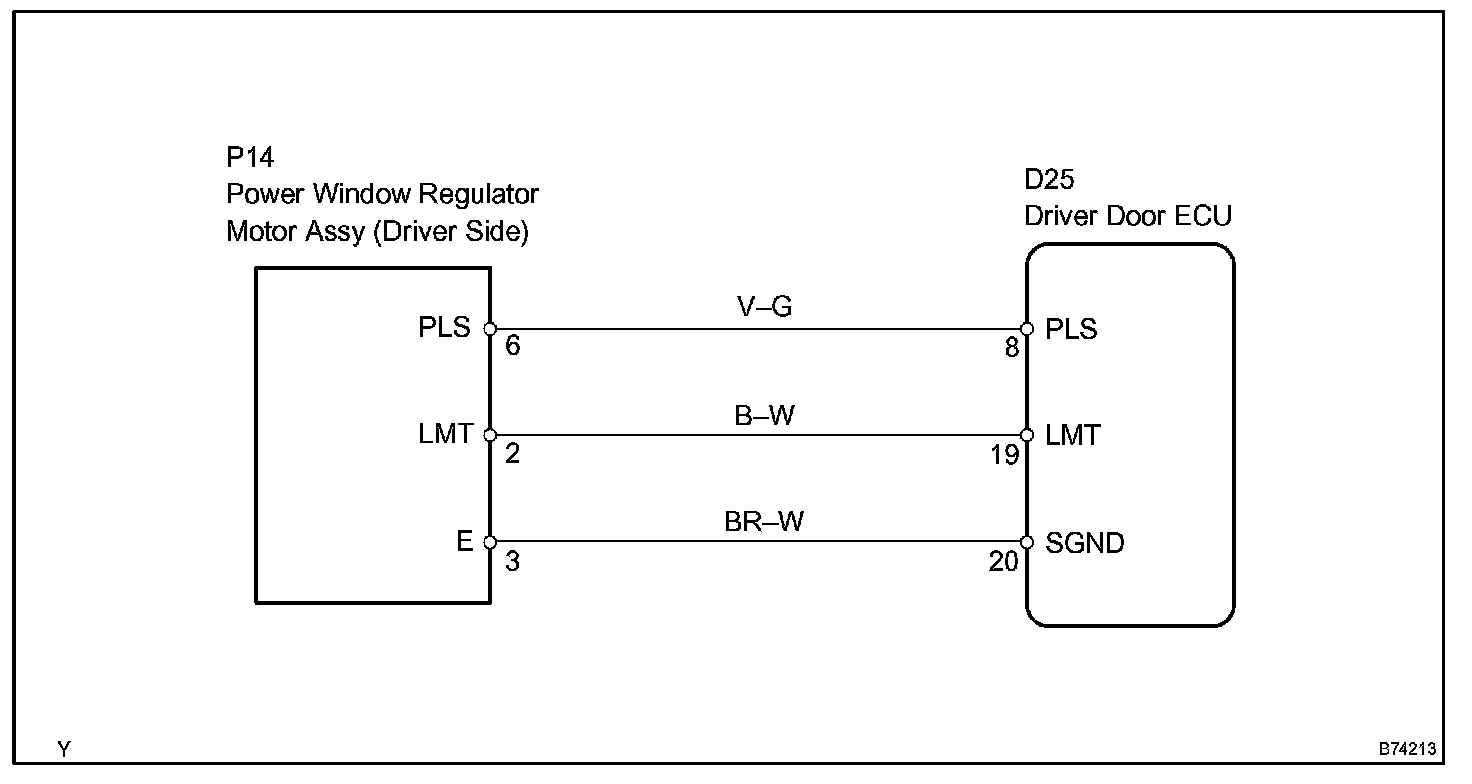

Wiring Diagram:

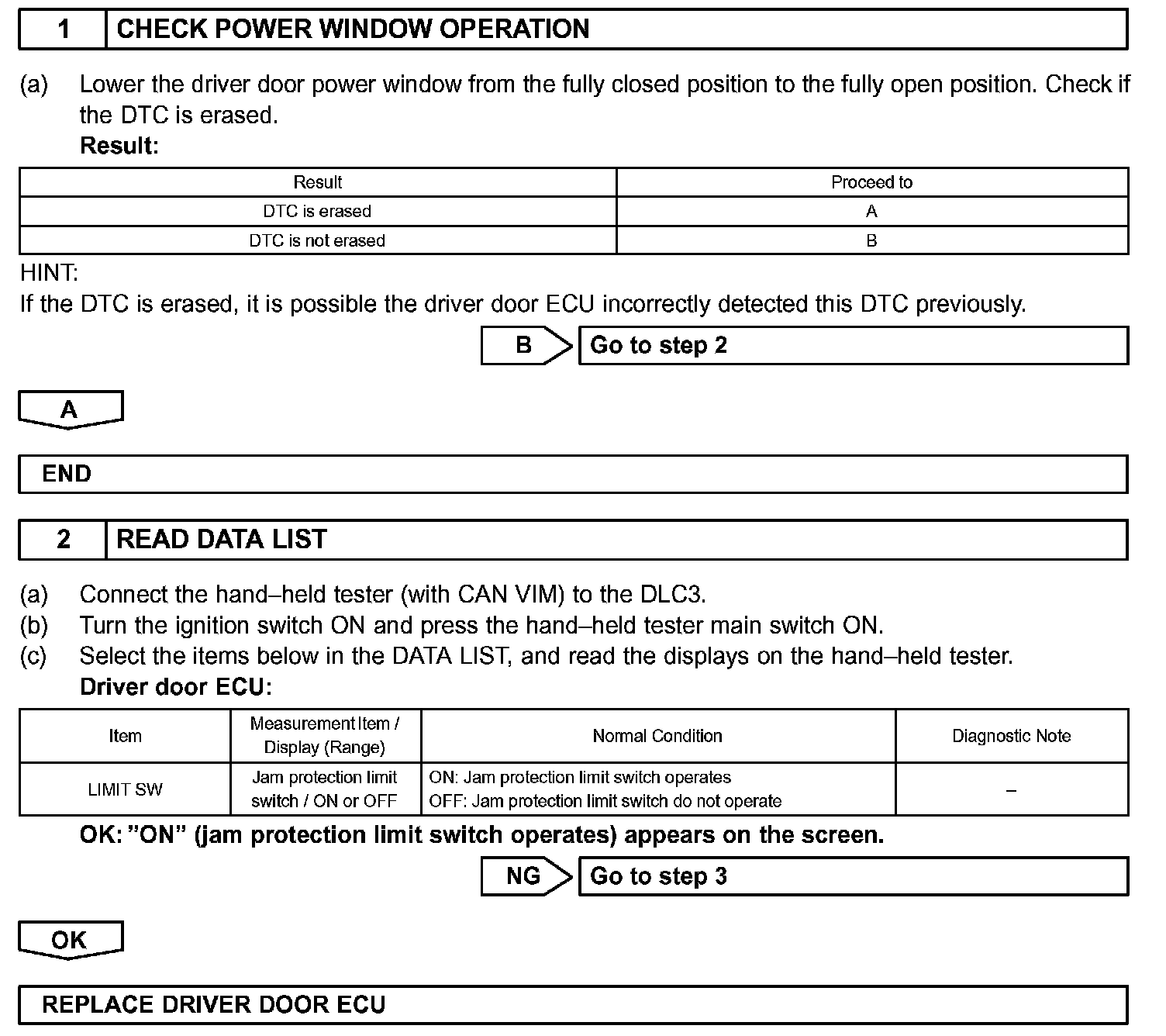

Step 1 - 2:

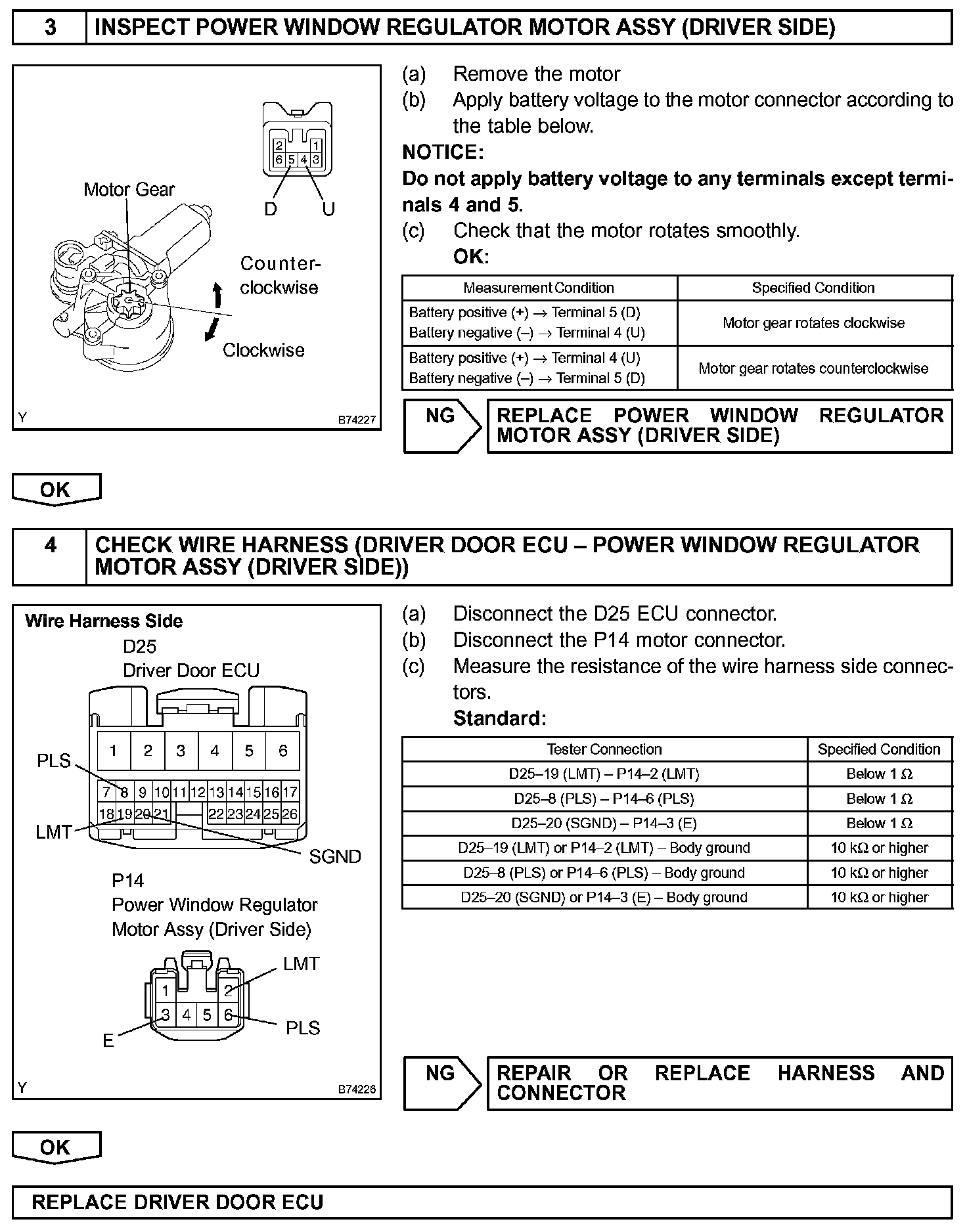

Step 3 - 4:

INSPECTION PROCEDURE
