B1213

DTC B1213 TILT AND TELESCOPIC ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

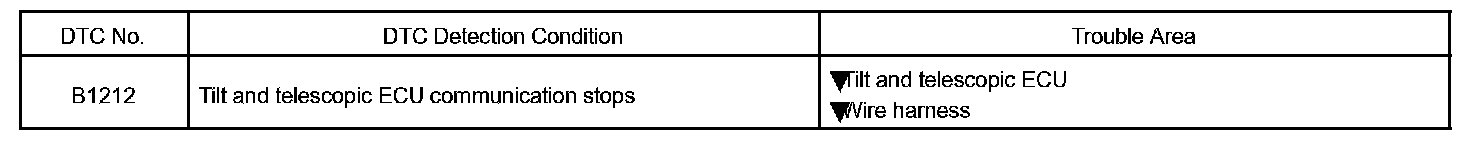

DTC Detection Condition:

This DTC is detected when communication between the tilt and telescopic ECU and gateway ECU stops for more than 10 seconds.

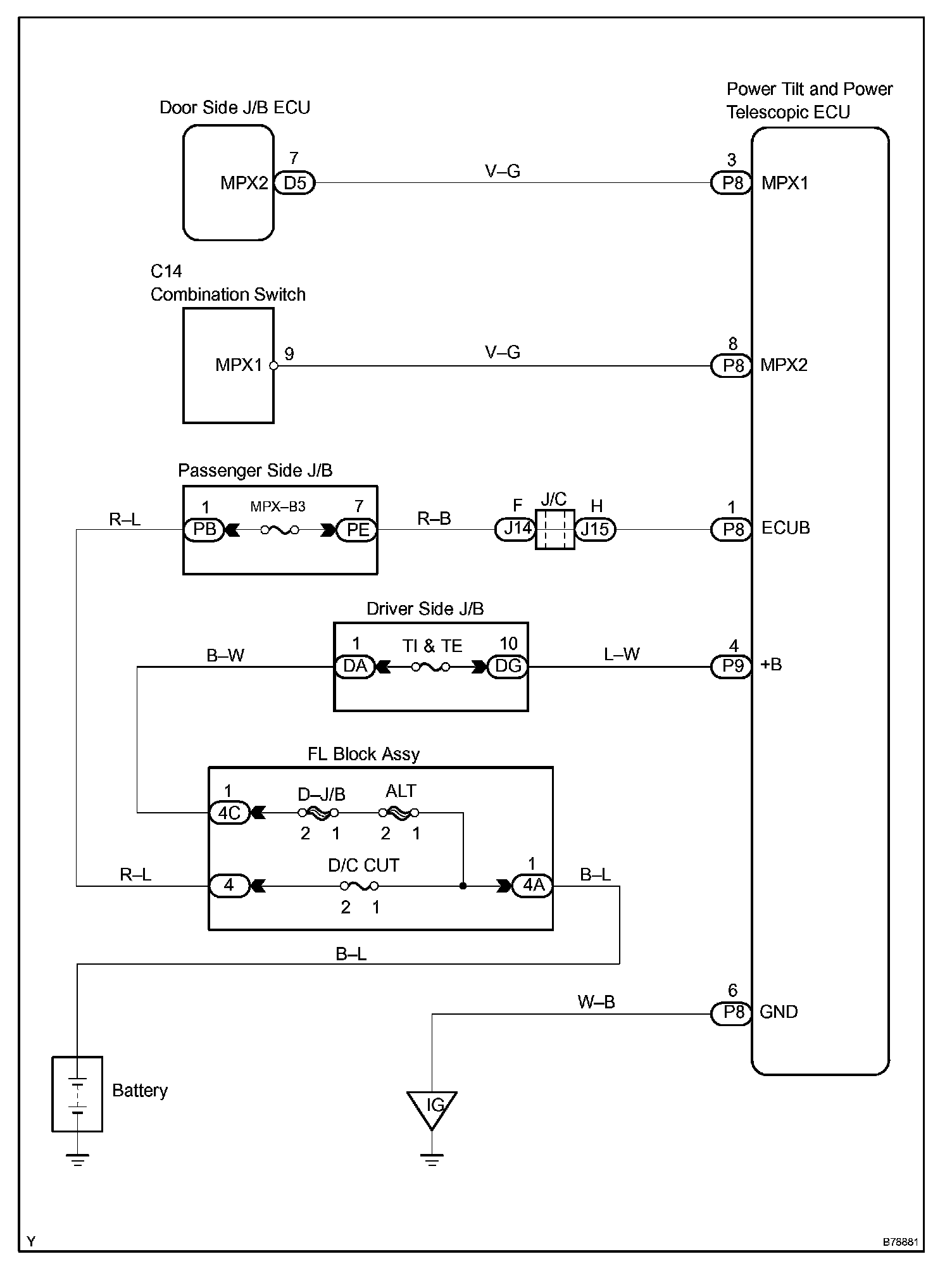

Wiring Diagram:

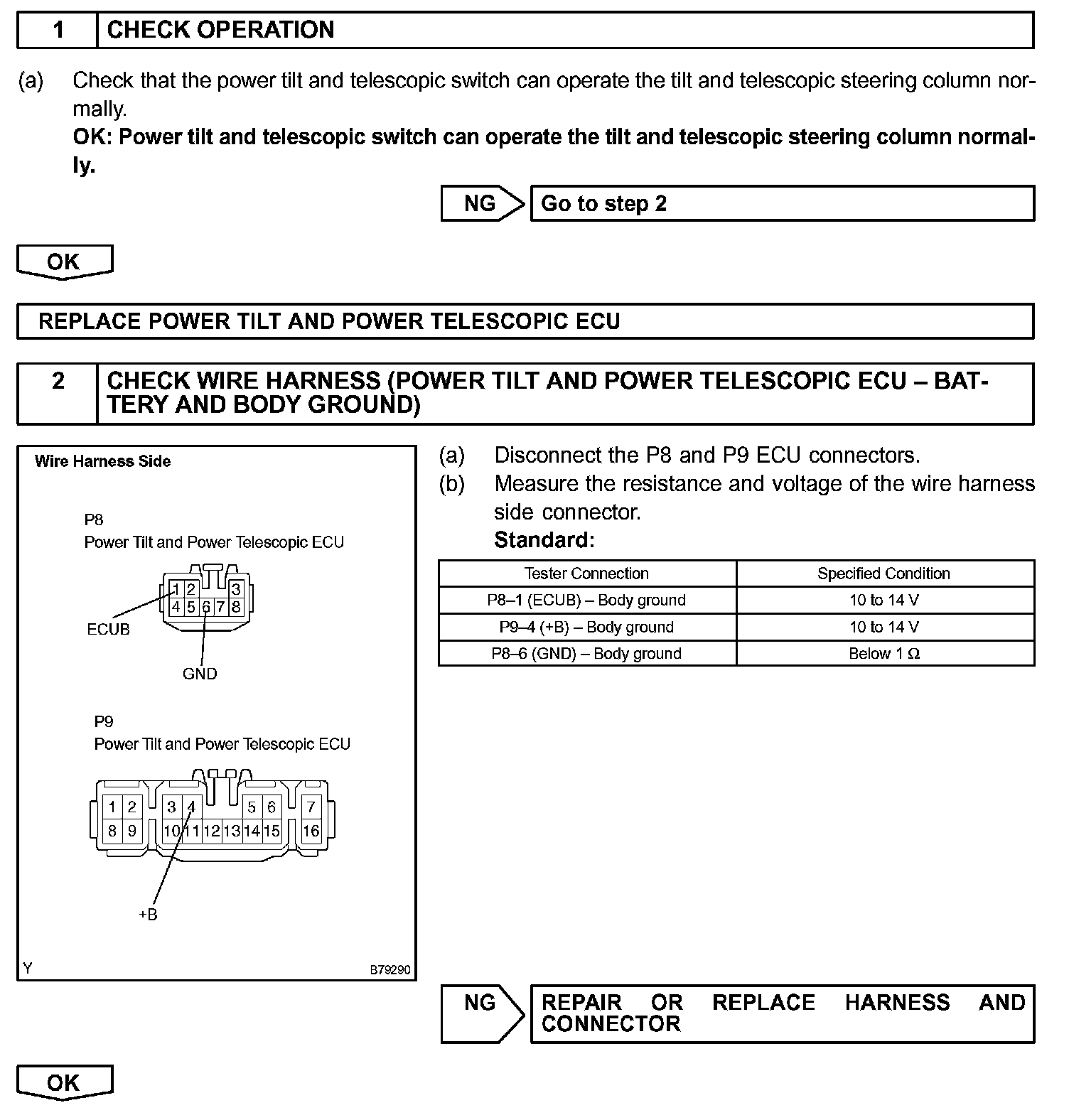

Step 1 - 2:

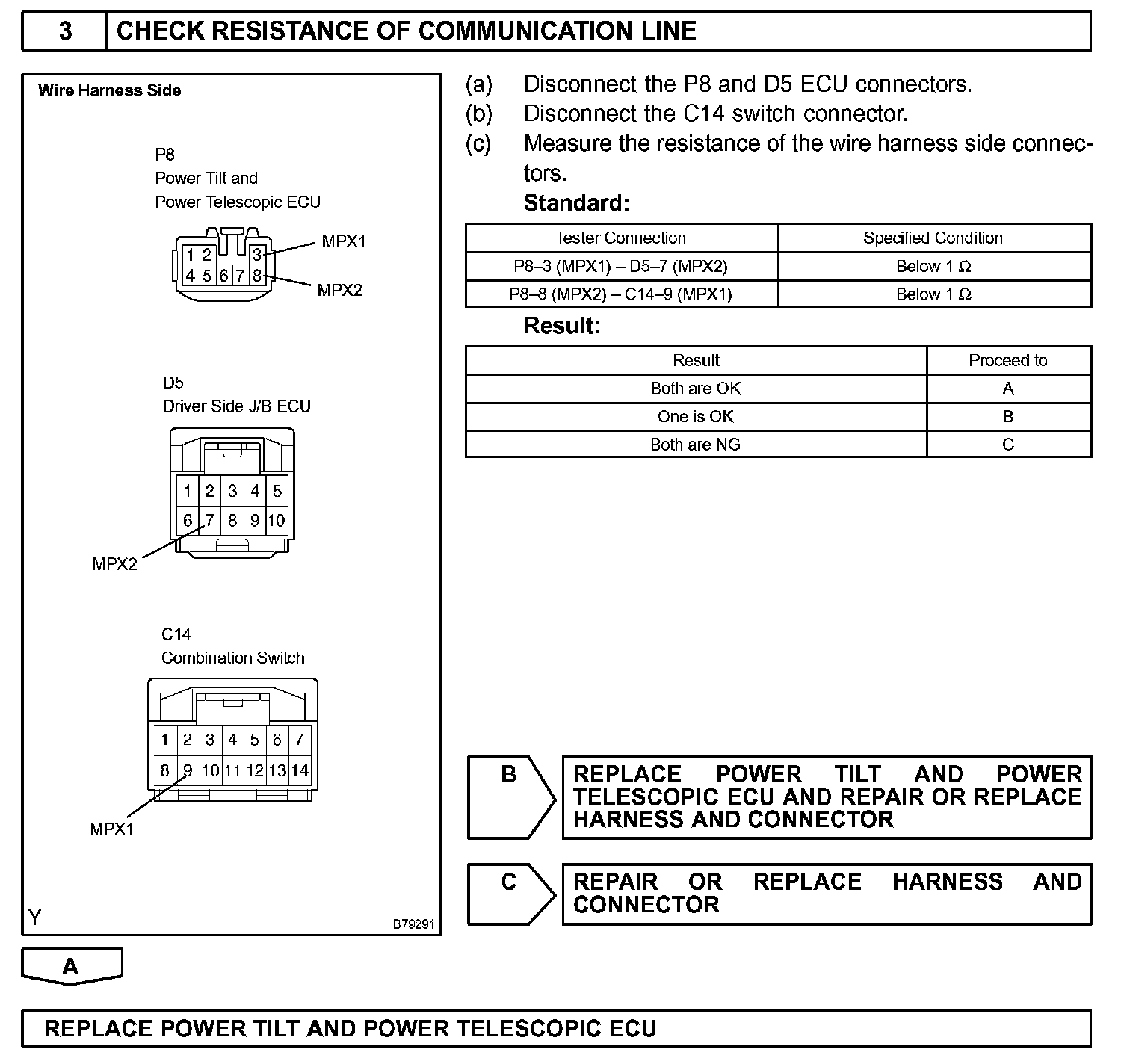

Step 3:

INSPECTION PROCEDURE
