B1205

DTC B1205 AFS ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

DTC Detection Condition:

DTC B1205 is output when communication between the headlamp swivel ECU (AFS ECU) and the gateway ECU stops for more than 10 seconds.

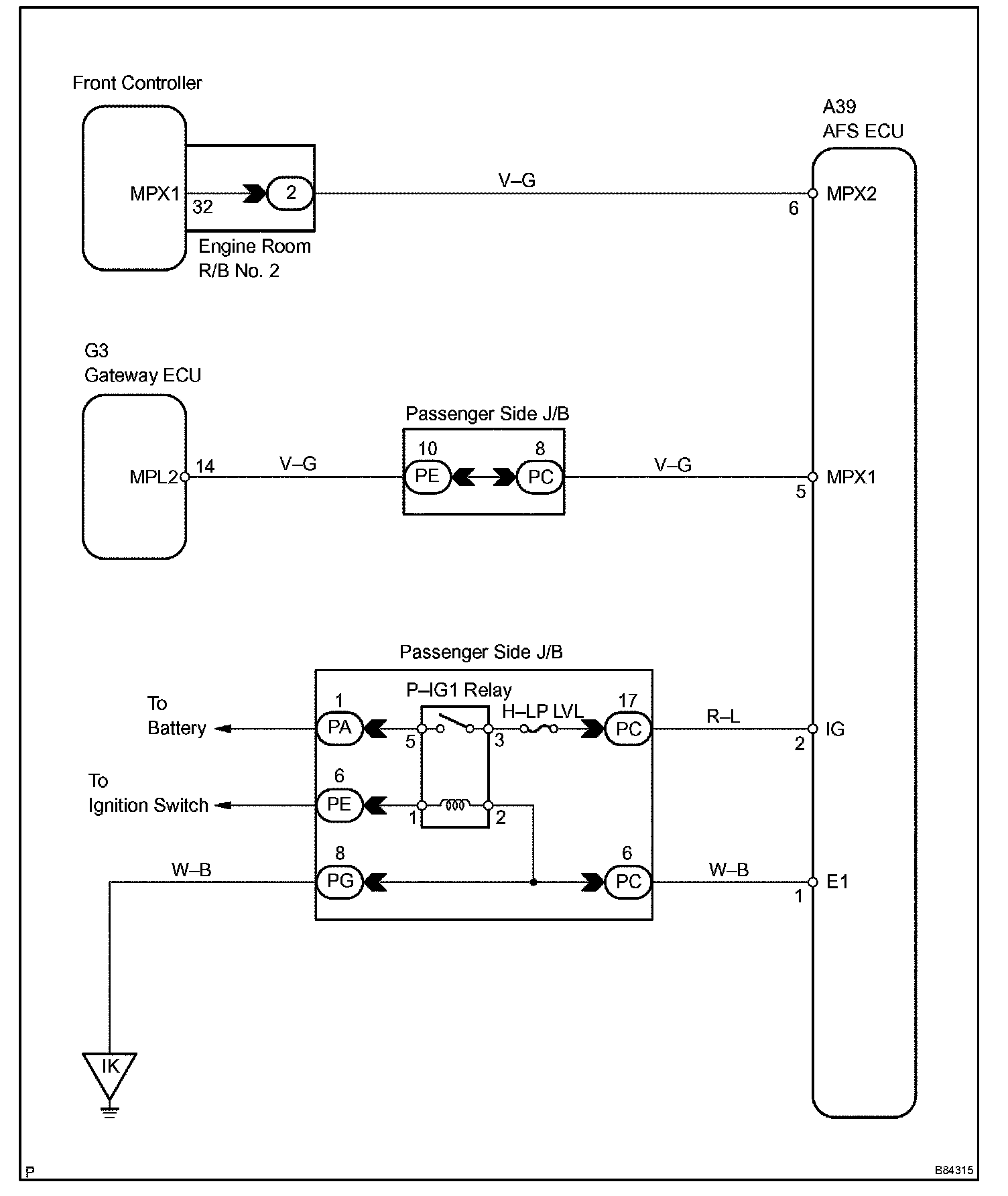

Wiring Diagram:

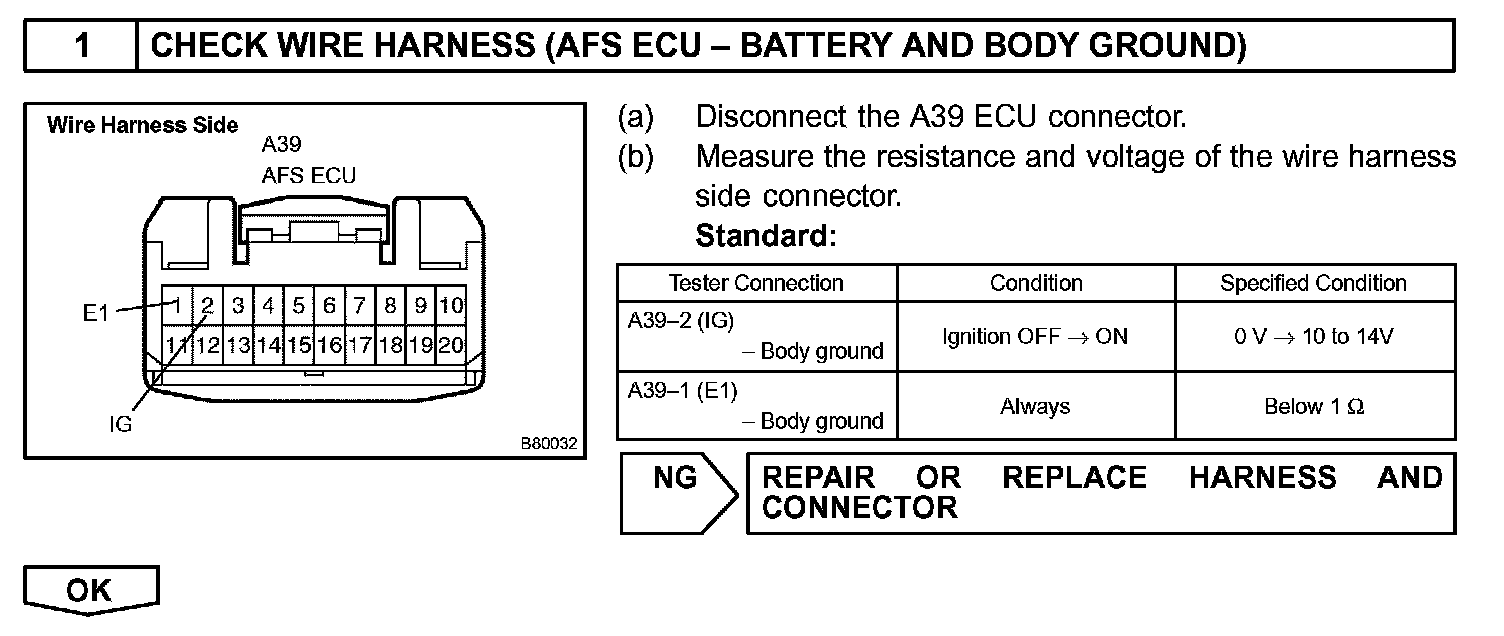

Step 1:

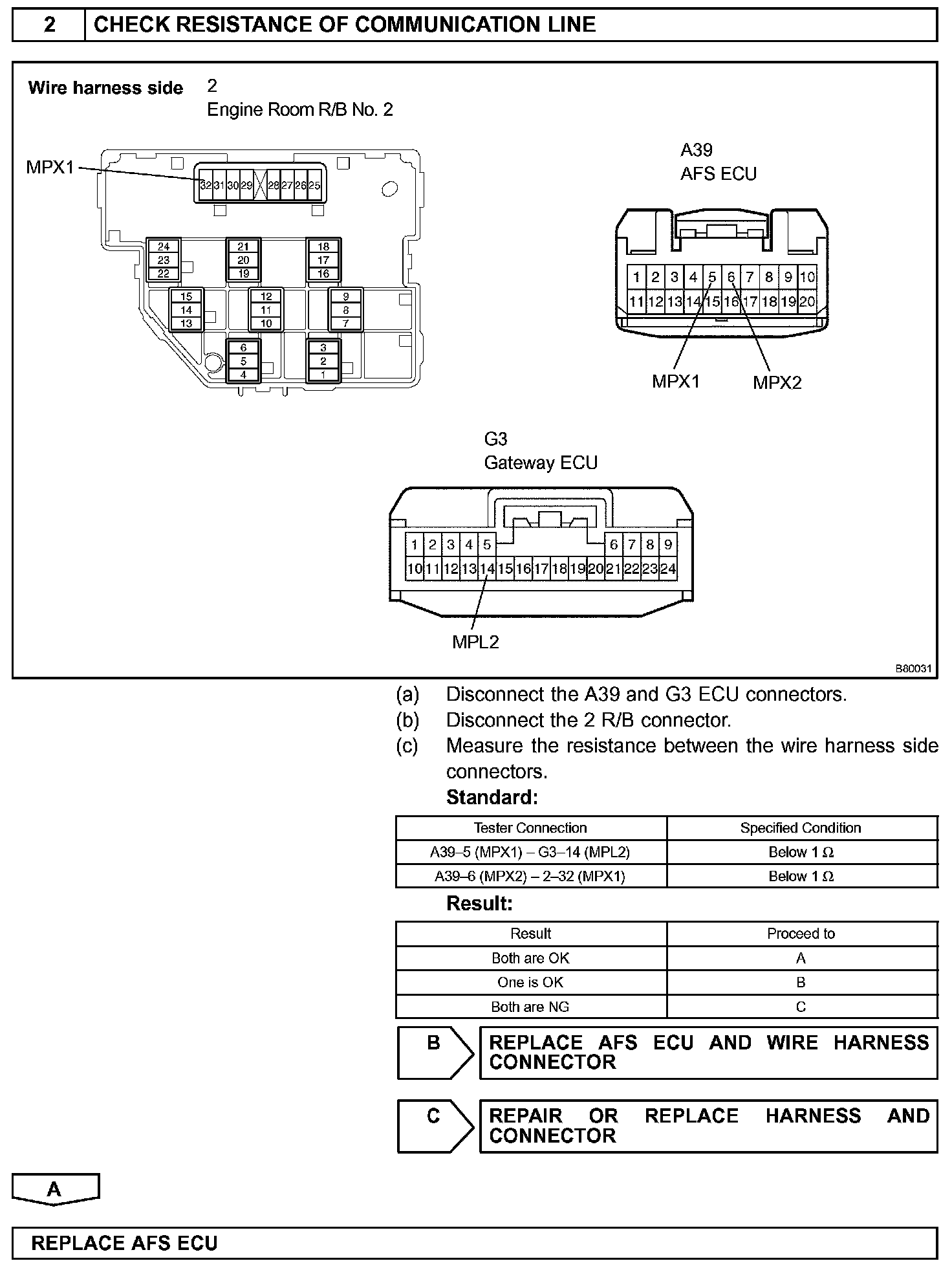

Step 2:

INSPECTION PROCEDURE
