Rear

INSPECTION

INSPECT WASHER NOZZLE

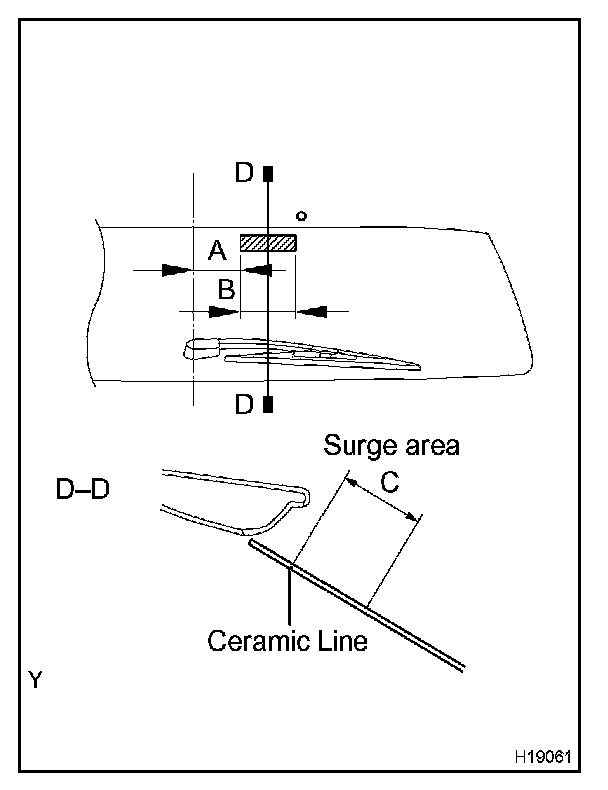

a. While operating the washer, check whether the upper point where the washer fluid hits the back door glass and the surge area are within the range indicated by the hatched line.

A: 88 mm (3.46 in.)
B: 100 mm (3.94 in.)
C: 55 mm (2.17 in.)

b. Check if the lower point where the washer fluid hits the back door glass is within the range of the wiping pattern (the are of the glass which is wiped by the wiper blades).
