INSPECTION

INSPECT WASHER NOZZLE

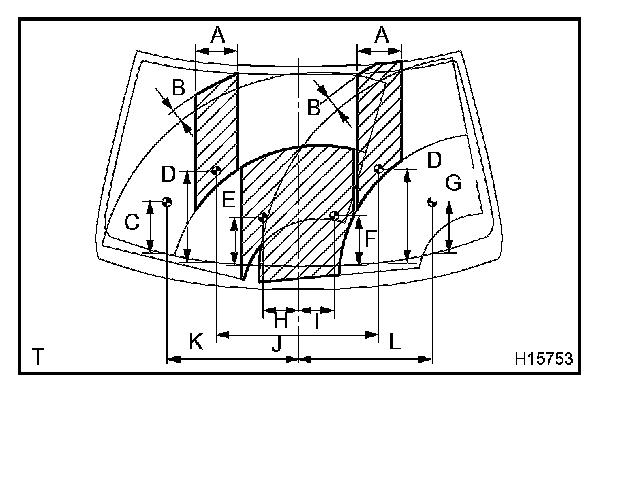

a. While operating the washer, check whether the points where the washer fluid hits the windshield and the surge area are within the range indicated by the hatched line.

A: Approx. 150 mm (5.91 in.)
B: Approx. 50 mm (1.97 in.)
C: Approx. 181.4 mm (7.142 in.)
D: Approx. 320.6 mm (12.622 in.)
E: Approx. 175.9 mm (6.925 in.)
F: Approx. 176.5 mm (6.949 in.)
G: Approx. 181 mm (7.13 in.)
H: Approx. 117.8 mm (4.638 in.)
I: Approx. 120 mm (4.72 in.)
J: Approx. 546.6 mm (21.520 in.)
K: Approx. 443.7 mm (17.468 in.)
L: Approx. 447 mm (17.60 in.)

b. Check if the outer point where the washer fluid hits the windshield is within the range of the wiping pattern (the area of the glass which is wiped by the wiper blades).
