Home >> Lexus >> 2005 >> IS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Locations

Windows: Locations

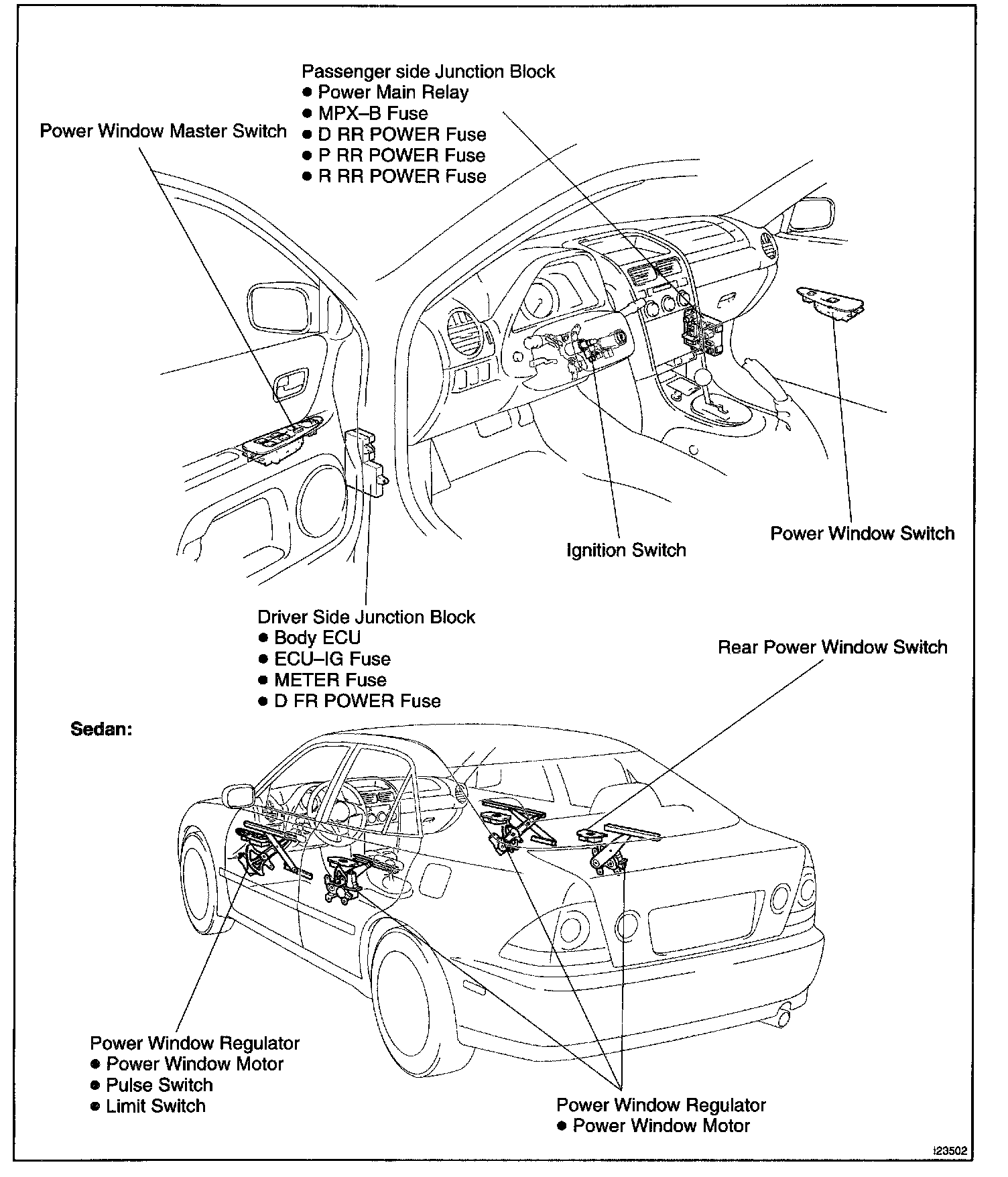

Power Window Control System Part 1:

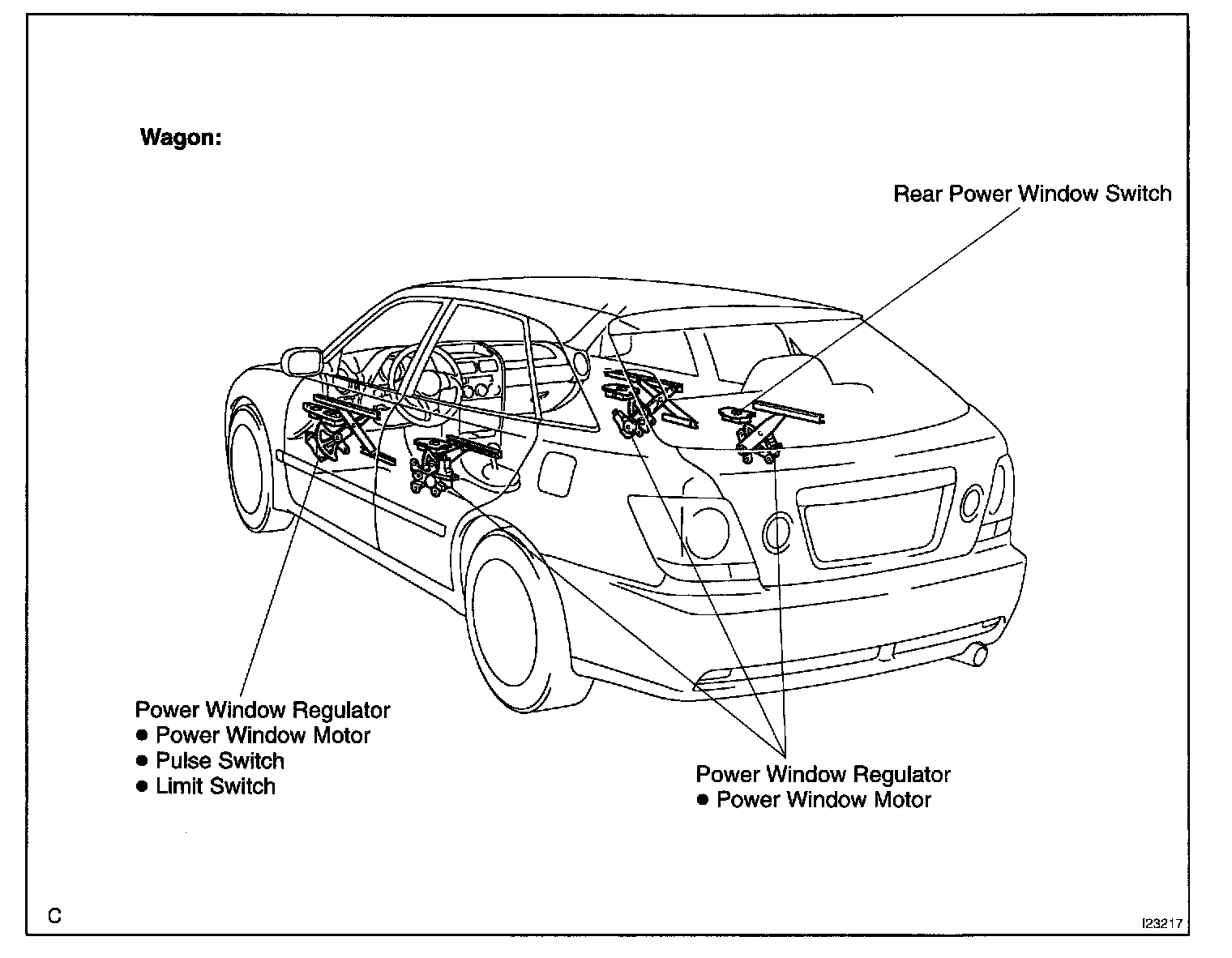

Power Window Control System Part 2:
