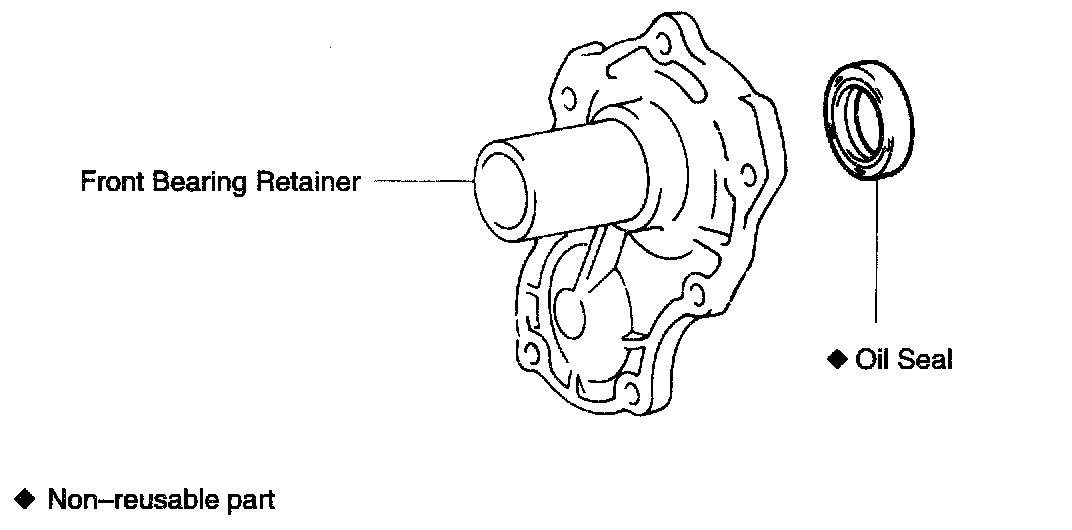

Front Bearing Retainer Oil Seal

REPLACEMENT
IF NECESSARY, REPLACE FRONT BEARING RETAINER OIL SEAL





a. Using a screwdriver, pry out the oil seal.
b. Using SST and a press, install a new oil seal.
SST 09950-60010 (09951-00440), 09950-70010 (09951-07150)
Drive in depth: 12.2 ± 0.5 mm (0.480 ± 0.020 inch)
