Monitors, Trips, Drive Cycles and Readiness Codes

The monitor will run whenever the following DTCs are not present (Monitor disablement List)

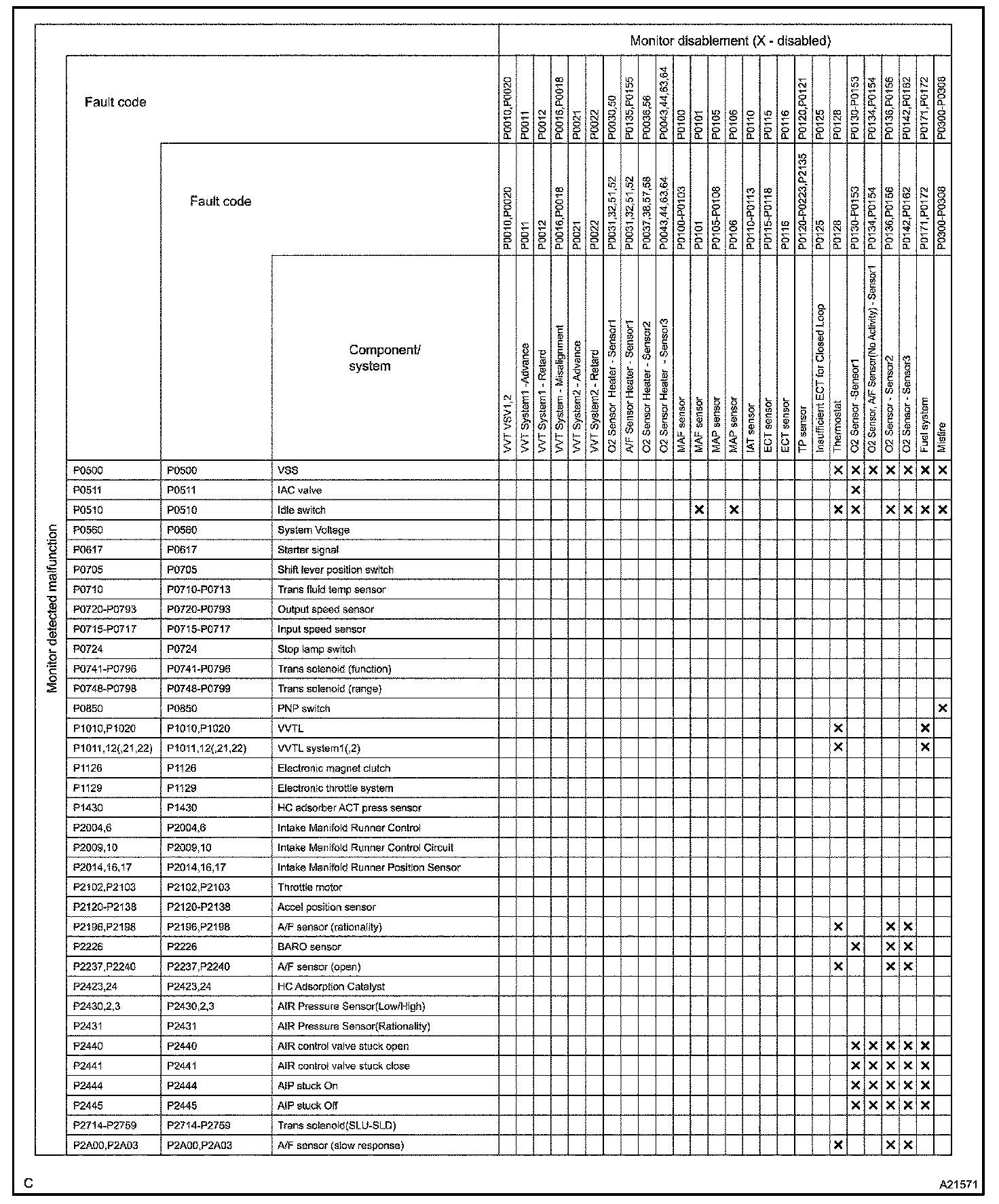

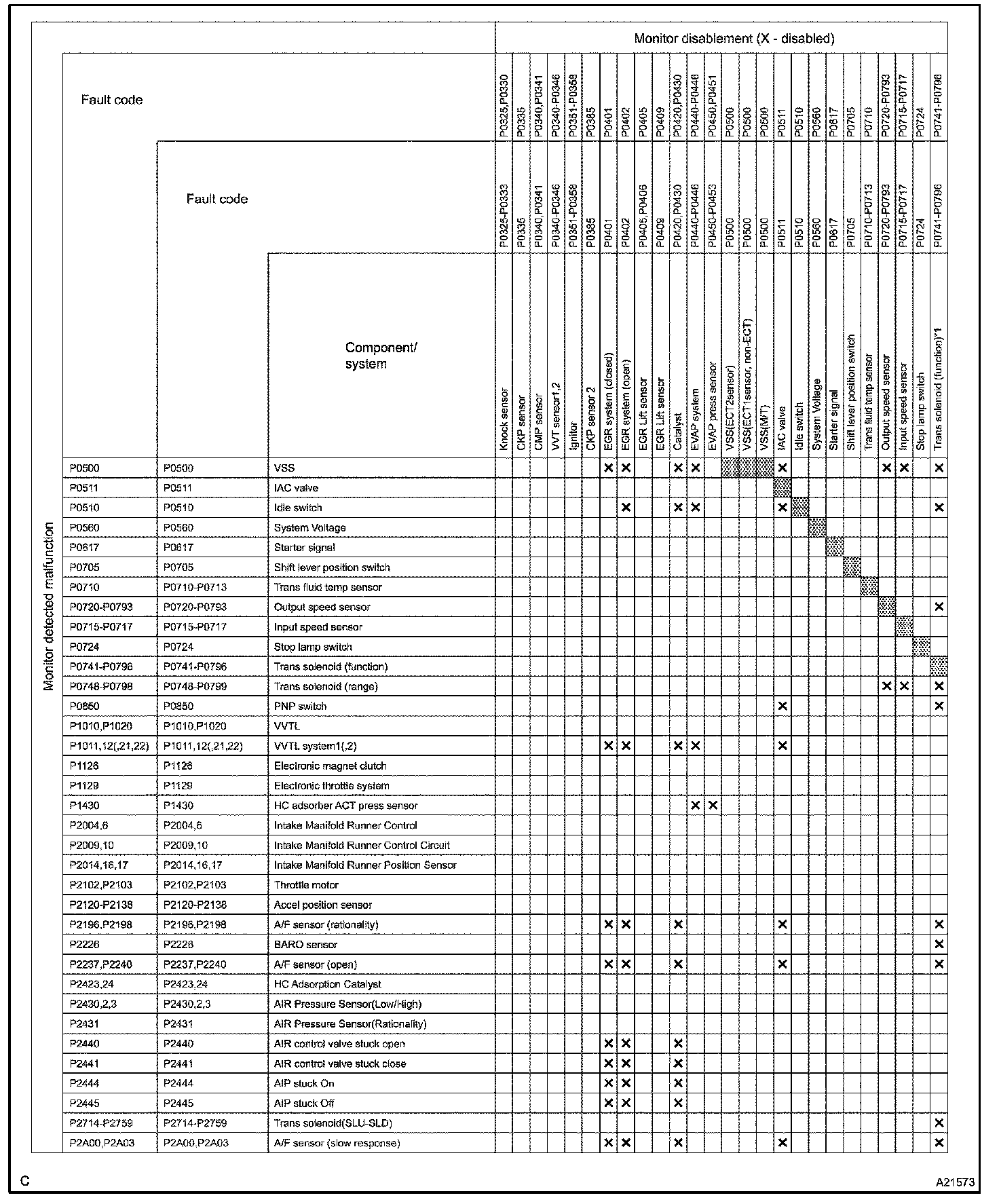

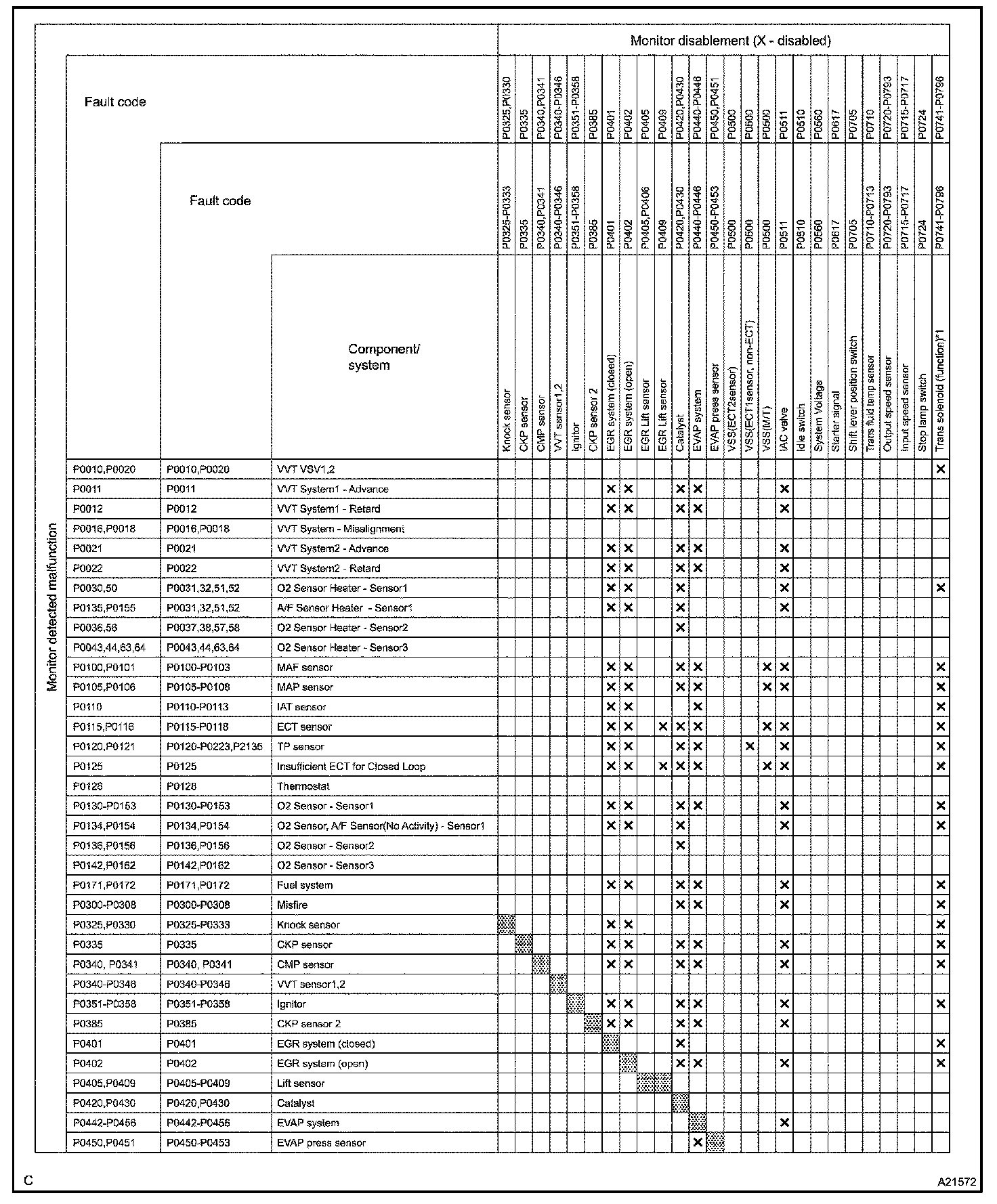

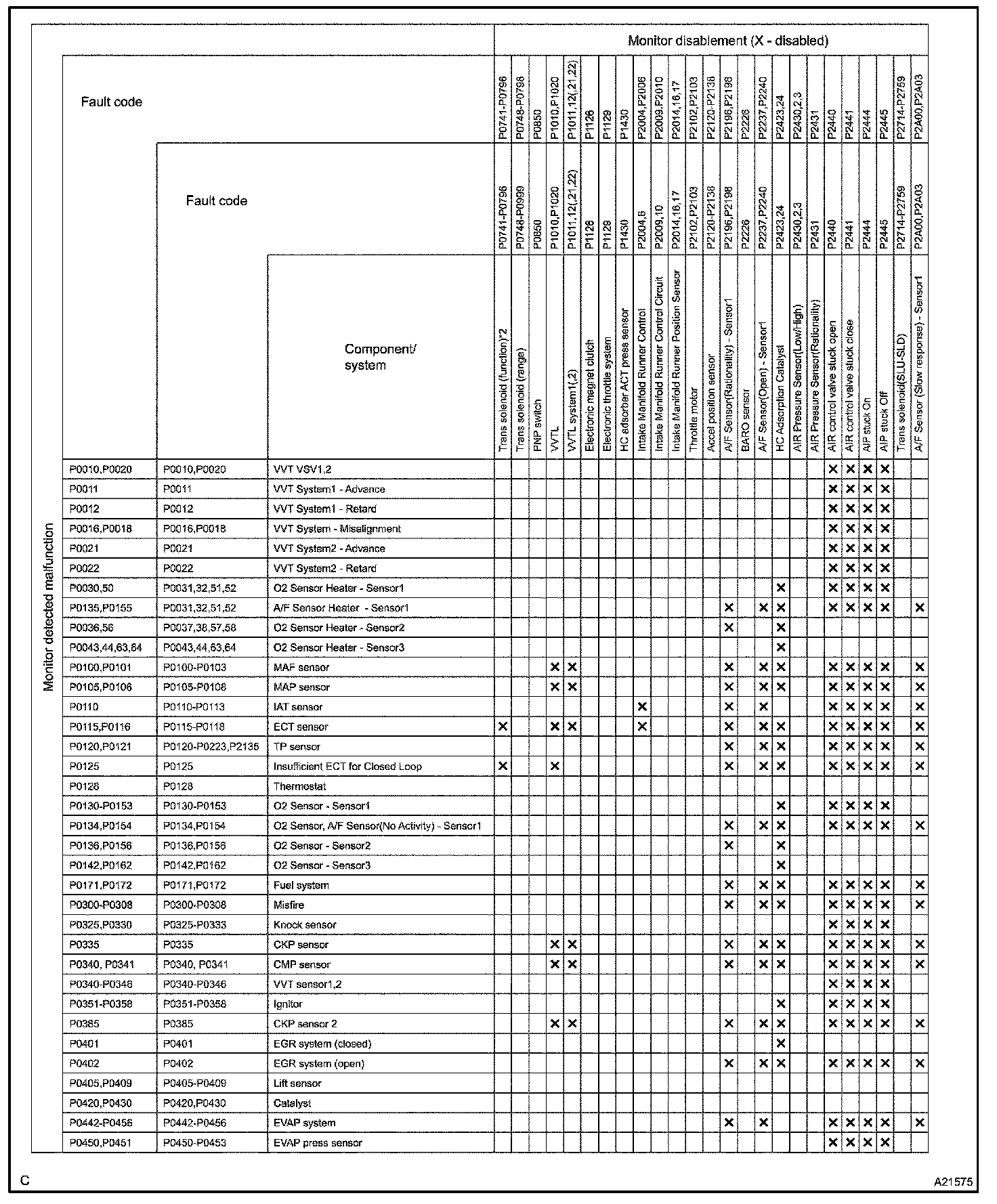

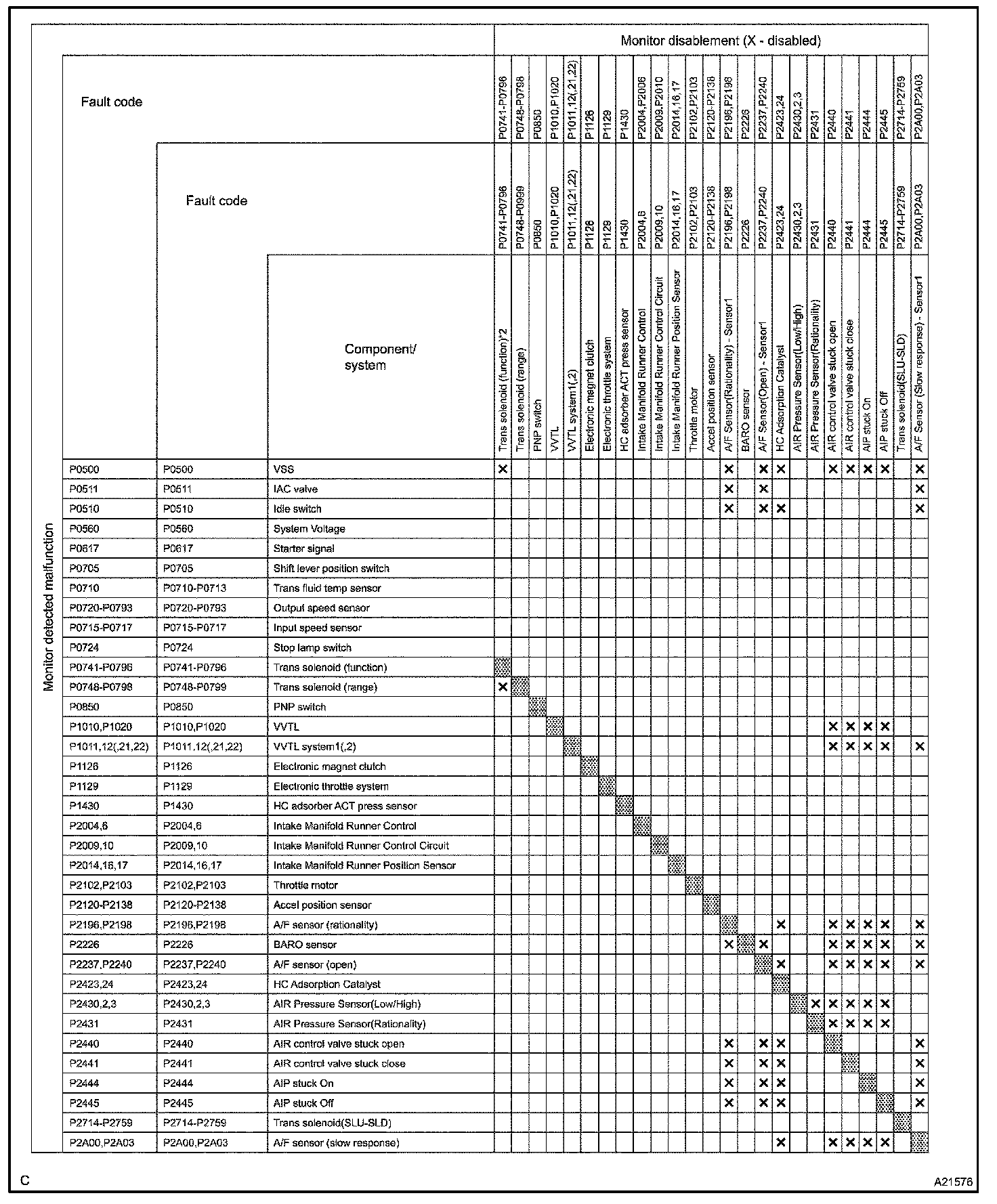

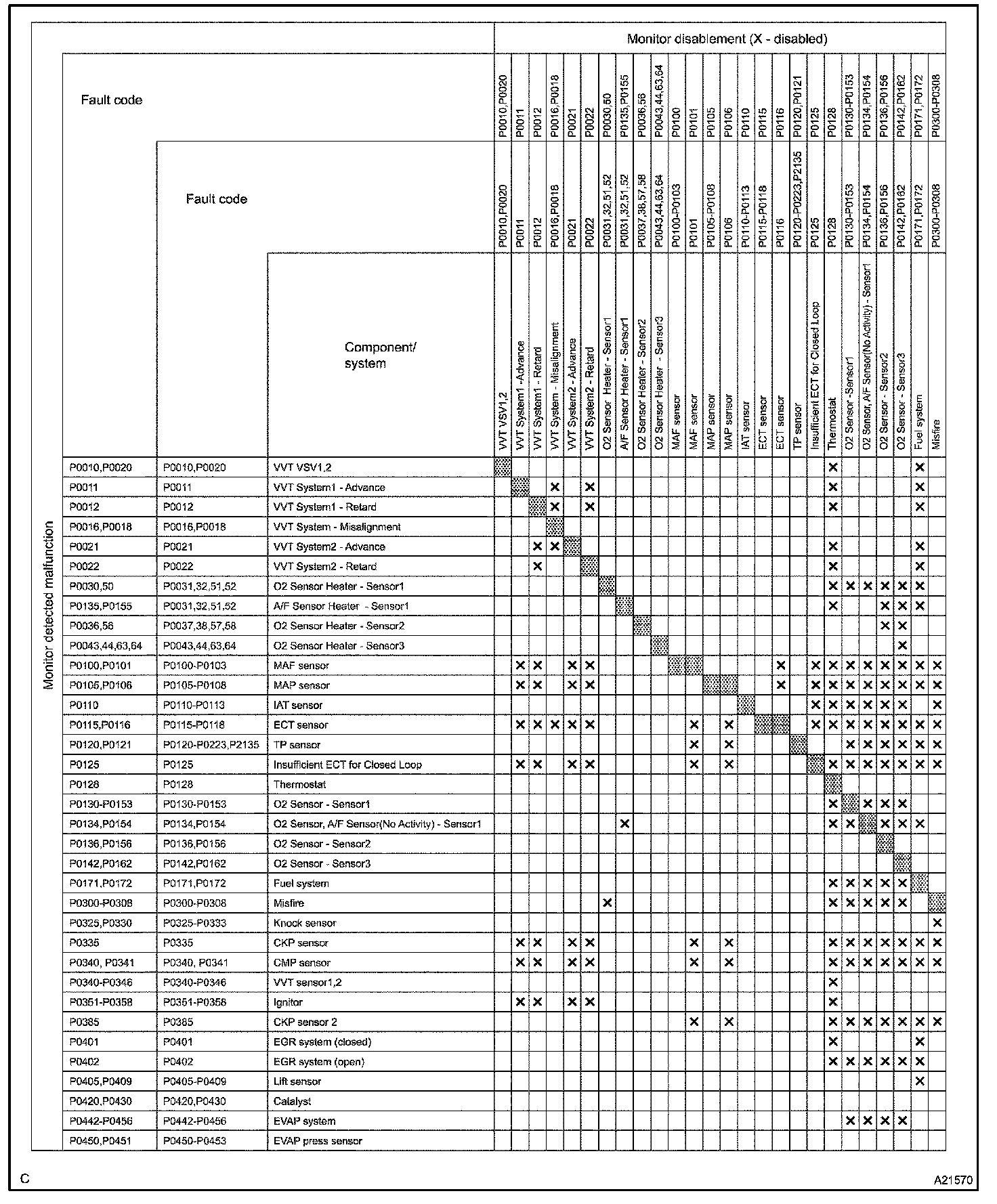

HINT: This table indicates ECM monitoring status for the items in the upper columns if the DTCs in each line on the left are being set.

Part 1:

Part 2:

Part 3:

Part 4:

Part 5:

Part 6:

As for the "X" mark, when the DTC on the left is stored, detection of the DTC in the upper column is not performed.
