Sensor Rotor
ON-VEHICLE REPAIR1. RAISE VEHICLE AND POSITION PAN TO CATCH ANY FLUID THAT MAY DRIP
2. REMOVE NO. 1 AND NO. 2 ENGINE UNDER COVERS
3. REMOVE LH FRONT FLOOR CENTER COVER
4. REMOVE NO. 1 REAR FLOOR BOARD
5. REMOVE EXHAUST PIPE
6. REMOVE PROPELLER SHAFT

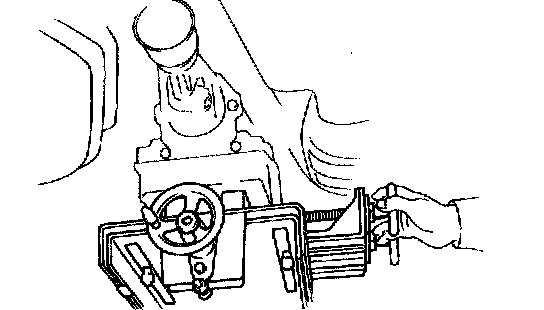

7. REMOVE VEHICLE SPEED SENSOR
8. JACK UP TRANSMISSION SLIGHTLY
Securely support the transmission on a transmission jack.
Lift the transmission slightly from the rear support member.

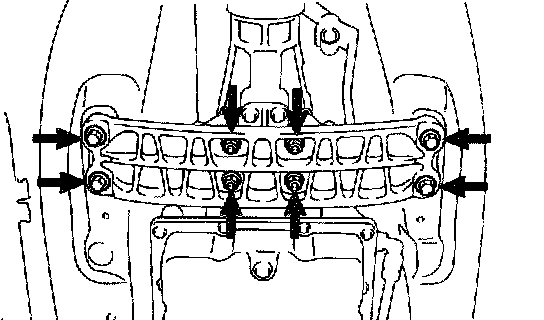

9. REMOVE ENGINE REAR SUPPORT MEMBER
a. Remove the 4 nuts.
b. Remove the 4 bolts and rear support member.

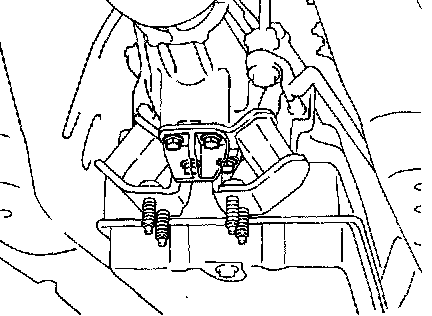

10. REMOVE TRANSMISSION MOUNTING BRACKET
Remove the 4 bolts and the transmission mounting bracket from the transmission.

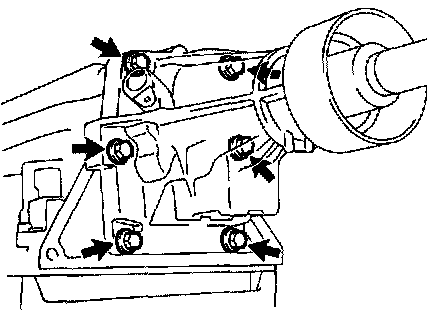

11. REMOVE EXTENSION HOUSING
a. Remove the 6 bolts.
b. Remove the extension housing.
HINT: If necessary, tap the extension housing with a plastic hammer.
c. Remove the extension housing gasket.

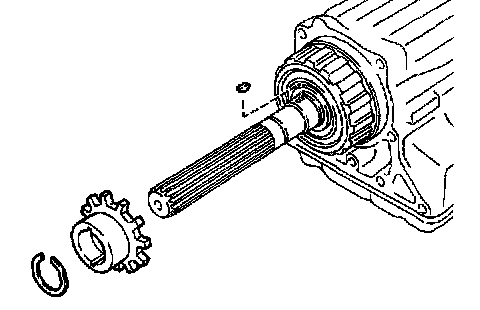

12. REMOVE SENSOR ROTOR AND KEY
a. Using a snap ring expander, remove the snap ring.
b. Remove the sensor rotor and key.
13. INSTALL KEY AND SENSOR ROTOR
a. Install the key and sensor rotor.
b. Using a snap ring expander, install a new snap ring.

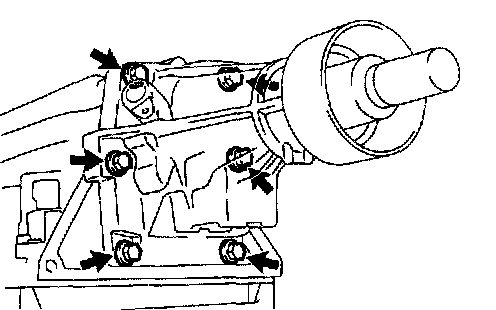

14. INSTALL EXTENSION HOUSING
a. Install a new extension housing gasket.
b. Install the extension housing with the 6 bolts.
Torque: 34 Nm (345 kgf-cm, 25 ft. lbs.)
HINT: Coat the thread of the all bolts with sealant.
Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

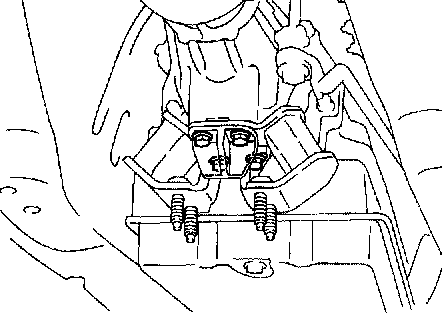

15. INSTALL TRANSMISSION MOUNTING BRACKET
Install the transmission mounting bracket with the 4 bolts to the transmission.
Torque: 12 Nm (120 kgf-cm, 9 ft. lbs.)
16. INSTALL ENGINE REAR SUPPORT MEMBER
a. Install the rear support member with the 4 bolts.
Torque: 25 Nm (260 kgf-cm, 19 ft. lbs.)
b. Install the 4 nuts.
Torque: 12 Nm (120 kgf-cm, 9 ft. lbs.)
17. REMOVE JACK
18. INSTALL VEHICLE SPEED SENSOR
19. INSTALL PROPELLER SHAFT
20. INSTALL EXHAUST PIPE
21. FILL ATF AND CHECK FLUID LEVEL
22. INSTALL NO. 1 REAR FLOOR BOARD
23. INSTALL LH FRONT FLOOR CENTER COVER
24. INSTALL NO. 1 AND NO. 2 ENGINE UNDER COVERS
