Seals and Gaskets: Service and Repair

ON-VEHICLE REPAIR
1. REMOVE NO. 1 AND NO. 2 ENGINE UNDER COVERS
2. REMOVE LH FRONT FLOOR CENTER COVER
3. REMOVE NO. 1 REAR FLOOR BOARD
4. REMOVE EXHAUST PIPE ASSEMBLY
5. REMOVE PROPELLER SHAFT





6. REMOVE REAR OIL SEAL

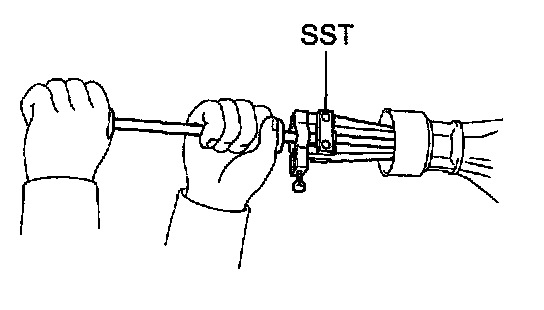

Using SST, remove the oil seal.
SST 09308-00010





7. INSTALL NEW OIL SEAL

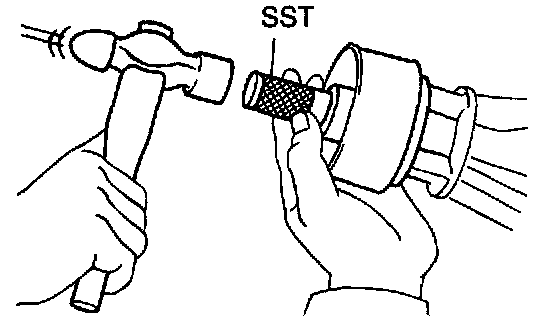

a. Using SST and a hammer, carefully drive a new oil seal in as far as it will go.
SST 09325-20010

NOTICE: Clean the extension housing before removing the oil seal.

b. Coat the lip of a new oil seal with MP grease.
8. INSTALL PROPELLER SHAFT
9. INSTALL EXHAUST PIPE ASSEMBLY
10. FILL ATF AND CHECK FLUID LEVEL
11. REMOVE NO. 1 REAR FLOOR BOARD
12. REMOVE LH FRONT FLOOR CENTER COVER
13. INSTALL NO. 1 AND NO. 2 ENGINE UNDER COVERS
