Replacement

REPLACEMENT

NOTICE: When using a vise, do not overtighten it.

1. IF NECESSARY, REPLACE OIL SEAL AND BEARING

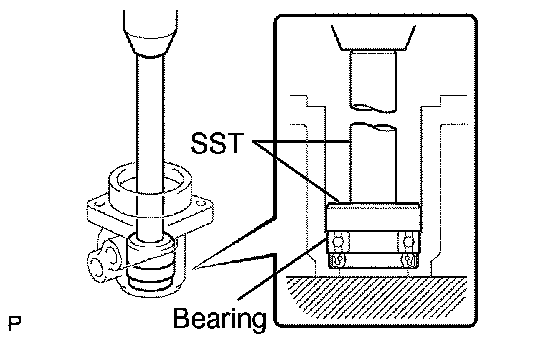

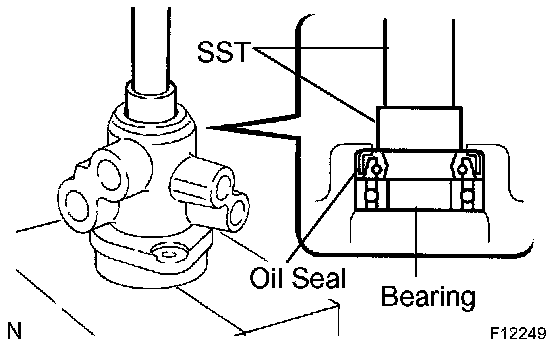

a. Using SST, press out the bearing and oil seal from the control valve housing.
SST 09950-60010 (09951-00240), 09950-70010 (09951-07100)





b. Coat a new oil seal lip with power steering fluid.

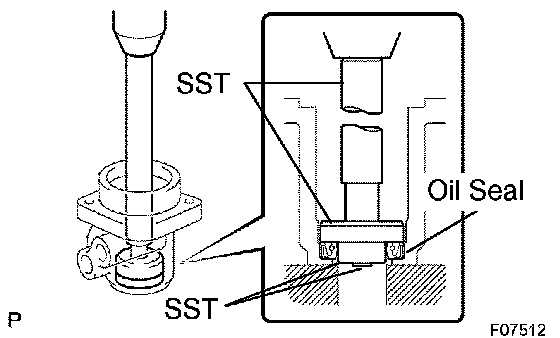

c. Using SST, press in the oil seal.
SST 09950-60010 (09951-00180, 09951-00320, 09952-06010), 09950-70010 (09951-07150)

NOTICE: Make sure that the oil seal is installed facing in the correct direction.





d. Coat a new bearing with molybdenum disulfide lithium base grease.
e. Using SST, press in the bearing.
SST 09950-60010 (09951-00340), 09950-70010 (09951-07150)
2. IF NECESSARY, REPLACE OIL SEAL

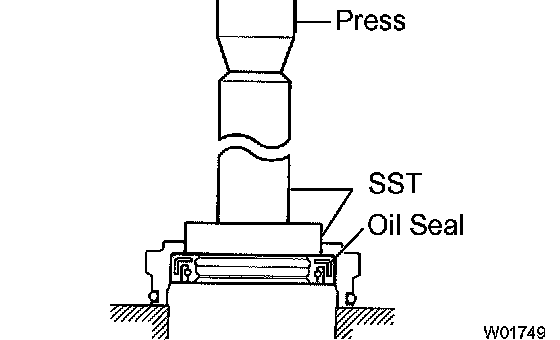

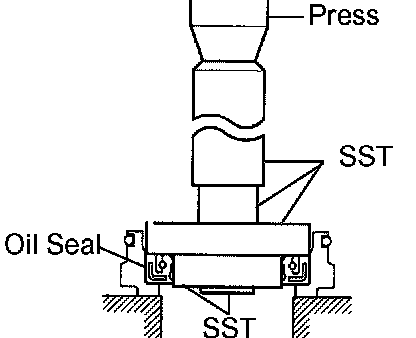

a. Using SST, press out the oil seal from the bearing guide nut.
SST 09950-60010 (09951-00310), 09950-70010 (09951-07100)





b. Coat a new oil seal lip with power steering fluid.
c. Using SST, press in the oil seal.
SST 09950-60010 (09951-00250, 09951-00360, 09952-06010), 09950-70010 (09951-07100)

NOTICE: Make sure that the oil seal is installed facing in the correct direction.

3. IF NECESSARY, REPLACE UNION SEAT

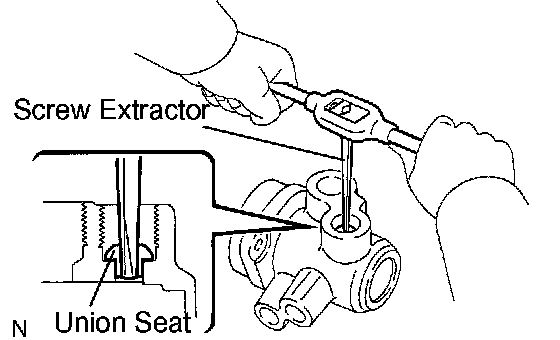

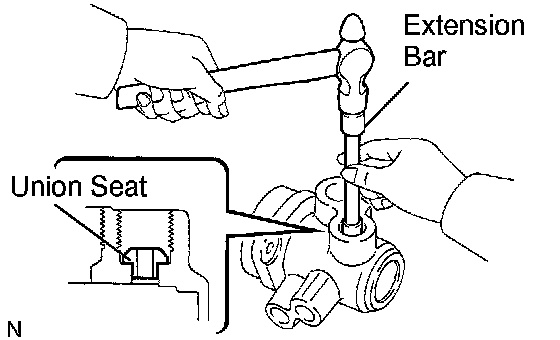

a. Using a screw extractor, remove the union seat from the control valve housing.





b. Using a plastic hammer and extension bar, lightly tap in a new union seat.





4. INSPECT BUSHING
a. Check the inside of the bushing of the cylinder end stopper for cracks. If faulty, replace the bushing.
b. Apply molybdenum disulfide lithium base grease to the inside of the bushing.





5. IF NECESSARY, REPLACE BUSHING

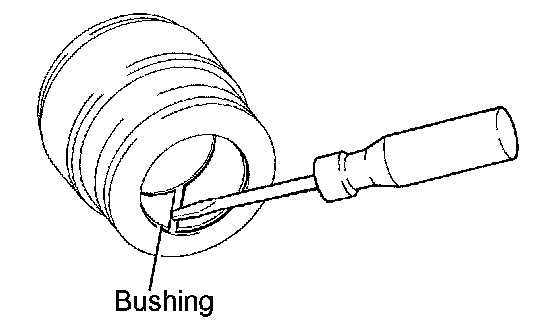

a. Using a screwdriver, remove the bushing from the cylinder end stopper.

NOTICE: Be careful not to damage the cylinder end stopper.

b. Coat the inside of a new bushing with molybdenum disulfide lithium base grease.

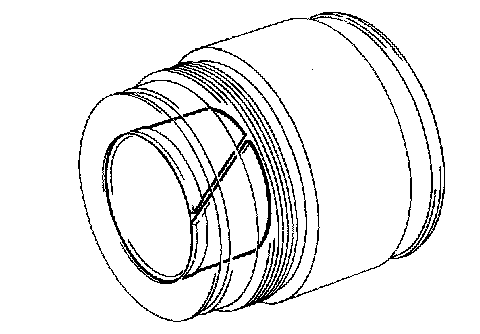

c. Install the bushing.
6. IF NECESSARY, REPLACE TEFLON RING AND O-RING

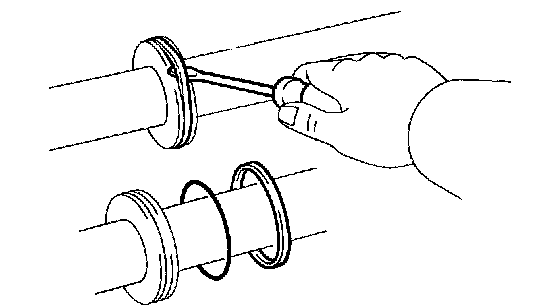

a. Using a screwdriver, remove the teflon ring and O-ring from the steering rack.

NOTICE: Be careful not to damage the groove for the teflon ring.

b. Coat a new O-ring with power steering fluid and install it to the steering rack.

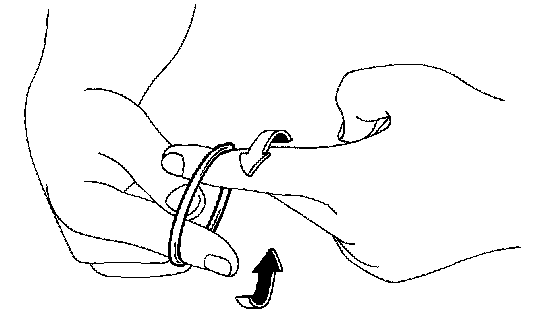

c. Expand a new teflon ring with your fingers.

NOTICE: Be careful not to overexpand the teflon ring.





d. Coat the teflon ring with power steering fluid.

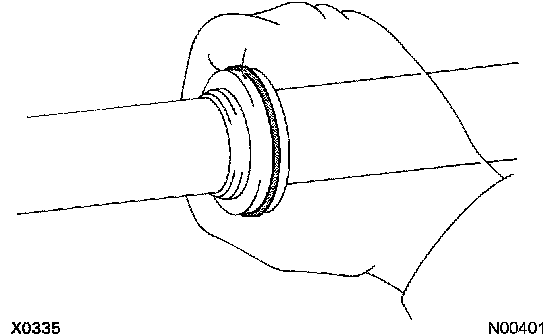

e. Install the teflon ring to the steering rack and settle it down with your fingers.

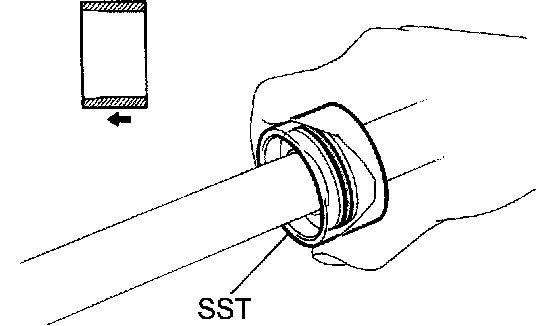

f. Carefully slide the tapered end of SST over the teflon ring until it fits to the steering rack.
SST 09630-24014 (09620-24051)

NOTICE: Be careful not to damage the teflon ring.

7. IF NECESSARY, REPLACE 4 TEFLON RINGS

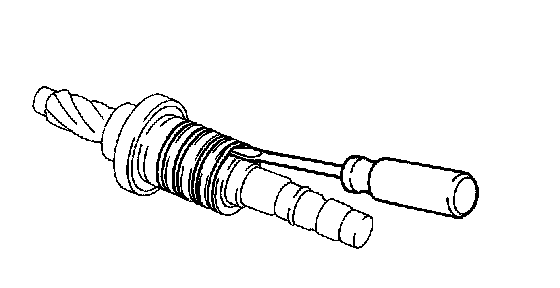

a. Using a screwdriver, remove the 4 teflon rings from the control valve assembly.

NOTICE: Be careful not to damage the grooves for the teflon ring.

b. Expand 4 new teflon rings with your fingers.

NOTICE: Be careful not to overexpand the teflon ring.

c. Coat the teflon rings with power steering fluid.
d. Install the teflon rings to the control valve assembly, and settle them down with your fingers.

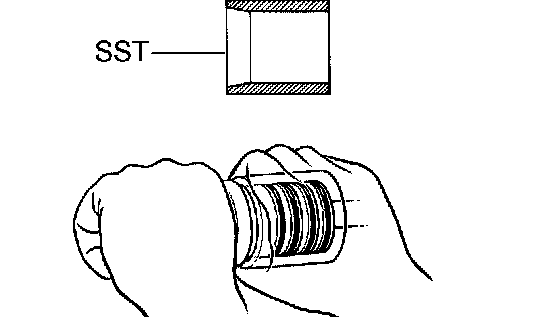

e. Carefully slide the tapered end of SST over the teflon rings until they fit to the control valve assembly.
SST 09631-20081

NOTICE: Be careful not to damage the teflon rings.
