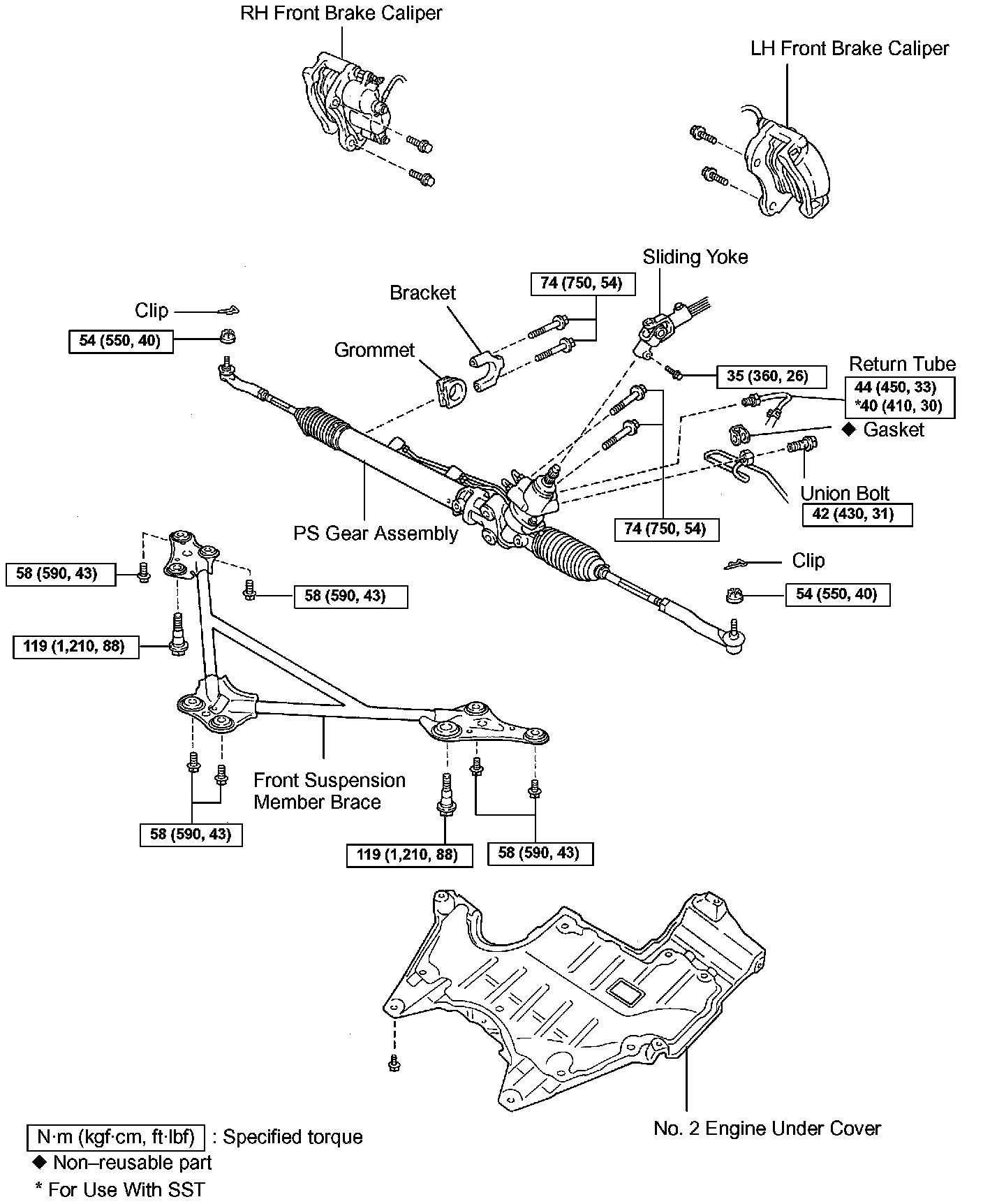

REMOVAL
1. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
2. REMOVE STEERING WHEEL PAD
3. REMOVE STEERING WHEEL
4. REMOVE RH AND LH FRONT BRAKE CALIPERS
5. DISCONNECT RH AND LH TIE ROD ENDS
6. REMOVE NO. 2 ENGINE UNDER COVER
7. DISCONNECT SLIDING YOKE

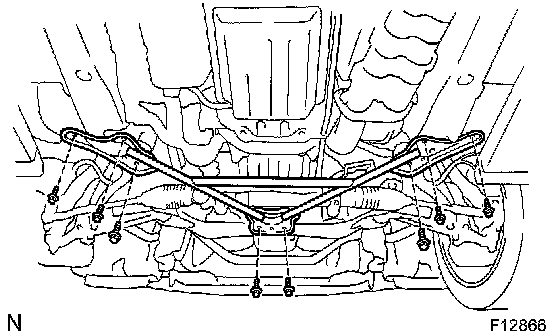

8. REMOVE FRONT SUSPENSION MEMBER BRACE
Remove the 8 bolts and front suspension member brace.

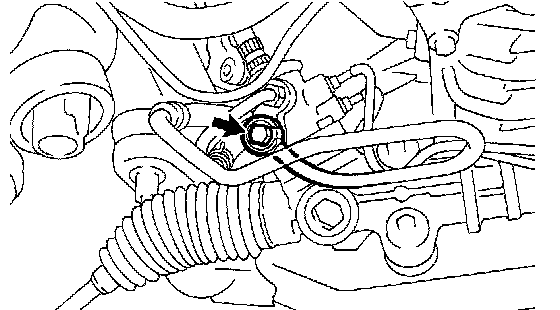

9. DISCONNECT PRESSURE FEED TUBE
Remove the union bolt and gasket, and disconnect the pressure feed tube.

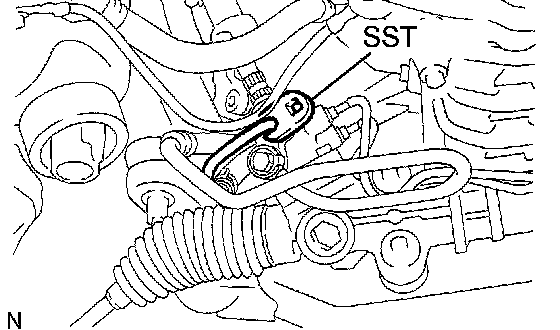

10. DISCONNECT RETURN TUBE
Using SST, disconnect the return tube.
SST 09023-38400
11. REMOVE PS GEAR ASSEMBLY, BRACKET AND GROMMET
Remove the 4 bolts, PS gear assembly, bracket and grommet.
