Inspection

INSPECTION

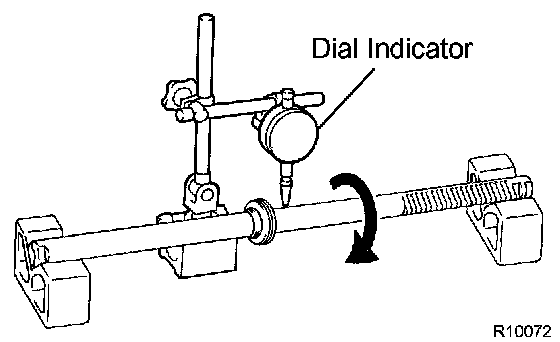

1. INSPECT STEERING RACK
a. Using a dial indicator, check the steering rack for runout and for teeth wear and damage.
Maximum runout: 0.15 mm (0.0059 inch)
b. Check the back surface for wear and damage.





2. INSPECT BEARING
a. Check the bearing rotation condition and check for abnormal noise.
If the bearing is worn or damaged, replace the control valve assembly.
b. Coat the bearing with molybdenum disulfide lithium base grease.
