Replacement

REPLACEMENT

NOTICE: When using a vise, do not overtighten it.

1. IF NECESSARY, REPLACE OIL SEAL

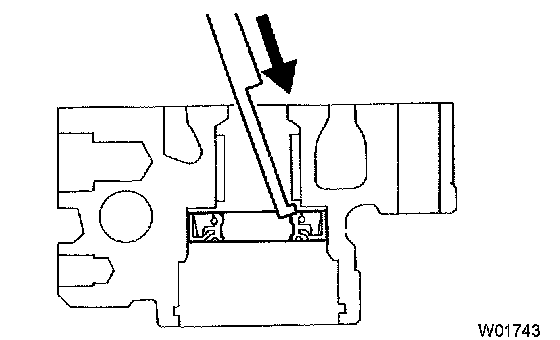

a. Using SST, tap out the oil seal from the front housing.
SST 09631-10030

NOTICE: Be careful not to damage the bushing of the front housing.





b. Coat a new oil seal lip with power steering fluid.

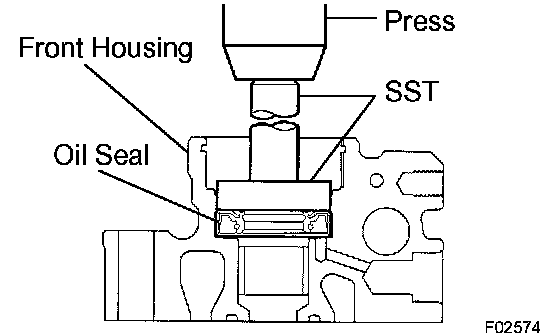

c. Using SST, press in the oil seal.
SST 09950-60010 (09951-00330), 09950-70010 (09951-07100)

NOTICE: Make sure that the oil seal is installed facing in the correct direction.





2. IF NECESSARY, REPLACE BEARING

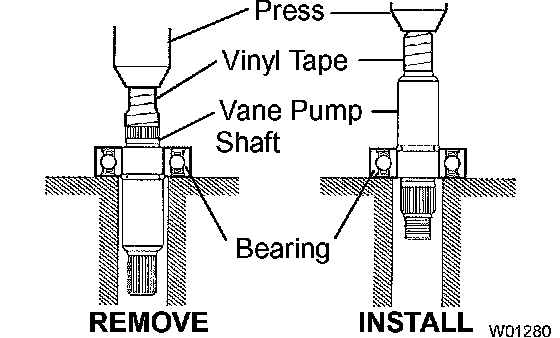

a. Press out the bearing from the vane pump shaft.
b. Using snap ring expander, replace the snap ring with new one.

NOTICE: Be careful not to damage the shaft.

c. Coat a new bearing with power steering fluid.
d. Press in the bearing to the shaft.
