Removal

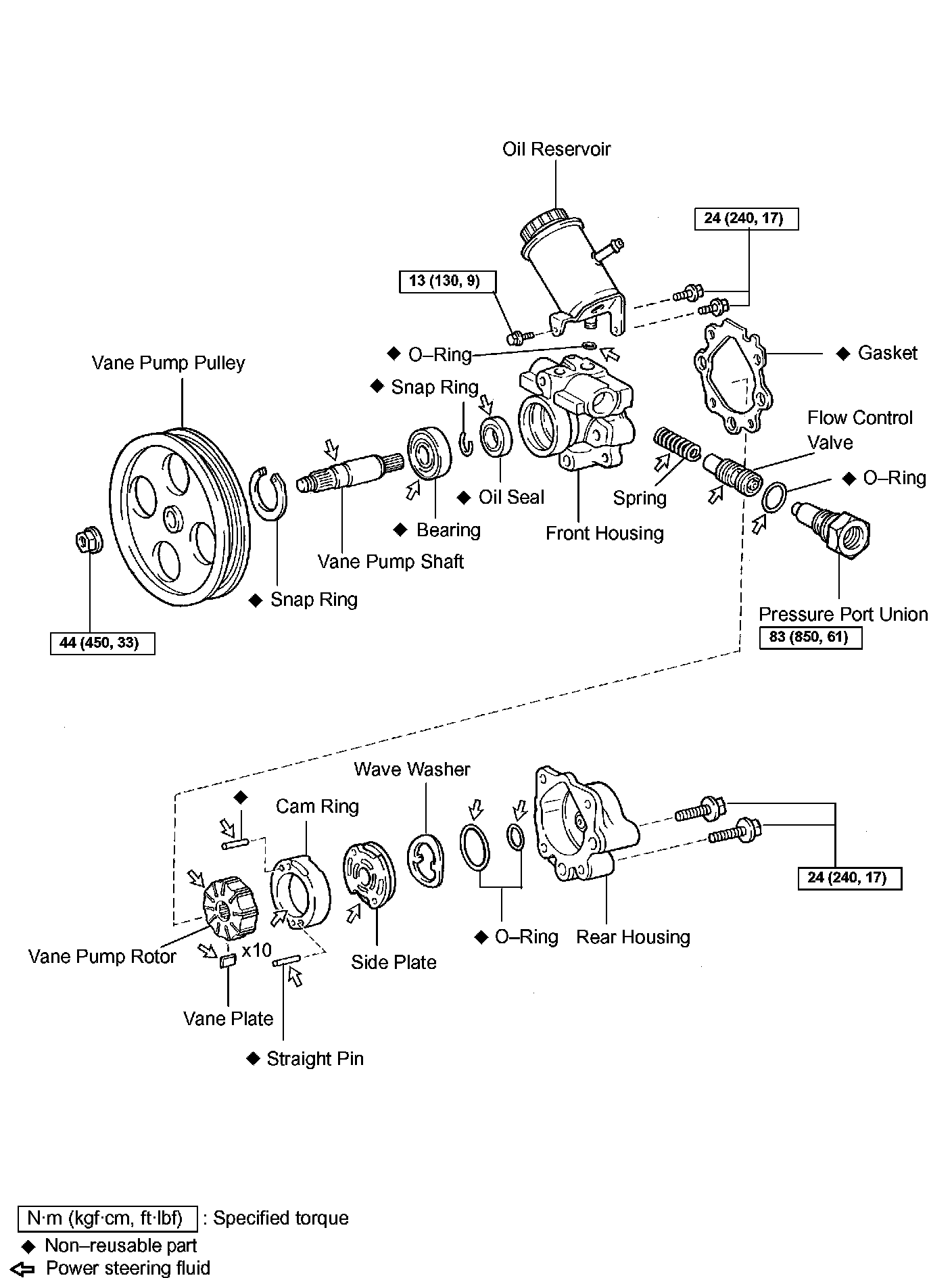

Part 1:

Part 2:

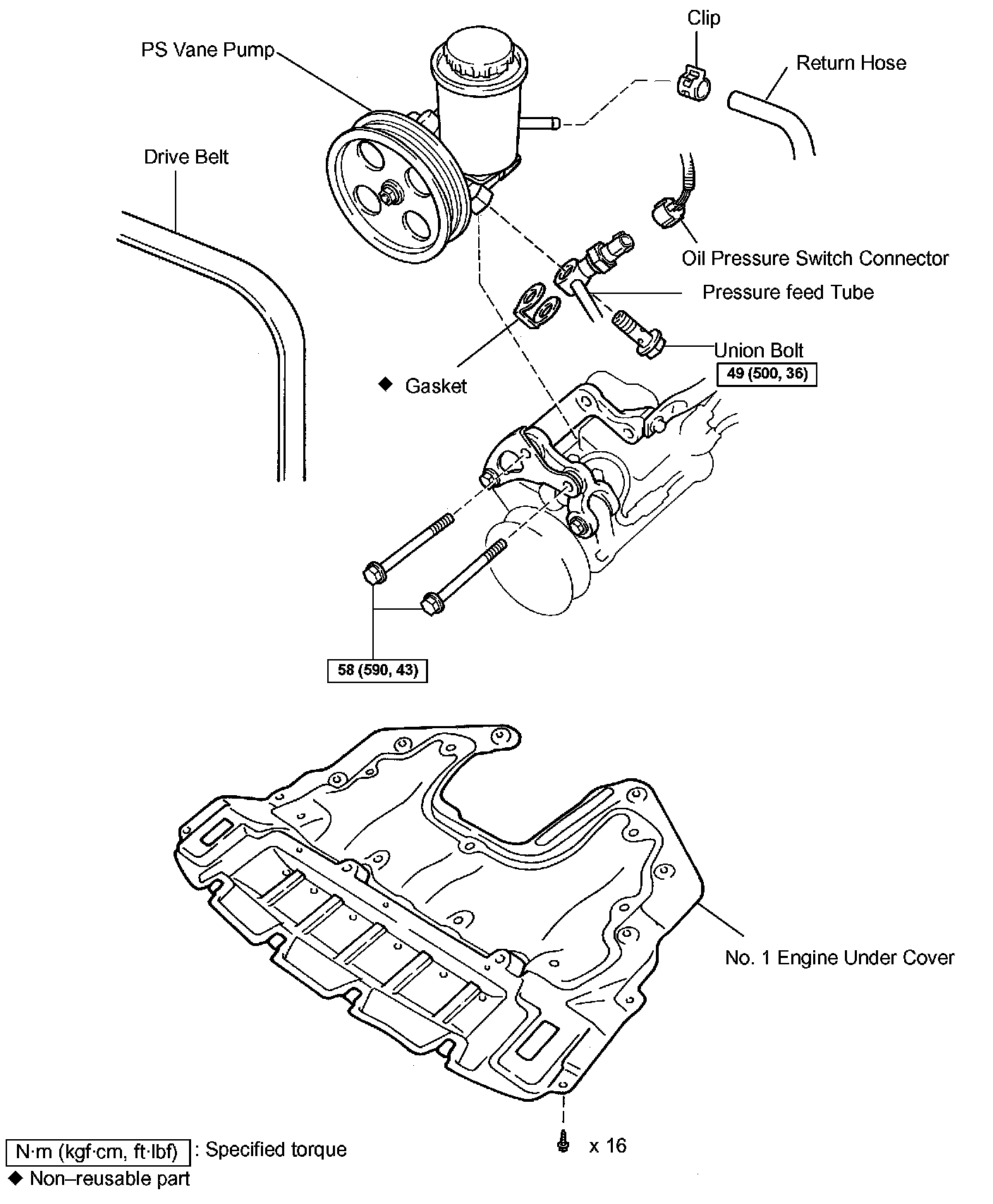

REMOVAL
1. REMOVE NO. 1 ENGINE UNDER COVER
Remove the 16 screws, clip and No. 1 engine under cover.

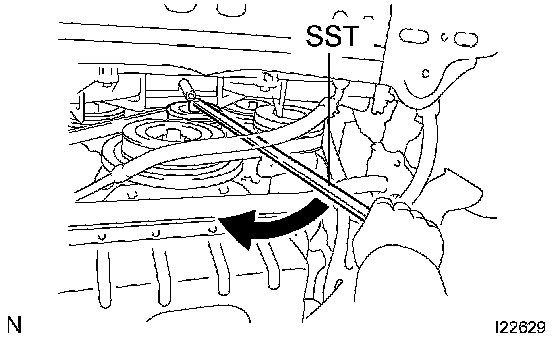

2. REMOVE DRIVE BELT
Using SST, loosen the drive belt tension by turning the drive belt tensioner clockwise from the bottom side, and remove the drive belt.
SST 09216-00041
3. DISCONNECT OIL PRESSURE SWITCH CONNECTOR
4. DISCONNECT RETURN HOSE
Remove the clip and disconnect the return hose.

NOTICE: Take care not to spill fluid on the drive belt and oil pressure switch connector.

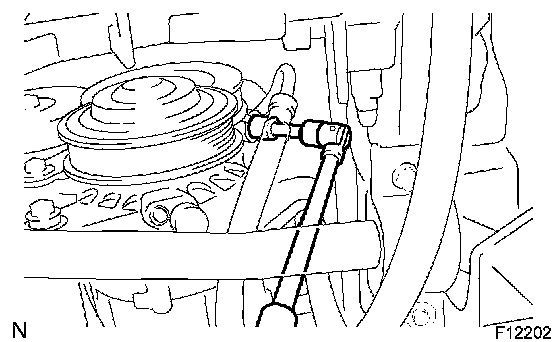

5. DISCONNECT PRESSURE FEED TUBE
Remove the union bolt and gasket and disconnect the pressure feed tube.

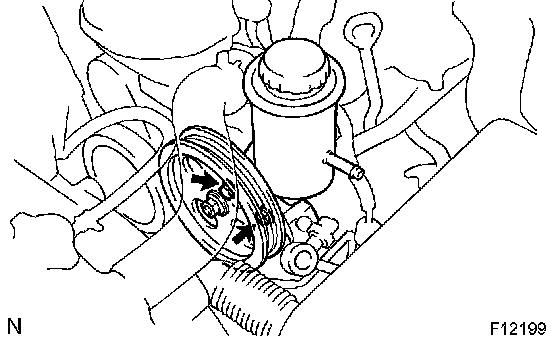

6. REMOVE PS VANE PUMP ASSEMBLY
Remove the 2 bolts and PS vane pump assembly.
