Removal and Installation

REMOVAL

1. REMOVE ENGINE UNDER COVER

2. M/T:
REMOVE DRIVE BELT TENSIONER ABSORBER
Remove the 2 nuts and absorber

Torque: 20 N.m (200 kgf.cm, 14 ft.lbf)




3. REMOVE DRIVE BELT
Using SST, loosen the belt tension by turning the drive belt tensioner clockwise from the bottom side, and remove the drive belt.
SST 09216-00041

NOTE: At the time of installation, please refer to the following items. Do an on-vehicle inspection.

4. REMOVE GENERATOR




a. Disconnect the generator connector.
b. Remove the rubber cap and nut, and disconnect the generator wire.

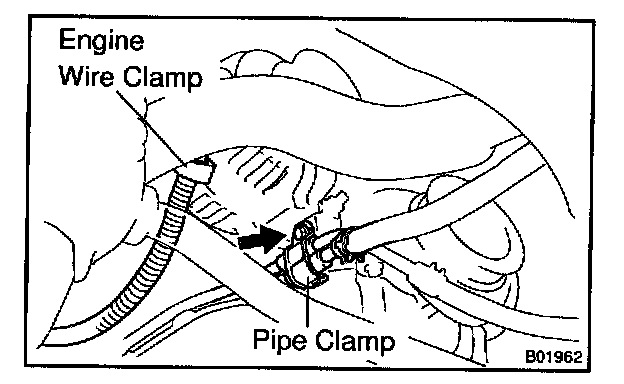

c. Disconnect the engine wire clamp from the wire clip on the generator.
d. Remove the bolt and pipe clamp, and disconnect the 2 A/T oil cooler pipes from the generator.

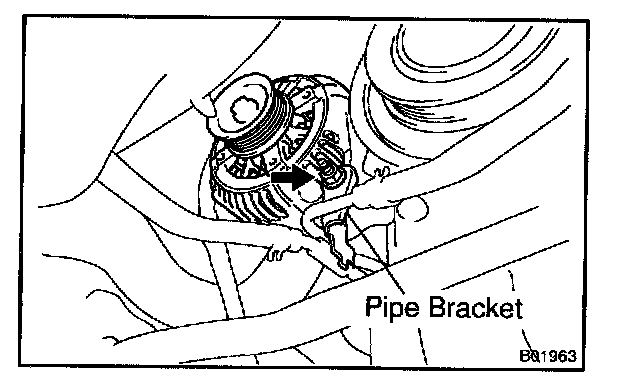

e. Remove the bolt, nut, pipe bracket and generator.

Torque: 40 N.m (400 kgf.cm, 30 ft.lbf)

INSTALLATION
Installation is in the reverse order of removal.
