Home >> Lexus >> 2005 >> IS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Manual Transmission/Transaxle

Manual Transmission/Transaxle

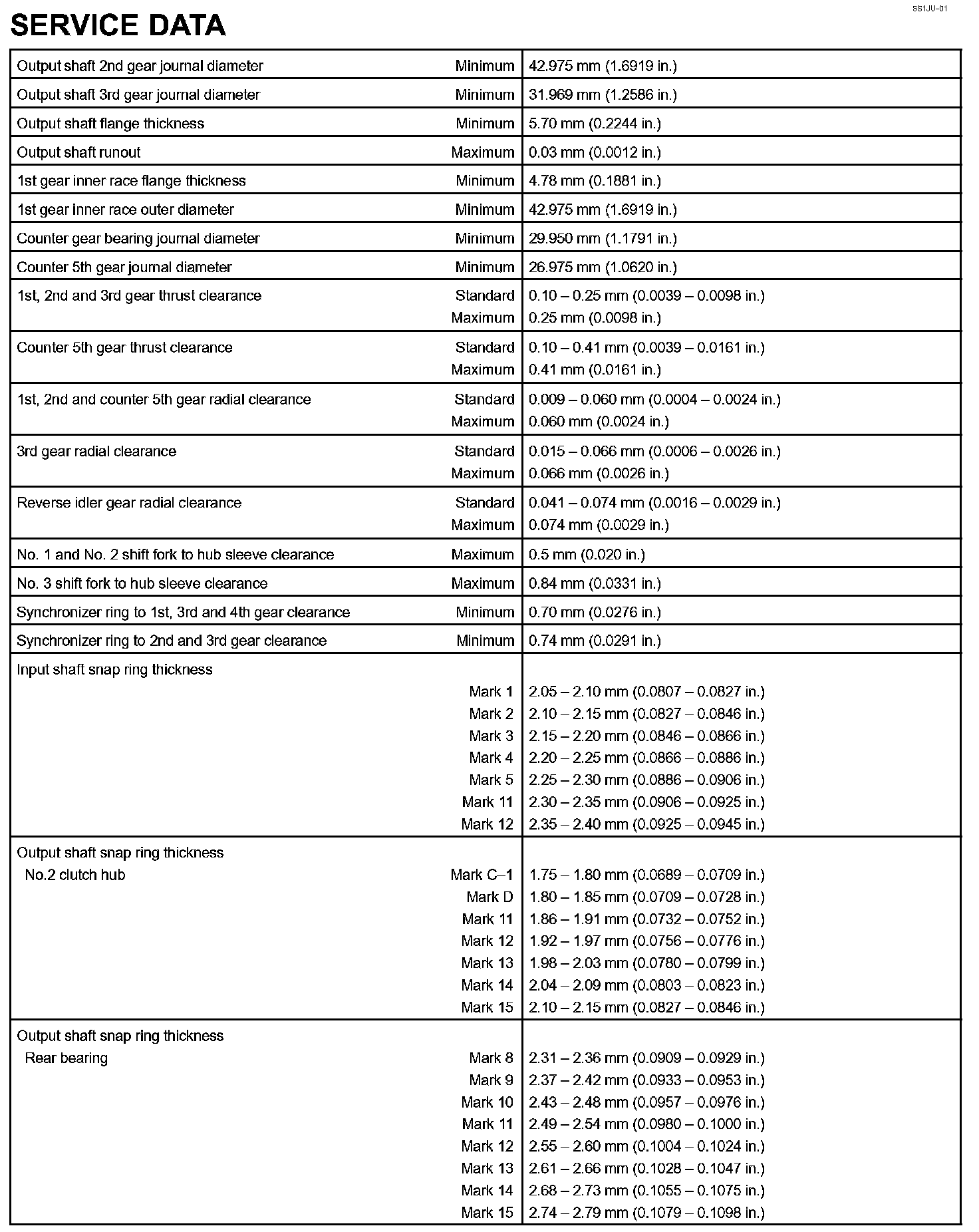

Manual Transmission - Service Data Part 1:

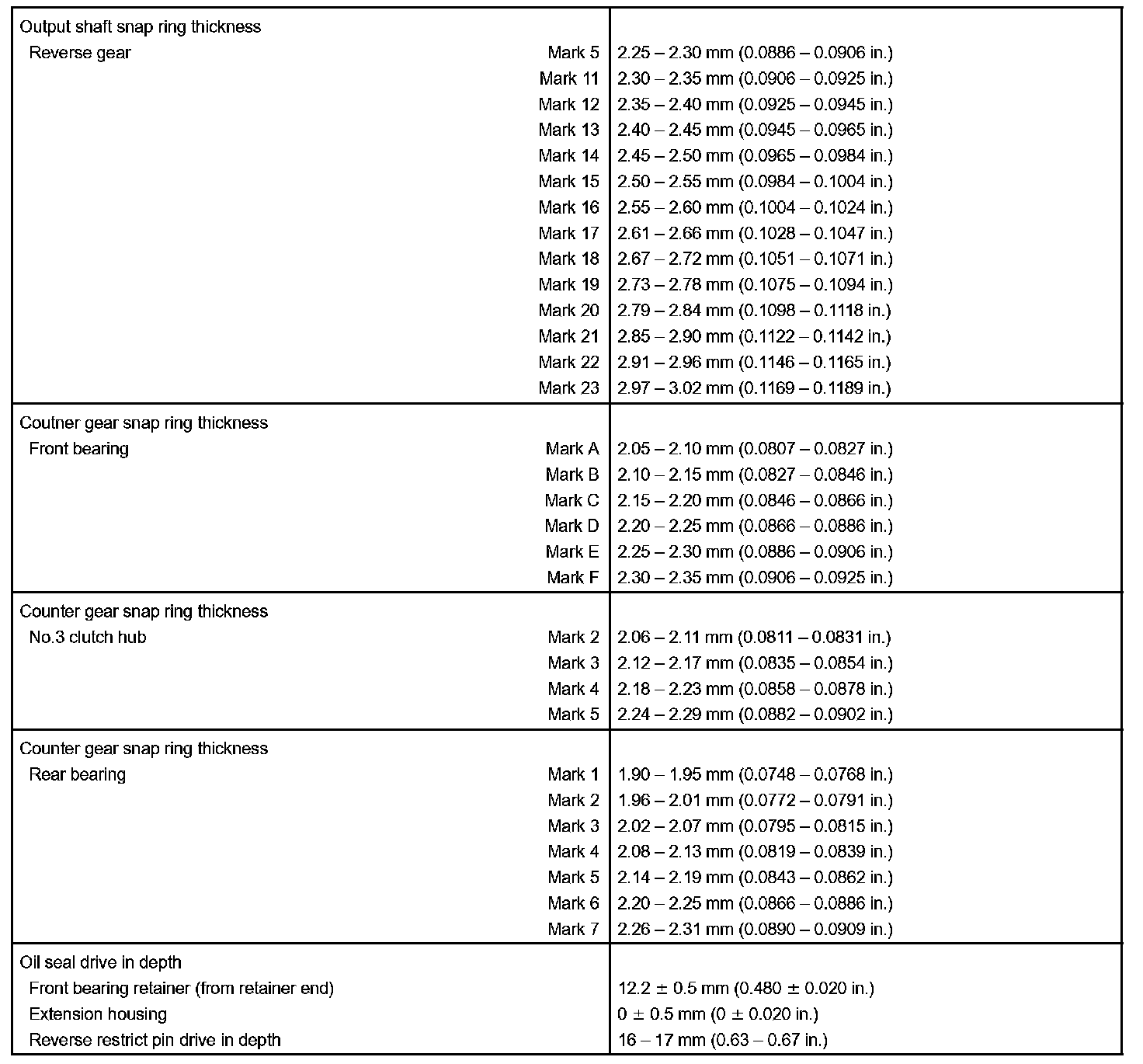

Manual Transmission - Service Data Part 2:

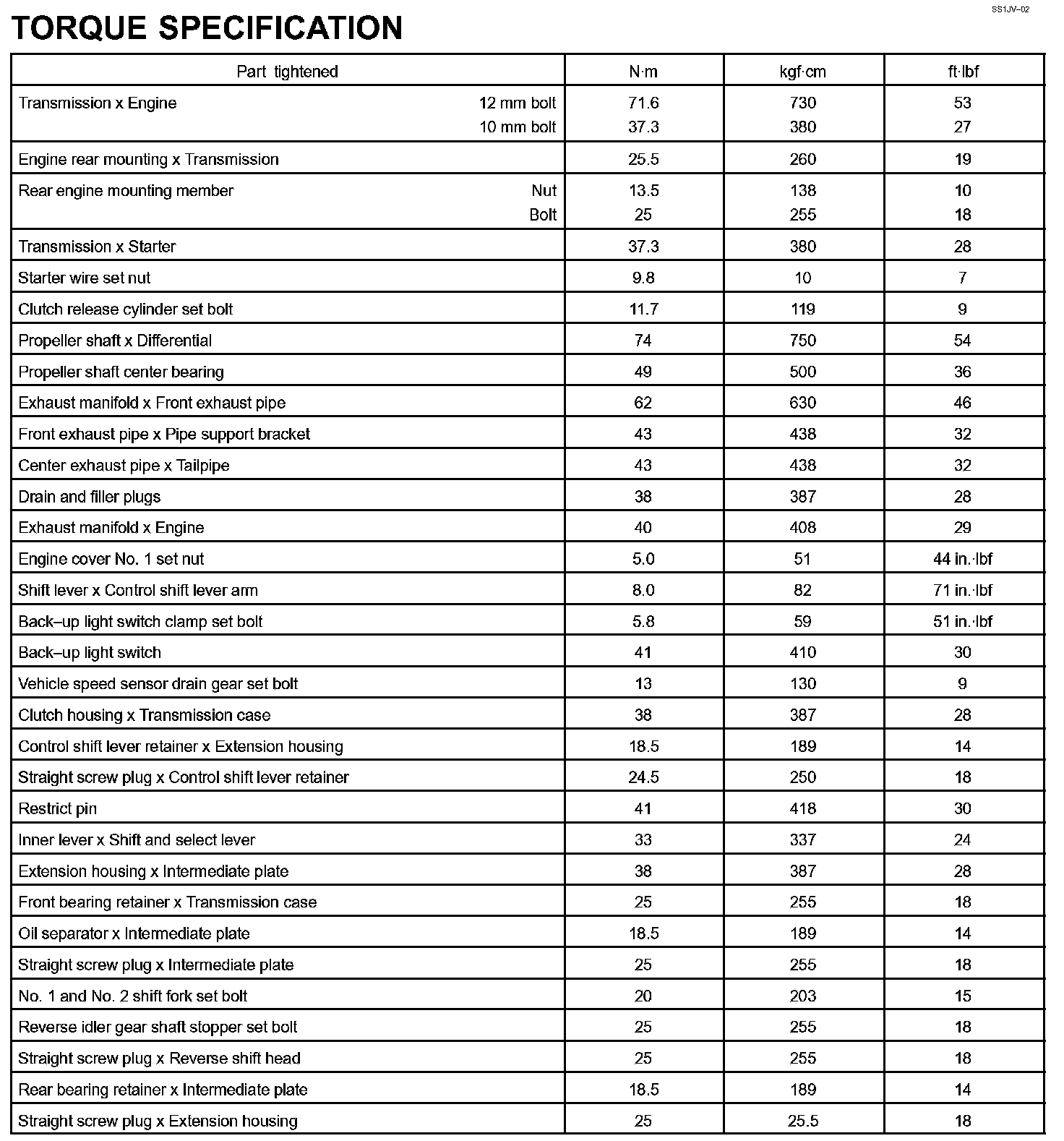

Manual Transmission - Torque Specification:
