Home >> Lexus >> 2005 >> IS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Torque Specifications

Torque Specifications

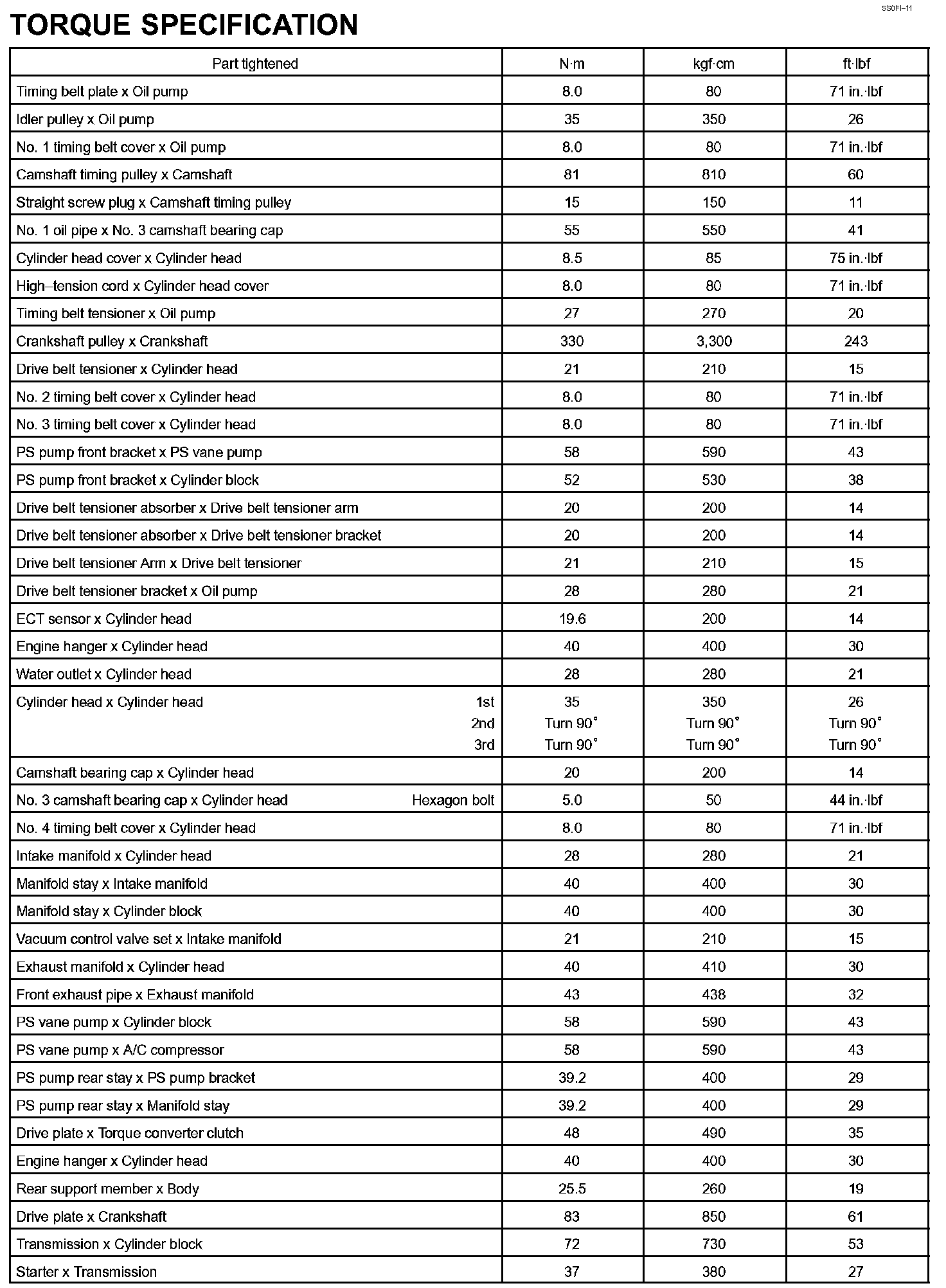

Engine Mechanical - Torque Specification Part 1:

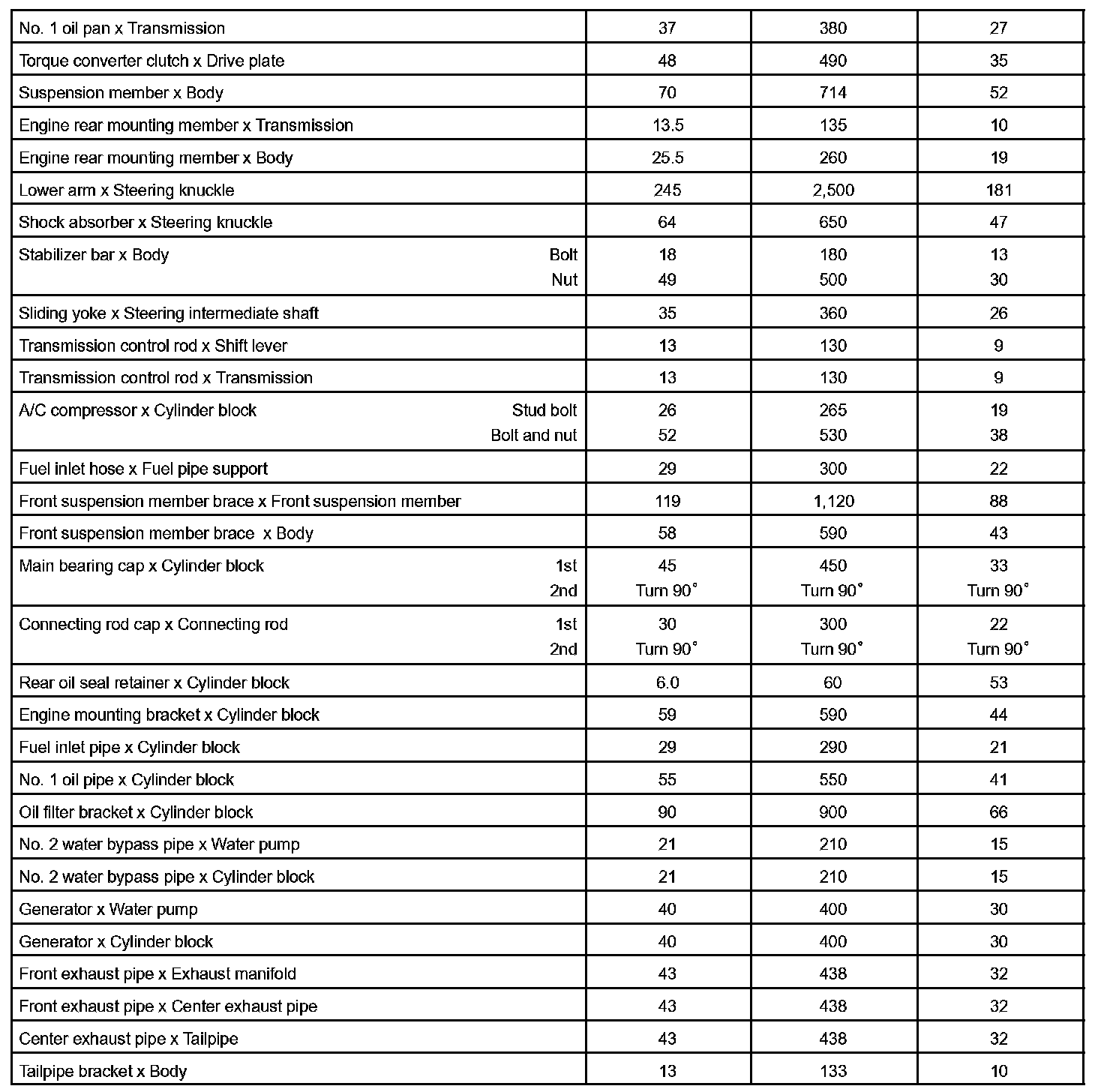

Engine Mechanical - Torque Specification Part 2:





Engine Mechanical - Torque Specification
