For Vehicle Equipped With Vehicle Skid Control (Vsc) System

FOR VEHICLES EQUIPPED WITH VEHICLE SKID CONTROL (VSC) SYSTEM

NOTE: When using 2-wheel drum tester such as a speedometer tester or chassis dynamometer, etc., or jacking up the front wheels and driving the wheels, always push in the VSC OFF switch to turn the VSC system OFF.





a. Press the VSC OFF switch.

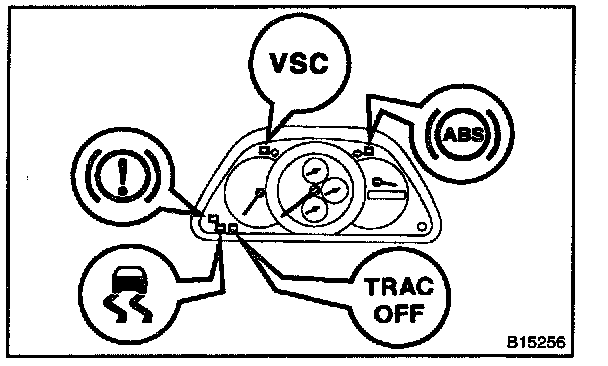

b. Check that the VSC OFF indicator light comes ON.

HINT: The VSC OFF indicator light should be always OFF when the engine is restarted.





c. Begin measurements.

d. Press the VSC OFF switch again to change the VSC system to operational condition and check that the VSC OFF indicator light goes off.

HINT: The SLIP indicator light blinks and the VSC buzzer sounds when the VSC system is operational.
