Removal and Installation
Airbag Sensor Assembly:
REMOVAL
NOTE: Do not open the cover or the case of the ECU and various electrical devices unless absolutely necessary.
(If the IC terminals are touched, the IC may be destroyed by static electricity.)
HINT:
1. REMOVE FLOOR SHIFT LEVER KNOB
2. REMOVE UPPER CONSOLE PANEL
3. REMOVE CENTER REGISTER OPENING COVER
4. REMOVE CENTER CLUSTER FINISH PANEL
5. REMOVE LOWER CENTER CLUSTER FINISH PANEL
6. REMOVE A/C CONTROL WITH RADIO RECEIVER ASSEMBLY
7. REMOVE PARKING BRAKE HOLE COVER
8. REMOVE CONSOLE BOX
9. REMOVE CONTROL POSITION INDICATOR PLATE
a. Disconnect the connector.
b. Disconnect the engagement of the claw at 4 positions and remove the control position indicator plate.
10. REMOVE AIRBAG SENSOR ASSEMBLY
a. Disconnect the 3 airbag sensor assembly connectors.
NOTE: Disconnect the connectors with the sensor assembly installed.

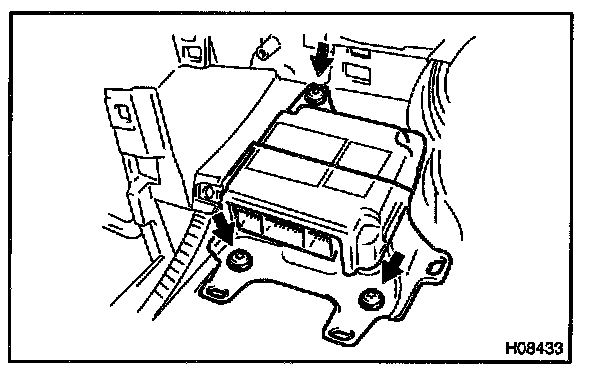

b. Using a torx wrench, remove the 3 screws and airbag sensor assembly.
Torx wrench: T40 (Part No.09042-00020 or locally manufactured tool)
INSTALLATION
NOTE:
- Never use SRS parts from another vehicle. When replacing parts, replace them with new parts.
- Never reuse the airbag sensor assembly involved in a collision when the airbag has deployed.
- Never repair a sensor in order to reuse it.
1. INSTALL AIRBAG SENSOR ASSEMBLY

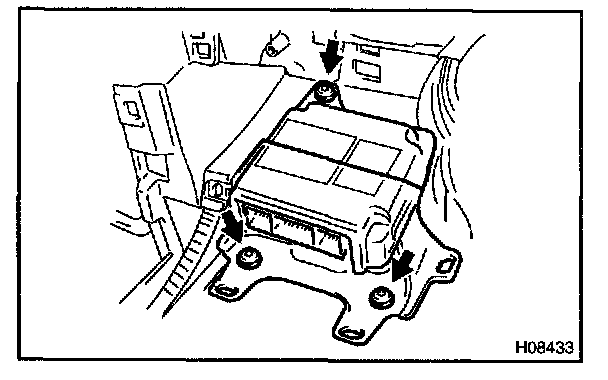

a. Using a torx wrench, install the airbag sensor assembly with the 3 screws.
Torx wrench: T40 (Part No.09042-00020 or locally manufactured tool)
Torque: 20 N.m (205 kgf.cm, 15 ft.lbf)
b. Connect the 3 airbag sensor assembly connectors.
NOTE:
- Connection of the connector is done after the sensor assembly has been installed.
- Make sure the sensor assembly is installed with the specified torque.
- If the sensor assembly has been dropped, or there are cracks, dents or other defects in the case, bracket or connector, replace the sensor assembly with a new one.
- When installing the sensor assembly, take care that the SRS wiring does not interfere with other parts and is not pinched between other parts.
- After installing, shake the sensor assembly to check that there is no looseness.
2. INSTALL CONTROL POSITION INDICATOR PLATE
a. Connect the engagement of the claw at 4 positions and install the control position indicator plate.
b. Connect the connector.
3. INSTALL CONSOLE BOX
4. INSTALL PARKING BRAKE HOLE COVER
5. INSTALL A/C CONTROL WITH RADIO RECEIVER ASSEMBLY
6. INSTALL LOWER CENTER CLUSTER FINISH PANEL
7. INSTALL CENTER CLUSTER FINISH PANEL
8. INSTALL CENTER REGISTER OPENING COVER
9. INSTALL UPPER CONSOLE PANEL
10. INSTALL FLOOR SHIFT LEVER KNOB
